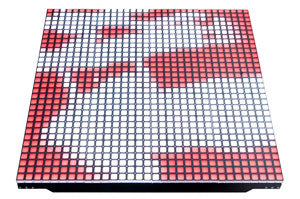

EVLED1024SMDF
EVLED1024SMDF
3-1 SMD Tri-Color LED Technology 1,100lbs per tile section weight bearing Aluminum Alloy structure w/ rugged diffused surface protecting LED Power / Data Linkable Video signal supplied via Ethernet from EVLED VSC Multi-Voltage power input 90-240v 20mm pixel pitch Panel Clip lock system
Specifications
Maximum Weight Load: 1,100lbs / 500 kg.
Tile Dimensions: 25.2” x 25.2” x 4” / 640x640x103 mm
Tile Weight: 44 lbs. / 20 kg
Tile Area: 0.4096m2/tile
Pixel Pitch: 20mm
Luminosity: 1500 nits
Color Temperature: 6500 k
Visual Angle: 110°/110° (50% brightness)
Visual Range: 160°/160°
Pixel Configuration: 1R 1G 1B (3-in-1 SMD)
Tile Resolution: 32 x 32 pixels/tile
Pixel Resolution: 2500 pixels/m2
LED Quantity: 2500 LEDs/ m2 (3-in-1)
Number of Colors: 16M
Processing Depth: 14 bits
Contrast Ratio: 1,500:1
LED Life Span rating: 100,000 hours
Frame Rate: 60Hz
Data Refresh Rate: 800Hz
Display Mode: synchronous with video source
Drive Mode: Static, Constant Current Drive
Power Supply: AC 90-240V, 50Hz or 60Hz (with PFC)
Power Consumption: 750 w/m2 (max); 400 w/m2 (average)
Ingress Protection: front: IP65, back: IP65
Ambient Temperature: -20° to 50°C
Relative Humidity: 10 – 99%
