FLEX LED PSU4A
FLEX LED PSU4A
Discontinued
SKU# FLEX PSU4A

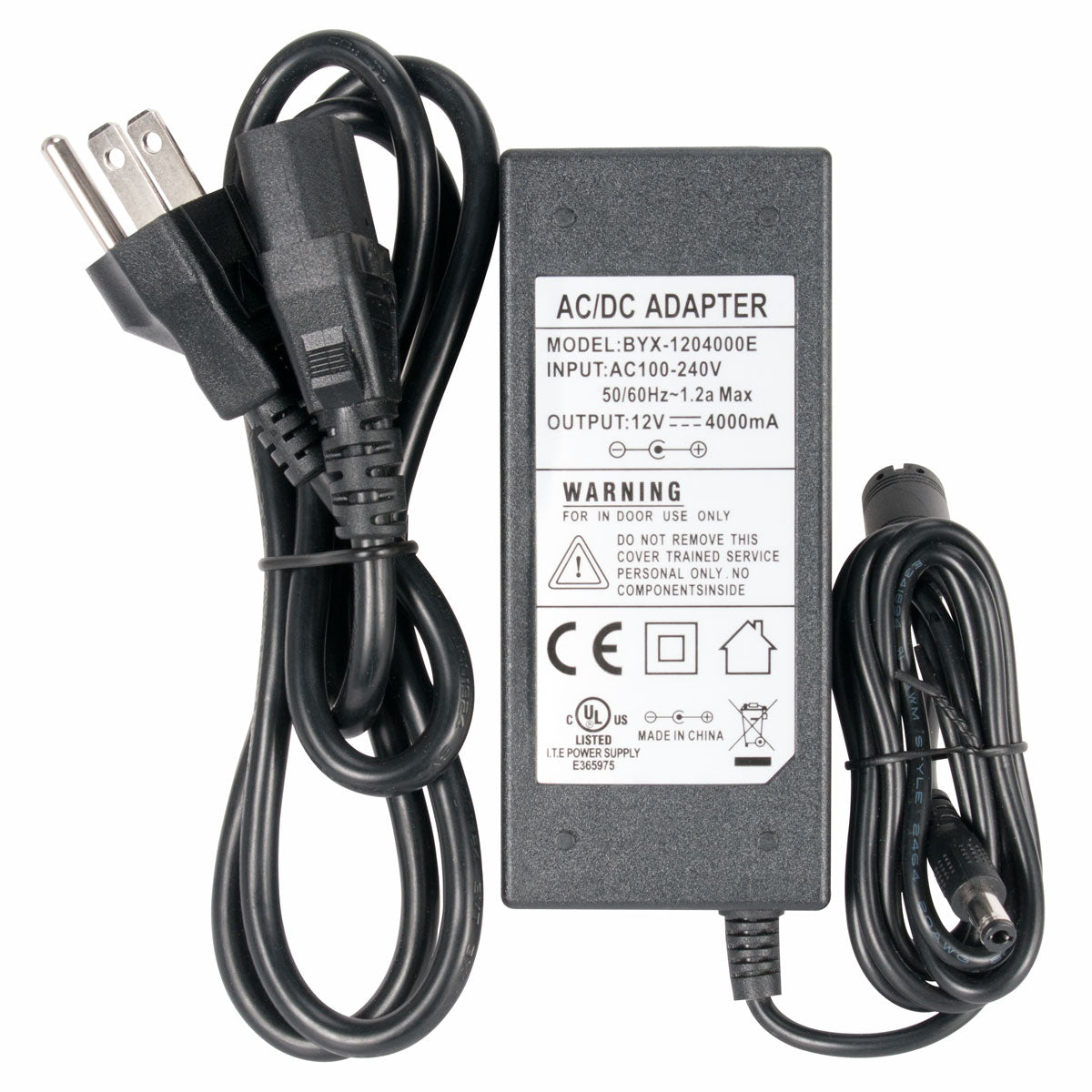

The FLEX LED PSU4A™ is a UL® listed multi-voltage auto switching 12volt / 4amp (100-240v 50/60Hz) external power supply that supports Elation’s FLEX LED Tape Series products. It features a standard 0.22” (5.5mm) DC barrel connector on one end, a standard 3pin electrical plug on the other end.
Specifications
CONNECTIONS
Power IN Cable: 3pin Electrical Plug (46.0" / 117cm)
Power OUT Cable: DC 0.22” (5.5mm) Barrel Connector (50.0" / 127cm)
SIZE / WEIGHT**
Length: 4.72" (120mm)
Width: 2.04" (51mm)
Height: 1.25" (38.1mm)
Weight: 0.8 lbs. (0.4kg)
**Actual product may vary.
ELECTRICAL
Power Input: 100-24VDC 50/60Hz
Power Output: 12V - 4A
APPROVALS
UL® Listed
Specifications and documentation subject to change without notice.
