FLEX PIXEL P14WP
FLEX PIXEL P14WP

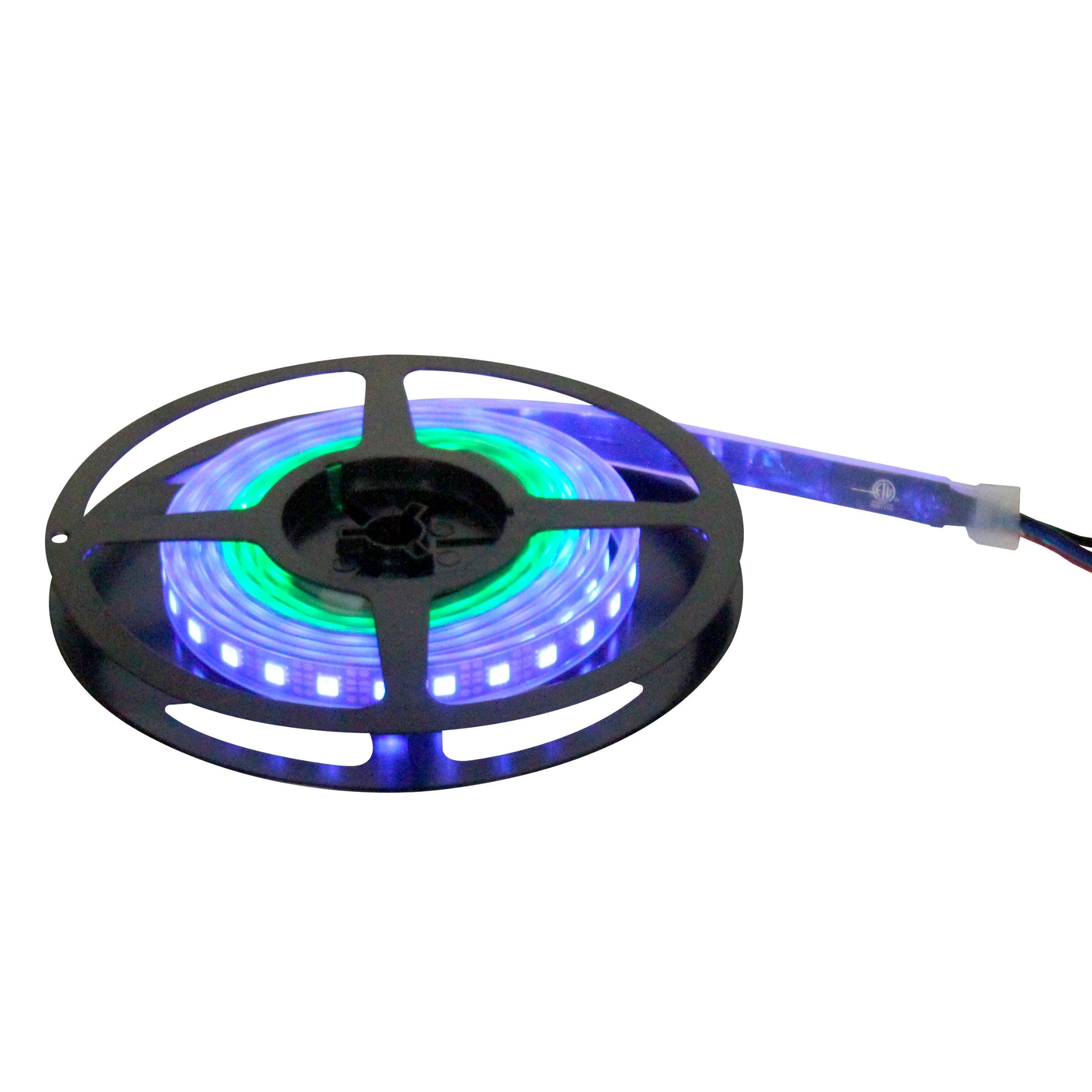

The FLEX PIXEL P14WP™ is an outdoor rated 6.6 foot (2m) flexible LED pixel tape featuring (144) RGB SMD tri-color LED pixels (432 total DMX channels) spaced on 0.55” (14mm) centers, producing over 1 billion color possibilities with a 120° viewing angle, enclosed in an IP65 rated waterproof flexible cover which can be cut and extended every 2” (51mm), and mountable to most surfaces using Elation’s FLEX CHANNEL™ line of aluminum mounting tracks.
Each FLEX PIXEL P14WP tape is powered by an optional FLEX PIXEL 5VPSU™ 5V universal auto switching power supply (110-240v), and can be controlled using one of Elation’s optional LED tape drivers including FLEX PIXEL DRIVER™, FLEX PIXEL IRC™, or EZ KLING™, and is also compatible with Kling Force LED, DiGidot C4, and MediaMaster.
Features
IP65 Outdoor Rated Flexible LED Pixel Tape
6.6 foot (2m) Roll
(144) RGB Tri-Color SMD LED Pixels
(432) Total DMX Channels
Pixels Spaced on 0.55” (14mm) Centers
Cut and Extend Every 2” (51mm)
120° Viewing Angle
Over 1 Billion Color Possibilities
PLEASE NOTE
FLEX PIXEL P40WP LED tape is the replacement for FLEX PIXEL WP LED tape which is discontinued. Although FLEX PIXEL P40WP functions exactly the same, please note the color output is not guaranteed to exactly match the output of FLEX PIXEL WP. This should be taken into consideration when adding new tape to an existing installation.
Resources
Specification information
PHOTOMETRIC DATA
PHOTOMETRIC DATA
Related Categories
Specifications
(144) RGB SMD LED Pixels
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
COLOR
Over 1 Billion Color Possibilities
CONTROL
(432) DMX Channels
ICS APA102 Protocol
SIZE / WEIGHT
Length: 6.6’ (2m) Roll
Width: 0.57” (14.5mm)
Vertical Height: 0.18” (4.5mm)
Weight: 0.66 lbs (0.3 kg)
ELECTRICAL / THERMAL
DC 5V
29W Max Power Consumption
APPROVALS / RATINGS
CE | IP65 | cETLus
Specifications and documentation subject to change without notice.
