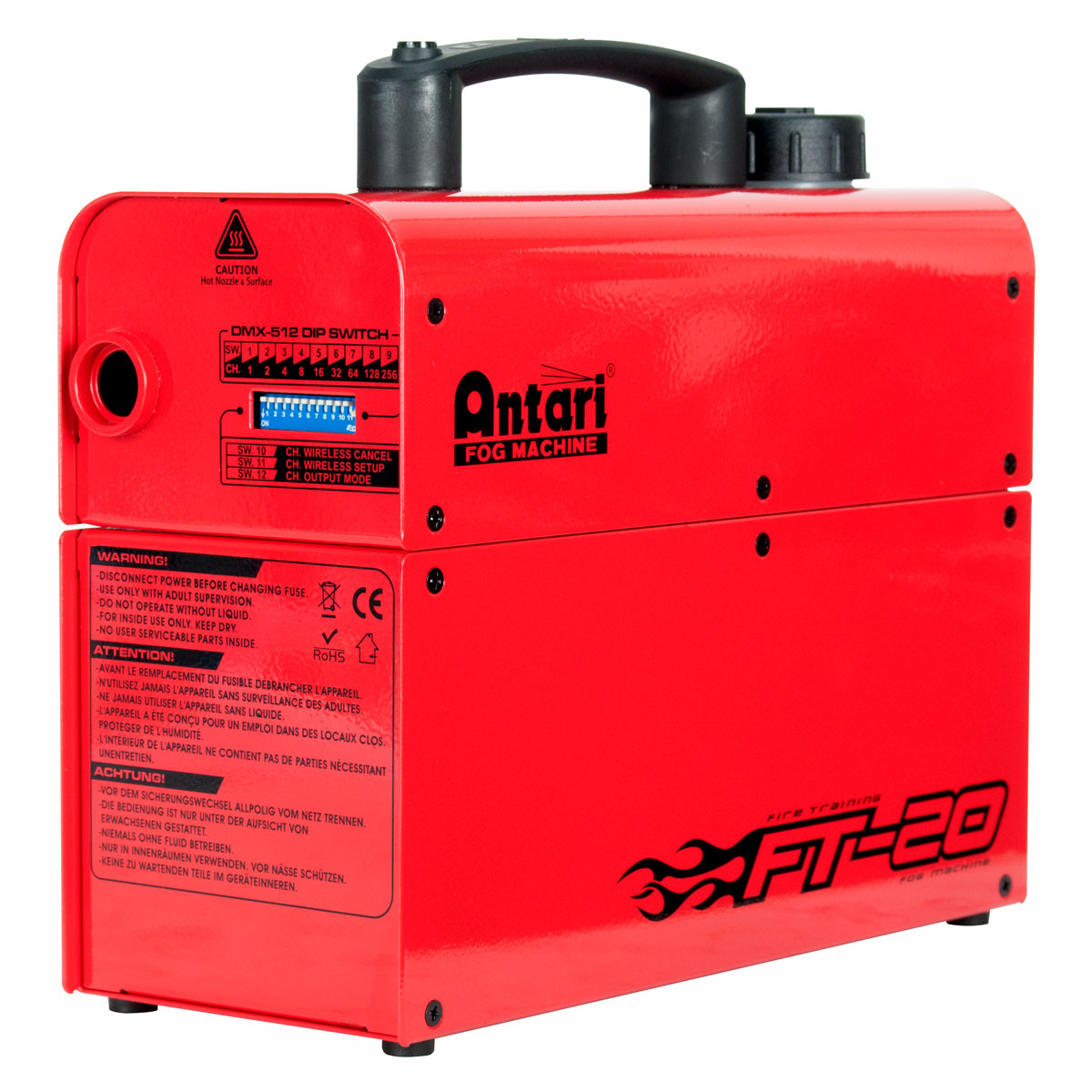

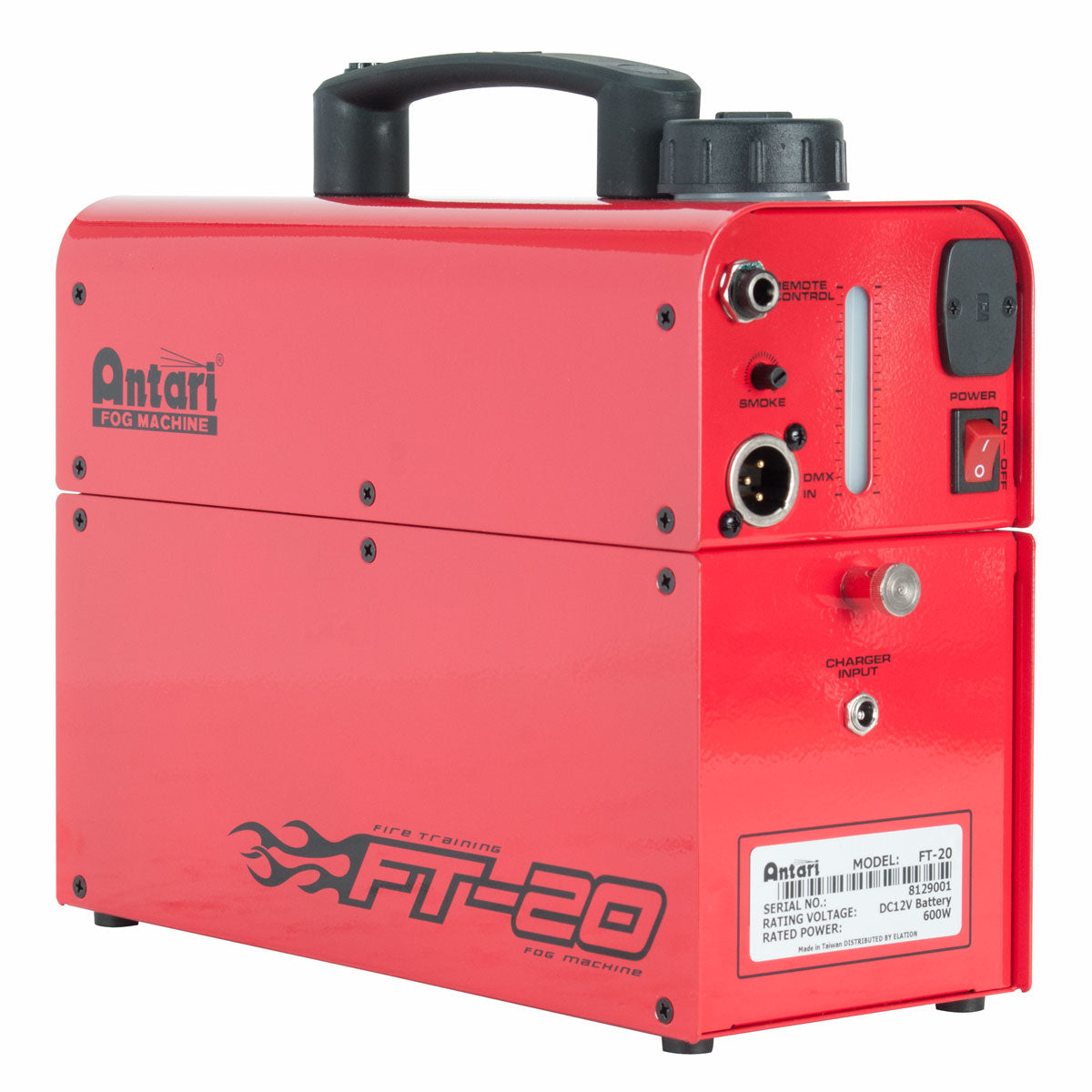

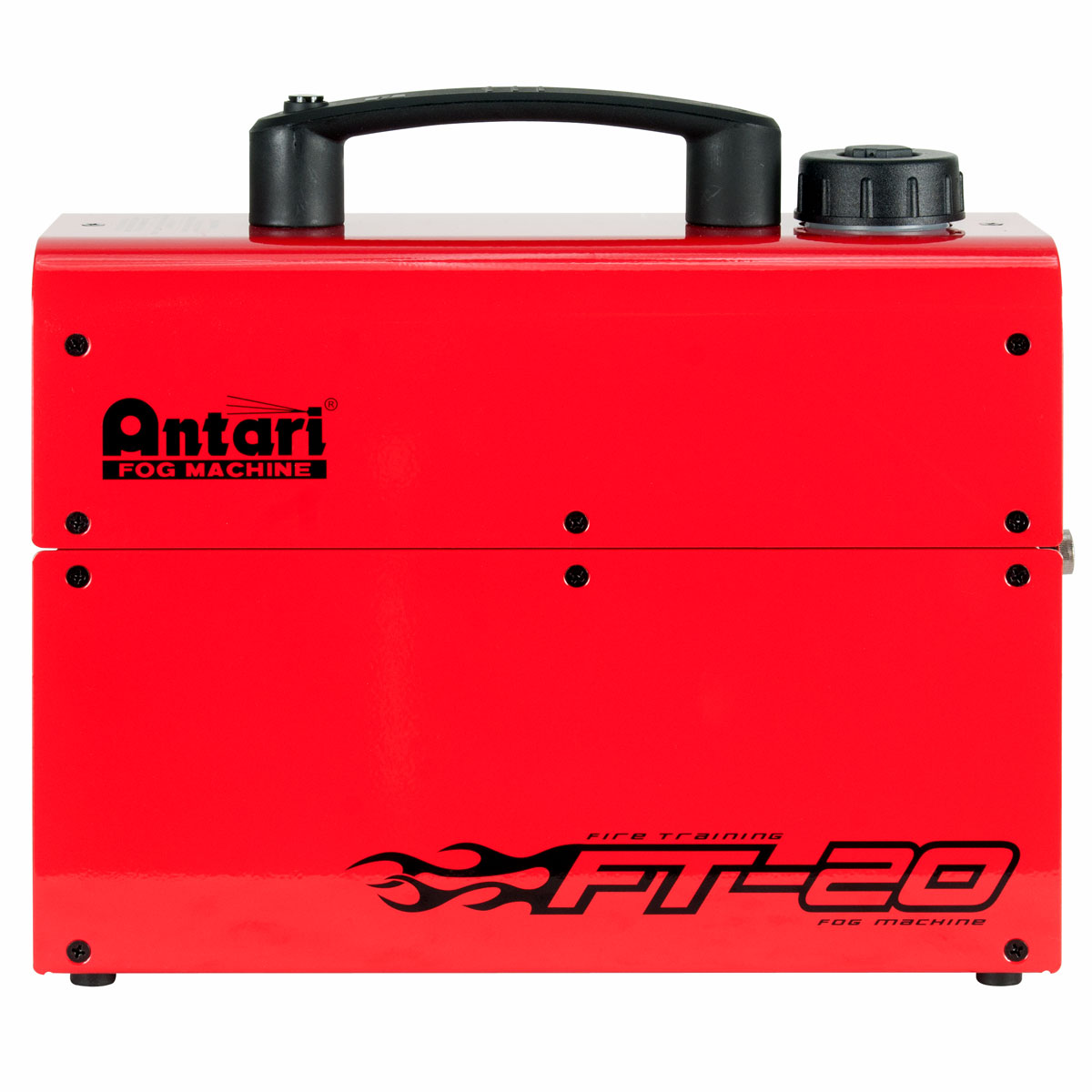

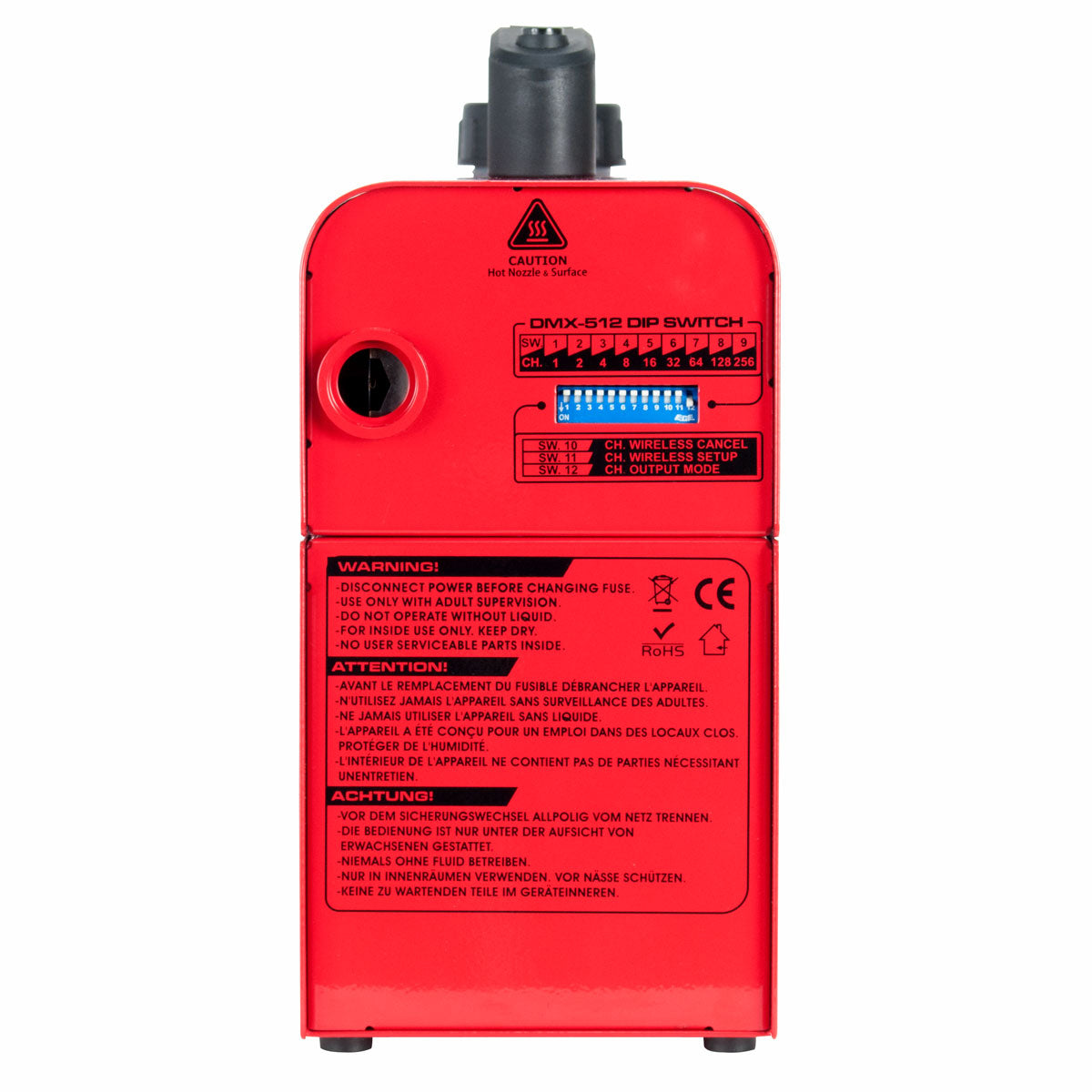

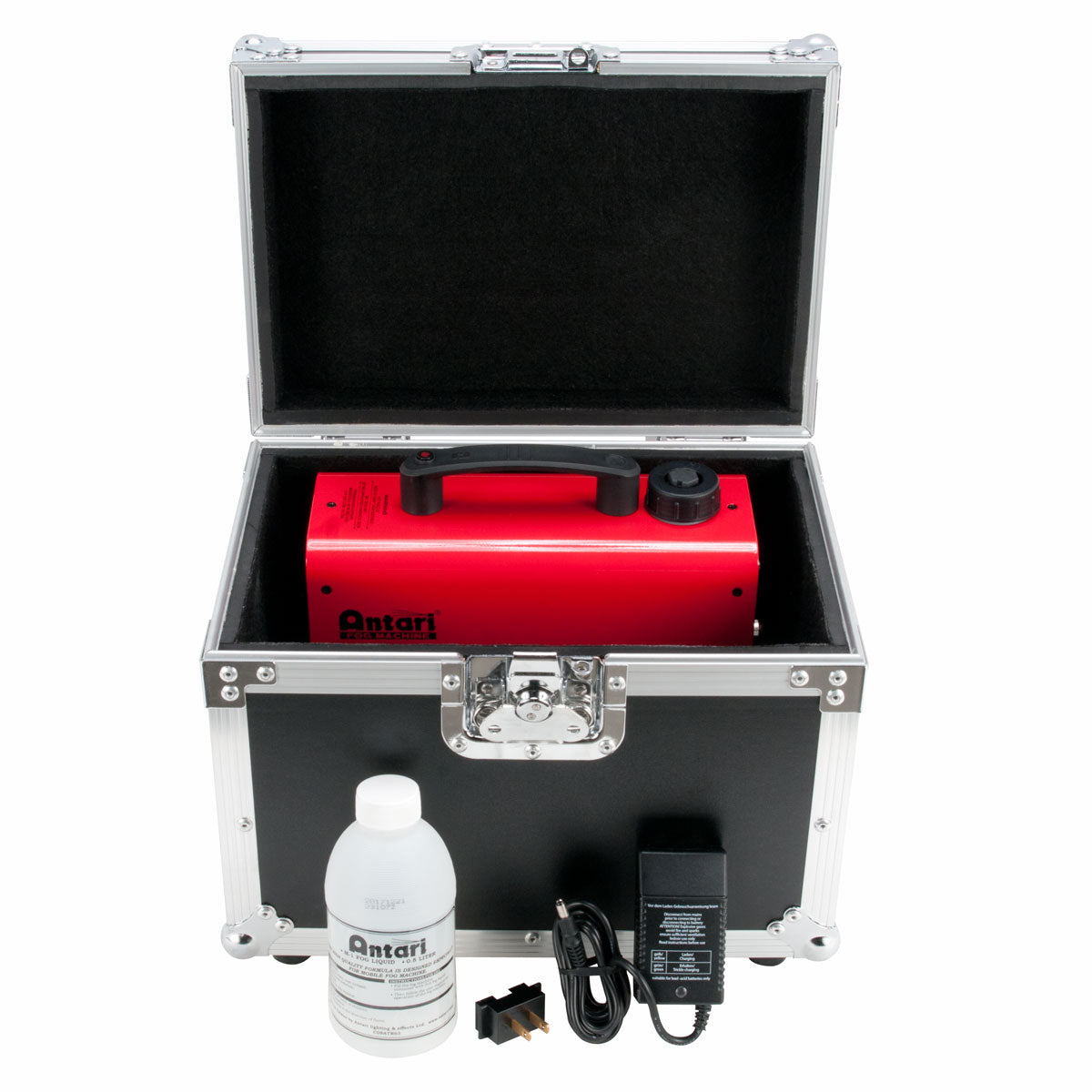

FT-20 Fire Training Fog Machine

Features

Resources

Specifications Sheet

User Manual

Related Categories

Specifications

ELECTRICAL / THERMAL

DC 12V (Battery)

AC 100-240, 50-60Hz (Battery Charger)

Rated Power: 600W

Warm-up Time: 1 Second (Approx)

Fluid Consumption: 16 ml/min

Fluid Tank Capacity: 0.4L (0.11 gal.)

Compatible Fluid: Antari FLM Fog Juice

Operating Time: 11 Mins. at Max.  Output with Battery

Ambient Temp. Range: 0 ºC-40 ºC (32 ºF-104 ºF)

Control: DMX 512, Manual, Wireless (Optional), Cable Remote (Optional)

DMX Channels: 1 Channel

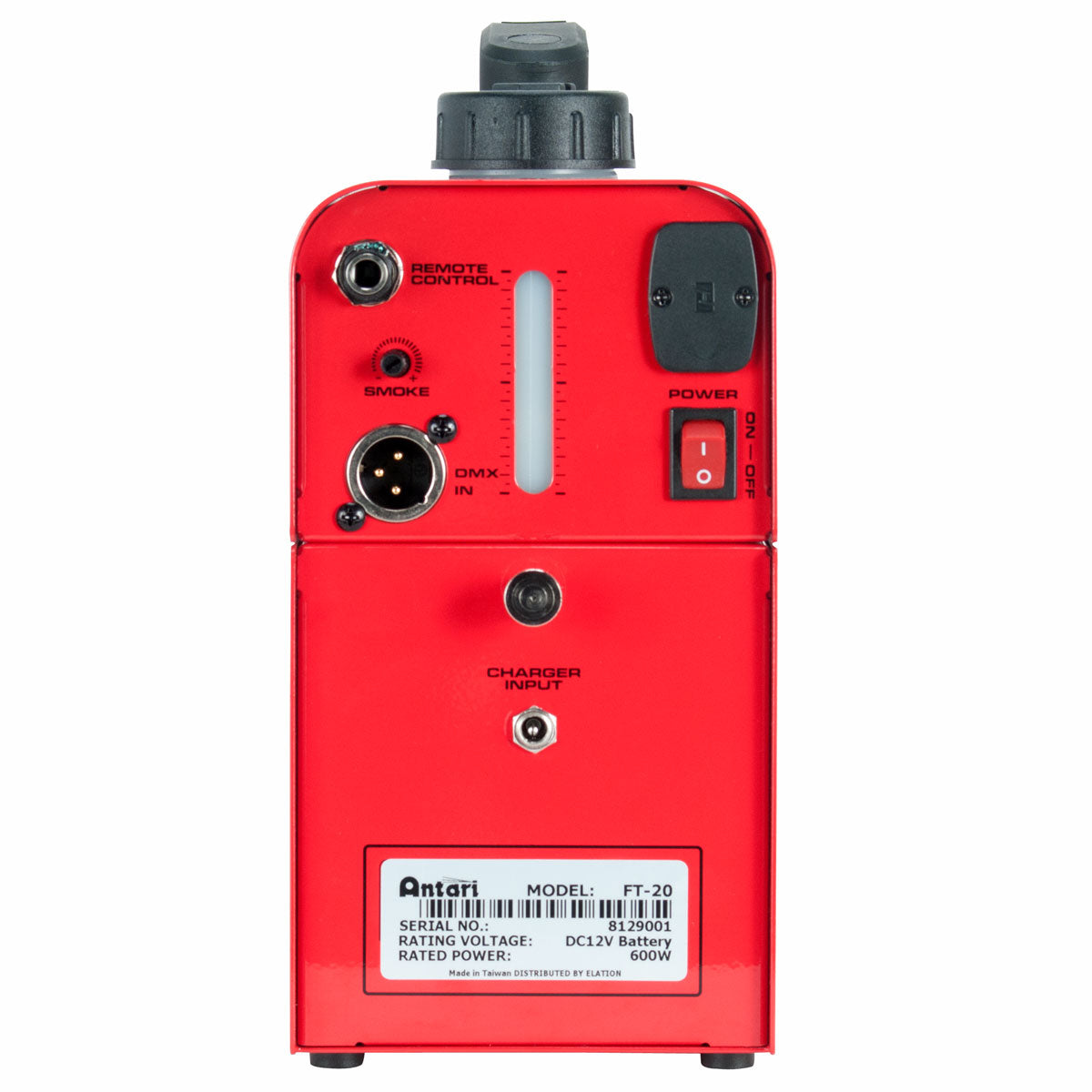

Connection: XLR 3-Pin (DMX)

Optional Accessories: WTR-20 Wireless Remote, Z-3 Cable Remote, FT-20S Power Base

SIZE / WEIGHT

L 11.54" x W 4.25" x H 9.37" (L 293 x W 108 x H 238mm)

18.74 Lbs / 8.5 kg.
