FUZE PAR Z120 IP
Discontinued
120W RGBW LED Par with Zoom
FUZE PAR Z120 IP is a professional-grade lighting solution. The IP65 rated FUZE PAR Z120 IP™ is a single source par luminaire with a 120W Quad Color RGBW COB LED.
FUZE PAR Z120 IP
Sale price$0.00
Related Products
FUZE PAR Z120 IP

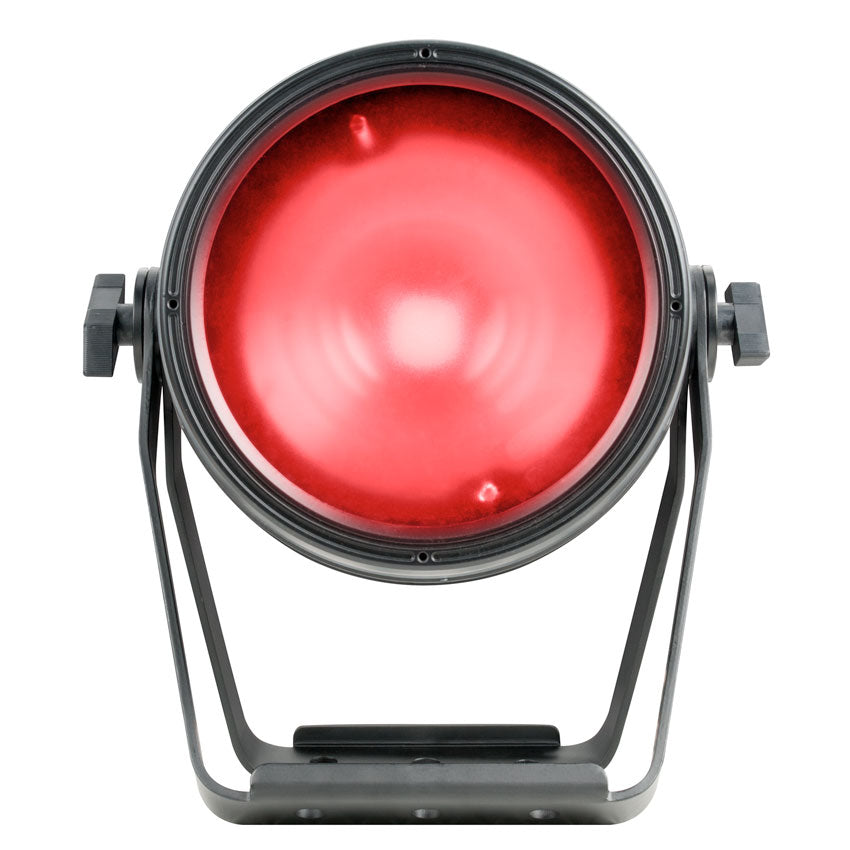

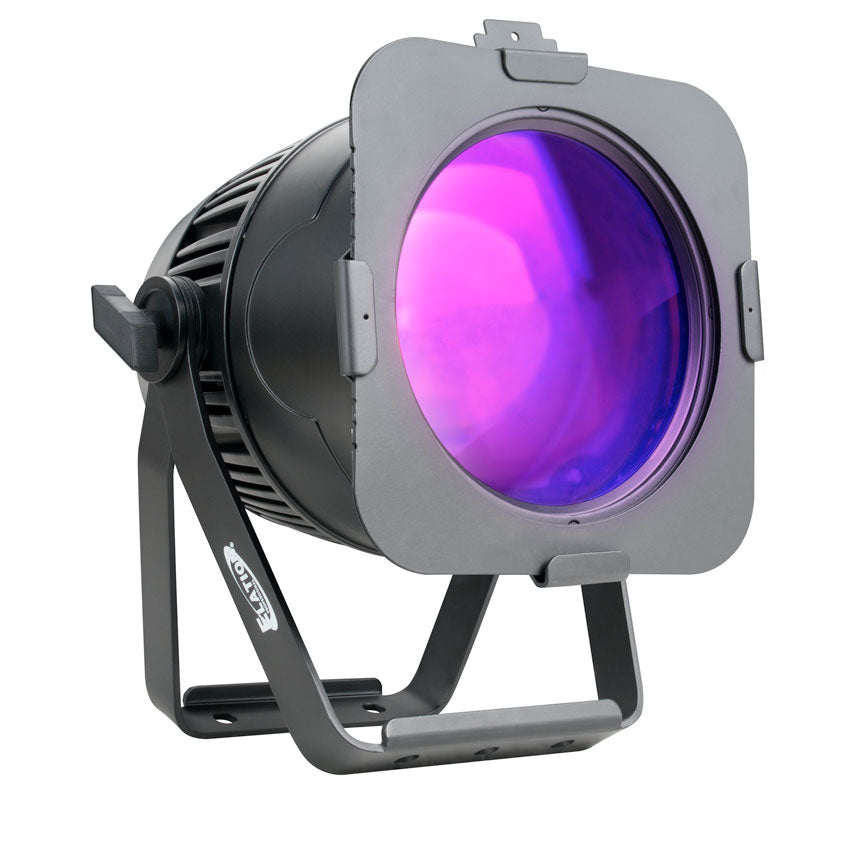

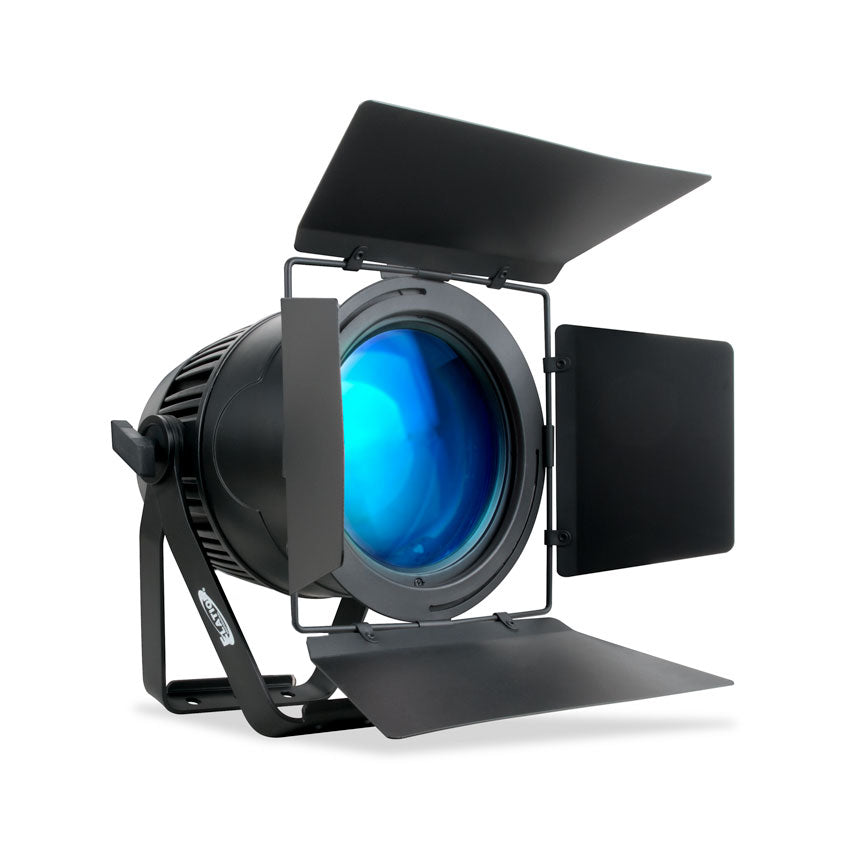

The IP65 rated FUZE PAR Z120 IP™ is a single source par luminaire with a 120W Quad Color RGBW COB LED. Features 7° to 55° motorized zoom, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, IP rated 5pin XLR and IP65 Locking Power Cable in/out connections, LCD menu display with 4 touch button control panel, dual adjustable yokes, multiple unit power linking, flicker free operation for TV and FILM, a multi-voltage universal auto switching power supply (110-240v), and removable gel frame and barn doors included.
IP65 Rated
120W RGBW COB LED Par Luminaire
7° to 55° Motorized Zoom Range
RGBW Color Mixing
Dual Adjustable Yokes
Multiple Unit Power Linking
Flicker Free Operation for Broadcast TV and FILM
IP65 Rated
120W RGBW COB LED Par Luminaire
7° to 55° Motorized Zoom Range
RGBW Color Mixing
Dual Adjustable Yokes
Multiple Unit Power Linking
Flicker Free Operation for Broadcast TV and FILM
Specifications
SOURCE
120W RGBW COB LED
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
9,112 LUX 847 FC @9.8’ (3m) (7° Full ON)
428 LUX 40 FC @9.8’ (3m) (55° Full ON)
COLOR
RGBW
EFFECTS
RGBW Color Mixing
7° - 55° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
CONTROL / CONNECTIONS
12 DMX Channel Modes (13 Total Channels)
4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)

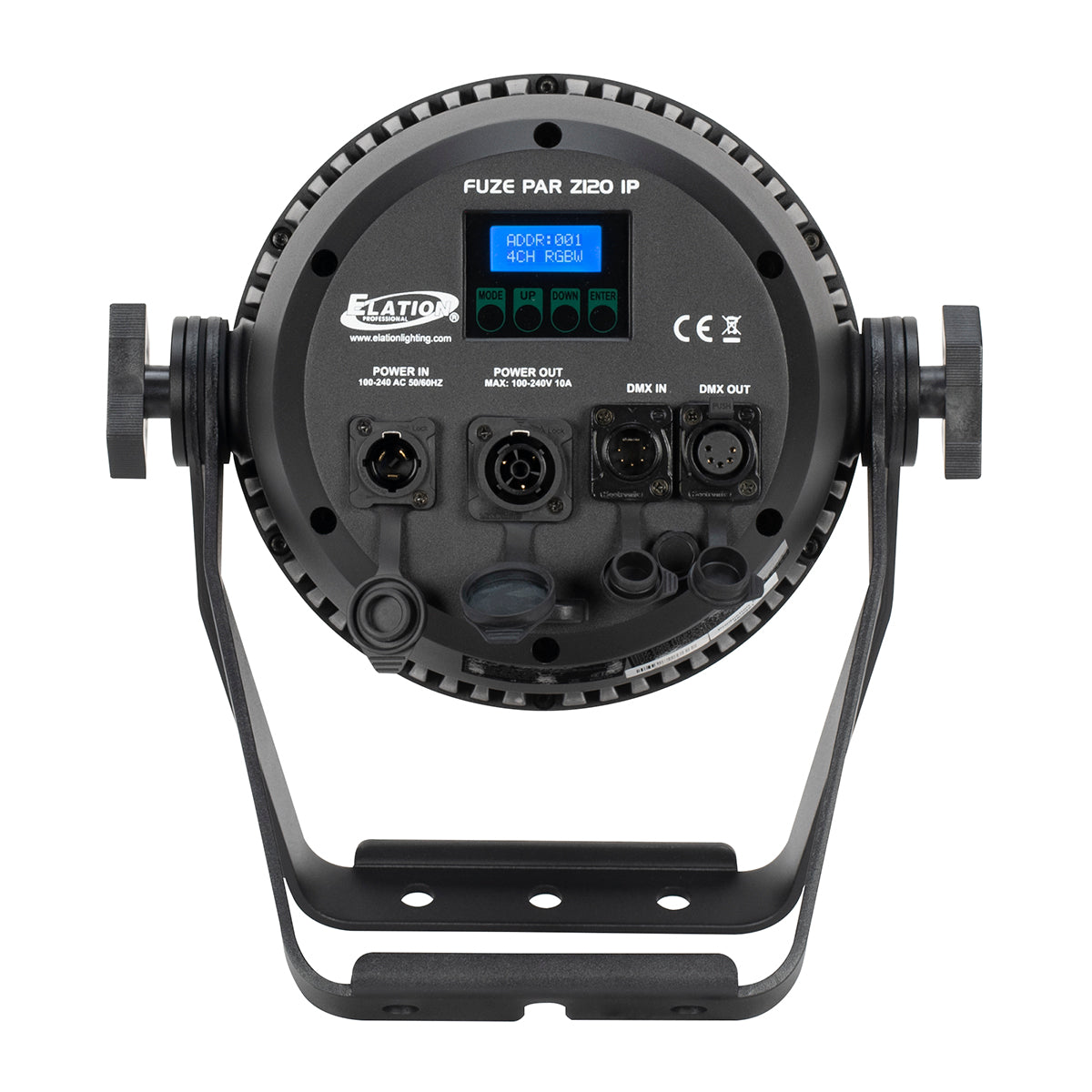

IP Rated 5pin DMX and IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 11.69" (283.7mm)
Width: 14.05" (356.8mm)
Vertical Height: 14.14" (359.2mm)
Weight: 19 lbs. (8.6 kg)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
158W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
120W RGBW COB LED
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
9,112 LUX 847 FC @9.8’ (3m) (7° Full ON)
428 LUX 40 FC @9.8’ (3m) (55° Full ON)
COLOR
RGBW
EFFECTS
RGBW Color Mixing
7° - 55° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
CONTROL / CONNECTIONS
12 DMX Channel Modes (13 Total Channels)
4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5pin DMX and IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 11.69" (283.7mm)
Width: 14.05" (356.8mm)
Vertical Height: 14.14" (359.2mm)
Weight: 19 lbs. (8.6 kg)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
158W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
FIRMWARE UPDATES
Current Version: V1.16
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Photometrics
- Fuze Par Z120 IP - Photometric IES Files
- Fuze Par Z120 IP - Photometric Test Report Zoom Out Full On
- Fuze Par Z120 - Photometrics Test Report Zoom 50 Percent Full On
- Fuze Par Z120 IP - Photometric Test Report Zoon In Full On
- Fuze Par Z120 IP - Photometric Data
User manual
Vectorworks symbols
