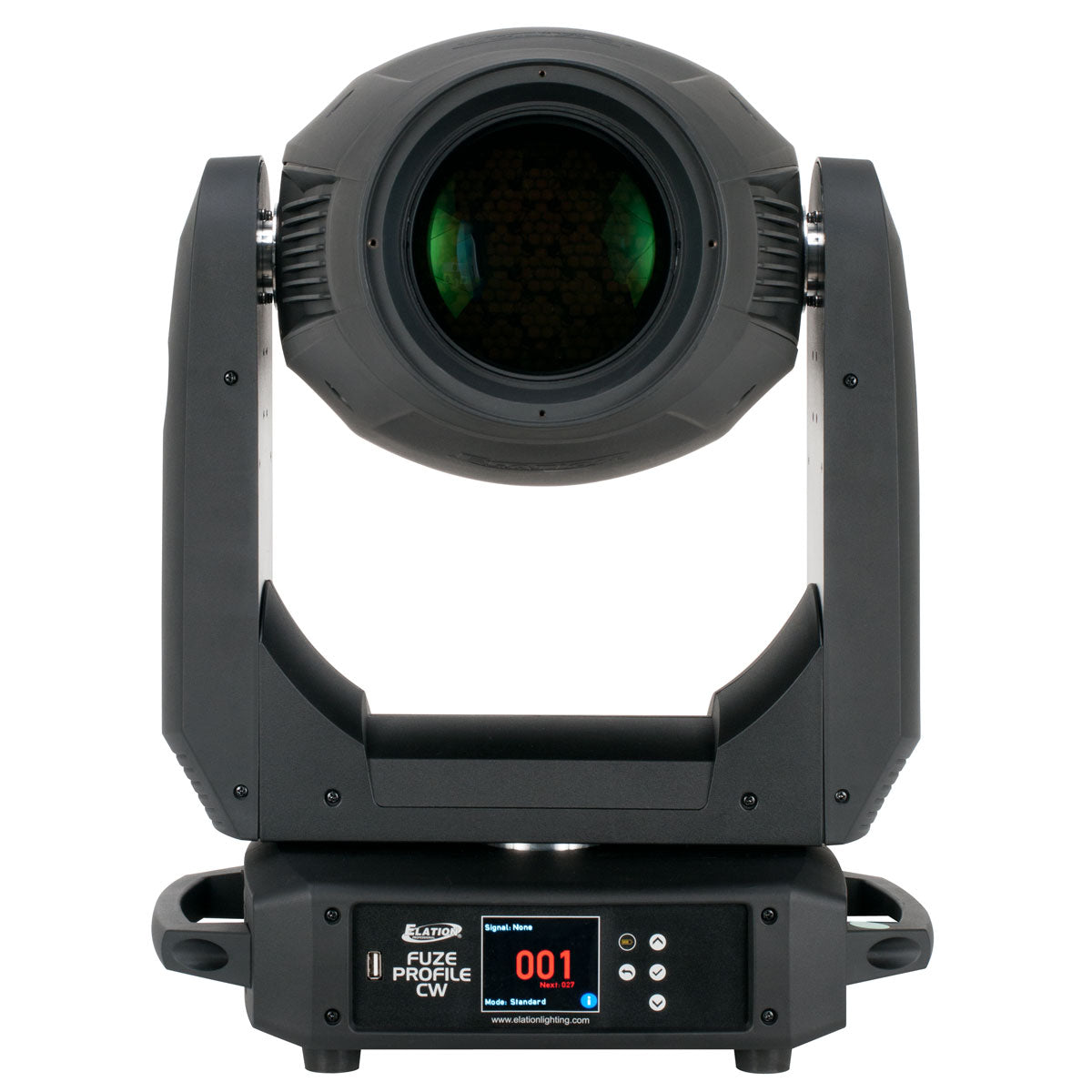

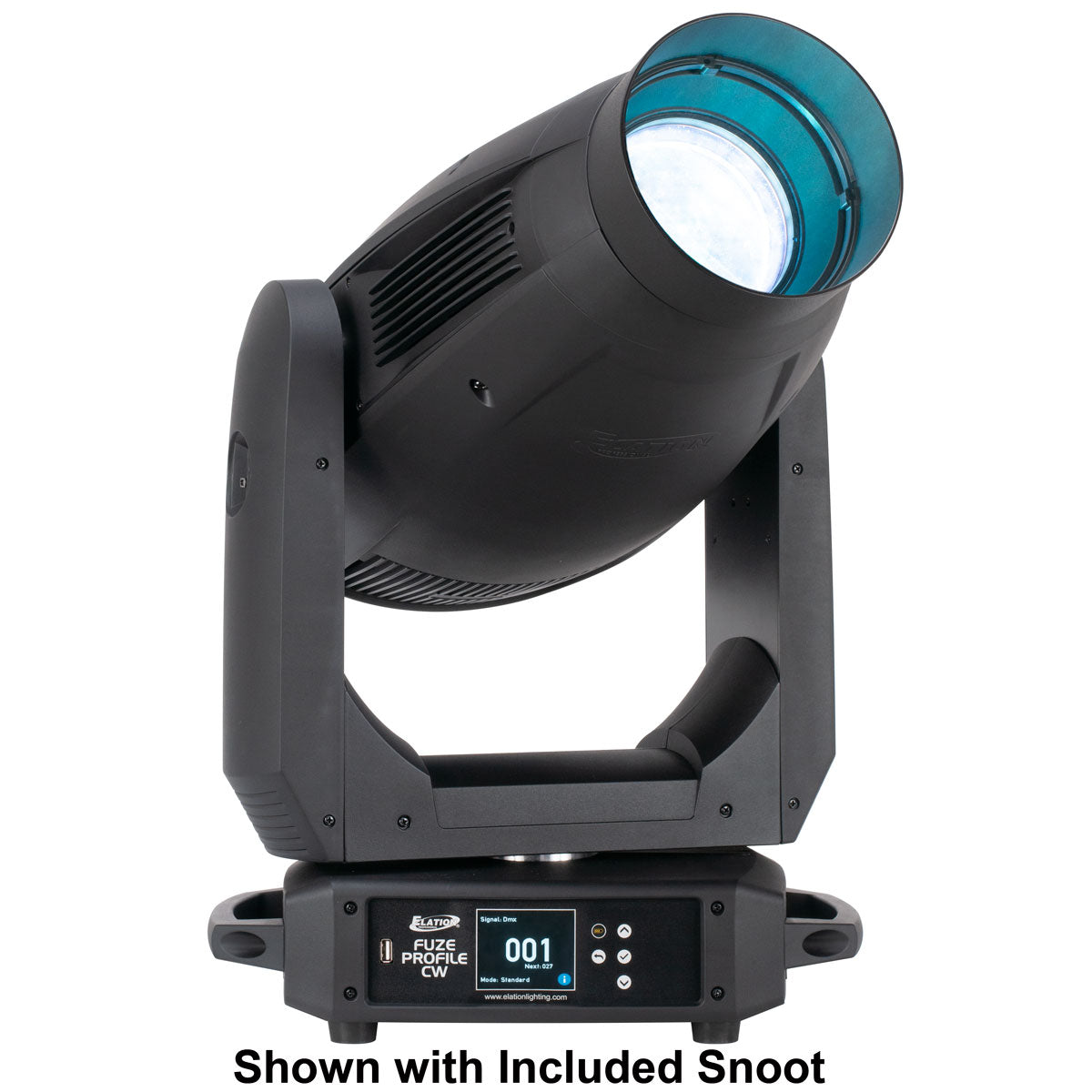

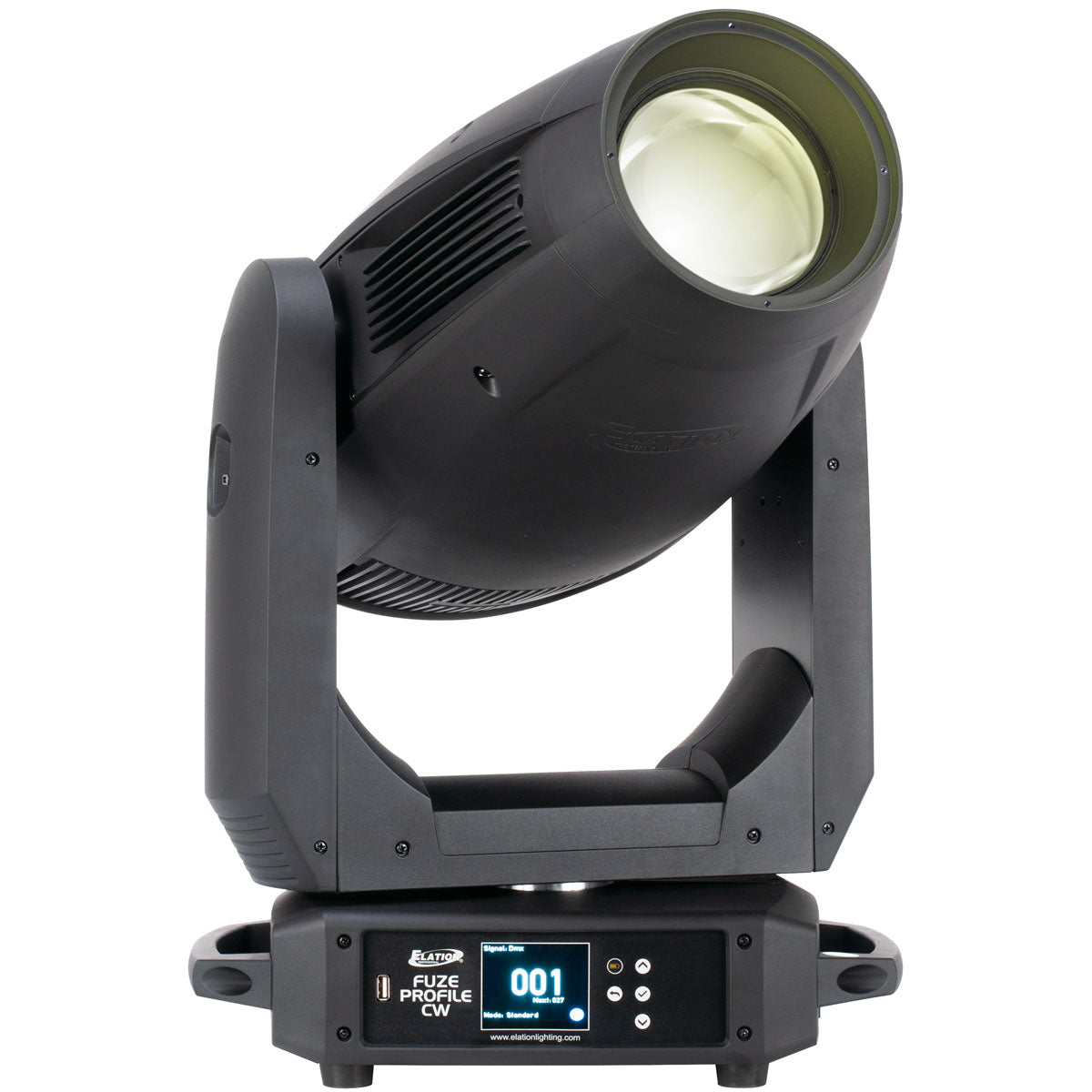

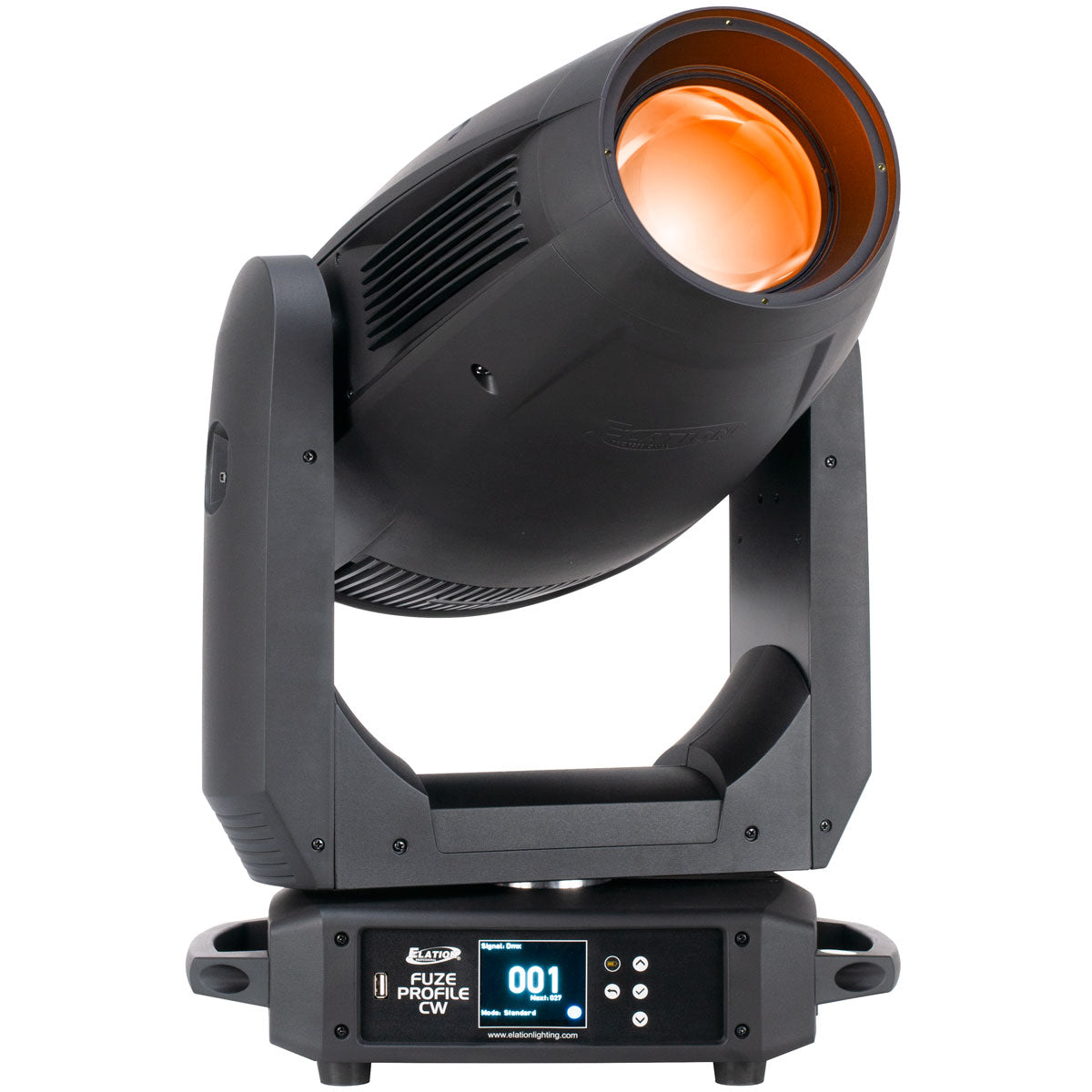

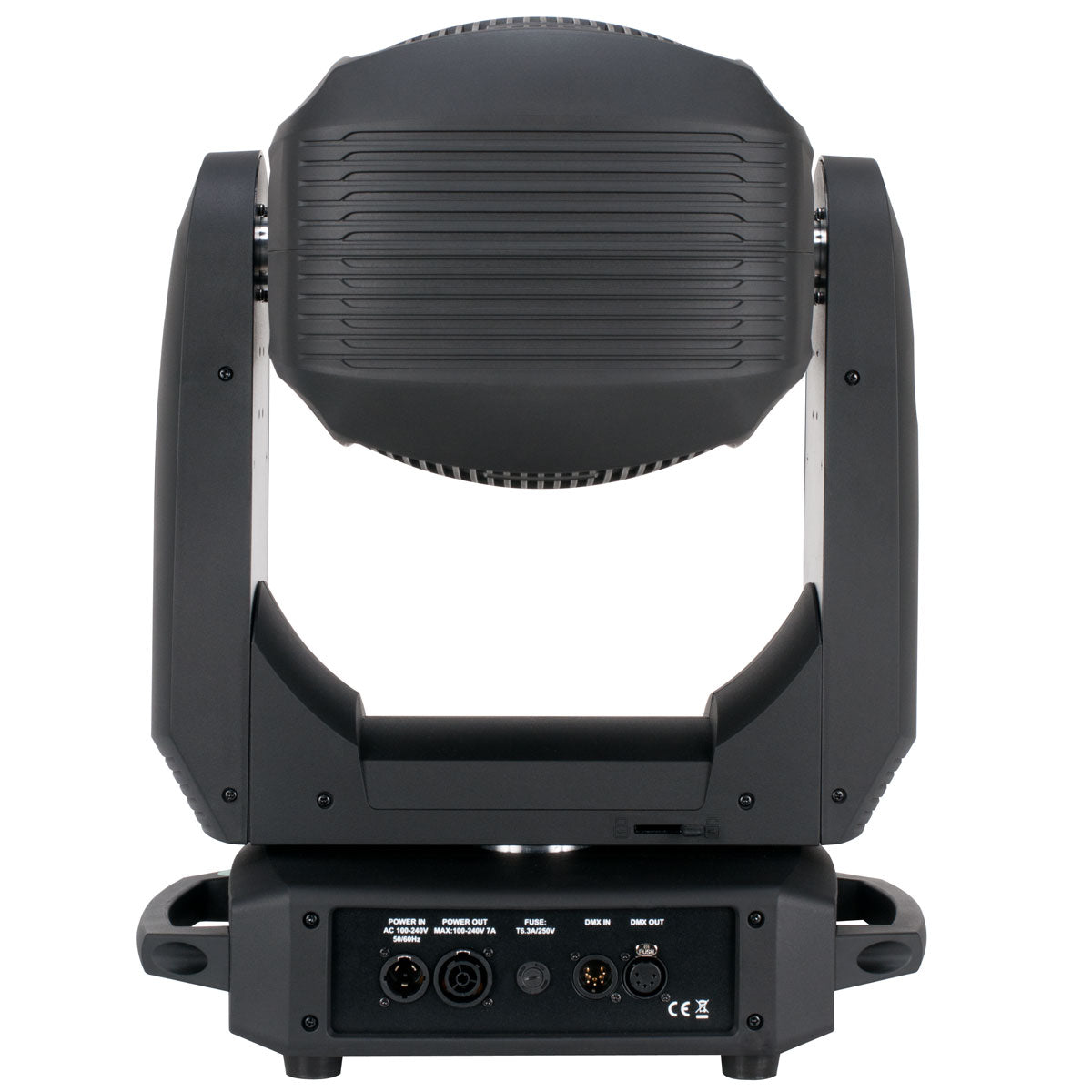

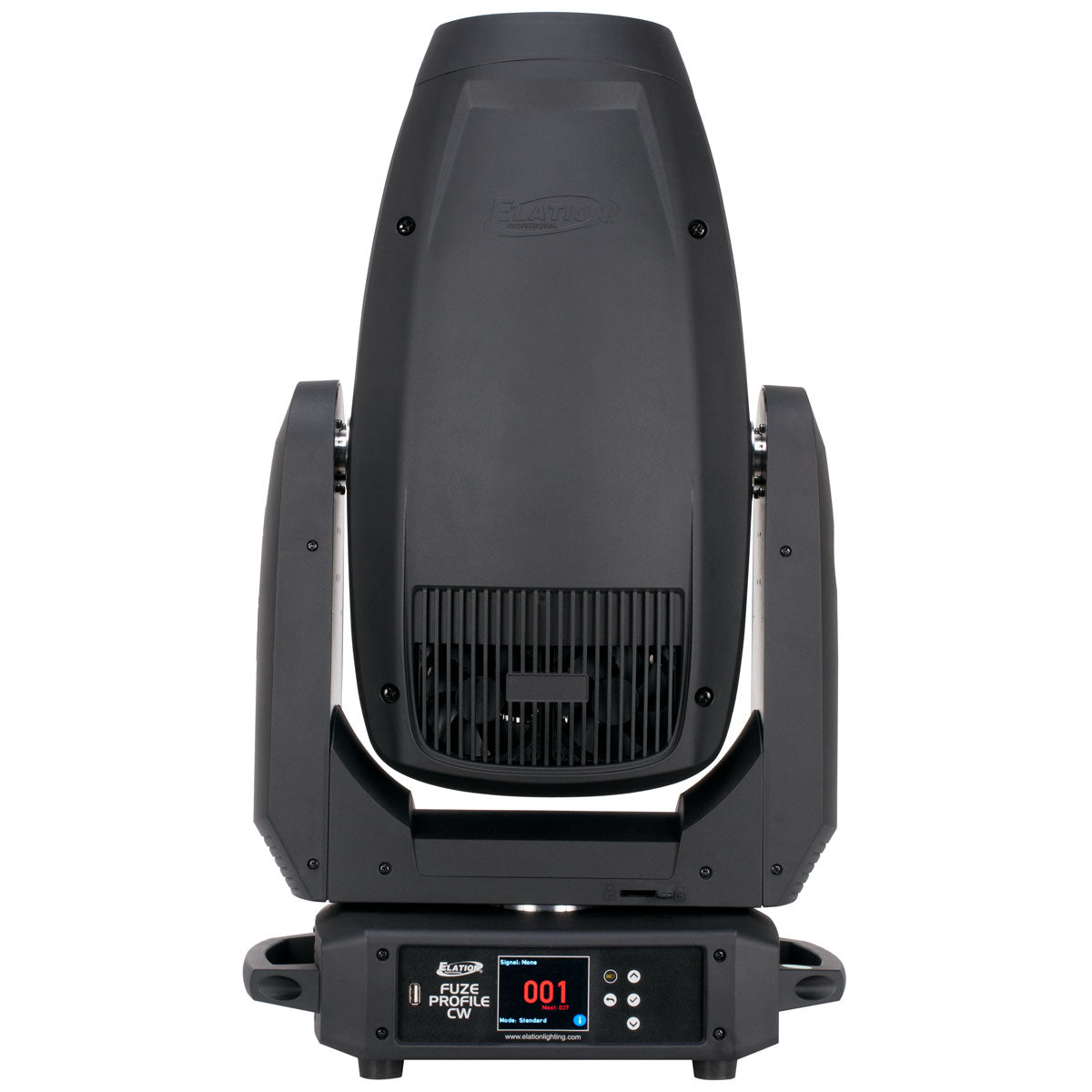

FUZE PROFILE CW
380W Cool White LED Framing Profile Fixture
FUZE PROFILE CW is a professional-grade lighting solution. The FUZE PROFILE CW™ is an automated LED framing fixture designed for trade show, stages, television and a wide array of AV event applications.
Replaced By
Related Products
FUZE PROFILE CW
The FUZE PROFILE CW™ is an automated LED framing fixture designed for trade show, stages, television and a wide array of AV event applications. The 91CRI 380W White LED engine ensures accurate color reproduction while delivering a powerful output of 11,000 lumens. Designed to illuminate objects like exhibits and banners, texture areas and key light persons with its flat field and accurate framing it has many practical applications where a fully automated ellipsoidal fixture is required. A rotating gobo wheel of breakups,two color wheels featuring solid colors and correction filters plus and Iris round out its comprehensive feature set.
- High Efficiency 380W White LED Engine, 91CRI
- Dual Color Wheel (Solids and Color Corrections)
- Rotating Gobo Wheel
- Full Blackout Framing System
- Iris and Frost
- Wide Zoom Range from 9° to 43°
Specifications
SOURCE
380W 6,000K White LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
11,200 Total Lumen Output
CRI 91
Zoom Range 9° - 43°
Beam Angle 9.3° - 43.1°
Field Angle 10.3° - 46.8°
EFFECTS
Motorized Zoom
4 Rotating Full Blackout Framing Blades, +/- 45 Index
Variable Frost Filter
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate Frequency
COLOR
2 Color Wheels
7x Solid Colors
7x Color Correction and UV
GOBOS
1 Gobo Wheel
7 Rotating / Indexing Interchangeable Glass Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes (26 / 40)
16-bit Pan, Tilt, and Dimming Control
Motorized Focus
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit Resolution Adjustable Movement
Hibernation Mode (Power Save)

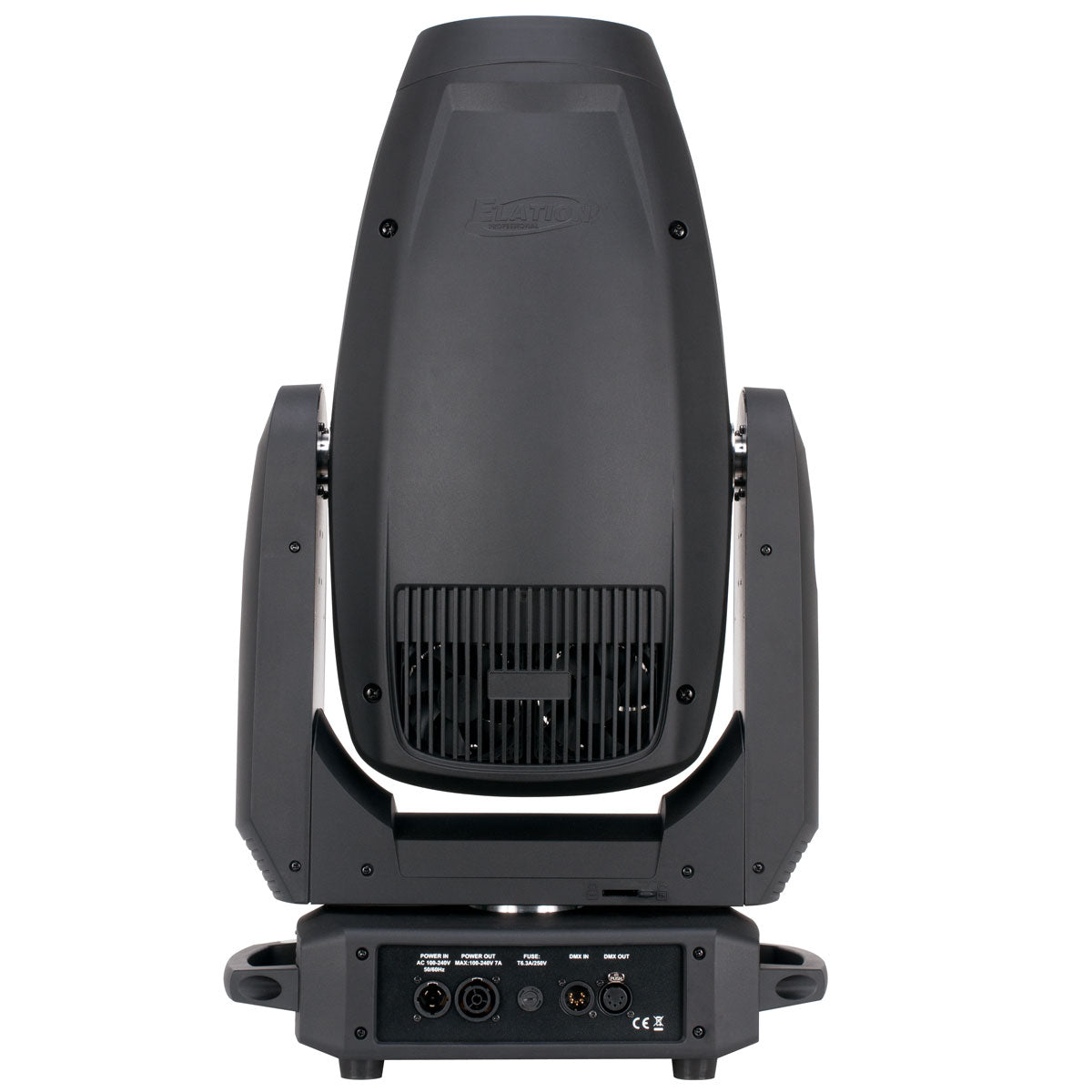

5pin DMX In/Out
IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 15.9" (408mm)
Width: 9.9" (252mm)
Vertical Height: 27.4" (698mm)
Weight: 51.4 lbs. (23.3kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
590W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 2011.9
APPROVALS / RATINGS
CE | cETLus | IP20
FIRMWARE UPDATES
Current Version: 1.0.10
Click HERE for software updates
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dmx traits
Ies files
Photometrics
Specification sheet
User manual
Vectorworks symbol

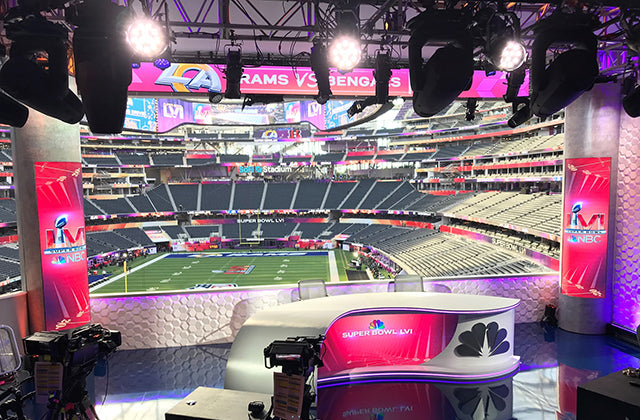

CT and LDG choose Elation broadcast lighting for Super Bowl sportscast booths
Houben Souren and Elation make the grade on Dutch university auditorium upgrade
Elation lighting upgrade supports contemporary worship at Living Word Church

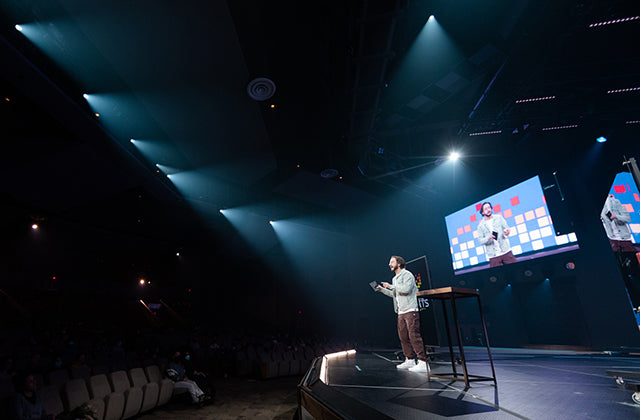

Elation key light solution for Traders Point Christian Church in Indianapolis
