FUZE WASH Z120
FUZE WASH Z120

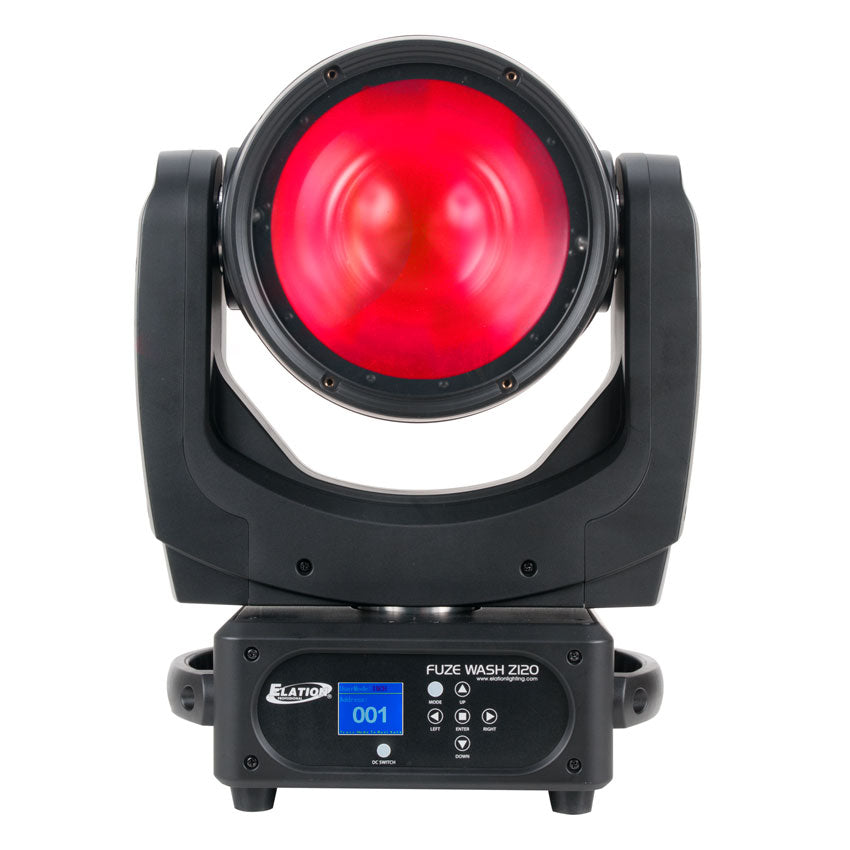

The FUZE WASH Z120™ is a single source par moving head luminaire with a 120W Quad Color RGBW COB LED. Features 7° to 55° motorized zoom, pan and tilt, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, DMX and power in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).
Features
120W RGBW COB LED Moving Head Wash Luminaire
RGBW Color Mixing
7° TO 55° Wide Motorized Zoom Range
Variable Dimming Curves
Multiple Unit Power Linking
RDM (Remote Device Management)
Flicker Free Operation for TV and FILM
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
- Fuze Wash Z120 - Photometric Data
- Fuze Wash Z120 - Photometric Test Reports
- Fuze Wash Z120 - Photometric IES Files
DMX/ RDM Traits
Drawings
CAD File
- Fuze Wash Z120 - 2D Cad Drawing
- Fuze Wash Z120 - 2D Cad Drawing w/Snoot
- Fuze Wash Z120 - 3D Cad Drawing
- Fuze Wash Z120 - 3D Cad Drawing w/Snoot
- Fuze Wash Z120 - Vectorworks Symbols
Related Categories
Specifications
120W RGBW COB LED
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
10,640 LUX 988 FC @9.8’ (3m) (7° Full ON)
692 LUX 64 FC @9.8’ (3m) (55° Full ON)
COLOR
RGBW
EFFECTS
RGBW Color Mixing
7° - 55° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
CONTROL / CONNECTIONS
4 DMX Channel Modes (19 Total Channels)
7 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)

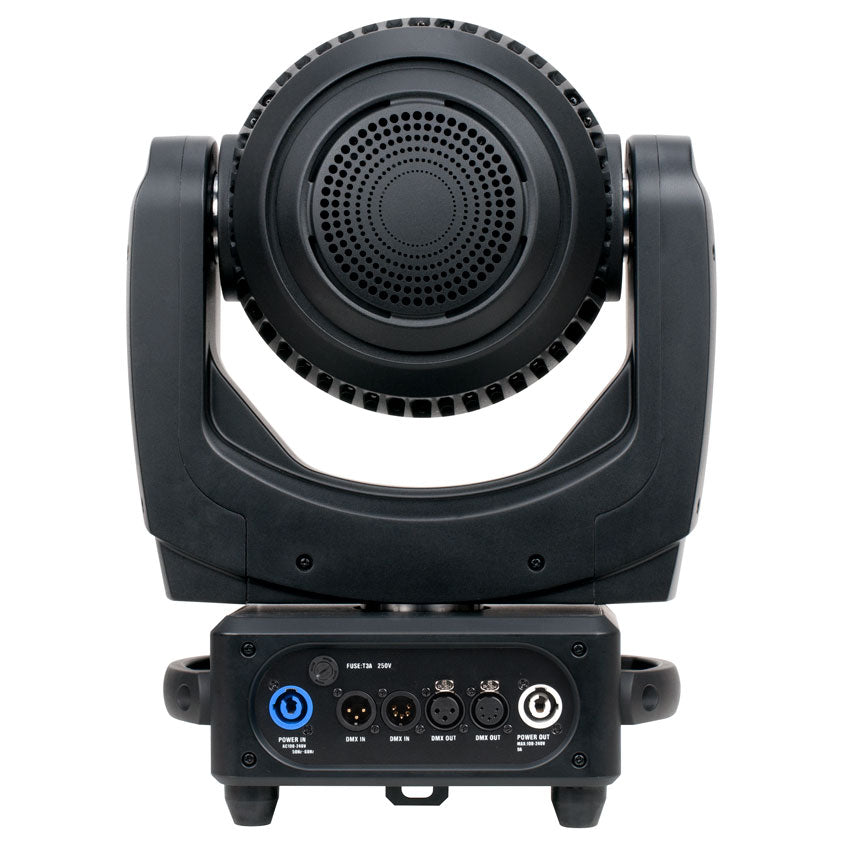

3pin/5pin DMX and Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 13.3" (338mm)
Width: 9.0" (229mm)
Vertical Height: 18.2" (466mm)
Weight: 22 lbs. (10 kg)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
157W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP30
OPTIONAL ACCESSORIES:

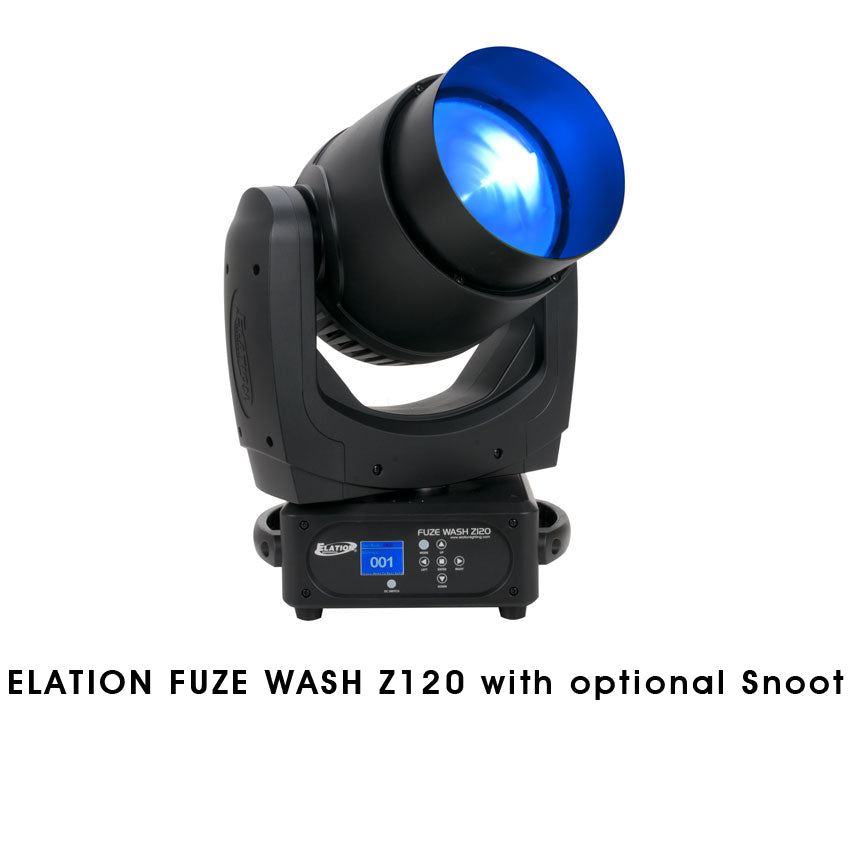

FW120SNOOT - Snoot
FIRMWARE UPDATES
Current Version: V1.18
Click HERE for software updates.
Specifications and documentation subject to change without notice.
