FUZE WASH Z350
FUZE WASH Z350
Discontinued
350W RGBW LED Wash Fixture with Zoom
SKU# FUZ035
The FUZE WASH Z350™ is a single source par moving head luminaire featuring a 350W Quad Color RGBW COB LED, 6° to 46° motorized zoom, pan and tilt, RGBW color mixing, variable dimming curve and strobe effects, DMX and RDM (remote device management) protocol support, DMX and Locking Power Cable in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).
Features
350W RGBW COB LED Moving Head Wash Luminaire
RGBW Color Mixing
6° to 46° Wide Motorized Zoom Range
Variable Dimming Curves
Multiple Unit Power Linking
RDM (Remote Device Management)
Flicker Free Operation for TV and FILM
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
- Fuze Wash Z350 - Photometric IES Files Zoom IN
- Fuze Wash Z350 - Photometric Test Reports Zoom IN
- Fuze Wash Z350 - Photometric IES Files Zoom OUT
- Fuze Wash Z350 - Photometric Test Reports Zoom OUT
DMX/ RDM Traits
Drawings
CAD File
CAD File
- Fuze Wash Z350 - 3D Cad Drawing w/Snoot
- Fuze Wash Z350 - 3D Cad Drawing
- Fuze Wash Z350 - Vectorworks Symbols
Test Results
Related Categories
Specifications
SOURCE
350W RGBW COB LED
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
60,280 LUX 5,600 FC @6.6’ (2m) (6° Full ON)
3,735 LUX 347 FC @6.6’ (2m) (46° Full ON)
COLOR
RGBW
EFFECTS
RGBW Color Mixing
6° to 46° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
350W RGBW COB LED
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
60,280 LUX 5,600 FC @6.6’ (2m) (6° Full ON)
3,735 LUX 347 FC @6.6’ (2m) (46° Full ON)
COLOR
RGBW
EFFECTS
RGBW Color Mixing
6° to 46° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
Pan Angle: 540°/630°
Tilt Angle: 250°
CONTROL / CONNECTIONS
4 DMX Channel Modes (19 Total Channels)
7 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)

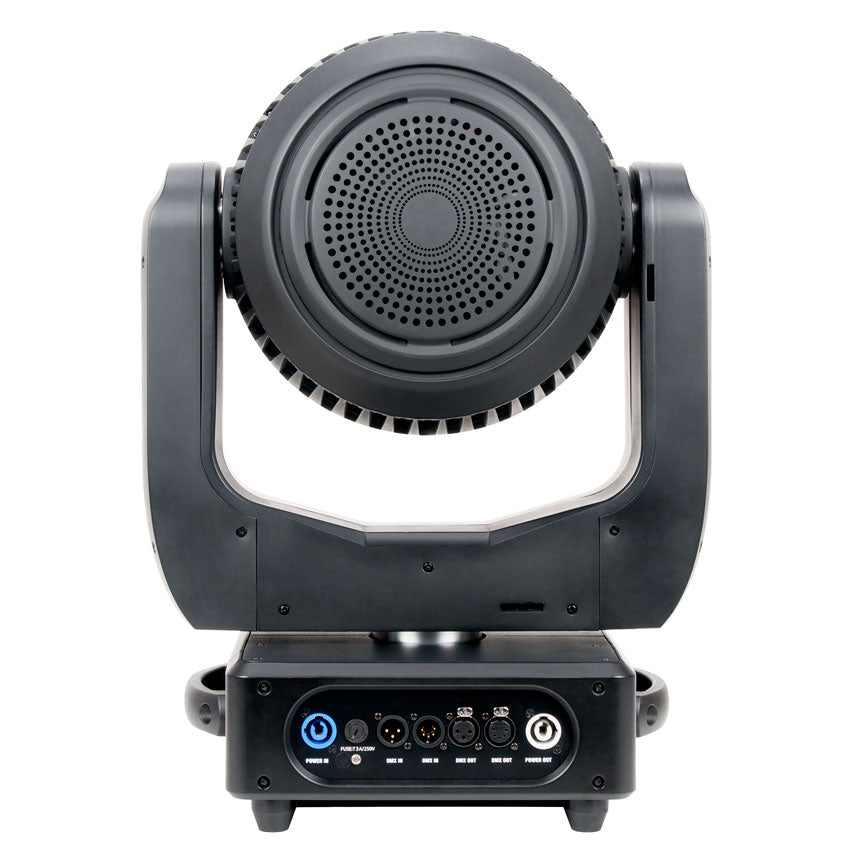

3pin/5pin DMX and Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 16.3" (414mm)
Width: 11.6" (294mm)
Vertical Height: 22.7" (578mm)
CONTROL / CONNECTIONS
4 DMX Channel Modes (19 Total Channels)
7 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
3pin/5pin DMX and Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 16.3" (414mm)
Width: 11.6" (294mm)
Vertical Height: 22.7" (578mm)
Weight: 45 lbs. (20.4 kg)
Center Spacing: 18.9" (480mm)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
399W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
399W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 1360.59
APPROVALS / RATINGS
CE | cETLus | IP30
OPTIONAL ACCESSORIES:

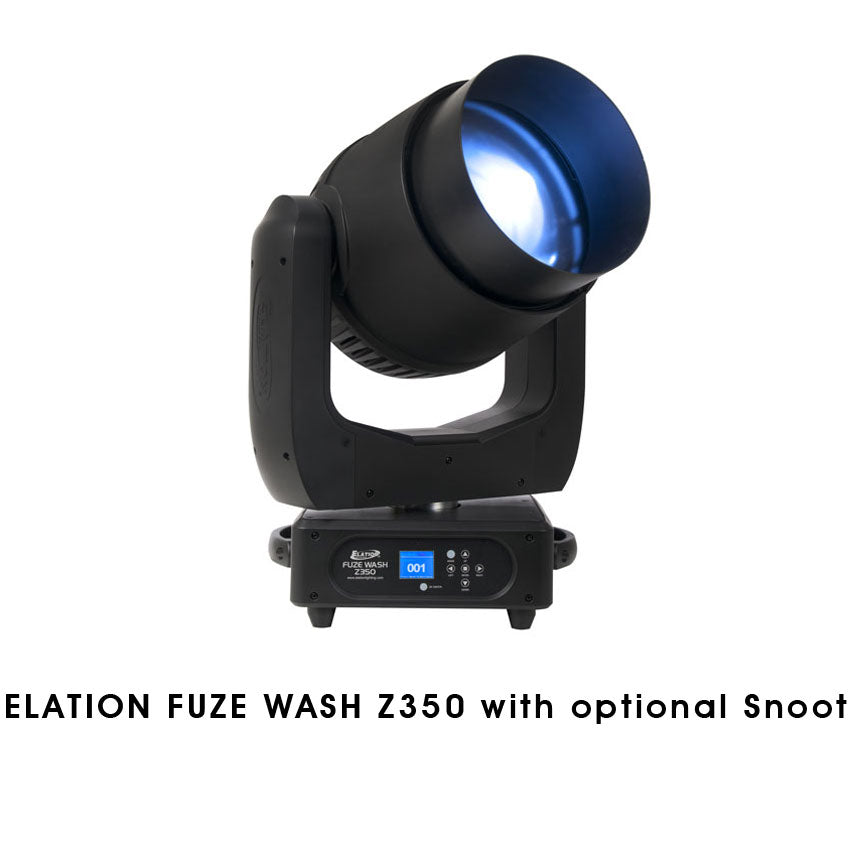

FW350SNOOT - Snoot
Specifications and documentation subject to change without notice.
APPROVALS / RATINGS
CE | cETLus | IP30
OPTIONAL ACCESSORIES:
FW350SNOOT - Snoot
FIRMWARE UPDATES
Current Version: V2.1.13
Click HERE for software updates
Specifications and documentation subject to change without notice.
