Hedge Hog 4
Hedge Hog 4

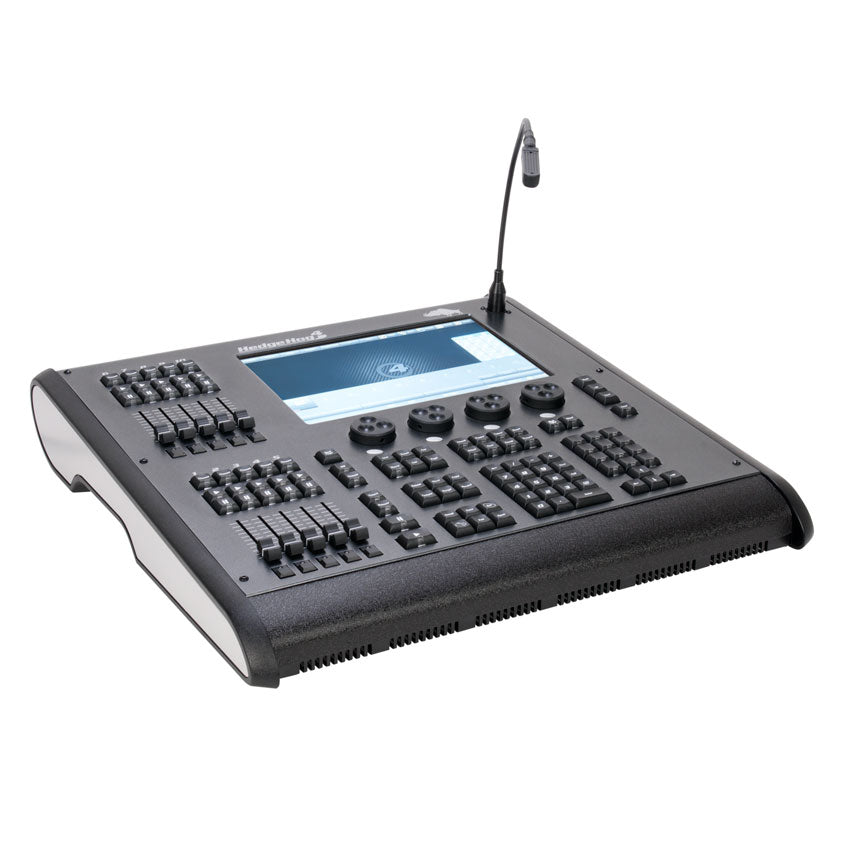

The Hog range just got broader. HedgeHog 4 is the littlest of the range and still packs quite a punch. It runs the same software as all the other Hogs and even comes with ArtNet and CITP capabilities. Designed for small to mid level shows, it is compact, lightweight and easy to take on a plane!
Running on Linux, it is fast, stable and ready to Hog. Whether being used in a school theatre, nightclub, corporate event, medium scale rental job or House of Worship, this is the perfect console. Retaining the same programming layout as its larger brother, the Road Hog 4, as well as being able to load showfiles from any of the range (and vice versa) means that this compact console is extremely flexible and easy to use.
Features
Robust Hog 4 Operating Software
Use Any Hog 4 Show File in HedgeHog4
(i.e. Hog 4, Full Boar 4, Road Hog 4, Nano Hog 4)
Unlimited Number of Simultaneous Crossfades
(2) Fixed Universes of DMX 512 or Up to (4) Universes of DMX 512 over ArtNet or sACN (eNode4™)
Linux Operating System Compatible
Internal Solid State Hard Disk Drive
Supports Peripherial Hardware
Resources
Guides/ Manuals
Related Categories
Specifications

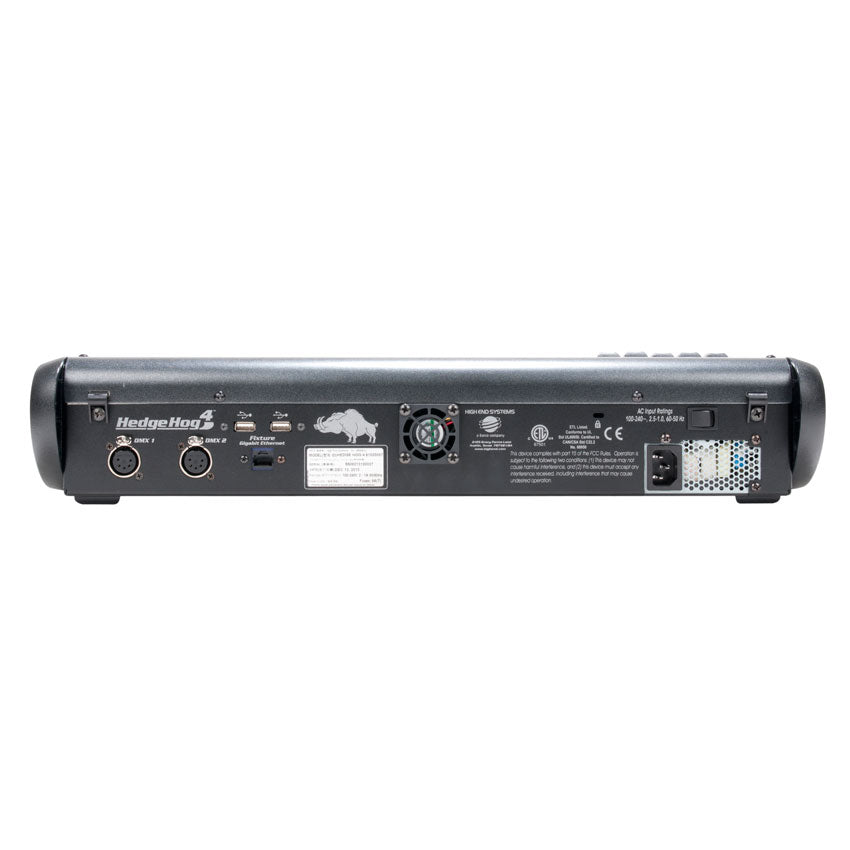

CONTROL / CONNECTIONS
(4) Encoders for an Extended Wheel Set
(1) Internal 12-inch Wide Touch Screen
(12) User Keys and (10) Playback Faders
(1) Fixture-Net Ethernet Connector
(2) USB Ports for WholeHog Wings and other Accessories
5pin DMX/MIDI Input and Output
MIDI Show Control and MIDI Time Code via Optional External Widget
SIZE / WEIGHT
Length: 20.74” (526.8mm)
Width: 21.83” (554.37mm)
Vertical Height: 3.97” (100.78mm)
Weight: 17 lbs. (7.7kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
300W Max Power Consumption
APPROVALS
CE | cETLus
INSTALLATION
Any Flat Surface
INCLUDED ITEMS
(1) 5 ft (1.5m) IEC Power Cable
(1) LED Desklight (3pin XLR)
(2) USB Thumb Drives (Storage & Recovery)
(1) Dust Cover
HOG 4 2.0 SOFTWARE FEATURES
Cross Platform and Forward Only Compatible
Use Hog 3 Show Files
CLICK HERE TO REQUEST A FIXTURE LIBRARY
https://www.highend.com/hes-support/common-forms/fixture-libs
Requests may take up to 14 days to complete
Specifications and documentation subject to change without notice.
