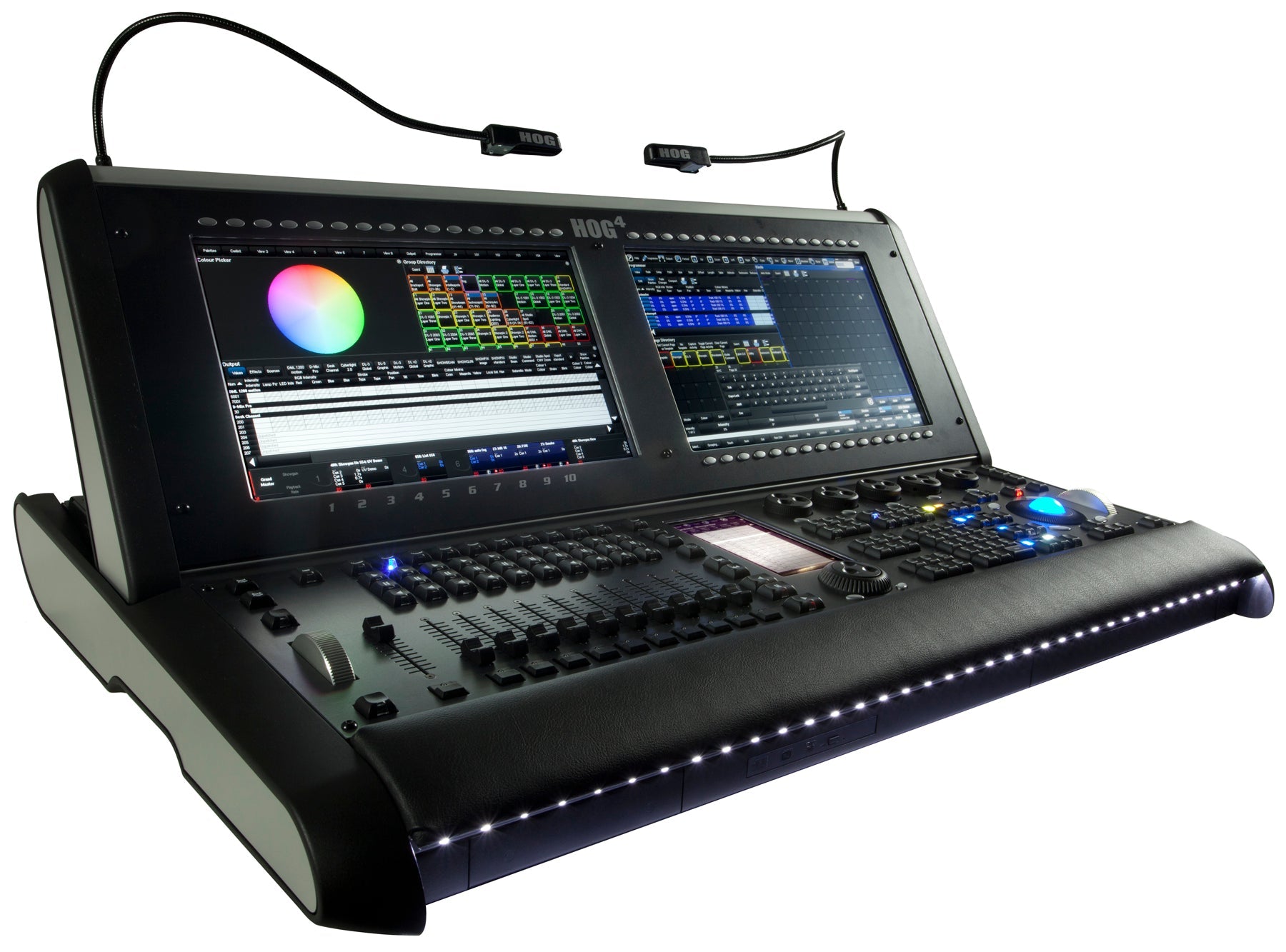

Hog 4 in Road Case w/DP8000
Hog 4 in Road Case w/DP8000
The Hog 4 is the flagship in the newest range of consoles. Replacing the much loved Wholehog III, it embraces the latest technology, while retaining the Hog’s familiar control surface. Users will be able to walk up to the Hog 4 and start programming without having to learn a whole new interface. The new encoders, jog shuttle wheel, LCD keys, motorized faders and integrated keyboard all serve to enhance this experience, making the Hog 4 completely customizable. You can now have virtually all the most important attributes to hand at any time.
Retaining the sleek look of generations past, the Hog 4 offers the user an advanced programming experience in an established environment. The Hog 4 console, at the top of the Hog line, is designed to handle the largest shows.
The console provides three monitor outputs, MIDI input and output ports, 8 USB ports, 2 Fast Ethernet ports on a rugged Neutrik Ethercon connector allowing you total flexibility. You’re prepared for everything from the smallest industrial job requiring a single console to the largest stadium show, theme park installation or Broadway spectacular requiring a multi console setup with full network backups!
Preserve show data on a solid state hard disk drive as well as with USB drives and CD/DVD-ROM’s, or alternatively connect directly to a network drive to store your show files remotely.
Features
Robust Hog 4 Operating Software
Unlimited Number of Simultaneous Crossfades
(2) Internal 17" Wide Touchscreens with 10 Point Multi-Touch
(3) External Monitors or Touchscreens Supported
(5) Encoders for an Expanded Wheelset
(12) LCD User Keys
Tri Axis Backlit Trackball, w/Rotary Encoder for The Third Axis and (4) Configurable Buttons for Cursor and Position Control
(10) Motorized Playback Faders
(1) Motorized Grand Master
Dedicated Intensity and Rate Wheels
User Assignable Jog Shuttle Encoder
(48) Soft-Keys for Quick Toolbar Selections
Built in DMX Processor 8000 Included
Hog-Net Ethernet Connector
Fixture-Net Ethernet Connector
Integrated Keyboard
Internal Hard Disk drive
Internal CD/DVD drive
Eight USB Ports for Wholehog Wings and External Touchscreens
Storage Space Under Arm Rest
Desklights, Feedback LEDs, and Integrated Worklight (dimmable)
Auto-Ranging Mains Input (90-250VAC)
Light Converse Visualizer Dongle Included
Dust Cover Included
Custom Road Case Included
Resources
Specification information
Guides/ Manuals
Related Categories
Specifications
CONNECTIVITY
Unlimited DMX Channels, Art-Net and E1.3.1 (sACN) Universes via Ethernet DPs
Onboard MIDI Input/Output, MIDI Show Control and MIDI Time Code and LTC Input
Multiple LTC inputs via optional multiple SMPTE/ LTC USB Widget
Connectivity with Many Visualizers via Ethernet
Wired and Wireless Networking with Multiple Wholehog Console Systems
Remote Focus Capabilities w/Networked Tablet PC Running Hog 4PC Software
Supports USB Playback and Expansion Wings
SIZE / WEIGHT
Screen Down
Length: 40.5” (1028.7mm)
Width: 28.49” (723.7mm)
Vertical Height: 6.49” (164.75mm)
Screen Up
Length: 40.5” (1028.7mm)
Width: 28.49” (723.7mm)
Vertical Height: 16.43” (417.39mm)
Weight: 75.0 lbs (34 kg)
