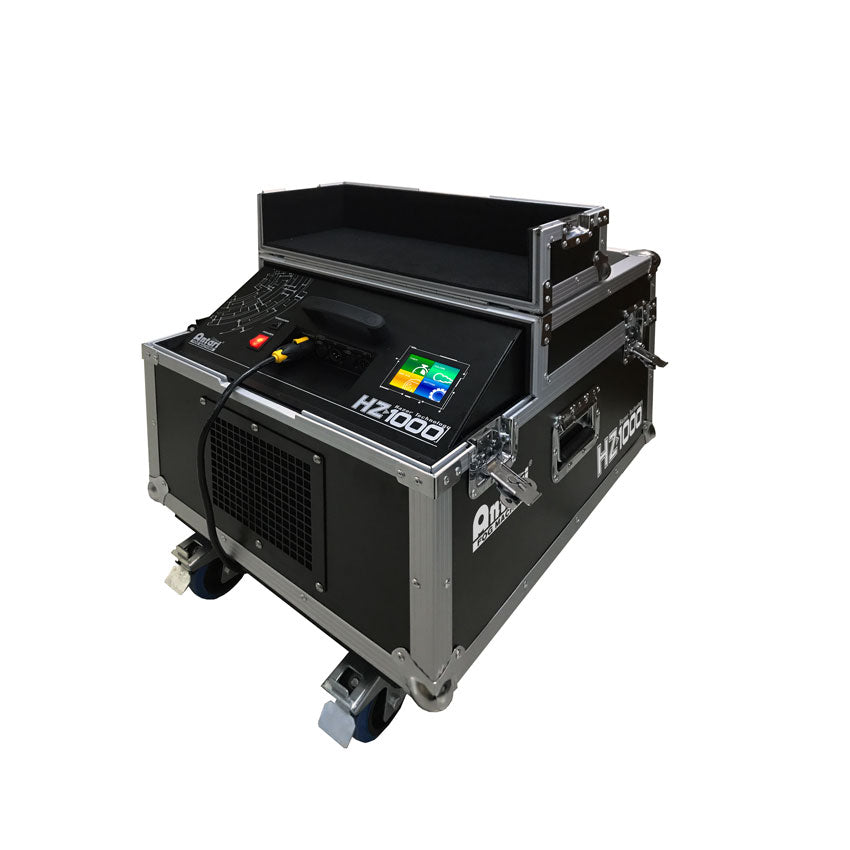

HZ-1000 Haze Machine

Features

Powerful Oil Based True Compressor Pro-Tour Hazer
Double Output of HZ-500 | 6,000 cu.ft / min
Two Selectable Compressor Modes (Single and Twin)

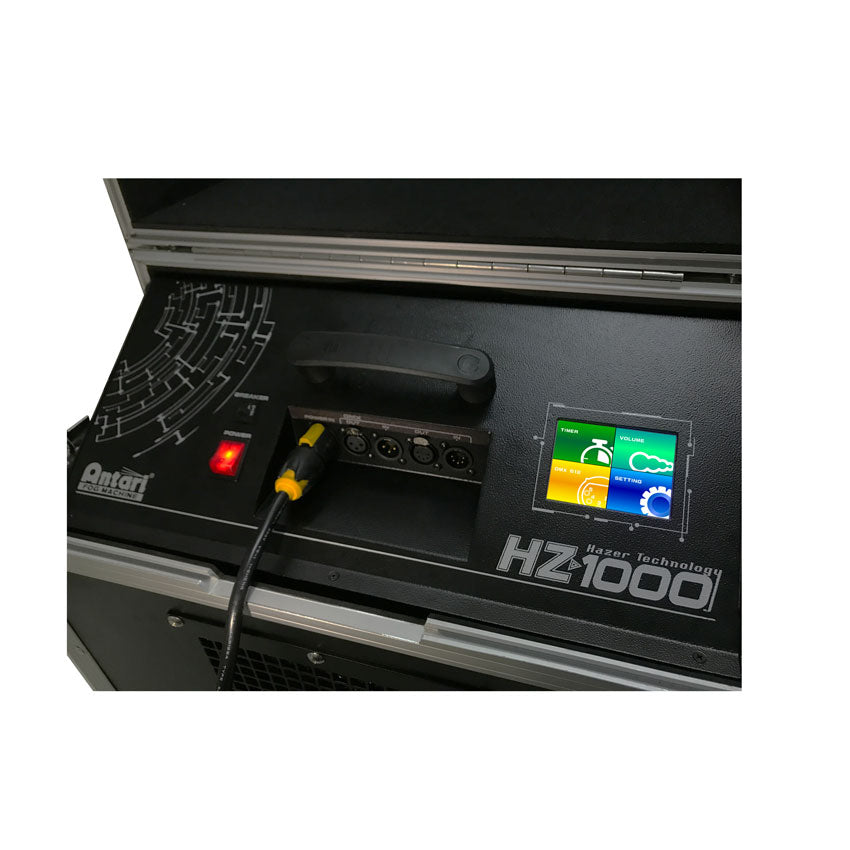

Full Color LCD Touch Control Panel
Easy To Navigate Setting Menus
Variable Speed Squirrel Cage Fan
3-Position Directional Wind Diverter
8-Liter Haze Oil Liquid Reservoir
Extended Operation without Frequent Refills
Manual and 2 Channel DMX Control
Optional W-DMX Wireless DMX Control
Tour Ready ABA Plywood Road Case

Resources

User Manual

DMX Traits

CAD Drawing

Specifications

Voltage: 120V

Power Consumption: 800W

Output: 6,000 cu.ft / min

Fluid Consumption Rate: 2.5 ml / per min (100% output)

Tank Capacity: 8 Liters

Control: Manual, 3/5pin DMX

Control Options: W-DMX Wireless DMX

Dimensions: L 27.0” (685mm) x W 20.2” (512mm) x 21.7” (552mm)

APPROVALS/RATINGS
CE | RoHs |



Specifications and documentation subject to change without notice.
