Impression W/A

Features

We are ready to impress you with our latest and most advanced product offering yet which is sure to set the new standard for high power moving yoke wash luminaries.

 Smaller…
 The most compact moving head wash fixture can be mounted on 14” centers in any position plus compact truck pack allows 6 units in the same space 2 traditional fixtures would take.

 Lighter…
 Die cast aluminum head and industrial light weight plastics with the fixture weighing in at 16 lbs gives an output lumen to physical weight ratio that is unmatched. Less weight in the truck and rig is always better.

 Faster…
 State of the art stepper motor control and compact moving mass for quick and accurate movements moving 660 degree pan in less than 2 seconds while at the same time offering smooth and fluid movements.

 Brighter…
 90 Luxeon K2 LED’s arranged in a maximum density allows for light output comparable and often brighter color to color of 575w discharge fixtures.

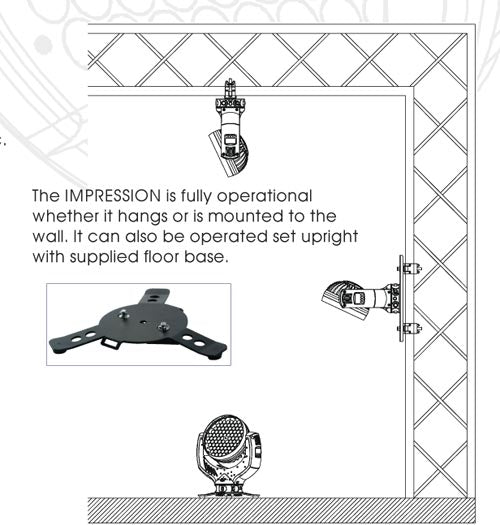

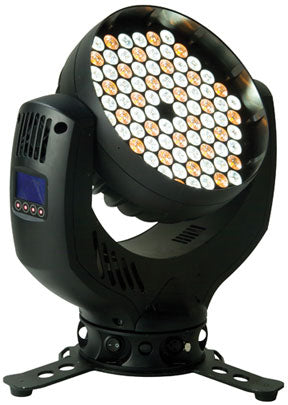

 With the Impression, Elation Professional introduces a new LED Moving Head in an ultimately compact format. Through its flexible installation options the unit can be installed in various orientations making the Impression especially suitable for a variety of applications. Impression offers all the advantages of LED fixtures:


• Variable Color Temperature

• Low Power Consumption / High Output (60 lumens per watt)

• Low Heat Emission and no UV or IR

• Long Life Operation

• Fast & Smooth Color Fades


 Through the use of the new K2 Luxeon high performance LED’s, the unit reaches light output higher than a 575W discharge lamp with no less than a 50% power savings. It comes with WHITE and AMBER LED’s allowing color temperature control from daylight to tungsten. The movement range of the Impression is also unmatched reaching 660 degrees of Pan and 300 degrees of Tilt. These features make the unit ideal for professional stage, theatre, television, exhibit and architectural applications. The Impression is designed in Germany and built in Europe with several international design and application patents pending.

Resources

Guides/ Manuals

Related Categories

Specifications

 SPECIFICATIONS

 LIGHT SOURCE:


• Color Temperature Control from 3,200 to 6,000k

• 90 Luxeon K2 high power LEDs

• Average service life: 100,000 hr.

• 60 cold white LEDs, 30 amber LEDs allow continuous color temperature adjustment

 OPTICAL SYSTEM:

• Highly efficient collimator cluster

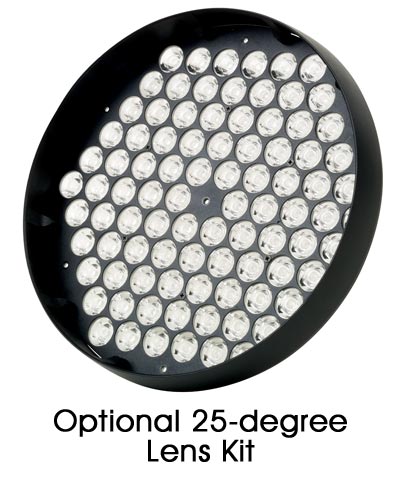

• Interchageable lens carrier with 10° beam angle (25° optional)

• Intergrated stray light screen

 MOVEMENT:

• High precision stepping motor control

• 8 or 16 bit resolution selectable

• Maximum speed 660° Pan in 2 sec., 300° Tilt in 1 sec.

• Position - Feedback

 CONTROL:

• DMX-512 protocol

• Backlit graphic LCD control panel

• 4 illuminated buttons

• Low noise temperature control ventilation system

• Overheat protection

• Color calibration feature

• Internal color presets

 CONNECTORS:

• DMX XLR 3-pin

• Mains voltage: Powercon input

 OPERATION PARAMETERS:

• Mains voltage: 100-240V, 50-60Hz, 350VA

• Maximum ambient temperature: 113°F / 45°C

• Orientation: any

 WEIGHT & DIMENSIONS:
