IP TESTER
IP TESTER

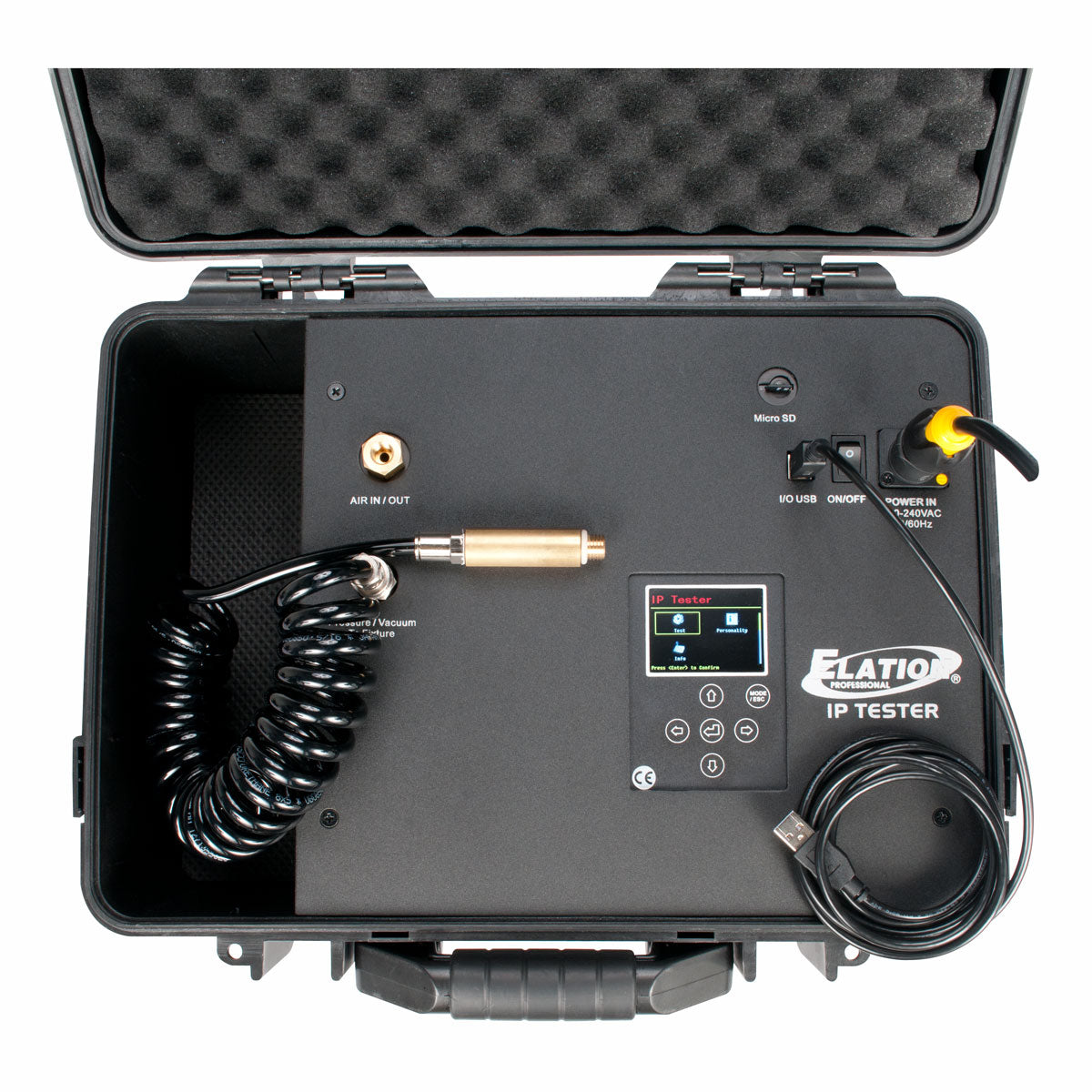

The IP TESTER is a unique mobile service tool developed by Elation to test the integrity of any compatible IP-rated lighting fixture such as Elation’s PROTEUS series fixtures, after being opened for lamp and gobo replacement or repair. Unlike other IP fixture test devices currently available in the market, Elation’s IP TESTER has been designed to test for both Vacuum and Pressure leaks.
Features include an easy to carry rugged flight case, an easy to navigate 6-button LCD control menu display, testing progress bars to indicate remaining test time, preloaded Elation IP-rated lighting fixture model test presets, manual test setup for any compatible non-Elation models, fixture serial number input to keep track of fixtures tested, Micro SD card slot to store test reports, and a USB connection for PC software control.
The IP TESTER includes a 3-5 ft (0.9-1.5m) coiled air hose with quick-connect fitting, threaded M12 brass nozzle with push-to-connect fitting, 2 M12 x 1.5 nylon bolts, 6ft (1.8m) USB cable, 5ft (1.5m) IP65 Locking Power Cable, a Micro SD Card, and an easy to carry rugged case.
Please contact Elation Service for more information.
Features
Mobile IP Fixture Vacuum and Pressure Tester
Developed by ELATION PROFESSIONAL
Compatible with any IP Fixture like Elation’s PROTEUS Series
Preloaded Elation IP Rated Lighting Fixture Test Presets
Manual and Auto Testing Modes
Easy to navigate LCD Control Menu Display
Fixture Serial Number Input for Tracking Test Results
Micro SD Card to Store Test Results
USB Connection for PC Software Control (Windows)
Easy To Carry Rugged Case
Resources
Specification information
Guides/ Manuals
Software Downloads
Related Categories
Specifications
CONTROL / CONNECTIONS
LCD Control Menu Display
PC SOFTWARE (Win 7, 8, 8.1, 10)
Air In/Out Vent
Quick-Release Air Hose Fitting
Micro SD Card Slot
USB B Port
IP65 Power In
SIZE / WEIGHT
Length: 16.5” (419.1mm)
Width: 6.5” (165.1mm)
Vertical Height: 14.25” (362mm)
Weight: 15.4 lbs. (7.0kg)
ELECTRICAL
AC 100-240V - 50/60Hz
40W Max Power Consumption
INCLUDED ITEMS
3-5ft (0.9-1.8m) Air Hose with Quick-Connect Fitting
M12 Threaded Brass Nozzle with Push-to-Connect Fitting
(x2) M12 x 1.5 Orange Colored Nylon Bolt
6ft (1.8m) USB Cable
5ft (1.5m) IP65 Power Cable
Micro SD Card (4GB min)
Specifications and documentation subject to change without notice.
