IPC415-DMX POWER CONTROL CENTER
IPC415-DMX POWER CONTROL CENTER

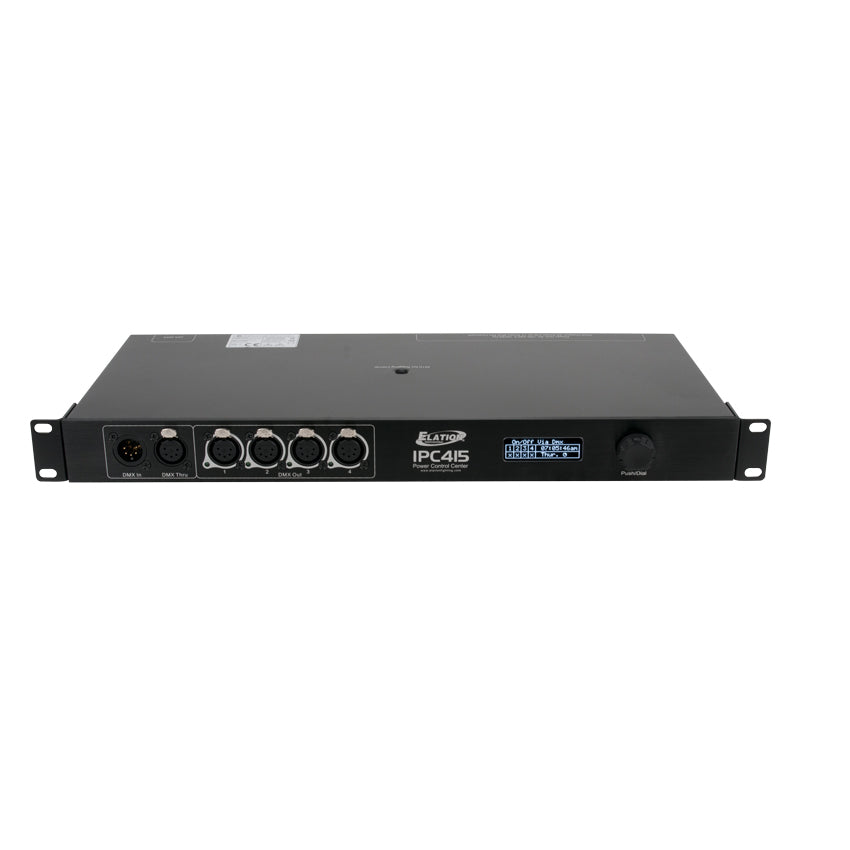

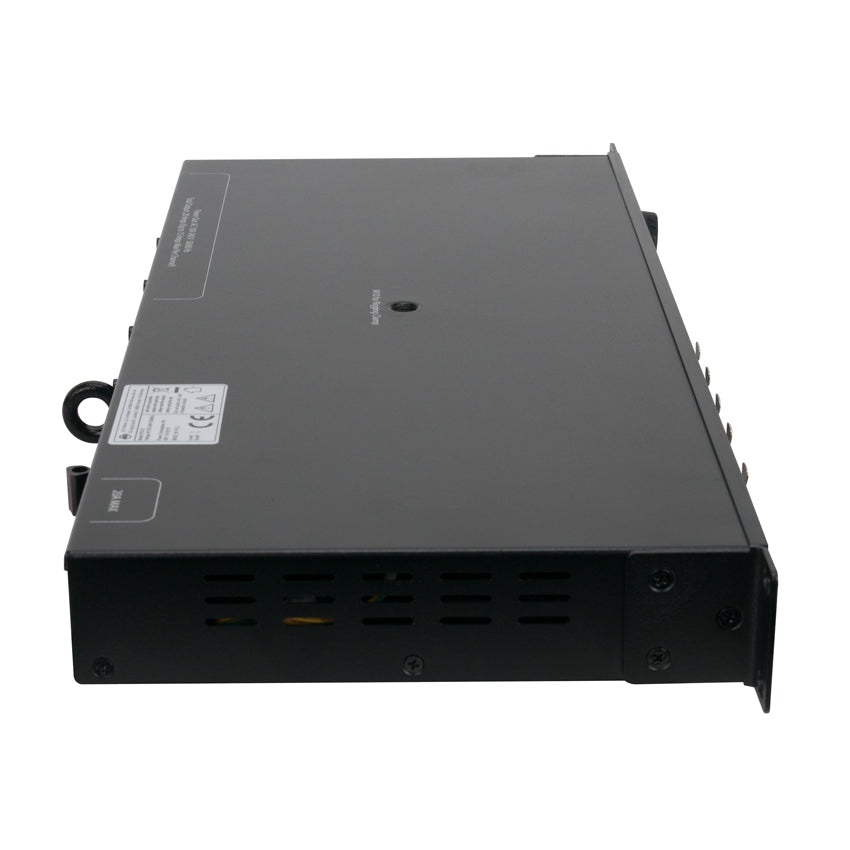

The IPC415 is an intelligent DMX power control center, featuring (4) powerCON outputs (15A max each), (4) 5pin XLR DMX outputs, (1) 5pin XLR DMX input, and (1) 5pin XLR DMX thru-put, and a multi-voltage universal auto switching power supply (100-240v). Power to the powerCON outputs can be scheduled to automatically switch ON/OFF via an internal scheduler when DMX signal is lost or when a specific cue is triggered from a DMX console. The IPC415 can be mounted in a standard 19-inch rack space using the included rack ears, or truss mounted using a clamp (not included) attached to the M10 rigging point in the center of the unit.
Features
2 DMX Control Modes (1 / 4)
Internal On/Off Scheduler
5pin XLR DMX Input
5pin XLR DMX Output (Thru-put)
(4) 5pin XLR DMX Outputs
(4) powerCON 15 amp Outputs (NAC3MPB-1)
Main 20 amp Power Switch
powerCON Power Input (NAC3MPA-1)
19-Inch Rack Mount Ears (included)

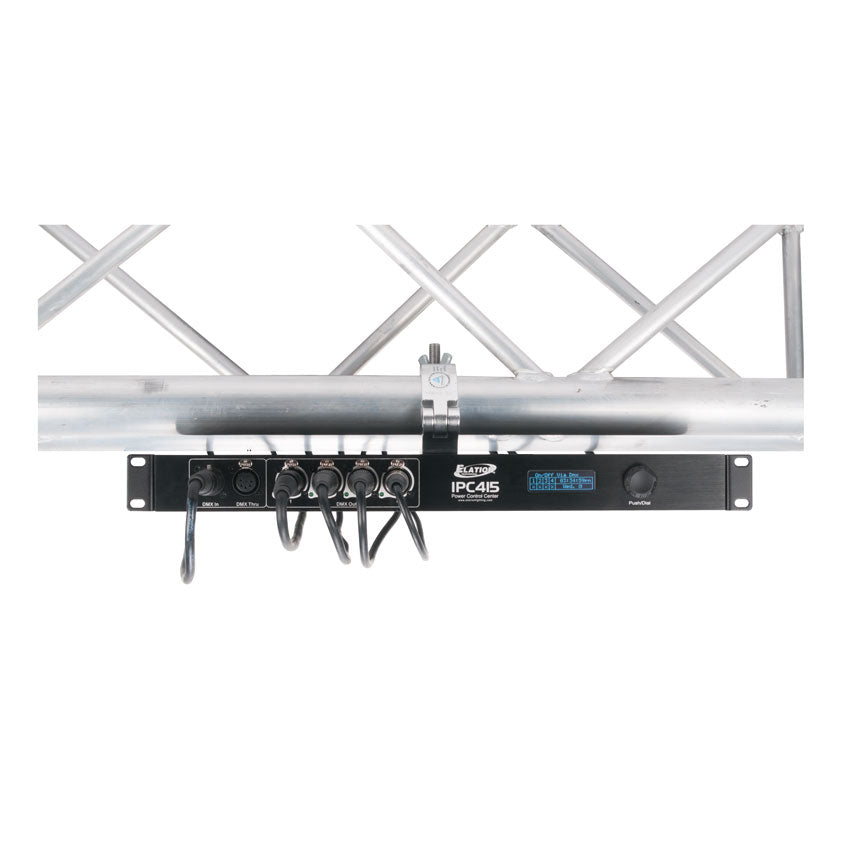

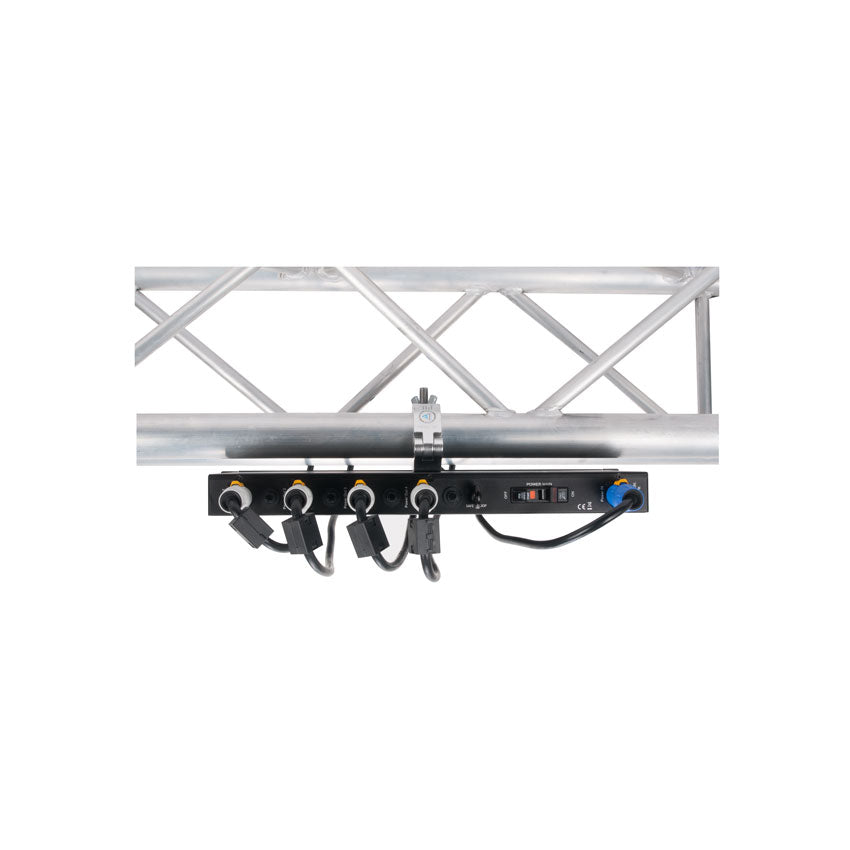

M10 Rigging Center Point for Truss Mounting (clamp not included)
Resources
Specification information
Guides/ Manuals
DMX/ RDM Traits
Drawings
CAD File
Related Categories
Specifications
(2) DMX Channel Modes (1 /4)
Push Button / Encoder Wheel
Internal On/Off Scheduler
OLED Control Menu Display
5pin XLR DMX Input
5pin XLR DMX Output (Thru-put)
(4) 5pin XLR DMX Outputs
(4) powerCON 15 amp Outputs (NAC3MPB-1)
Main 20 amp Power Switch
powerCON Power Input (NAC3MPA-1)
SIZE / WEIGHT
Length: 19.0” (482mm) Width: 9.1” (232mm)
Vertical Height: 1.7” (44mm)
Weight: 6.6 lbs. (3.0kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
7W Max Power Consumption (No Devices Connected)
35°F (2°C) to 113°F (45°C)
APPROVALS / RATINGS
CE | cETLus
INCLUDED ITEMSRack Ears (fits standard 19-inch single rack space)
M10 Screw Hole for Clamp (clamp not included)
Safety Cable Loop (cable not included)
Specifications and documentation subject to change without notice.
