LCU-1

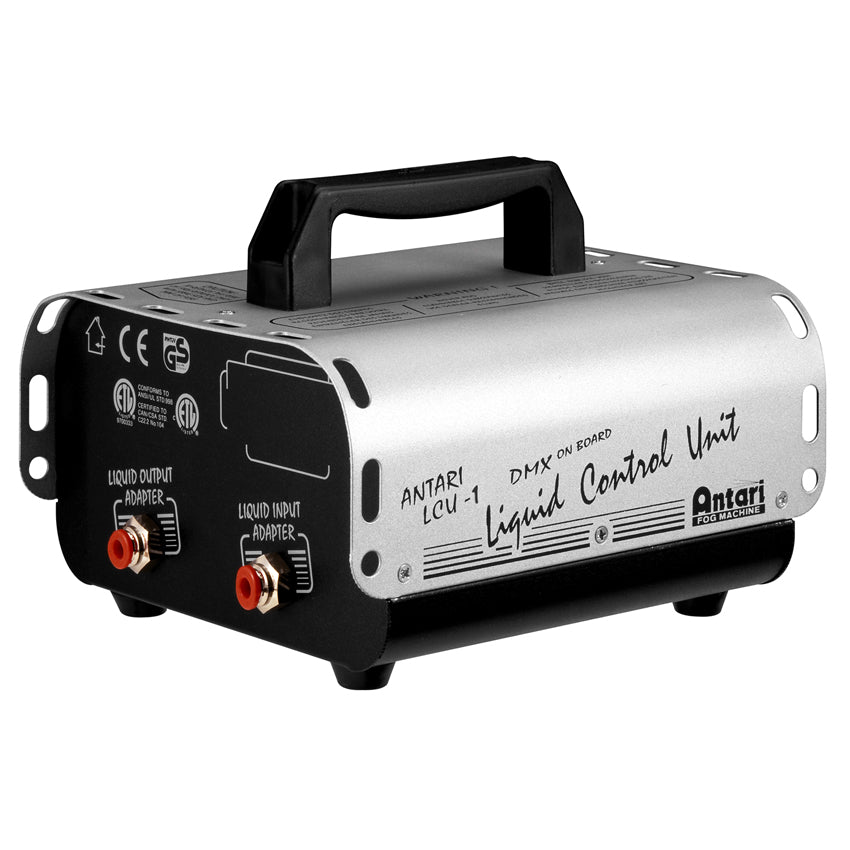

The LCU-1™ Liquid Control Unit is the ultimate fluid delivery system for large fog machine or snow machine installations. The system features a separate, ground-based liquid supply that can be stored wherever is most convenient for the operator. This means no more climbing ladders to fill the empty liquid containers night after night. Liquid can be automatically pumped right out of any large liquid container. Setup is as simple as making the connections from the LCU-1 to the machines as shown in the diagram. The casing of the LCU-1 is designed to fit easily into conventional trussing. With DMX on-board, the machines and the LCU-1 can all be set to the same channel for straightforward operation. In addition, a separate DMX address is given which provides greater control over the effect produced, hence, LCU-1 will not pump liquid unless the LCU-1’s DMX channel is selected.
Power : AC120 / 60Hz

Remote Included : depends on machine used

Optional Remotes : depends on machine used (Z-8)

Weight : 2.7 Kg

Dimensions (mm) : L 215 W 193 H 105

Function : DMX On-board
