Light Copilot III


This product is distributed by authorized American DJ Dealers only – Click here for details
 System includes:
• 1x Light Copilot II controller
• 2x LC-4SP, 4-Ch. Power Packs (15A per pack)
• 1x 25 ft. connector cable
• 1x 10 ft. connector cable


User Manual


• 16 channel analog chase controller
 Control panel has two 8-channel zones
• Fog Machine trigger button with LED function indicators (compatible with specific American DJ fog machines)
• USB gooseneck light input
• 16 built-in programs
• Each zone is switchable from audio (sound activated) to standard to timed chase (Fast Chase to 10 minute intervals)
• Internal Microphone or line input for music control
• Audio sensitivity control knob
• Offers option to turn desired light ON with the rest of lights maintaining chase sequence
• Daisy chain up to 3 switch packs for easy installation and enhanced expendability
• Flash button override
• Black out (Stand by)
• Switch packs use triacs rather than mechanical relays for faster, more reliable chase functions and longer life
• Maximum Load: 15A per channel

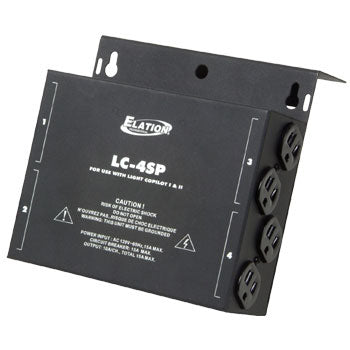

• Compact 4-Channel Power Pack (proprietary for Light Copilot I & Light Copilot II)
• 2x 3-pong Edison plugs per channel (8 total plugs)
• 9-pin In & Out connectors to daisy chain to other LC-4SP power packs
• Daisy chain output selector (Ch. 1-4 or Ch. 5-8)
• Changeable hanging bracket to hang on truss
• Max Power: 15A Total, 10A per channel
• 15A circuit breaker
• Dimensions (LxWxH): 7” x 7” x 2.5” / 180x177x64mm
• Weight: 4 lbs./1.8 kgs.
