M-Series Playback II Module

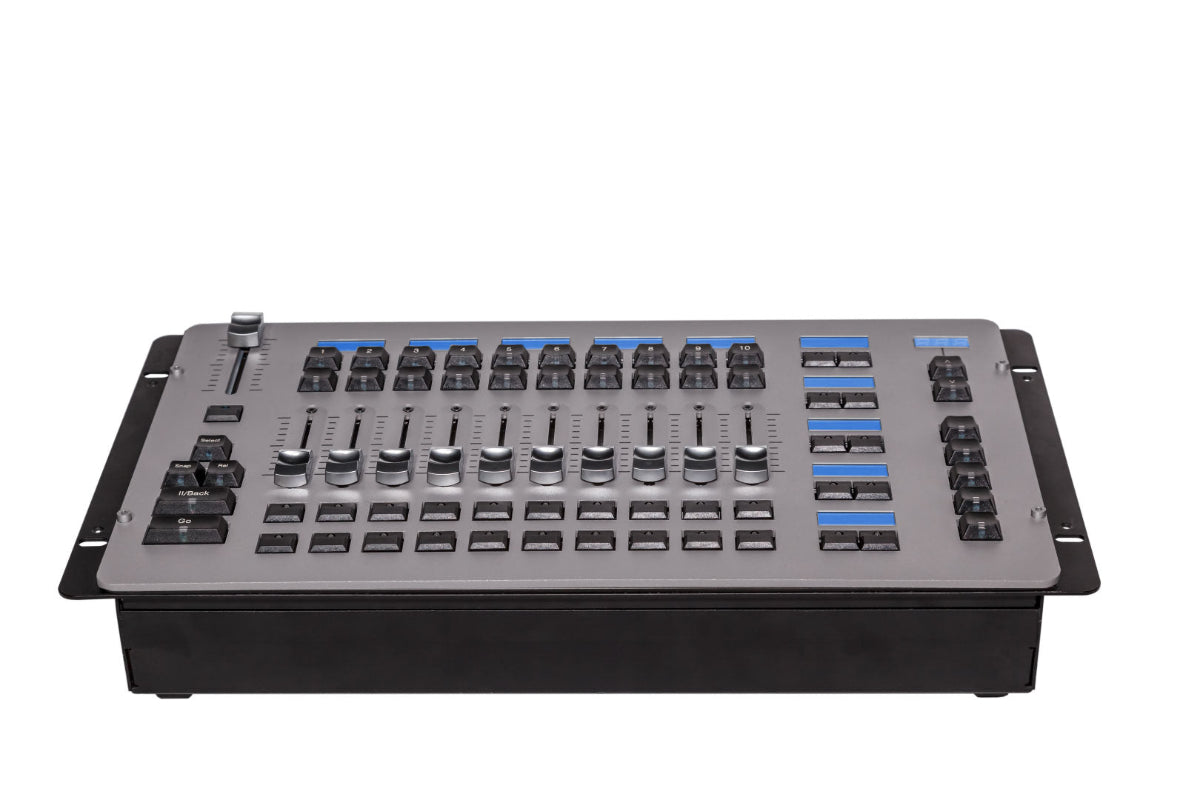

The M-Series Playback ll Module extends the playback capabilities of any M-Series console by adding 10 motorized faders and 10 PlayPaired buttons. Cuelist information is displayed on 10 LCD displays, 5 Fast Keys for quick access to banks and other functionality, a Master Go section and a Grand Master fader with flash.
Multiple Playback Modules can be added to the M-Series console.
M-Series Licensing
M-PC Free - 4 Universes (Artnet, sACN)
10 x Motorized Playback Faders
10 x Pause/Back Buttons
10 x Go Buttons
10 x Flash Buttons
10 x PlayPaired Buttons
10 x LCD Displays
Three-Digit display for actual bank number
5 x Fast Keys for quick access to banks or other functions
Master Go section
Grand Master fader with flash button
Tabletop and 19” rack mount format
Multiple Playback Modules can be added to the M-Series console.
M-Series Licensing
M-PC Free - 4 Universes (Artnet, sACN)
10 x Motorized Playback Faders
10 x Pause/Back Buttons
10 x Go Buttons
10 x Flash Buttons
10 x PlayPaired Buttons
10 x LCD Displays
Three-Digit display for actual bank number
5 x Fast Keys for quick access to banks or other functions
Master Go section
Grand Master fader with flash button
Tabletop and 19” rack mount format
Specifications
Visit support.obsidiancontrol.com for ONYX Support and Downloads
PHYSICAL
Length: 275 mm (10.9 in.)
Width: 483 mm (19.1 in.)
Height: 128 mm (5.1 in.)
Weight: 4.6 kg (10.2 lbs.)
CONTROL/USER INTERFACE
10 x motorized playback faders
10 x pause/back buttons
10 x go buttons
10 x flash buttons
10 x PlayPaired buttons
10 x LCD displays
Three-digit display for actual bank number
5 x Fast Keys for quick access to banks or other functions
Master Go section
Grand Master fader with flash button
CONNECTIONS
M-Series™ Module link USB: Neutrik locking RJ45 Ethercon sockets
USB input: USB device socket
USB devices: USB host socket
Desk lamp: 2.5 mm DC bayonet
AC power input: 3-pin IEC male socket
AC power throughput: 3-pin IEC female socket
ELECTRICAL
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Main fuse: 2 AT (slow blow)
Desk lamp output: 12 V
AC power output: Unswitched, unfused, max. 6 A
APPROVALS
EU safety: EN 60950
EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
US safety (pending): ANSI/UL 60950-1
Canadian safety (pending): CSA C22.2 No. 60950-1
CE
INCLUDED ITEMS
1.5 m power cable, 3-pin IEC
Ethercon patch cable
USB cable
Specifications and documentation subject to change without notice.
