M-Series Submaster Module
M-Series Submaster Module
Discontinued
SKU# MSSM01

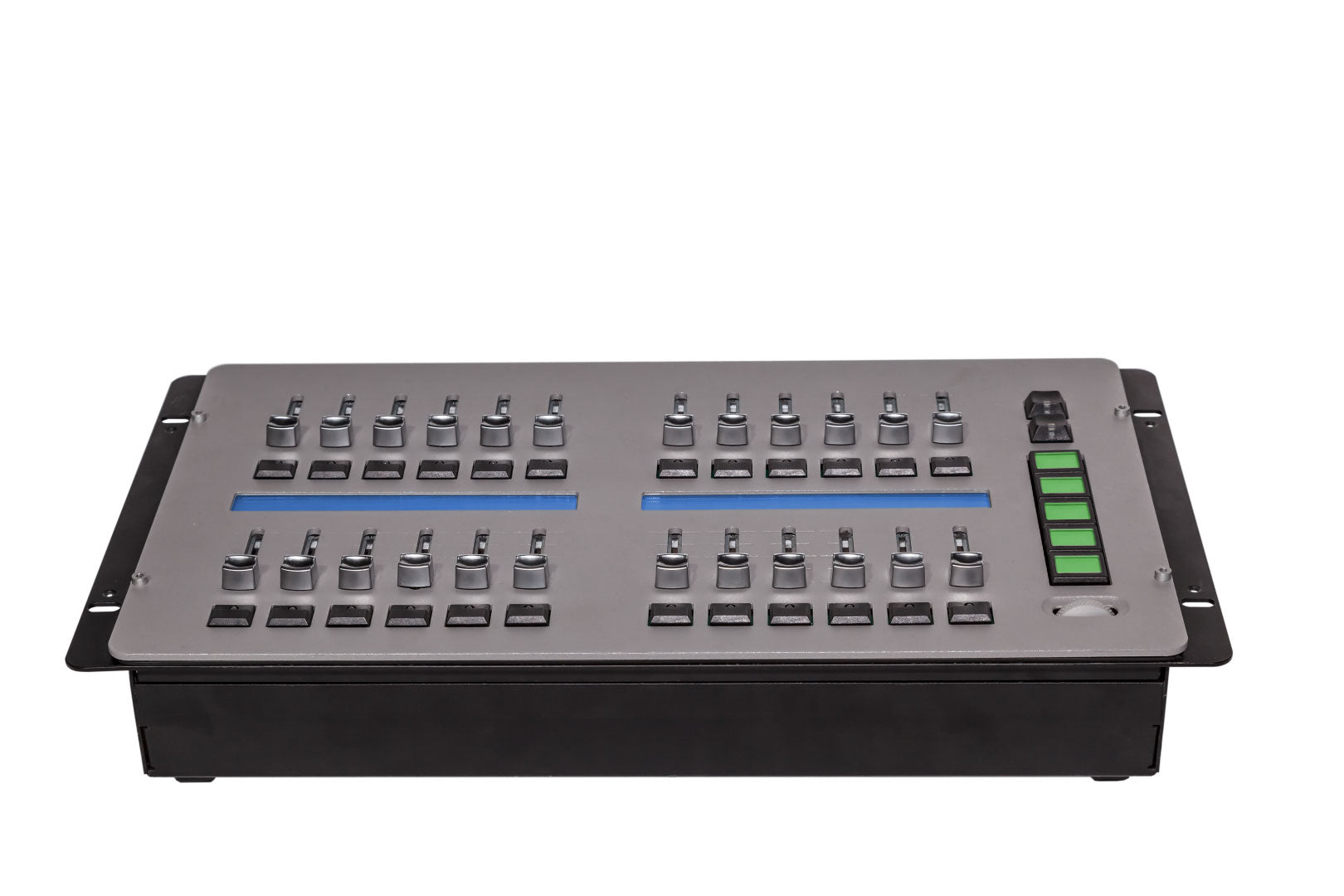

The M-Series Submaster Module provides the user with an additional 24 handles of controls for cuelists, channels, submasters or inhibitives. Combined with any M-Series consoles or the M-PC, the Submaster Module makes it easy and relatively inexpensive to build a 24, 48 or even 96 fader desk - the perfect startup theater or busking console.
M-Series Licensing
M-PC Free - 4 Universes (Artnet, sACN)
Features
24 x Faders with single-function button (every cuelist type supported)
2 x 40-Character display for labeling
5 x LCD Navigation buttons with scroll wheel
Direct access Up Down buttons for bank change
Tabletop and 19” rack mount format
Related Categories
Specifications
Visit support.obsidiancontrol.com for ONYX Support and Downloads
PHYSICAL
Length: 275 mm (10.9 in.)
Width: 483 mm (19.1 in.)
Height: 128 mm (5.1 in.)
Weight: 4.6 kg (10.2 lbs.)
CONTROL/USER INTERFACE
24 x non-motorized faders with single function button (every cuelist type supported)
40-character display for labeling
5 x LCD navigation buttons with scroll wheel
CONNECTIONS
M-Series™ Module link
USB: Neutrik locking RJ45 Ethercon sockets USB input:
USB device socket USB devices: USB host socket
Desk lamp: 2.5 mm DC bayonet
AC power input: 3-pin IEC male socket
AC power throughput: 3-pin IEC female socket
ELECTRICAL
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Main fuse: 2 AT (slow blow)
Desk lamp output: 12 V
AC power output: Unswitched, unfused, max. 6 A
APPROVALS
EU safety: EN 60950
EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
US safety (pending): ANSI/UL 60950-1
Canadian safety (pending): CSA C22.2 No. 60950-1
CE
INCLUDED ITEMS
1.5 m power cable, 3-pin IEC
Ethercon patch cable
USB cable
Specifications and documentation subject to change without notice.
