M1 HD Touring Road Case
M1 HD Touring Road Case
The M1 HD Touring Road Case by Elation is a durable tour ready road case made specifically for the M1 HD lighting console. Manufactured in the USA, this custom case features a form fitting design which allows the M1 HD to remain inside bottom half of the case providing an optimal visual of the multi-touchscreen display while in use. The case also includes a 1U rack space located below the console which can be used to add any standard 19-inch rack mount equipment such as Elation’s eNode 8 Pro Ethernet node (not included). Features include ATA approved flush mount hardware, ABS exterior finish, 3/8” plywood, 2” thick foam, tongue and groove sealing extrusion, removable compression foam lid, smooth rolling casters, rubber feet, spring loaded handles, high impact flat corners, and weighs approx 74 lbs. (33.6 kg) loaded.
Features
Custom Designed for M1 HD Lighting Console
Manufactured in USA
Form Fitting Design

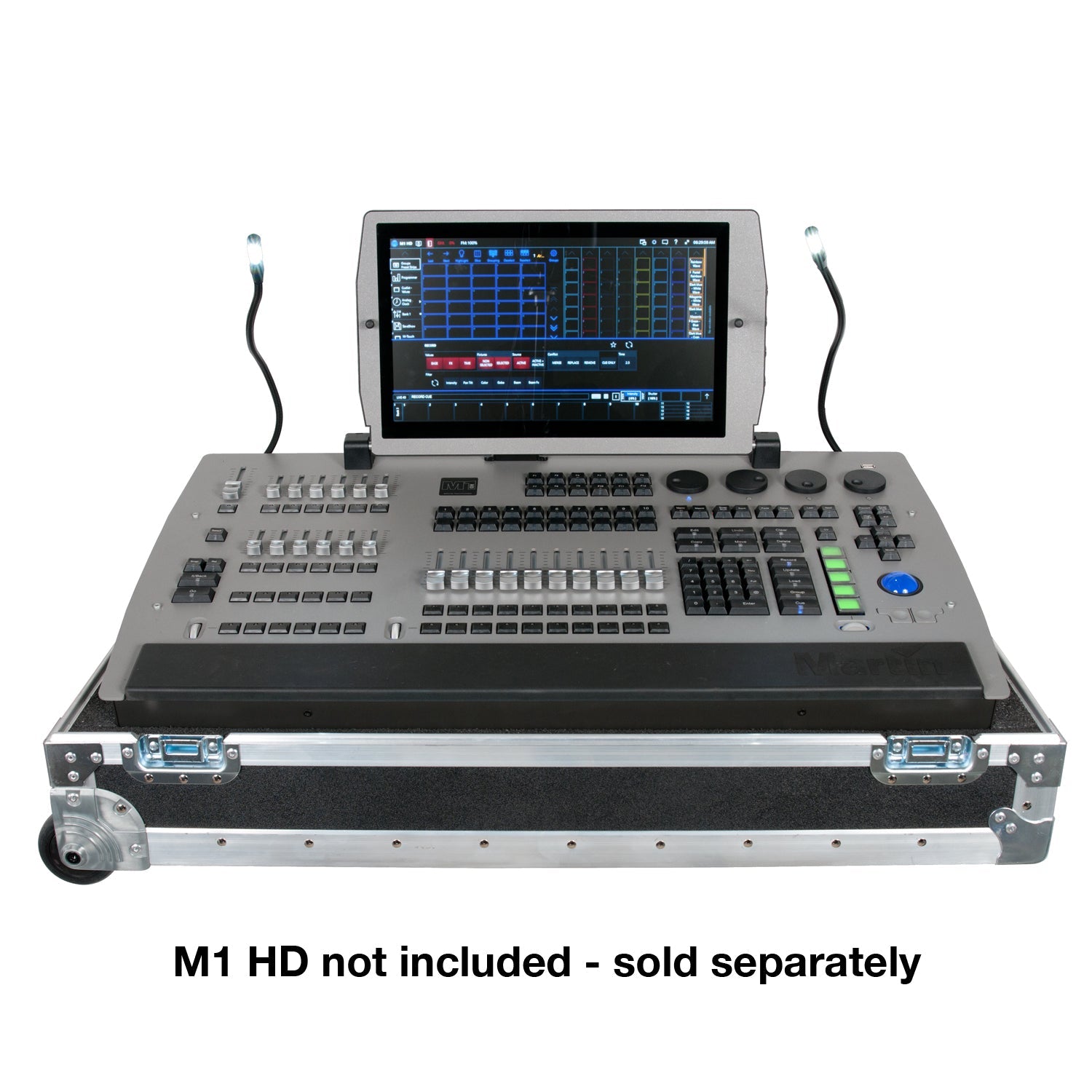

Console Remains in Bottom Half During Use

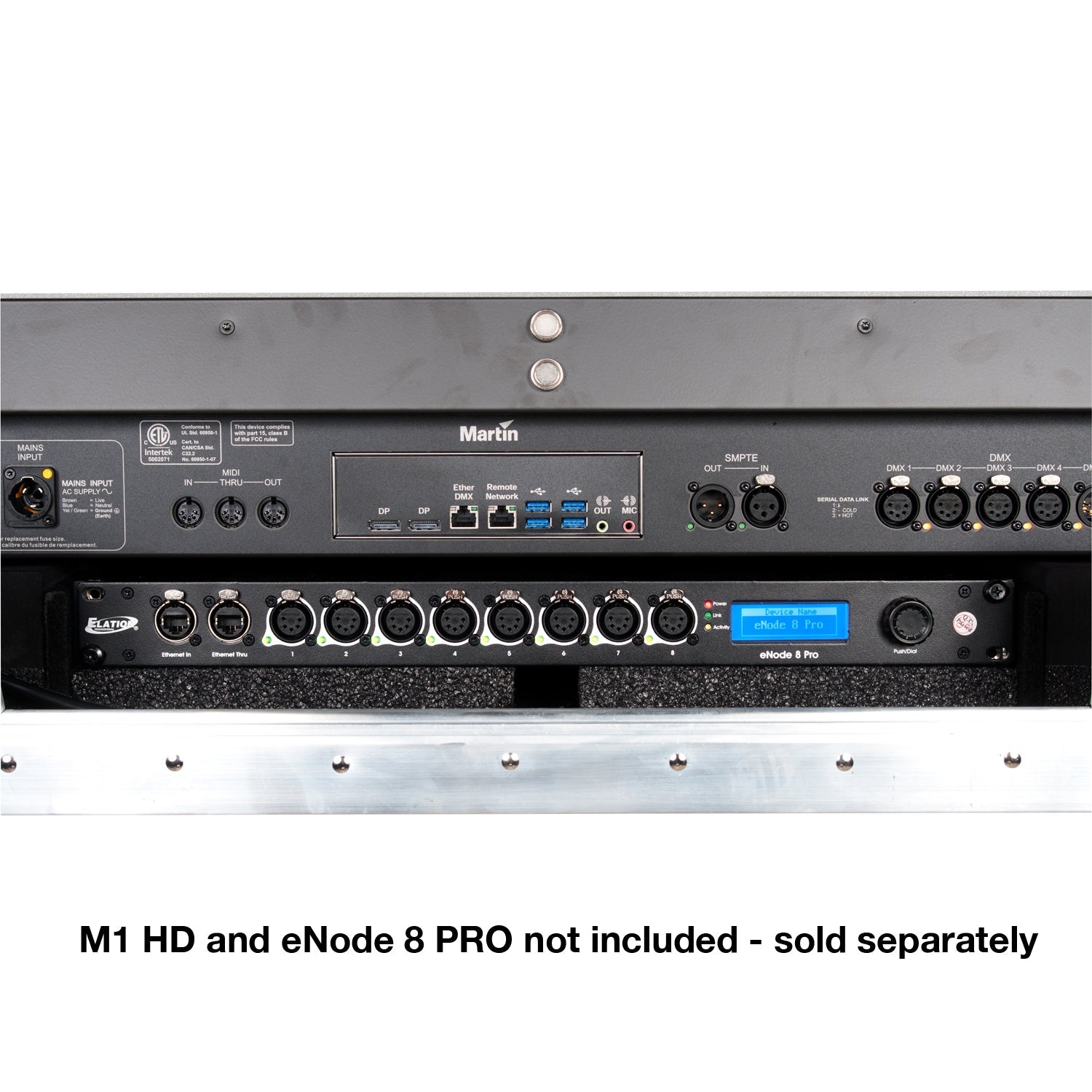

1U Rack Space for eNode 8 PRO (not included)
ATA Approved Flush Mount Hardware
ABS Exterior Finish
Tongue and Groove Sealing Extrusion
Removable Compression Foam Lid
Smooth Rolling Casters

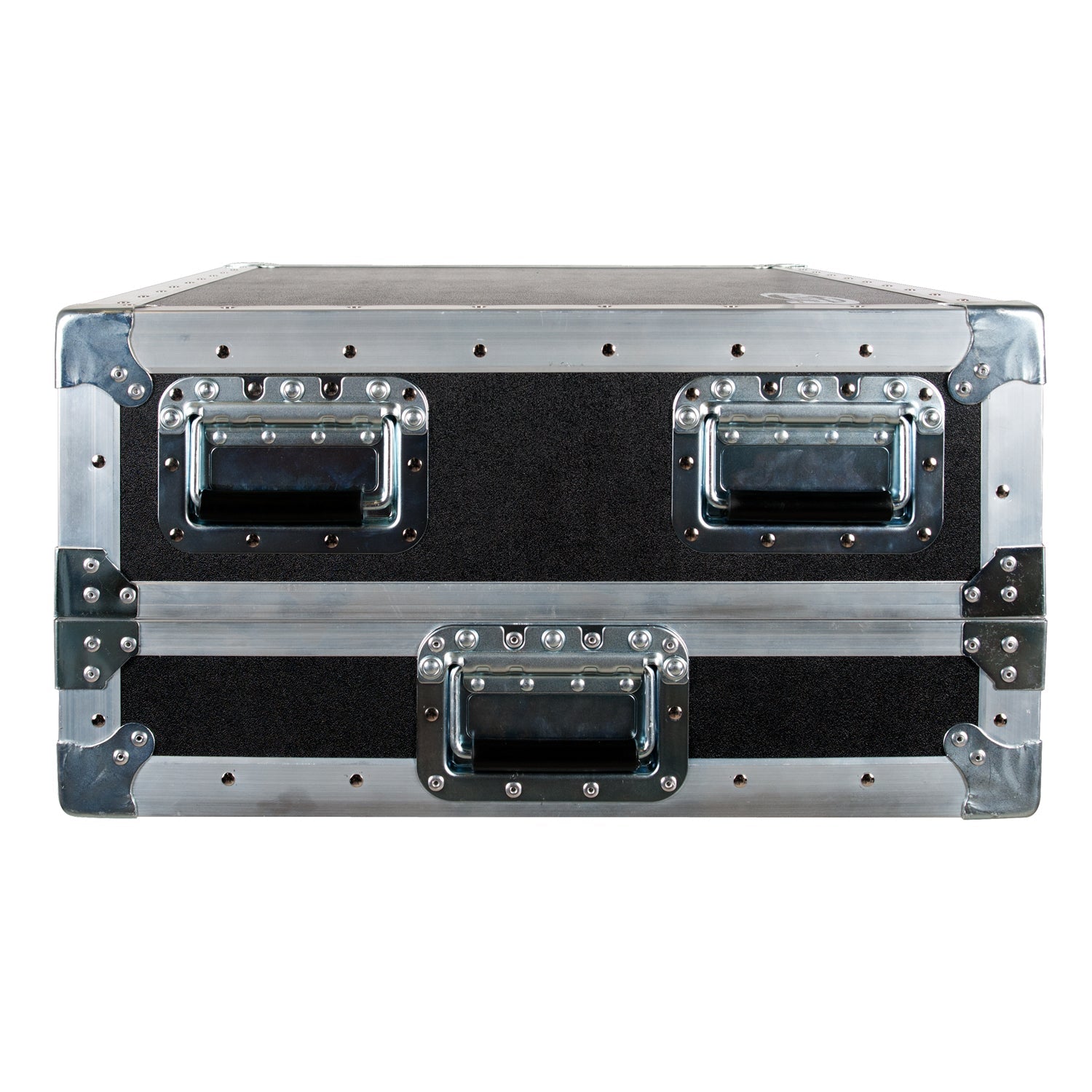

Spring Loaded Handles
High Impact Flat Corners
Resources
Specification information
Related Categories
Specifications
ATA Approved Flush Mount Hardware
ABS Exterior Finish
Tongue and Groove Sealing Extrusion
3/8” Plywood
2” Thick Foam
4 High Impact Recessed Spring Latches
6 Spring Loaded Handles
6 High Impact Flat corners
2 Smooth Rolling Casters
2 Rubber Feet
SIZE / WEIGHT
Length: 35.12” (892mm)
Width: 23.25” (591mm)
Vertical Height: 13.12” (333.25mm)
Weight: 40 lbs. (18.1 kg) EMPTY / 74+ lbs. (33.6+ kg) LOADED*
*Actual weight may vary depending on accessories added.
Manufactured in the U.S.A.
Specifications and documentation subject to change without notice.
