M2GO HD
M2GO HD

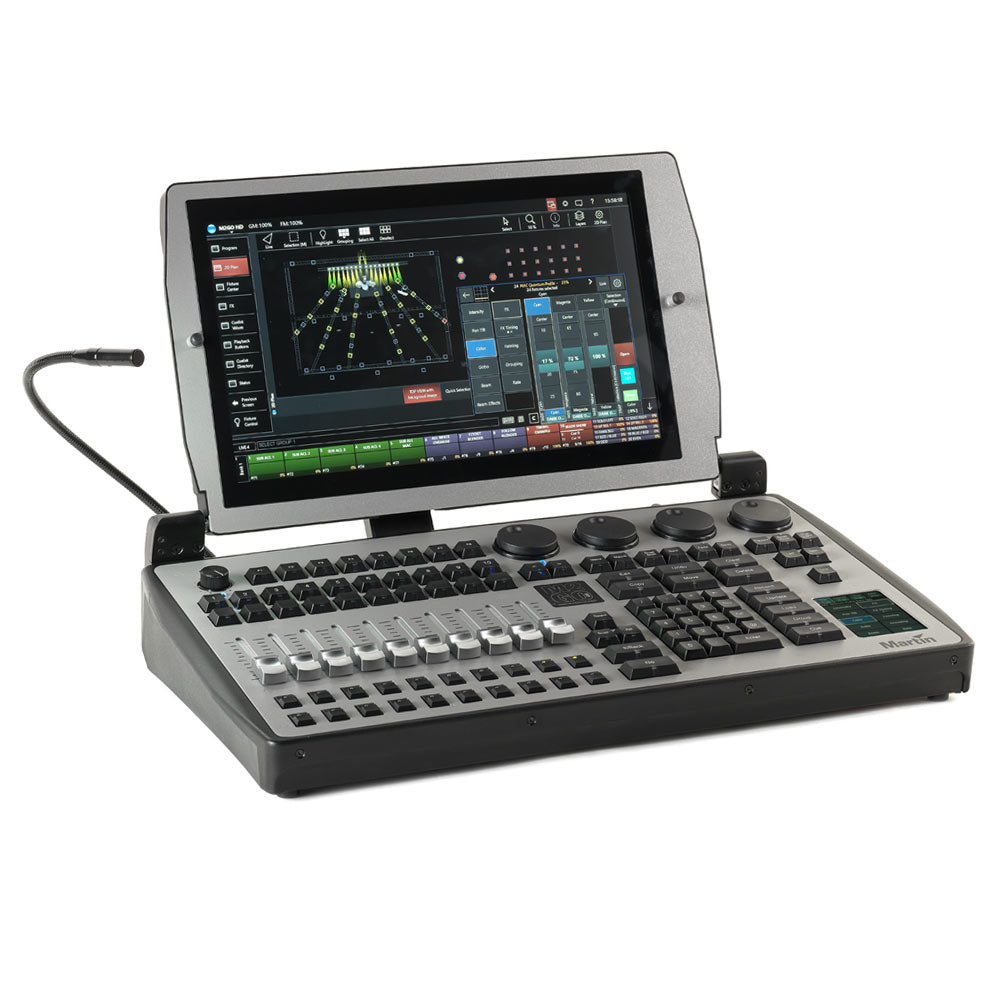

With its small footprint and large built-in touchscreen, the M2GO HD answers the demand for a more powerful all-in-one lighting console in a smaller form. It offers a professional level of features in a portable package and has been developed with cost, ergonomics, feature set, size and weight in mind. The M2GO HD is a unique, portable and powerful lighting console.
Complete Console with Integrated Processing in a Small Footprint
Folding Capacitive Multi-Touchscreen with 4 Encoders
10 Playbacks, 8 Encoders for Fast User Access
M-Series Licensing
4 DMX 5pin XLR ports
20 Universes (Artnet, sACN)
Features
High-Resolution Folding Capacitive Multi-Touchscreen
Integrated Industrial High-Speed Processing
3.5” Touchscreen for Fast and Direct Parameter Access
8 Digital Encoders for Parameter Control
8 Customizable Function Keys
4 DMX Universes Direct from the Console; up to 20 Universes
via Artnet and sACN without External Processors
Controls up to 10240 Parameters
Built-in 2D Visualizer for Selection and Real-Time Visualization
Customizable Graphical User Interface with Context-Sensitive
Toolbars and Integrated Help Menu
Powerful Effects Engine
1000 Cuelists with Fader Control
1000 Cuelists with Playback Control Buttons
Parallel Execution of Multiple Cuelists
Submaster, Groupmaster and Override Functionality
Parameter and Time-Fanning Functionality
Auto Update for presets and Cues
On-the-Fly Global Timing Adjustments
M-Series Manager Software for Programming and Triggering via
Time and Calendar Schedules, RS232 and IP Triggers
Multiple Wing Attachments (M-Series Modules)
MaxNet Synchronized Programming and Playback Support
Related Categories
Specifications
PHYSICAL
Length: 300 mm (11.9 in.)
Width: 540 mm (21.3 in.)
Height: 99 mm (3.9 in.)
Weight: 9 kg (19.8 lbs.)
CONTROL AND PROGRAMMING
Protocol: DMX512A (RDM), Art-Net, sACN
4 physical DMX ports
20 DMX universes integrated
No limit to number of DMX channels per fixture
Extensive fixture library for all known manufacturers
65000 presets for each group of functions (P/T, color, gobo, etc.)
Effect generator for automated programming of complex effects
Customizable highlight and lowlight function to identify individual fixtures
Relative or absolute programming
Fan function for all channels (including timing parameters)
On-the-fly global timing changes
Virtual cuelists
Macros
Wait, follow and link cues
HTP, LTP, chase, timecode, submaster and group master playback functionality
Individual parameter timings
Intuitive patch feature
Fixture type cloning
All channels with 16-bit resolution
CONTROL/USER INTERFACE
Main playback interface: Ten 60 mm playback faders, each with four function-assignable buttons
Eight customizable multi-function keys
Playback Select button
Master Go section with Go, Pause, Snap and Release
Four digital rotary encoders with push function and status LED for fixture parameter control 3.5” touchscreen for parameter groups, effect parameters, fanning and global timings and button
Built-in 2D visualizer for selection and real-time visualization Grand master rotary fader
Blind/preview button
Customizable highlight/lowlight function
Customizable parameter defaults
Next/last fixtures/groups
Large command keys
PLAYBACK
Assign a cue, cuelist or effect to any playback fader
500 playback banks, each containing 10 playbacks
100 pages of 100 playbacks activated by touchscreen button
No limit to cues per cuelist
Full 16-bit fading for high-resolution fixtures
Individual fade in/fade out times for all playbacks
Manual override available at all times
Live 0-1000% override of global cue timings
Live programmer timing (“Sneak”)
Cuelists can be executed in tracking or non-tracking mode
HARDWARE
Industrial 15.6 inch TFT 16:9 touchscreen (1376x768 pixels)
3.5" RGB touchscreen
64 GB SSD storage drive
Industrial motherboard with Intel Quad-Core processor
8 GB RAM
Integrated graphics processor
SOFTWARE
Windows 10 Embedded OS
OS installation by USB 3.0 storage device
Show backup on hard disk or USB storage device (not included)
Support for ELO and Windows USB touchscreens
CONNECTIONS
4 x DMX universe outputs: 5-pin locking XLR
External monitor screen: 2 x HDMI
Art-Net/sACN for up to 20 DMX universes in total: Gigabit
RJ-45 MaxNet controller link: Gigabit RJ-45
Storage media/hardware peripherals: USB 3.0
Built-in Internal MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode)
Built-in Internal SMPTE Timecode In/Out: 3-pin XLR
12 VDC power supply input: 4-pin XLR
Desk lamp (dimmable): XLR
USB (storage media/hardware peripherals)
Back of mainboard: 4 x USB 3.0
Side of console: 1 x USB 2.0
ELECTRICAL
AC mains power to 12 VDC external PSU (included):
100-240 V nominal, 50/60 Hz
Maximum current: 1.4 A
12 VDC output: 5 A, 60 W max.
INCLUDED ITEMS
1.5 m power cable, EU (Schuko), 3-pin IEC
1.5 m power cable, US, 3-pin IEC
External PSU (12V 5A)
LED desk lamp, angular XLR connector, 13"
Dust cover
One-Key™ with ShowDesigner 6 Lite™ one-year license and M-PC 64 universes license
Specifications and documentation subject to change without notice.
