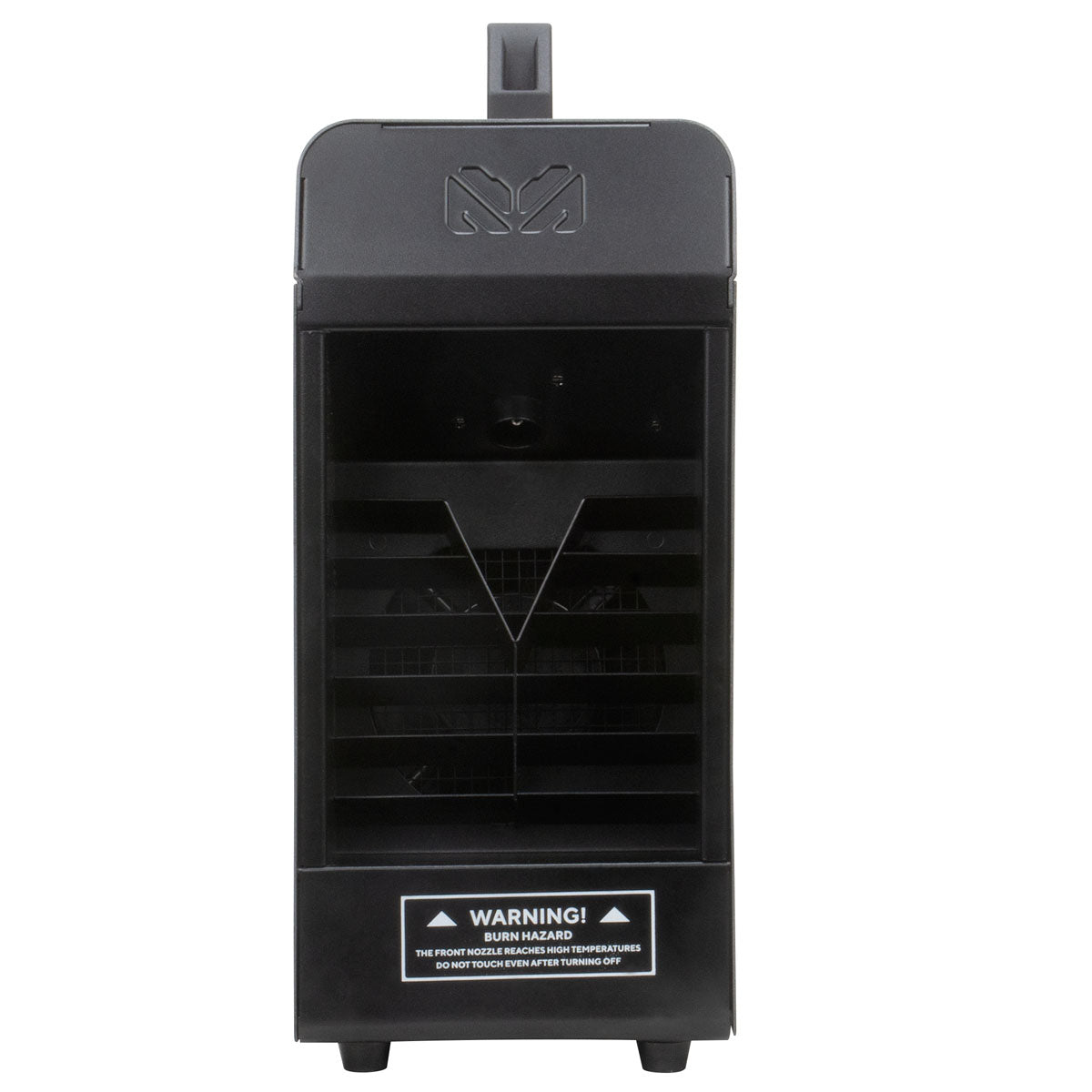

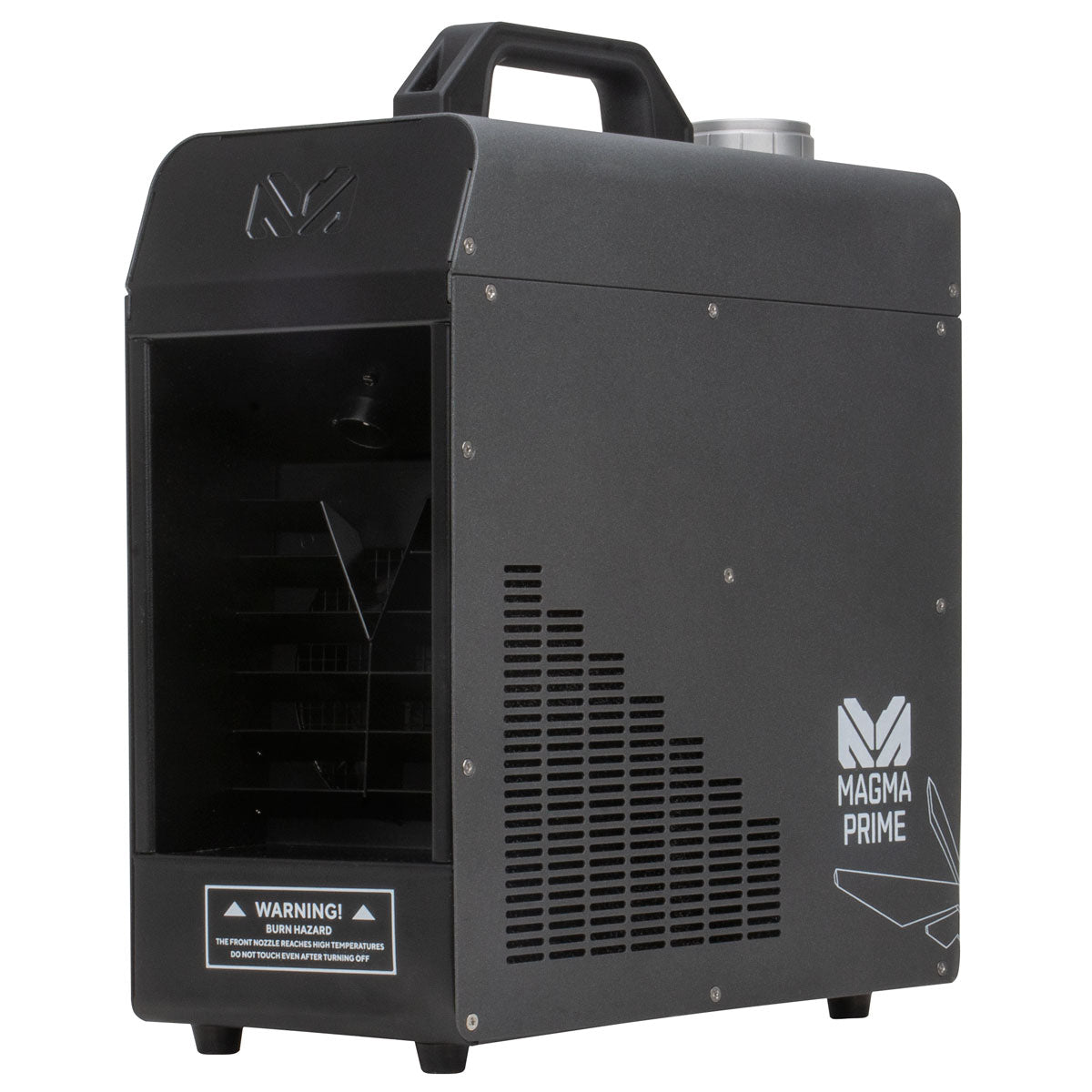

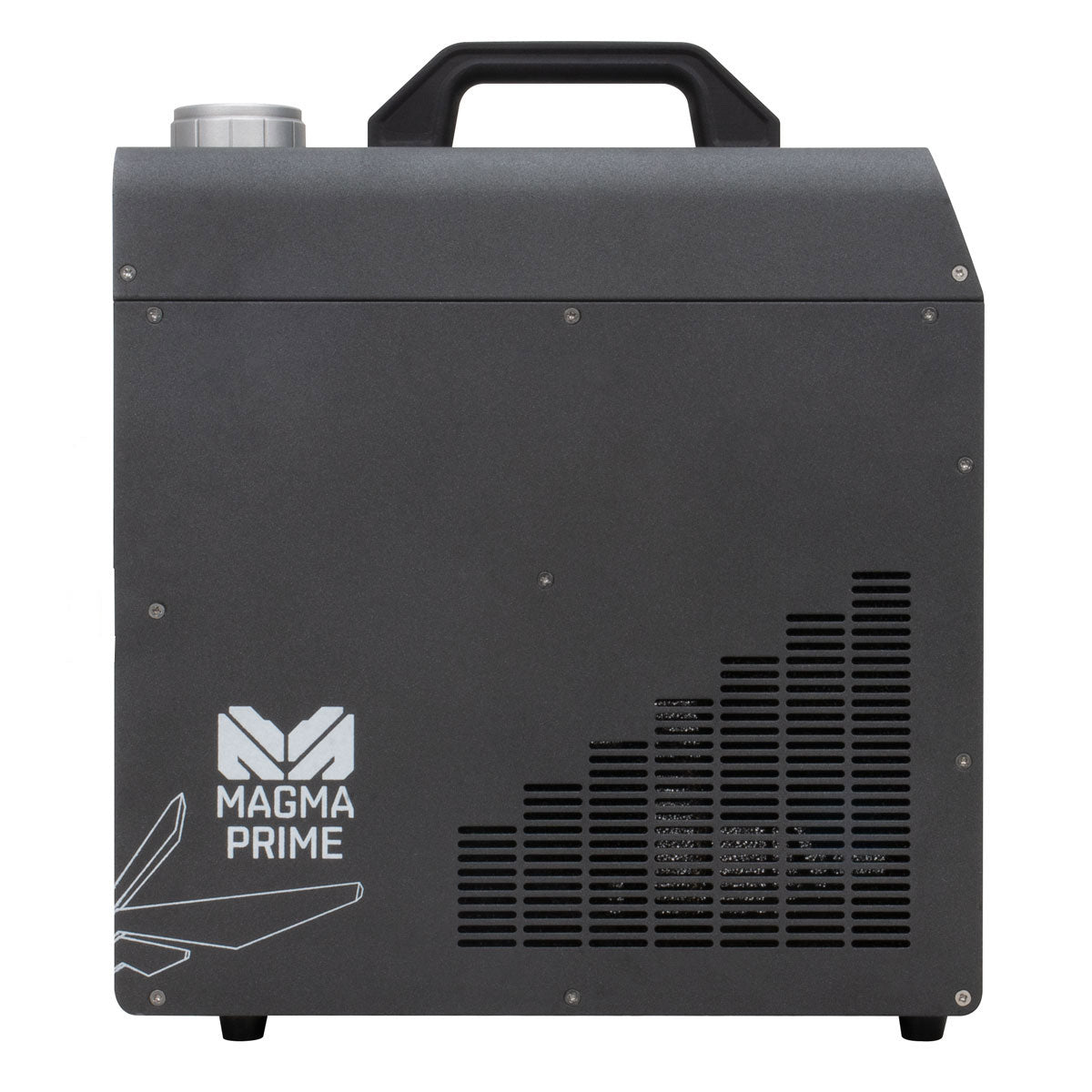

MAGMA PRIME FAZE MACHINE

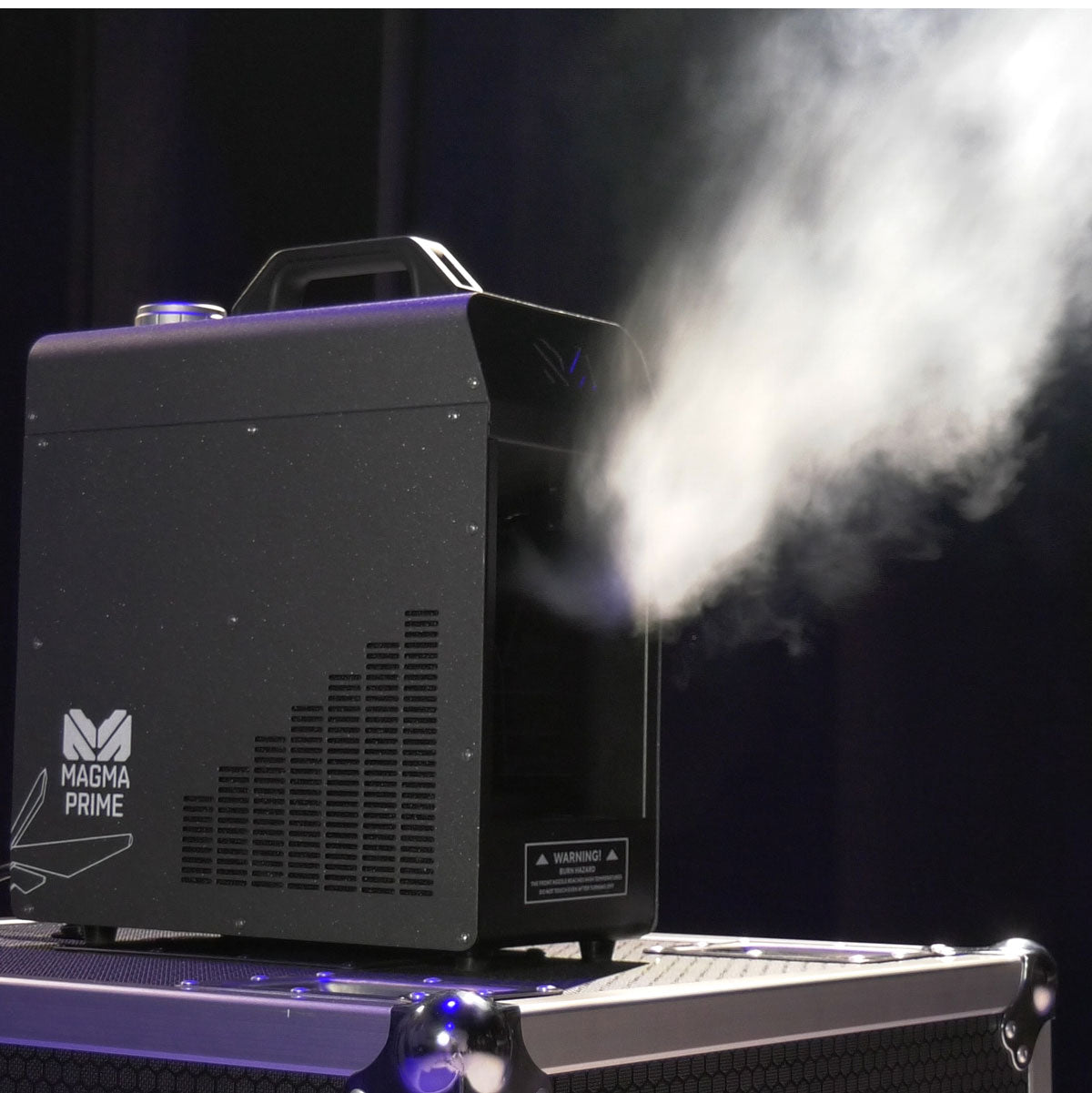

MAGMA PRIME™ is a water-based fazer with advanced technology providing a high-volume dry faze effect with low fluid consumption. The new HPA (high pressure air) pump technology reduces the risk of heater clogging. Features includes an easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminum housing, and optional wired and wireless remote control options.

UPC: 810008260906SKU: MSP001

Related Products

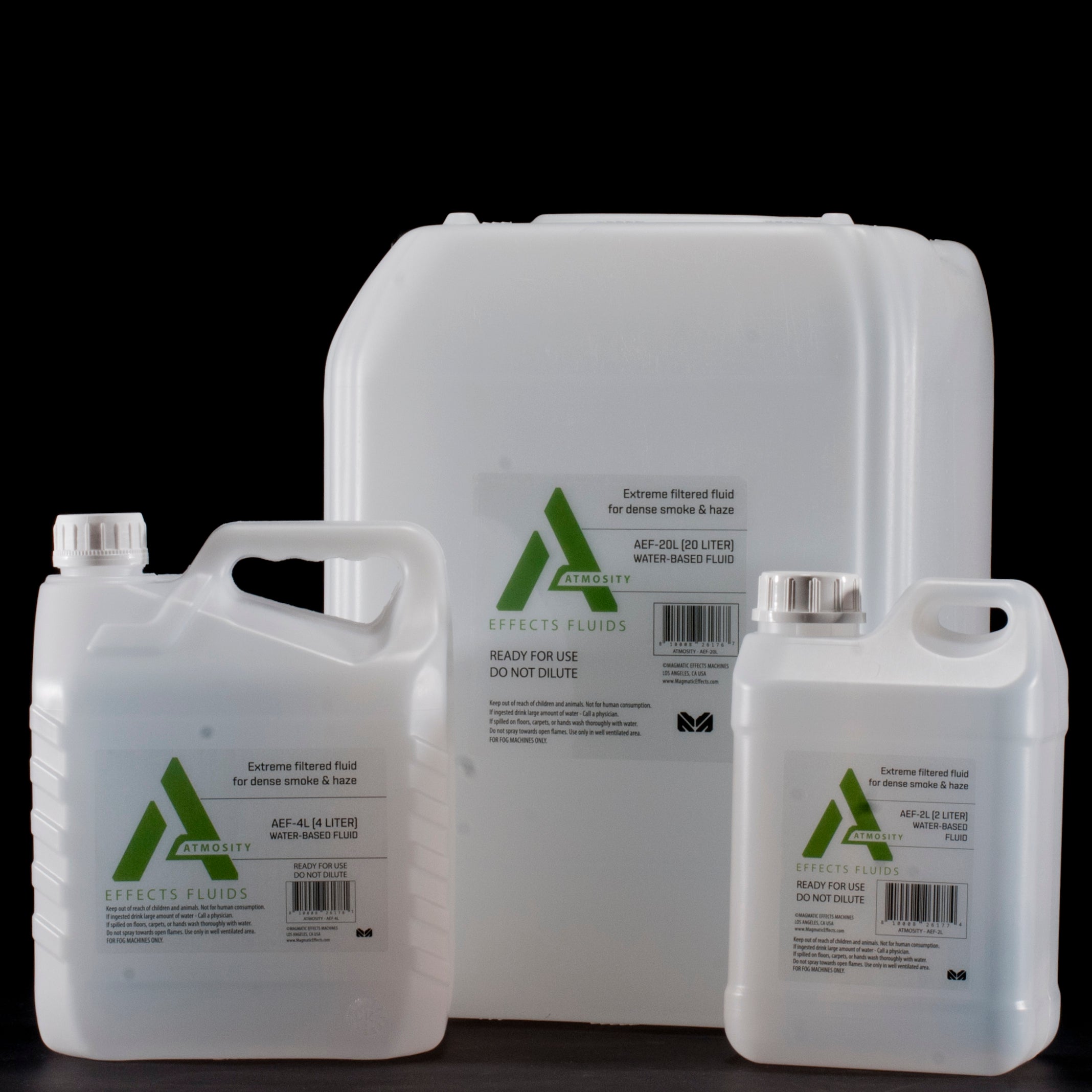

AEF-20L Standard Fog FluidAEF-20L Standard Fog Fluid
AEF-20L Standard Fog Fluid
AEF-2L Standard Fog FluidAEF-2L Standard Fog Fluid
AEF-2L Standard Fog Fluid
AEF-4L Standard Fog FluidAEF-4L Standard Fog Fluid
AEF-4L Standard Fog Fluid

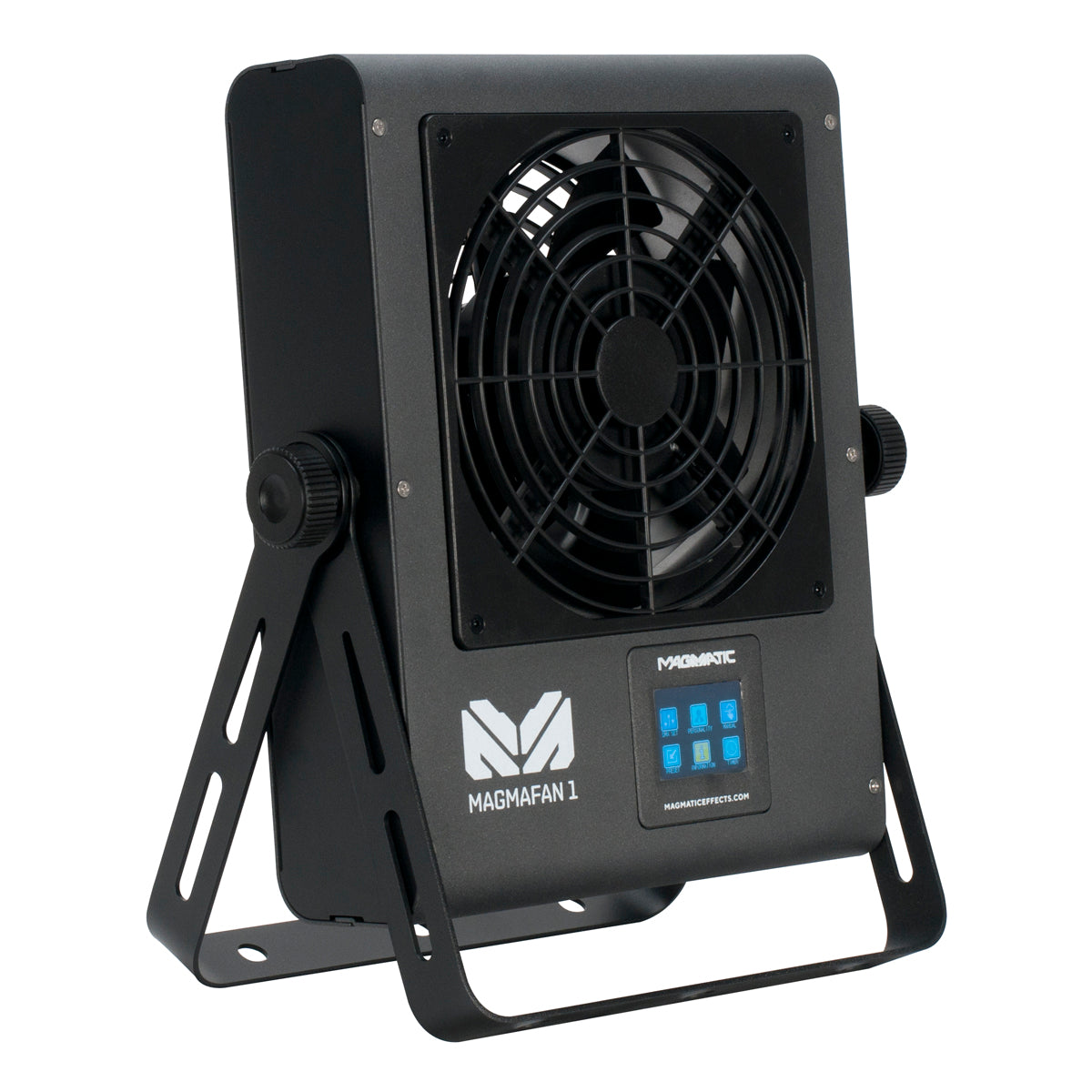

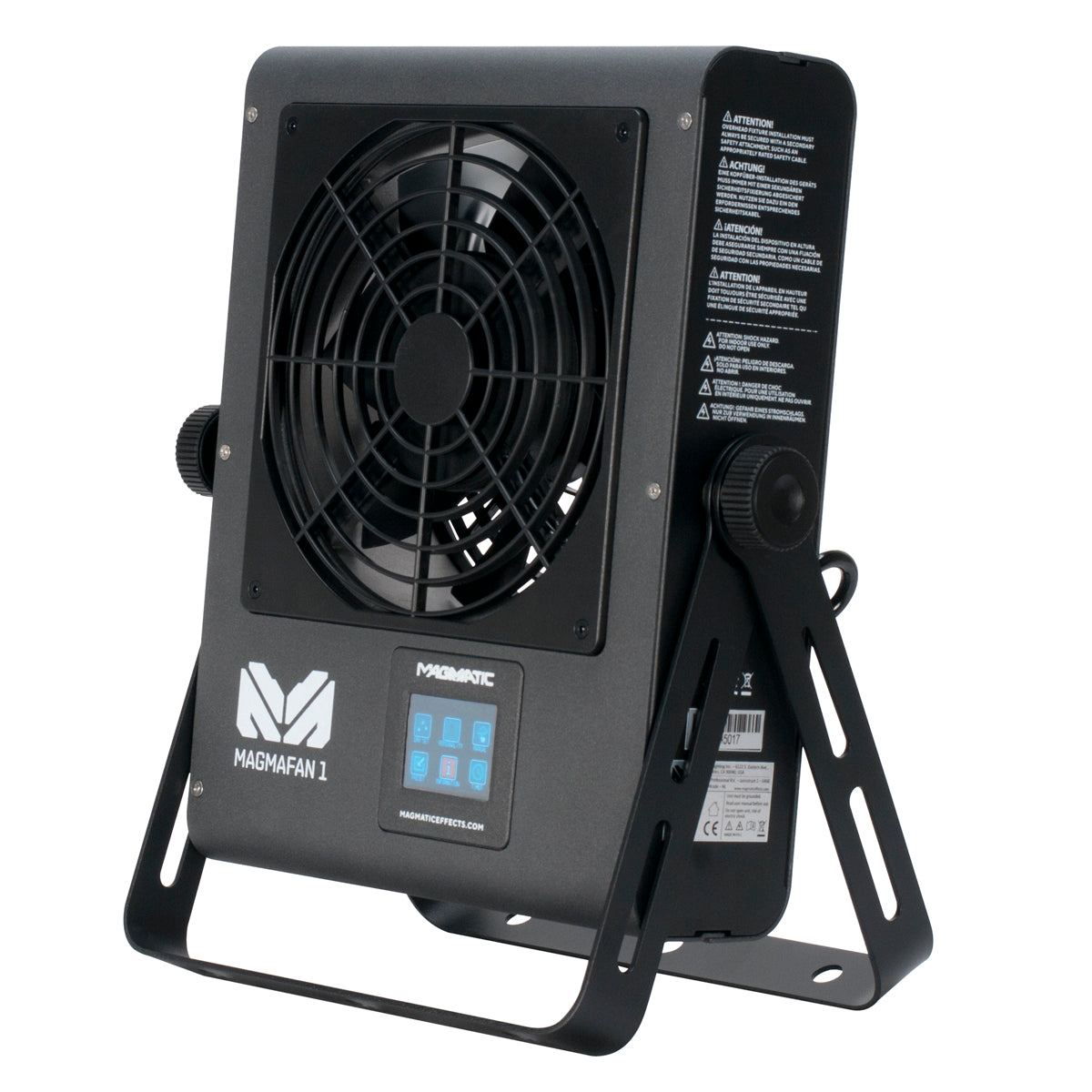

MAGMAFAN 1MAGMAFAN 1
MAGMAFAN 1

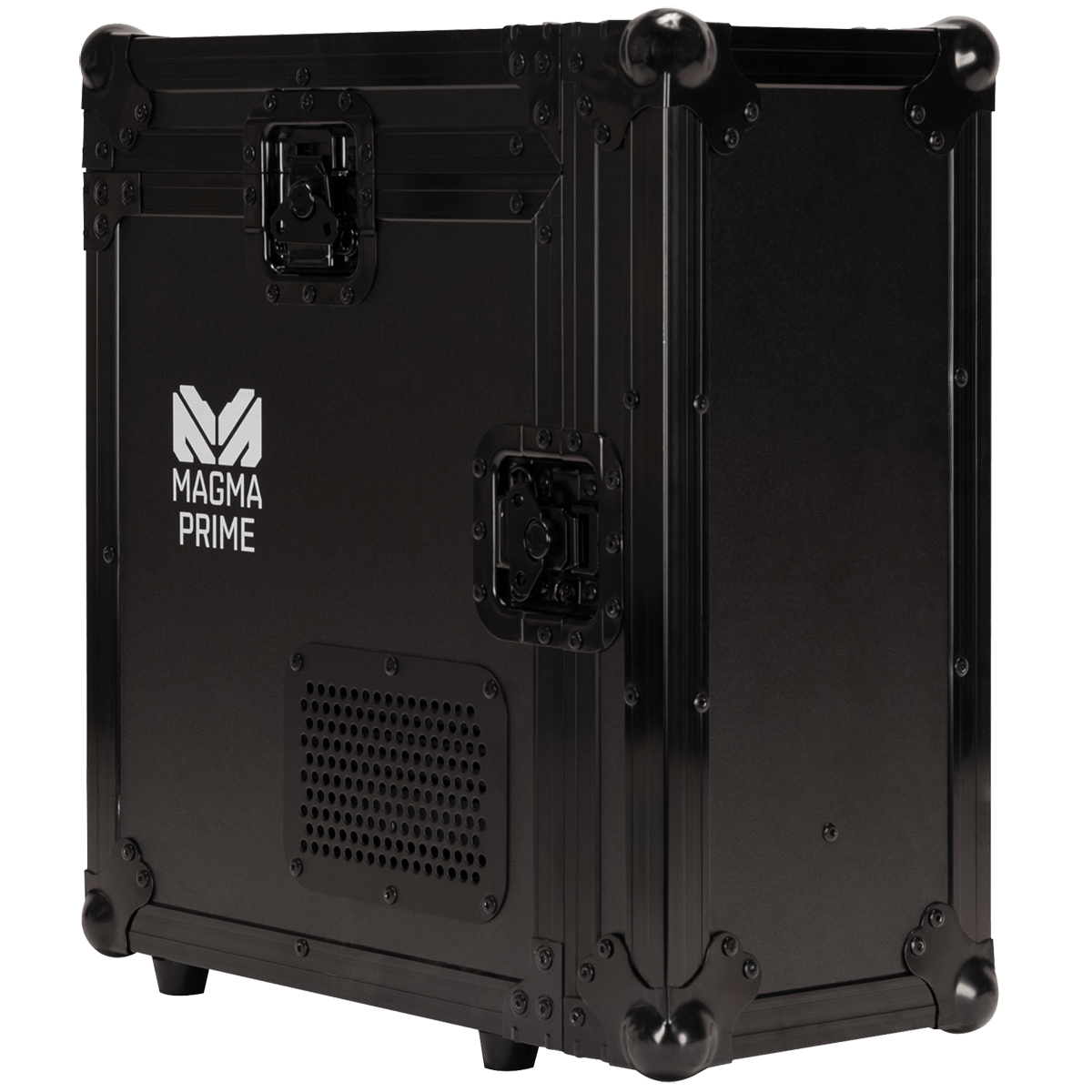

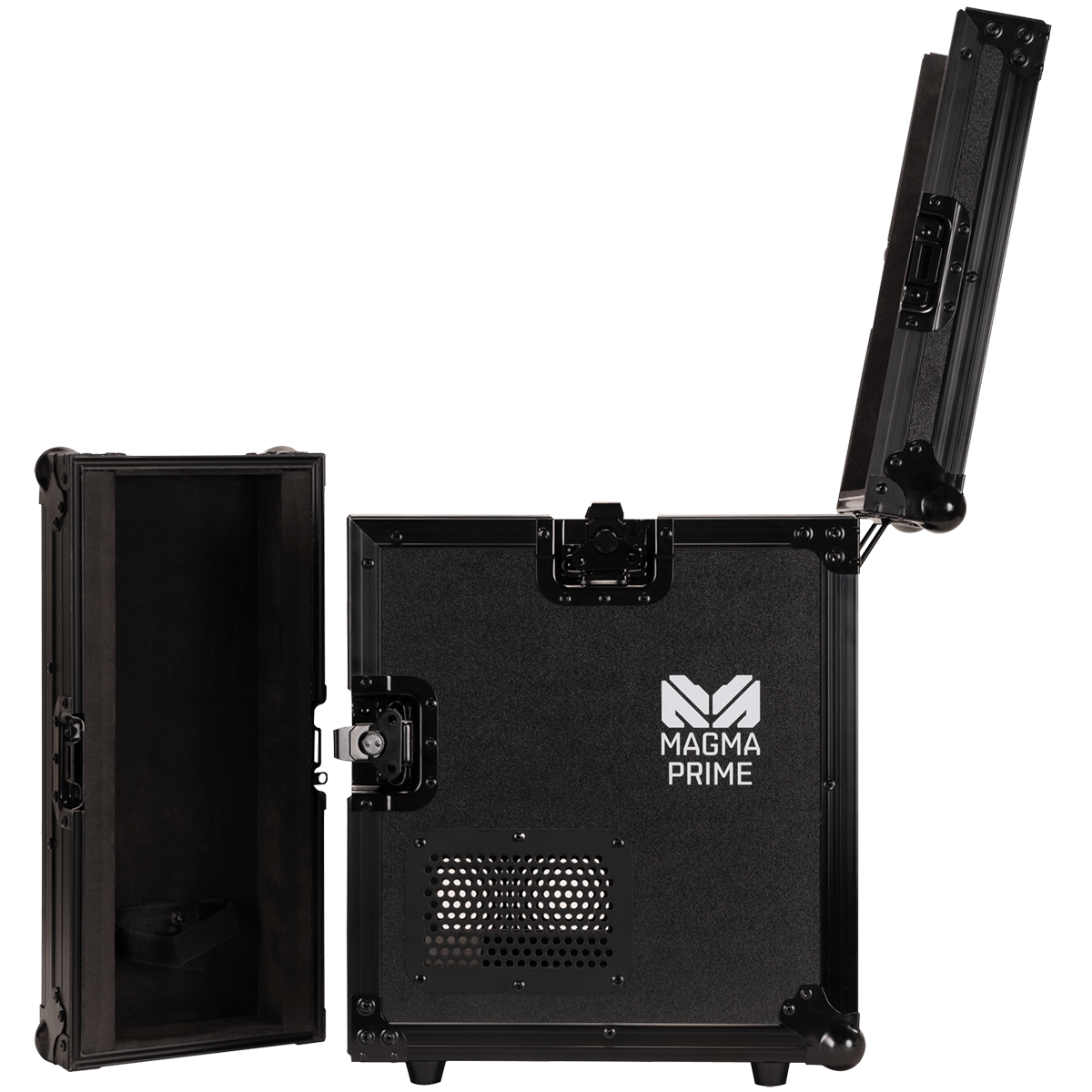

Magma Prime FCMagma Prime FC
Magma Prime FC

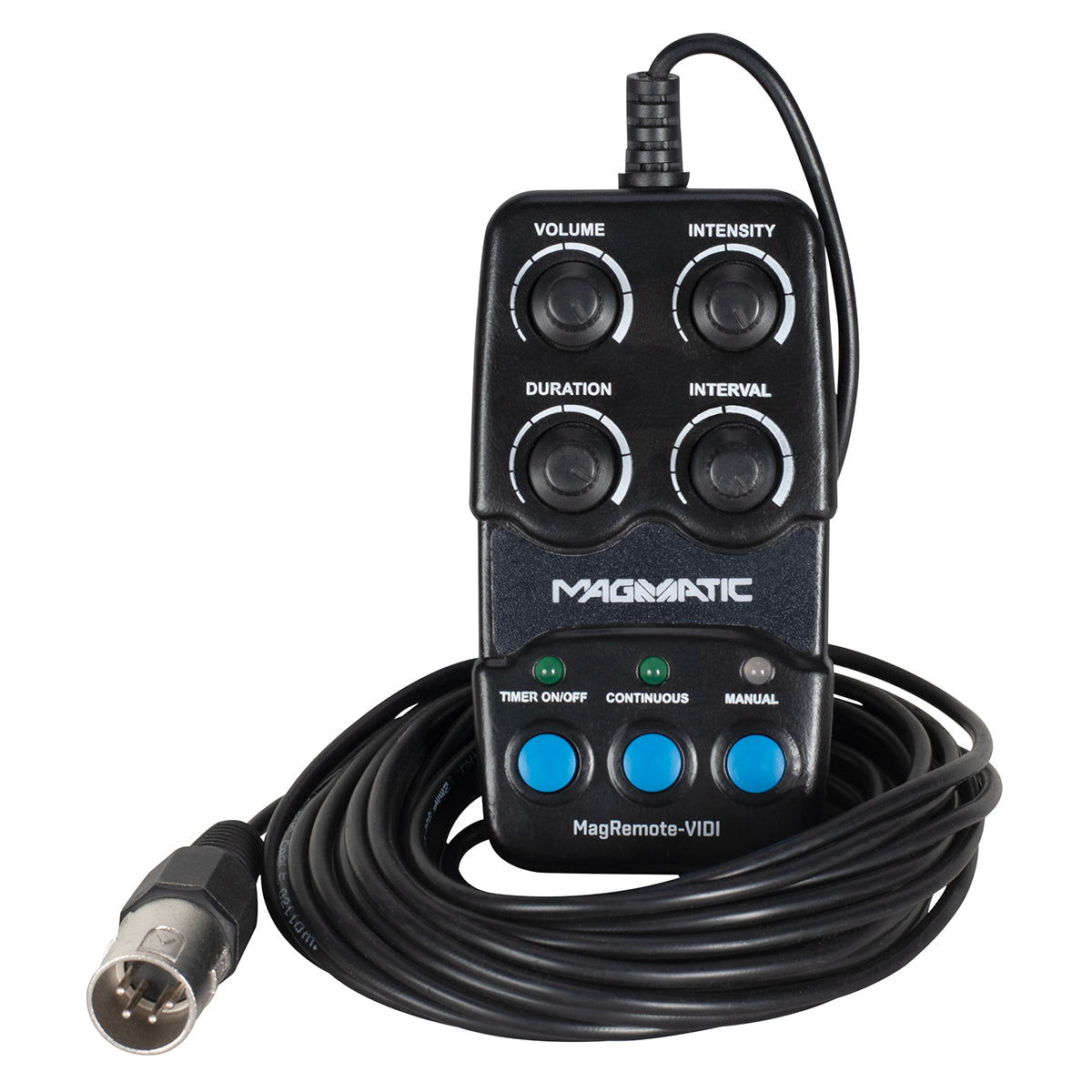

MagRemote VIDI
MagRemote VIDI

MAGMA PRIME

MAGMA PRIME™ is a water-based fazer with advanced technology providing a high-volume dry faze effect with low fluid consumption. The new HPA (high pressure air) pump technology reduces the risk of heater clogging. Features includes an easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminum housing, and optional wired and wireless remote control options.
.

700W Water-Based Fazer
4,000 CFM* (cu ft/min.) (113 m3/min*) Output
Advanced HPA (high pressure air) Pump Technology
Compact Light Weight Robust Design
Onboard LCD Touch Control Panel
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes
*Approximate

Specifications

PERFORMANCE
Rated Power: 700W
Max Output: 4,000 CFM* (cu ft/min.) (113 m3/min*)
Ready Time: Initial = 6 Minutes*
Fluid Capacity: 0.345 gallons (1.3 liters)
Fluid Consumption: 0.115 oz/min (3.4 ml/min)
*approximate

COMPATIBLE FLUID
Atmosity Extreme Filtered Fog Fluid (AEF-4L)

CONSTRUCTION
Thermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design

CONTROL
3 DMX Channel Modes (1 / 3 / 5)

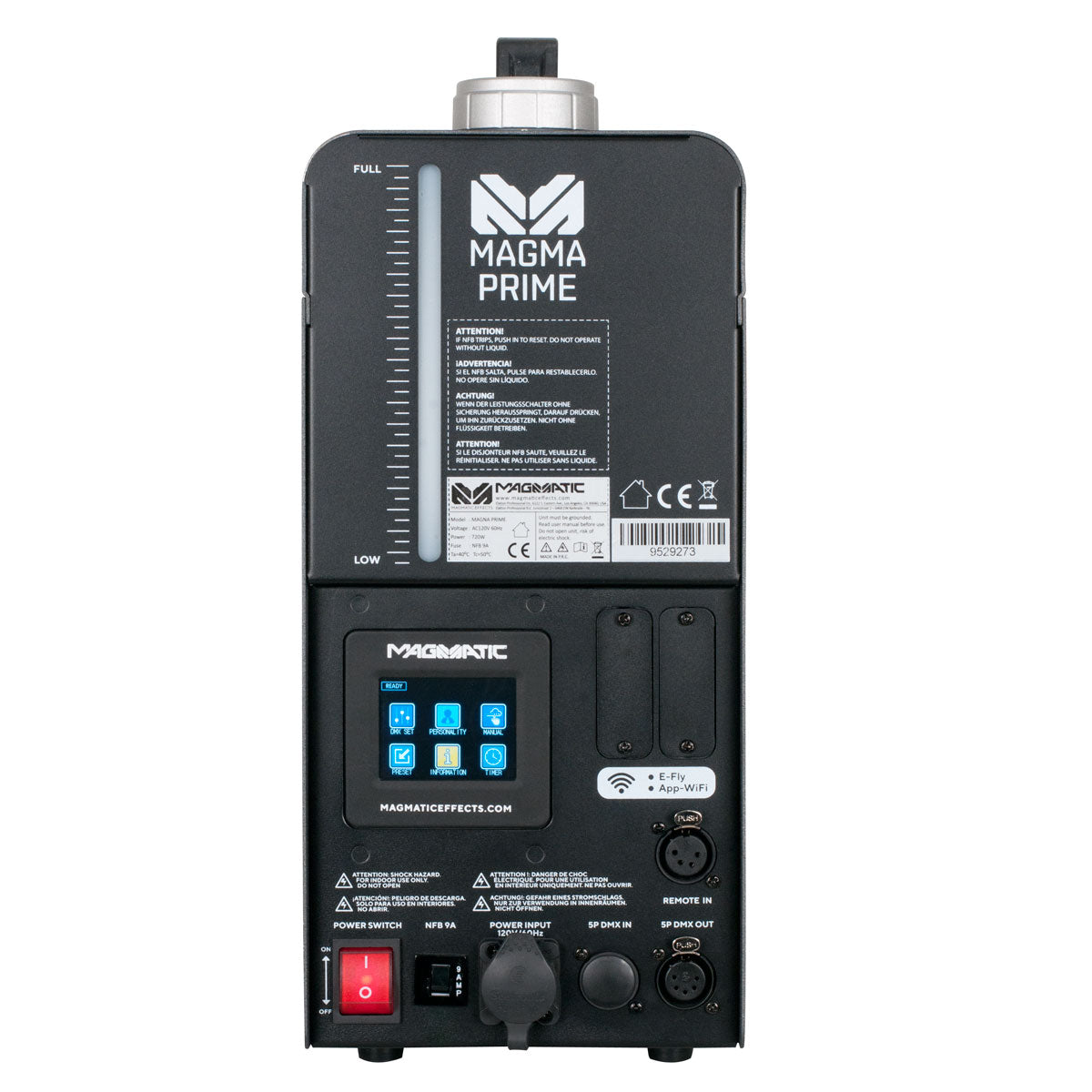

Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes
MagRemote VIDI

CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 13.3 in. (338mm)
Width: 6.30 in. (160mm)
Height: 15.70 in. (400mm)
Weight: 22.48 lbs. (10.2kg)

ELECTRICAL
AC120V 60Hz (US Version)
AC230V 50Hz (EU Version)
9A @ 120VAC(NFB)
5A @ 230VAC - 240VAC
Max Power Consumption: 720W

THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 122°F (50°C)

APPROVALS / RATINGS
CE | FCC | IP20

Specifications and documentation are subject to change without notice.

Downloads

Dimensional drawings

Dmx traits

User manual

MAGMA PRIME Parts & Service

Our MAGMA PRIME Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your MAGMA PRIME. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
