NX DMX

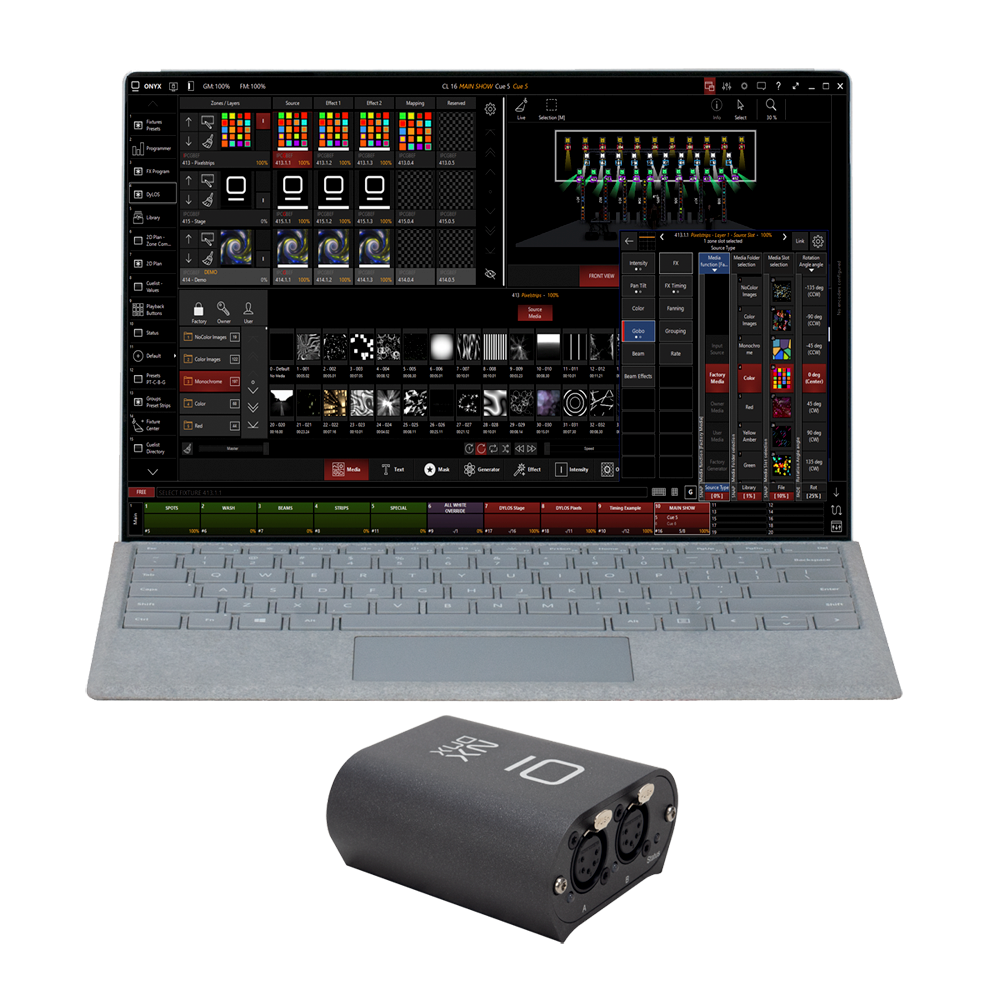

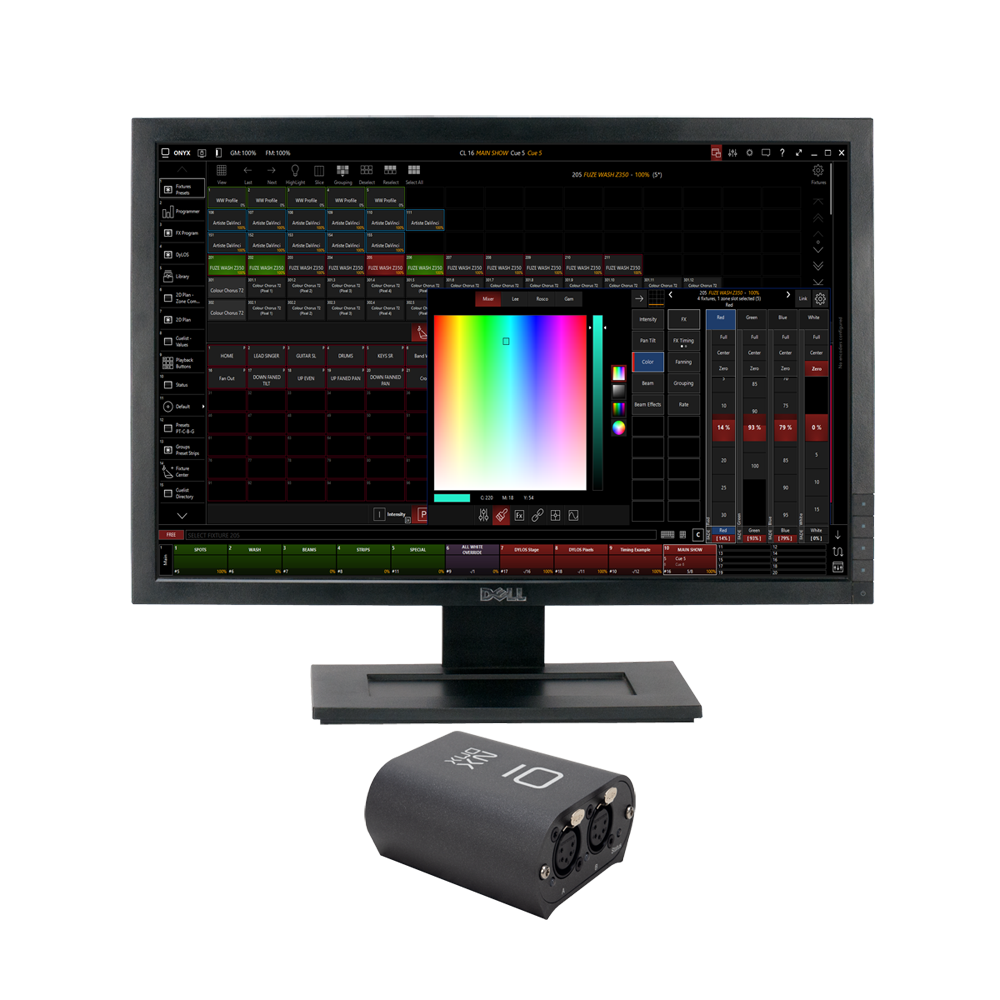

NX DMX is a USB powered 2 port DMX Node. As a member of the innovative ONYX platform from Obsidian Control Systems the NX DMX provides instant access to DMX In and Outputs as well as RDM communication. The device is plug and play and requires no drivers or additional configuration to integrate with ONYX. It is designed to work with any PC but also works with any ONYX console as a fast and affordable way to add two additional DMX ports.
NX DMX supports ONYX on PC systems for up to four Universes without any dedicated license. When connected to an ONYX licensed PC or ONYX console the NX DMX is assignable to any one of 255 Universes.
NX DMX allows for the full ONYX system to be used in many situations, from small events and tradeshows to clubs and churches. Many technicians utilize ONYX through the NX DMX as an affordable but powerful test station due to ONYX' outstanding library support.
NX DMX
Sale price$0.00
Related Products
NX DMX
Key Features
- Plug and Play 2 Port DMX Node for ONYX
- USB powered DMX In/Out and RDM support
- Expand any ONYX console or PC system
- Rugged design
- ONYX NOVA License (4 Universes)
- Plug and Play 2 Port DMX Node for ONYX
- USB powered
- DMX In/Out and RDM support
Expand any ONYX console or PC system - Rugged design
Specifications
Connections
2x DMX / RDM Universe In/Out: 5pin locking XLR

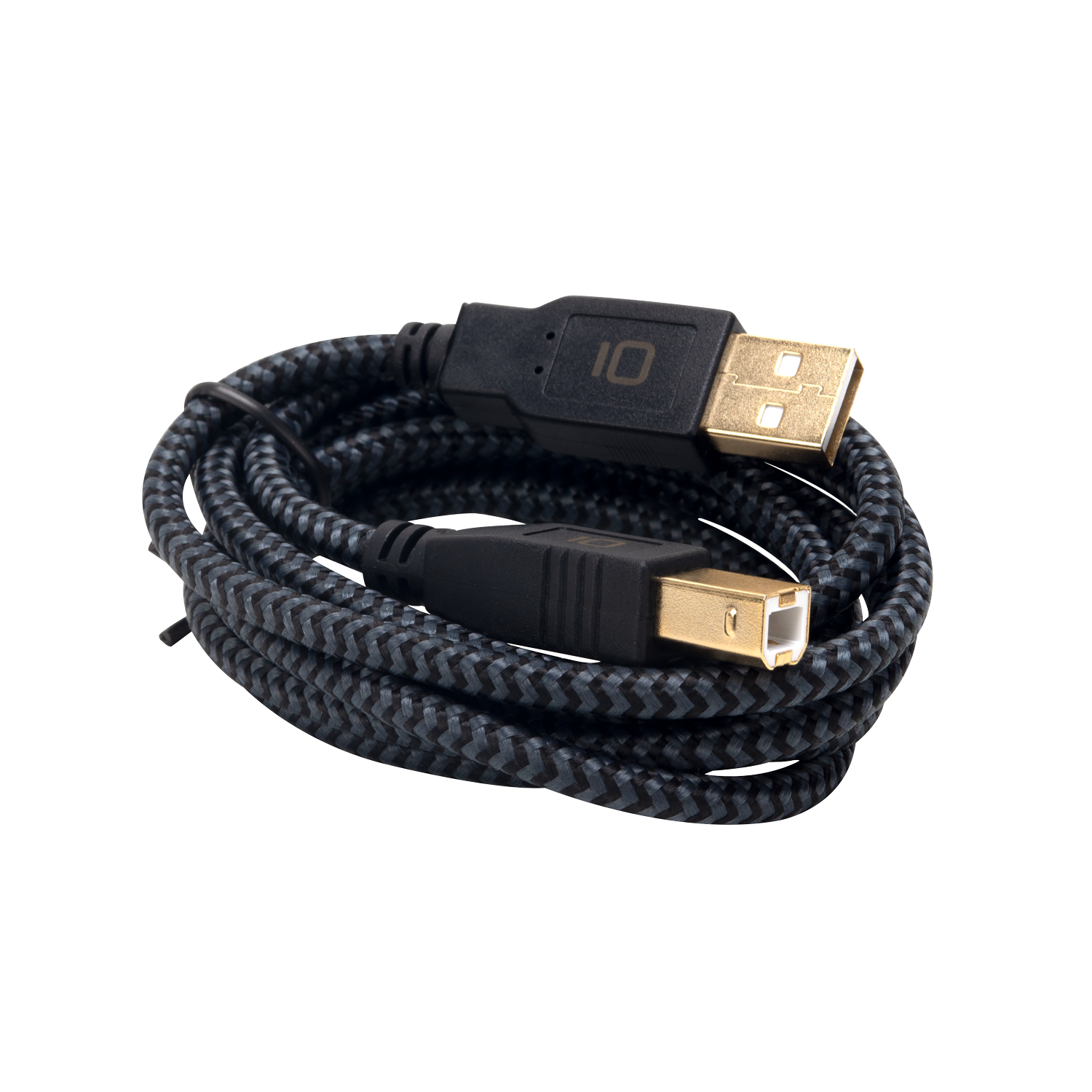

USB In: USB 2.0 B
USB In: USB 2.0 B
Requirements
ONYX 4.8 or higher
Windows 10
Intel Core i3 processor 6th Generation+
8 GB RAM
SSD Drive
40 GB available disk space
Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
USB 2.0 port for Onyx Key and optional USB to DMX devices
10/100 Ethernet port for Art-Net DMX output
100/1000 Ethernet port for X-Net, Remote operation and sACN
Intel Core i3 processor 6th Generation+
8 GB RAM
SSD Drive
40 GB available disk space
Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
USB 2.0 port for Onyx Key and optional USB to DMX devices
10/100 Ethernet port for Art-Net DMX output
100/1000 Ethernet port for X-Net, Remote operation and sACN
Physical
Length: 92 mm (3.7 in.)
Width: 82 mm (3.3 in.)
Height: 41mm (1.7 in.)
Weight: 245g (0.6 lbs.)
Width: 82 mm (3.3 in.)
Height: 41mm (1.7 in.)
Weight: 245g (0.6 lbs.)
Electrical
5V over USB
100-240V nominal, 50/60 Hz
Maximum current: 300 mA
100-240V nominal, 50/60 Hz
Maximum current: 300 mA
Downloads
Dimensional drawings
Installation guide
Specification sheet
NX DMX Parts & Service
Our NX DMX Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your NX DMX. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
