Opti Tri White

Features

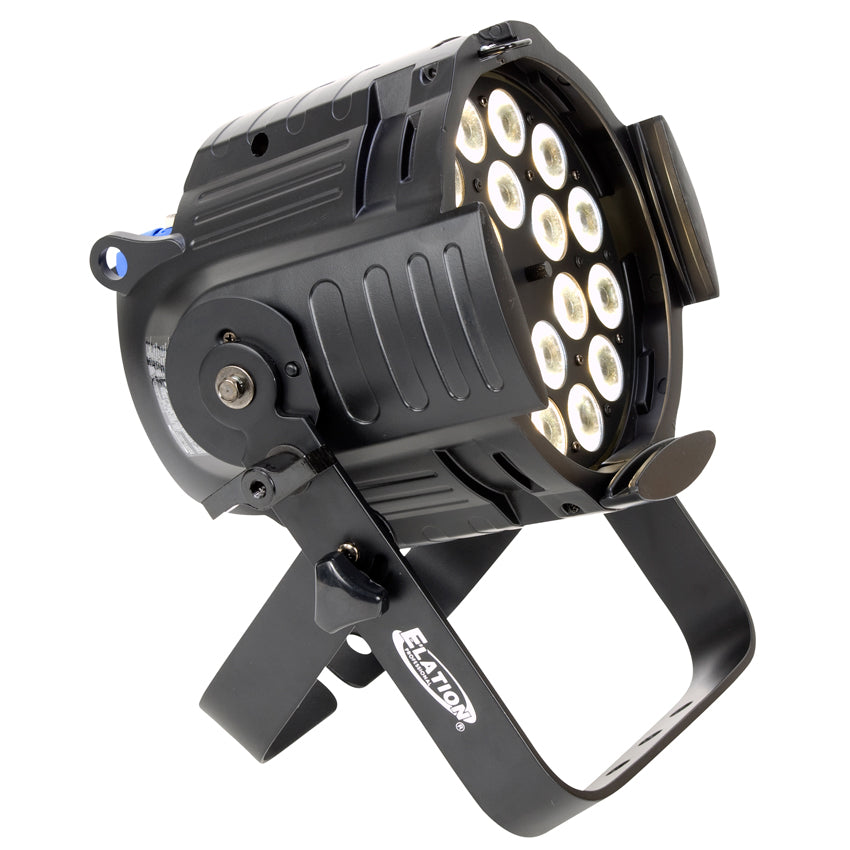

 The Opti Tri White by Elation Professional is a high output LED color changer featuring full Tri Color White color mixing utilizing 54 x 3W LEDs - 18 Cool White, 18 Warm White, and 18 Amber running at 3W power each with a total unit power draw at full of160 watts. Weighing 11lbs., the unit boasts a sturdy, high impact aluminum construction available in black casing. The Opti Tri White is fan cooled with the design of the fixture optimized to provide up to 50,000 hours estimated LED life. This unit is rated at IP 20, designed for indoor applications and multi voltage 100-240v AC with powercon in/out linking of up to 16pcs. This unit can be operated in stand alone mode, sound active mode or controlled via DMX controller. Control data input is via 3 pin XLR or 5pin DMX NeutrikTM serial first in and out connector cables. Heavy duty rigging yoke with integrated floor kick stand is included and optional safety cables and data cables are available. The Opti Tri White comes fitted with a standard 20° lens kit. Optional beam angles are available using our LSF filter series in the supplied gel frame as well as an optional Barn door can be added.

 FEATURES
 . Featuring new Tri White™ Technology
 . 54 x 3W LED’s
 . Cool, Warm and Amber

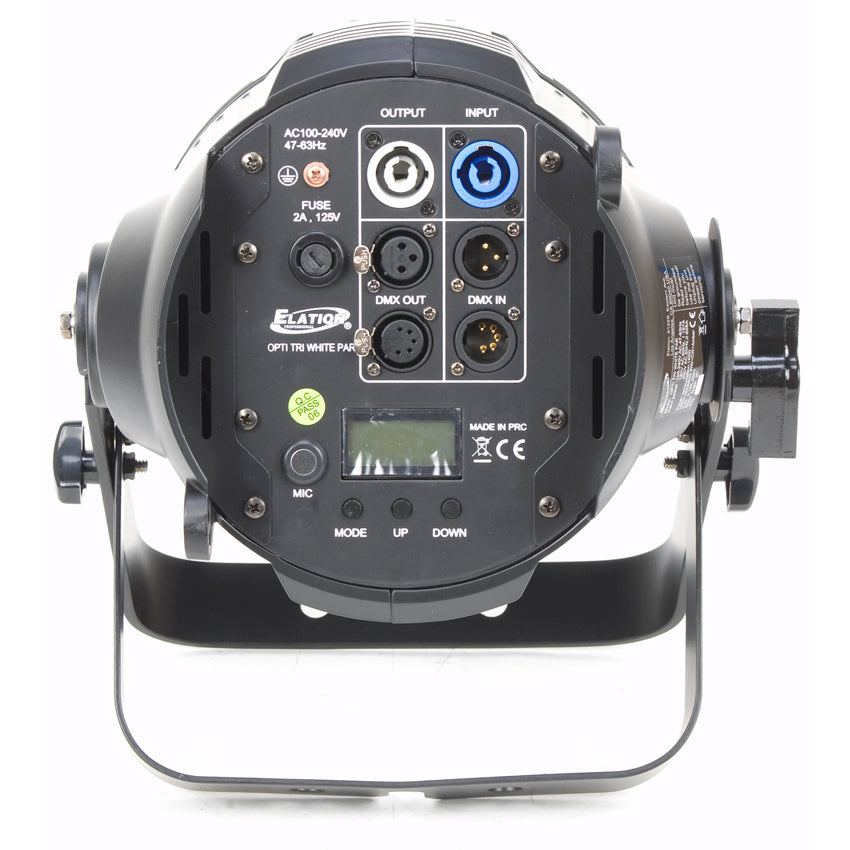

 . Powercon in/out
 . 3 and 5pin DMX
 . Dual yoke for floor mounting
 . 100-240v switching power 47-63hz
 . Flicker free operation
 . ETL approved

Resources

Guides/ Manuals

Related Categories

Specifications

TECHNICAL SPECIFICATIONS
 . DMX Channels: 2 DMX Modes: 3 Channel Mode & 6 Channel Mode
 . Control: 3 pin XLR or 5pin DMX NeutrikTM serial input/output
 . Power Supply: 100V ~ 240V/47~63Hz
 . Power Consumption: 160W max
 . Lamp: 54 x 3W LED’s (Tri White™ Technology: 18 cool white, 18 warm white and 18 amber)
 . Dimensions: (LxWxH): 11” x 8.6” x 14” / 279 x 218 x 356 mm
 . Weight: 11lbs./ 4.8Kgs.
