PIXEL DRIVER 1000IP
PIXEL DRIVER 1000IP
SKU# PIX301Pixel Driver 1000IP™ is designed specifically for the Elation Pixel Bar 30IP, 60IP, and 120IP series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 1,020 max pixels via Kling-Net, and 170 max pixels via Art-Net and sACN (streaming ACN) protocols.

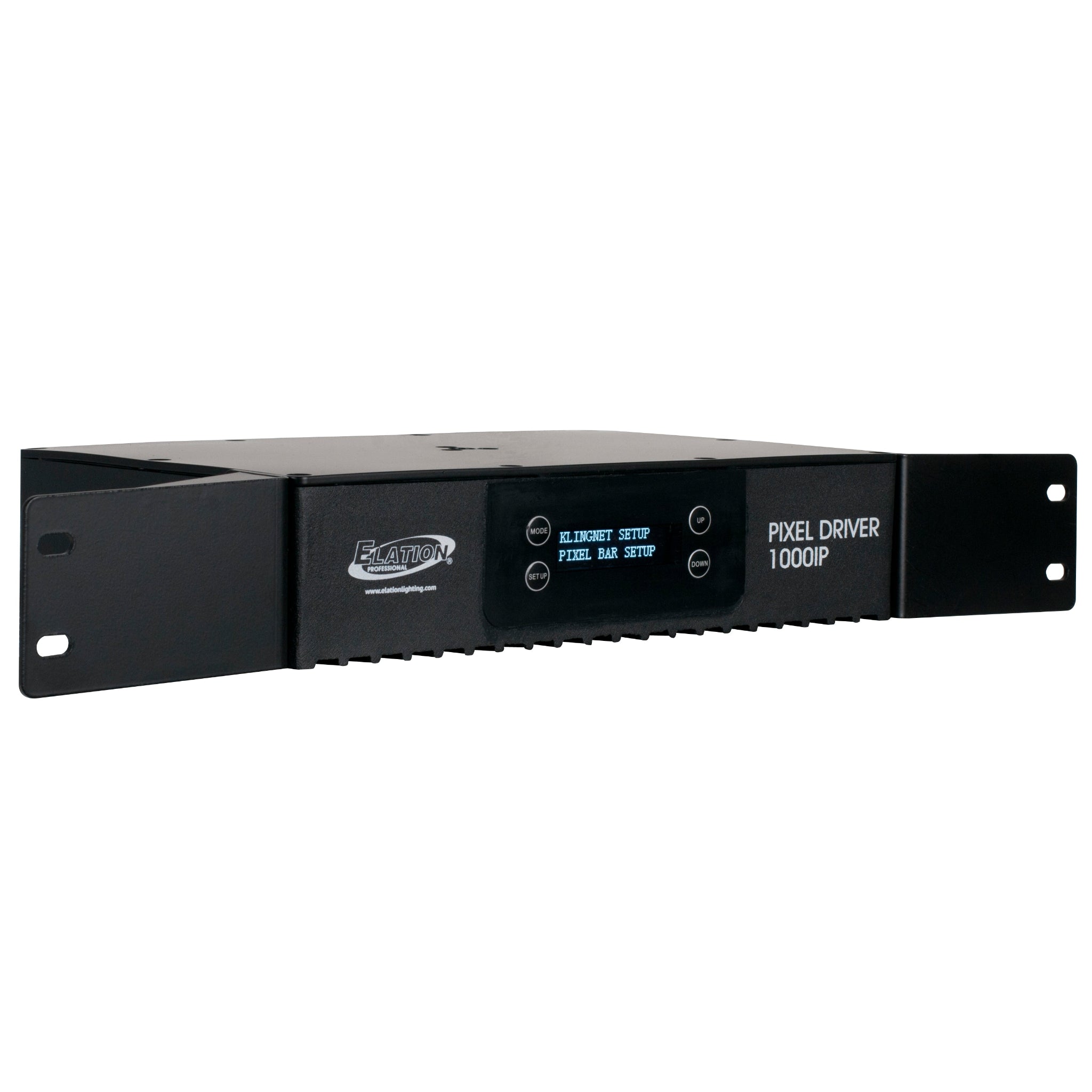

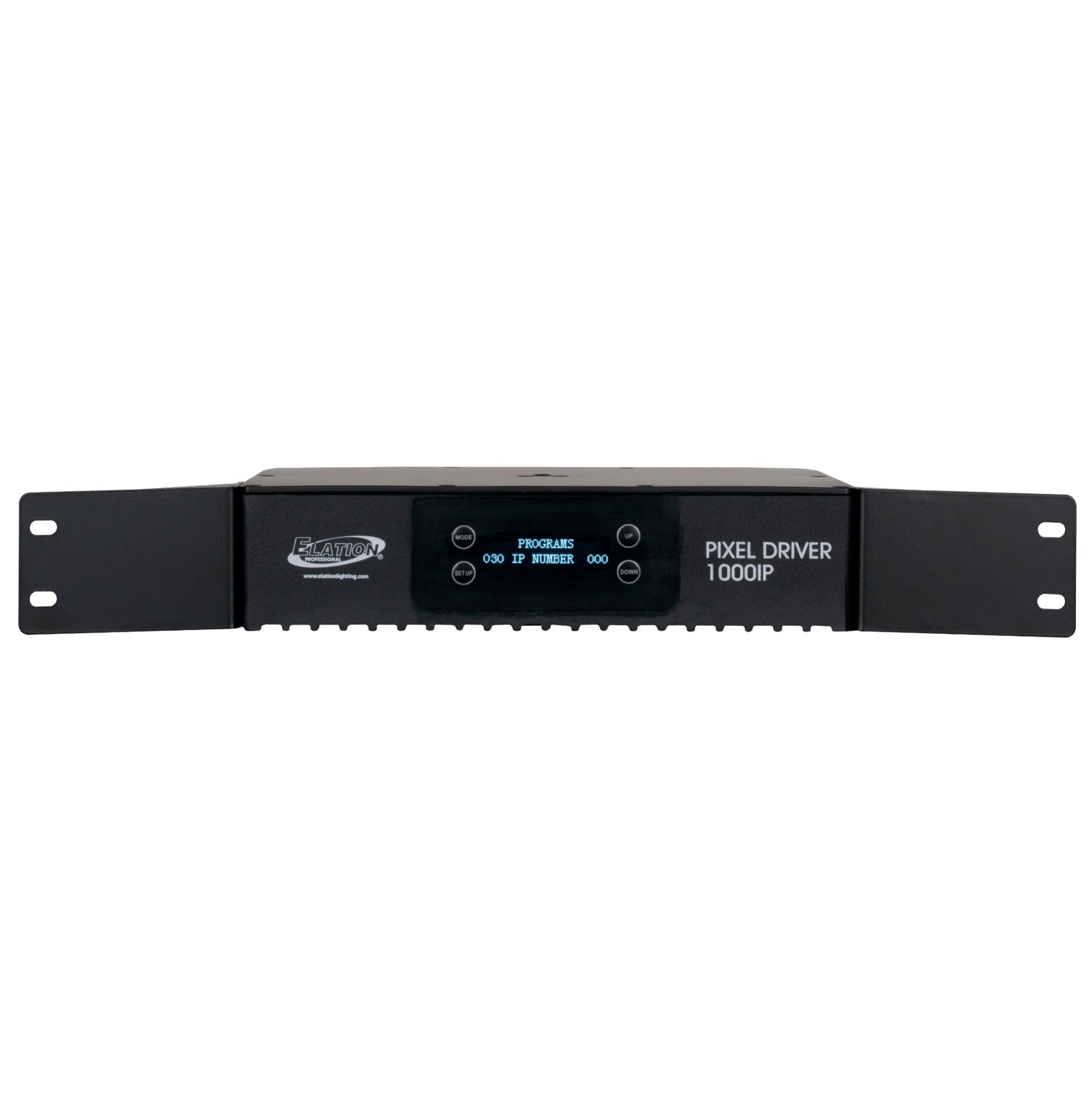

The Pixel Driver 1000IP features a rugged IP65 housing, universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP65 rated 4pin combo cables (sold separately) that supply power and data to each pixel bar, (available in lengths from 2 to 50 meters). The Pixel Driver 1000IP can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
The Pixel Driver 1000IP features a rugged IP65 housing, universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP65 rated 4pin combo cables (sold separately) that supply power and data to each pixel bar, (available in lengths from 2 to 50 meters). The Pixel Driver 1000IP can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
Features
Power/Data Supply for Elation Pixel Bar 30IP, 60IP, and 120IP
IP65 Rated
Simple On-Board Manual Dimming and Strobe Control
Kling-Net, Art-Net, and sACN Protocol Support
1,020 Max Pixel Mapping via Kling-Net
170 Max Pixel Mapping via Art-Net and sACN

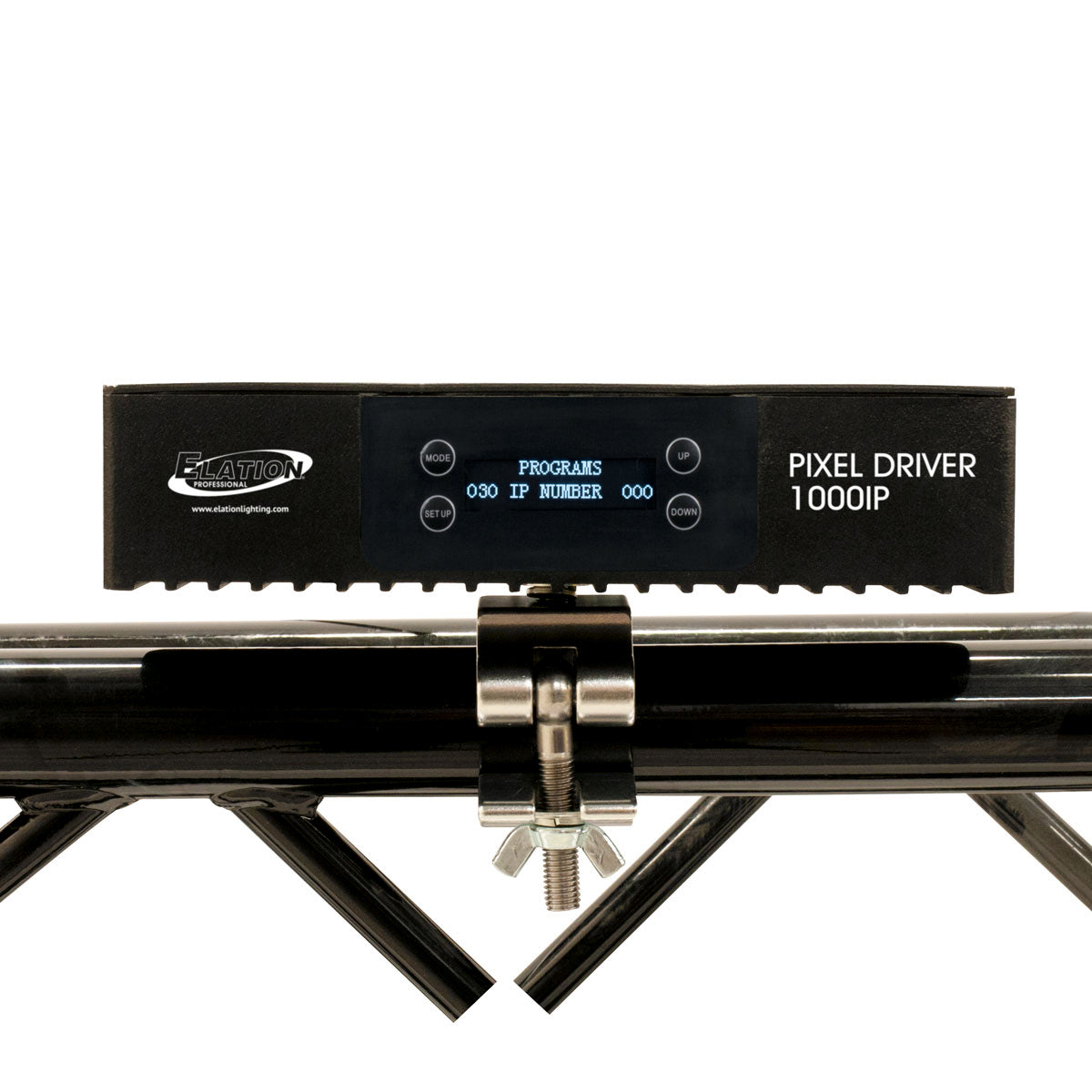

19-inch Rack or Truss Mounting Options
Multi Unit Linking via RJ45 Ethernet
(1) Output
Power/Data Combo Cables (sold separately)*
*Available in lengths from 2-50 meters
Simple On-Board Manual Dimming and Strobe Control
Kling-Net, Art-Net, and sACN Protocol Support
1,020 Max Pixel Mapping via Kling-Net
170 Max Pixel Mapping via Art-Net and sACN
19-inch Rack or Truss Mounting Options
Multi Unit Linking via RJ45 Ethernet
(1) Output
Power/Data Combo Cables (sold separately)*
*Available in lengths from 2-50 meters
Specifications
CONTROL / CONNECTIONS
Manual RGB Mode
Internal Programs
Art-NET | sACN | Kling-NET

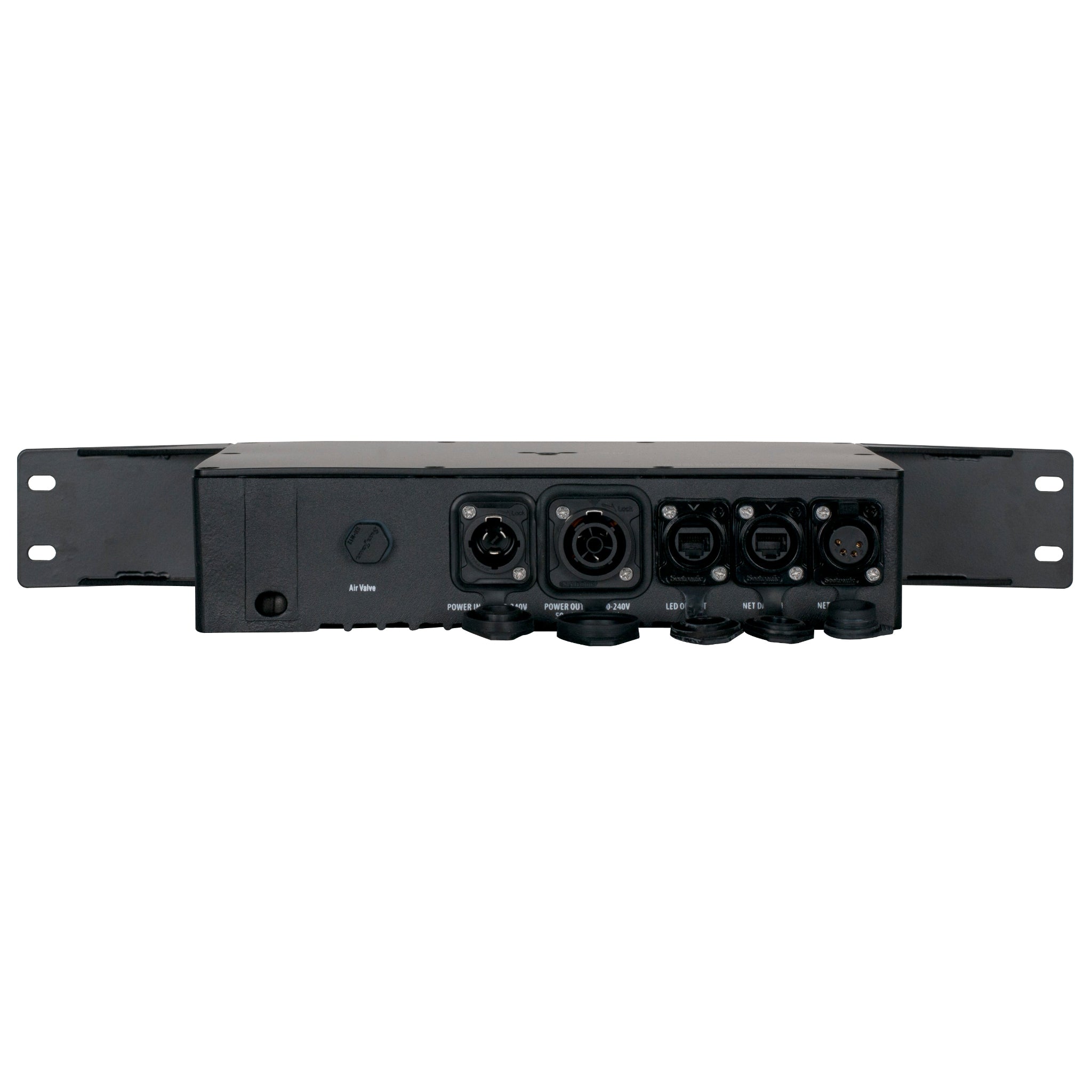

2 RJ45 Ethernet Ports
1 4pin Power/Data Outputs
SIZE / WEIGHT
Length: 19” (483mm) * With Rack Ears
Width: 7.88” (200mm)
Height: 2.72” (69mm)
Weight: 8 lbs. (3.6kg)
ELECTRICAL
AC Input 100-240V - 50/60HZ, 2.2A
DC Output 24V, 8.4A
IP65 rated locking power IN/Out
200W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)
APPROVALS
CE | cETLus
Specifications and documentation subject to change without notice.
