PIXEL DRIVER 170
PIXEL DRIVER 170
DMX512 LED Driver for Pixel Tape 16IP and Pixel Tape 40IP
SKU# PIX170
PIXEL DRIVER 170™ is a professional tape driver specifically designed for the Elation PIXEL TAPE 16IP and PIXEL TAPE 40IP. This driver provides simple and easy control options including a 3-button OLED Display, EL IR Remote (included), and one full universe of DMX control (170 pixels). The PIXEL DRIVER 170 features an easy-to-use OLED display, Pixel grouping, separate 3pin terminal blocks for DMX IN and OUT, a 4pin terminal block for LED tape output, and a 2pin terminal block for 12-24VDC power IN. The unit also includes one PIX-AD3 adapter to connect between LED tape out and PIXEL TAPE 16IP & PIXEL TAPE 40IP.
Features
The PIXEL DRIVER 170™ is a professional DMX512, 12-24VDC LED tape driver that supports up to one full universe of DMX (170 pixels). Its small compact design allows for easy mounting and integration into any system. It features a 3-button LED control display, separate 3pin terminal blocks for DMX IN and OUT, a 4pin terminal block for LED tape output, and a 2pin terminal block for 12-24VDC power IN.
Resources
Specification information
Guides/ Manuals
DMX/ RDM Traits
Drawings
CAD File
Related Categories
Specifications
CONTROL / CONNECTIONS
3-Button OLED Display
1 DMX Universe (170 Pixels)
EL IR Remote (Included)
DMX Input via 3pin Phoenix connector block
DMX Output via 3pin Phoenix connector block

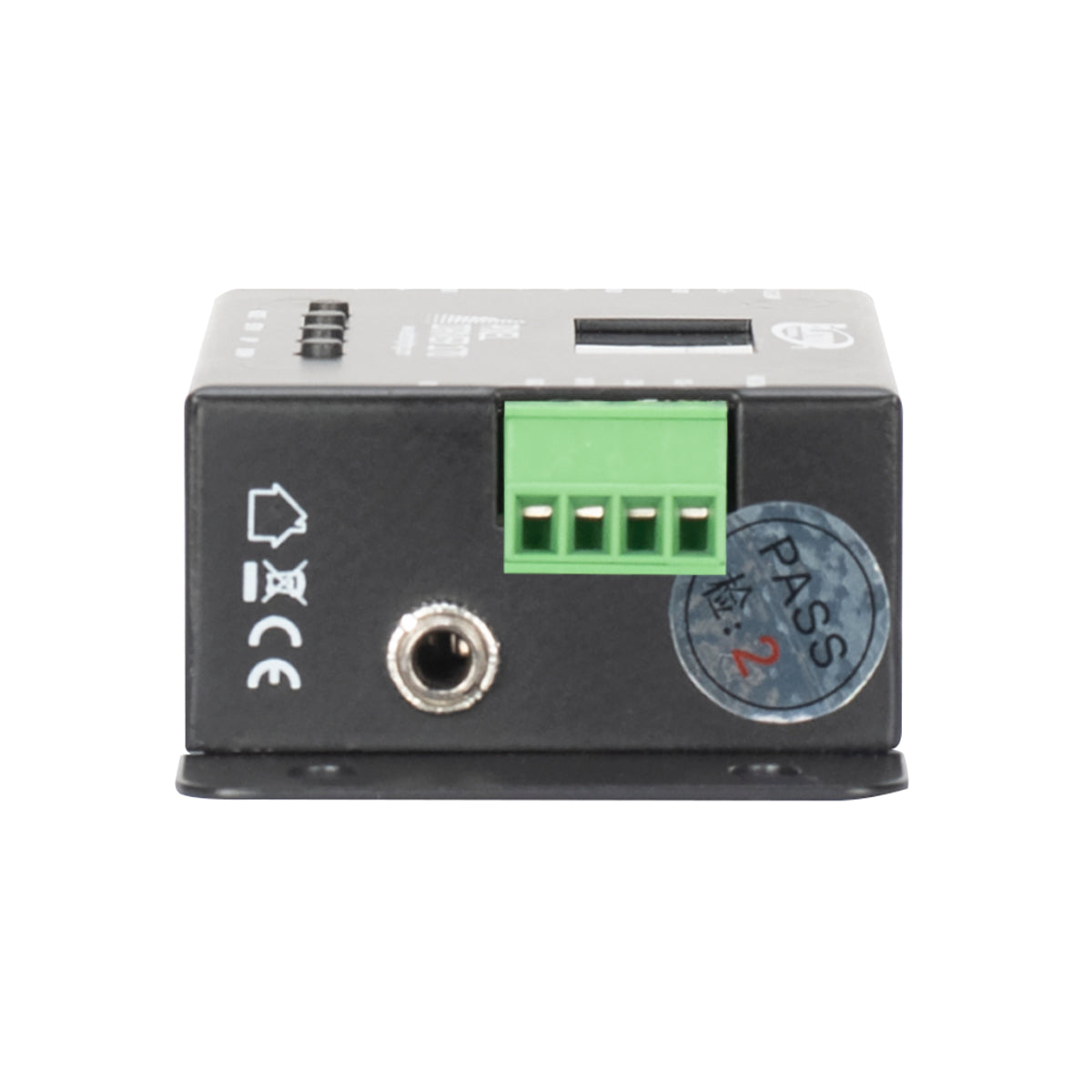

LED Tape Out via 4pin Phoenix connector block
SIZE / WEIGHT
Length: 3.98” (101mm)
Width: 1.97” (50mm)
Height: 1.03” (26.2mm)
Weight: 0.29lbs (0.133kgs)
ELECTRICAL
DC Input 12-24VDC, 2A (Requires separate power supply)
48W Max Power Consumption

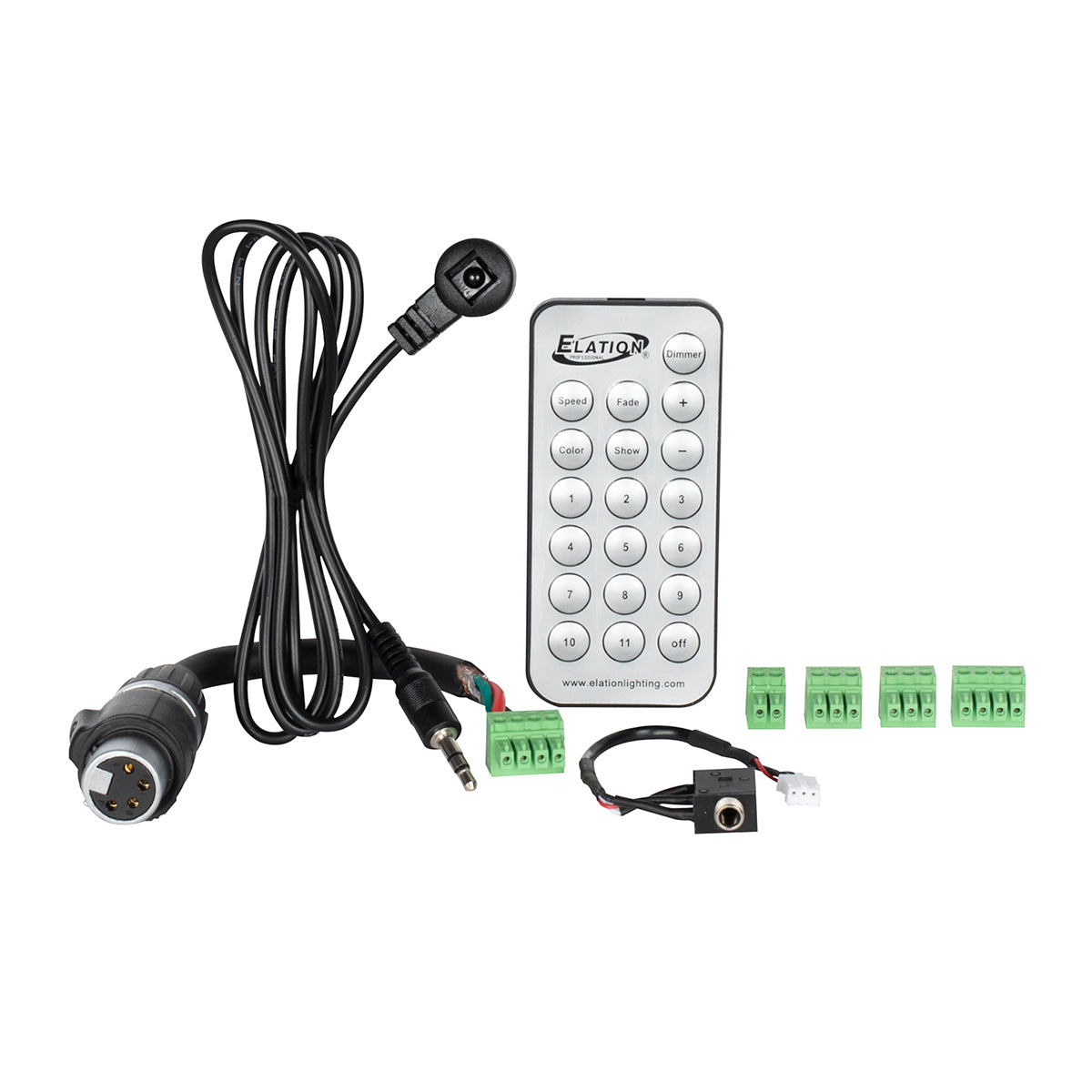

INCLUDED ITEMS
EL-IR Remote
4-pin Cable
IR Receiver Cable
APPROVALS / RATING
CE | cETL | RoHs | IP20 | FCC
