PLATINUM PROFILE LED
Platinum Profile LED is a professional-grade lighting solution.
PLATINUM PROFILE LED

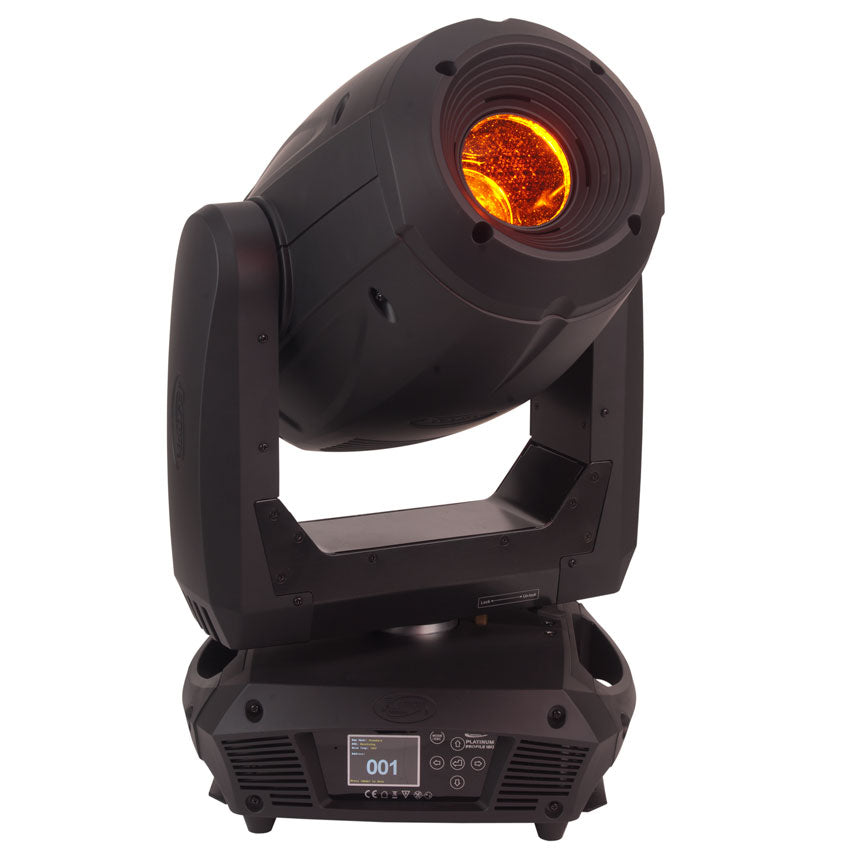

The Platinum Profile LED™ is a profile / framing shutter LED spot luminaire featuring a 180W LED engine, 9,000 total lumens, 6,500K, >85CRI, 18° beam angle, 4 rotating framing shutter blades, 2 color wheels with 11 total dichroic colors including UV and CTO, 2 gobo wheels with 7 interchangeable rotating-indexing and 7 static-stamped gobos, 3-facet rotating prism, frost, iris, and motorized focus, Art-NET (DMX Over Ethernet) support 5pin DMX, RJ45 Ethernet and powerCON in/out connections, 6-button control full color 180° reversible menu display, a multi-voltage universal auto switching power supply (100-240v), and flicker free operation for broadcast TV and FILM.
- Profile-Framing Shutter 18° LED Spot Luminaire
- 4 Rotating Framing Shutter Blades
- 2 Color Wheels + 2 Gobo Wheels
- Art-NET (DMX Over Ethernet) Support
- Flicker Free Operation For Broadcast TV and FILM
Specifications
180W LED Engine
20,000 Hour Average LED Life
PHOTOMETRIC DATA
9,000 Total Lumens, 6,500K, gt;85CRI
14,170 LUX 1,316 FC @8.2rsquo; (2.5m) (18deg; Full ON)
4,561 LUX 424 FC @16.4rsquo; (5m) (18deg; Full ON)
1,721 LUX 160 FC @24.6rsquo; (7.5m) (18deg; Full ON)
EFFECTS
4 Rotating Framing Shutters and Macros
3-Facet Rotating Prism and Frost Filter
Motorized Focus amp; Mechanical Iris
Electronic Dimming amp; Strobe
COLOR
(2) Colors Wheels
#1 - 5 Dichroic Colors Including UV
#2 - 6 Dichroic Colors Including CTO
GOBOS
(2) Gobo Wheels
#1 - (7) Interchangeable Rotating-Indexing Gobos
#2 - (7) Static-Stamped Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (24 / 26 / 36)
RDM (Remote Device Management)

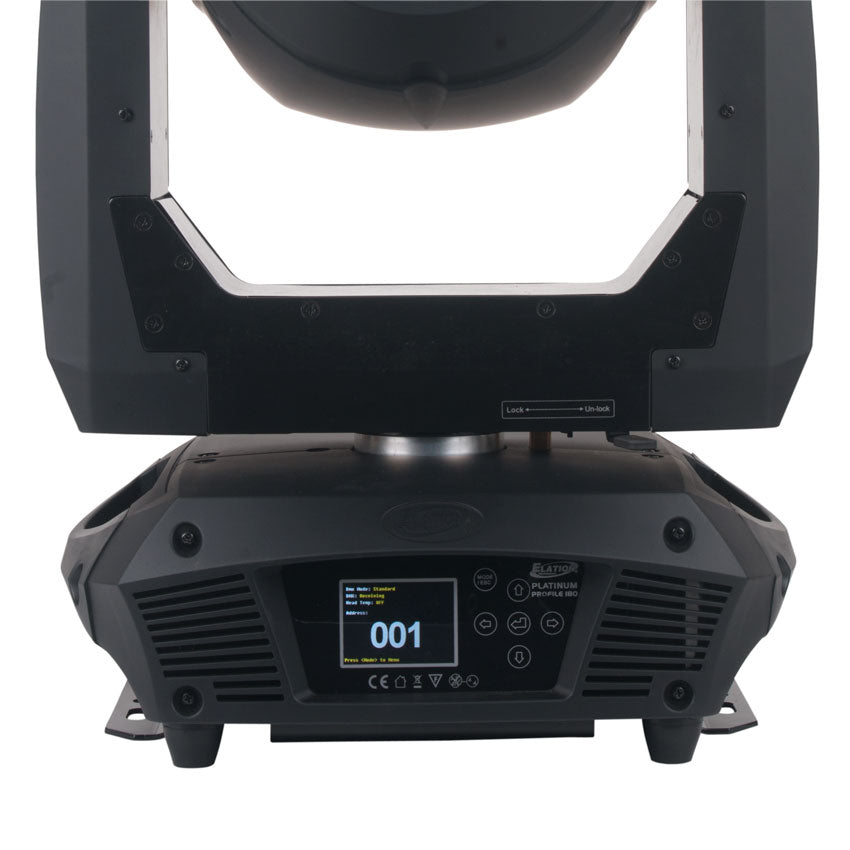

6 Button Touch Control Panel
Full Color 180deg; Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

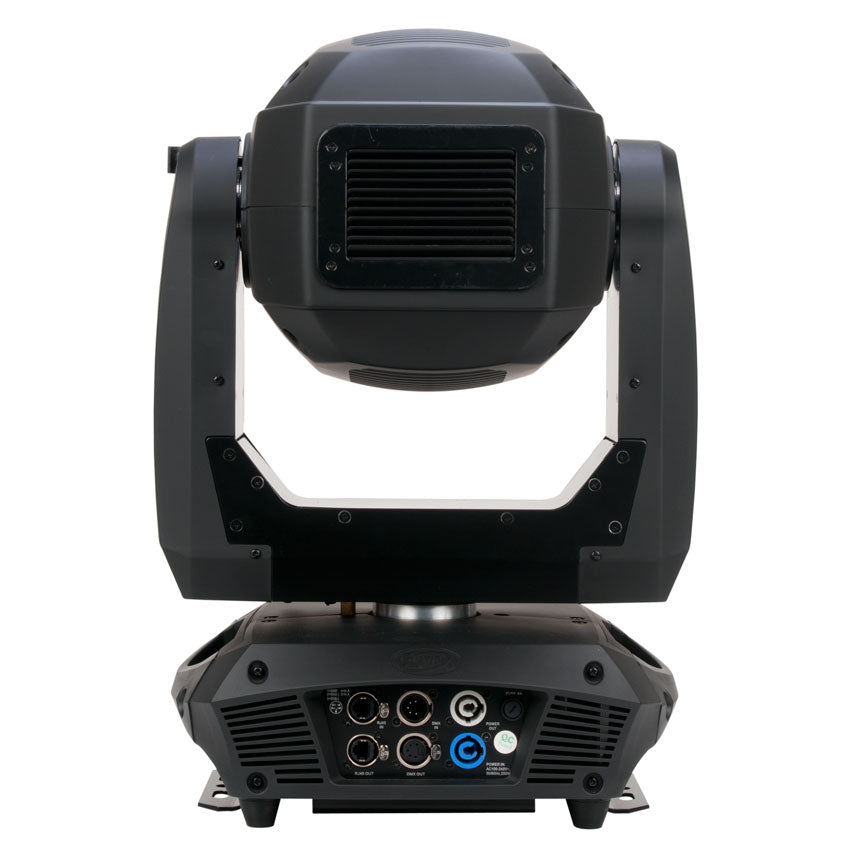

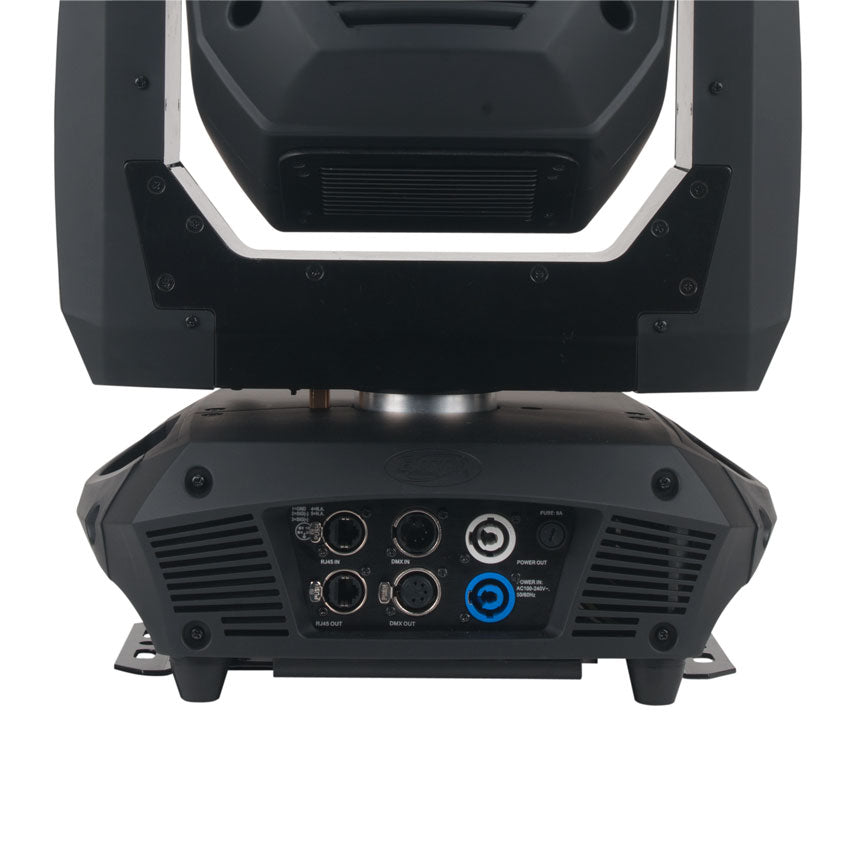

5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
powerCON Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.2" (360mm)
Width: 16.0" (408mm)
Vertical Height: 25.0" (636mm)
Weight: 57.0 lbs. (26 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption: 250W
-13deg;F to 113deg;F (-25deg;C to 45deg;C)
APPROVALS / RATINGS
CE | IP20
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Ies files
Photometrics
Specification sheet
User manual
Vectorworks symbol
