Platinum Spot 35 PRO
Platinum Spot 35 PRO

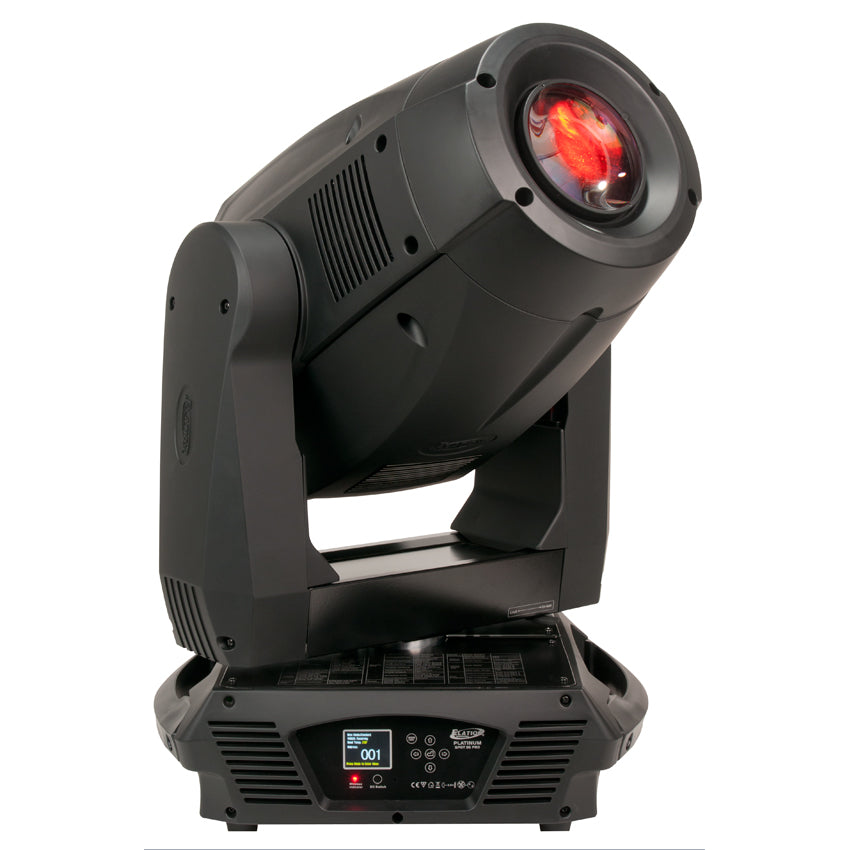

The new Platinum Spot 35 PRO™ features an 800W Platinum 35 lamp, motorized 8° to 50° zoom and focus, bi-directional animation, 3 facet rotating prism and frost effects, high speed mechanical shutter, strobe, and iris, (8) colors including UV, CTO, plus CTB and white, CMY color mixing, (12) interchangeable, rotating, indexing, glass gobos, internal EWDMX wireless DMX receiver, RDM (remote device management) protocol support, 3pin and 5pin DMX in/out and power cable in connections, (6) button touch control panel, 1,200W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).
Features
1200 Watt Comparable Lumens Output
Motorized 8° - 50° Zoom and Focus
Bi-Directional Animation, 3-Facet Prism, and Frost Effects
CMY Color Mixing, CTO and CTB Color Correction
Internal EWDMX Wireless DMX Receiver
RDM - Remote Device Management
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
CAD File
- Platinum Spot 35 PRO Vectorworks 2013 Symbol
- Platinum Spot 35 PRO Vectorworks 2015 Symbol
- Platinum Spot 35 PRO Vectorworks 2016 Symbol
- Platinum Spot 35 PRO Vectorworks 2014 Symbol
Related Categories
Specifications
800-Watt Platinum 35 Lamp
>20,000 Lumen, 7,800k, >75 CRI
750 Hour Average Life
PHOTOMETRIC DATA
76,880 LUX 7,142 FC @16.4ft (5m) (8° Min Zoom Full ON)
2,725 LUX 253 FC @16.4ft (5m) (50° Max Zoom Full ON)
EFFECTS
Bi-Directional Animation Effect
3-Facet Rotating-Indexing Prism and Frost Filter
Mechanical Dimming: 0% - 100%
High Speed Mechanical Shutter / Strobe / Iris
COLOR
8 Interchangeable Dichroic Colors Including UV
CMY Color Mixing
CTO & CTB Color Correction
GOBOS
(2) Rotating Gobo Wheels
(12) Interchangeable / Rotating / Indexing Glass Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (27 / 29 / 41)

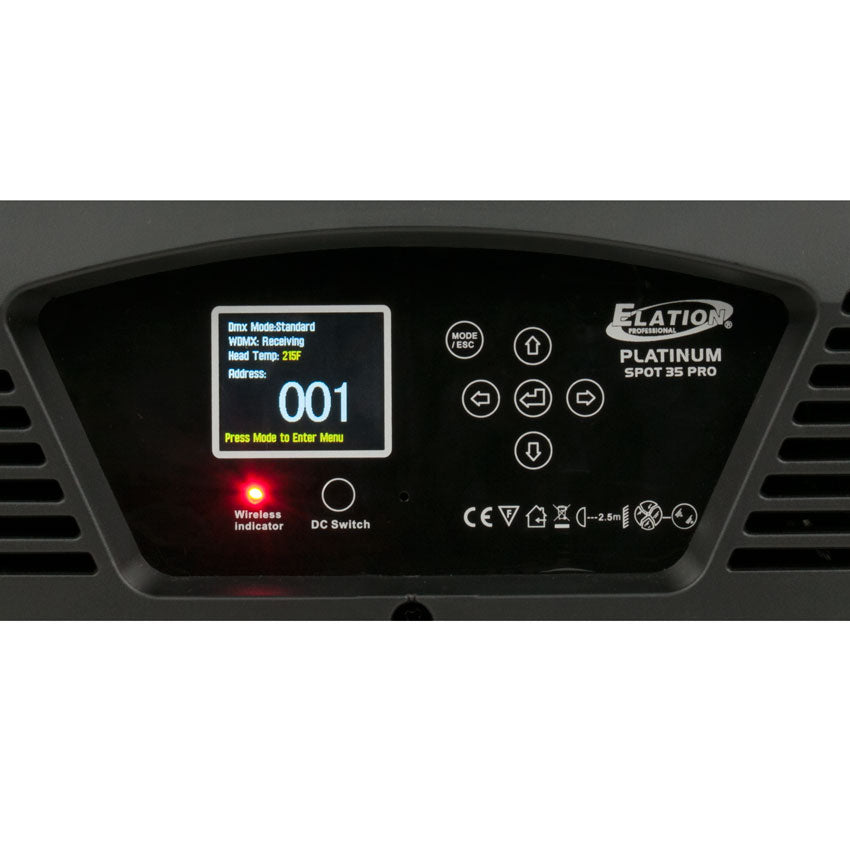

6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit Resolution Adjustable Movement

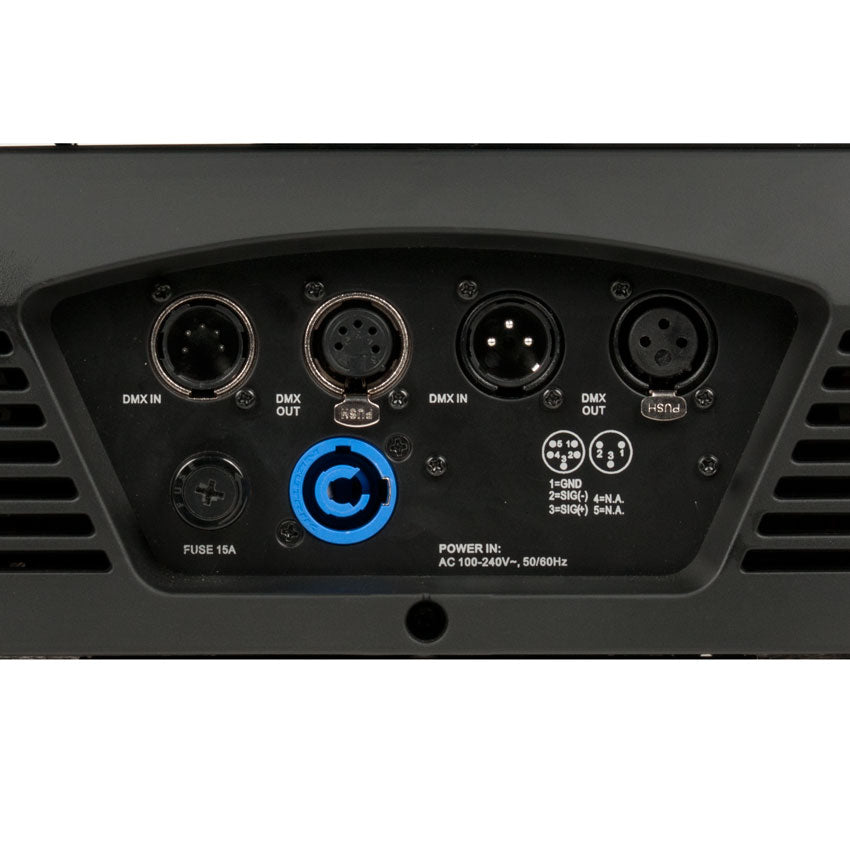

3pin and 5pin DMX In/Out
powerCON Power In
SIZE / WEIGHT
Length: 17.6” (447mm)
Width: 20.0” (507mm)
Vertical Height: 28.6” (727mm)
Weight: 79.0 lbs. (36 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1,200W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | RoHs | IP20
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
(2) Omega Brackets
(1) 3pin DMX Cable
(1) Power Cable
Specifications and documentation subject to change without notice.
