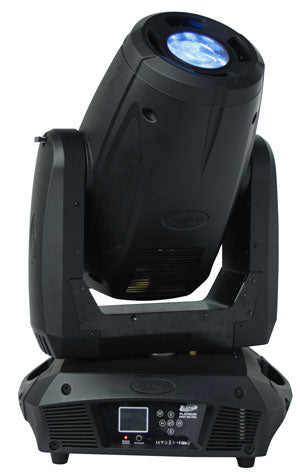

Platinum Spot LED PRO
Features
Resources
Guides/ Manuals
- Platinum Spot LED Pro User Manual v1.1
- Platinum Spot LED PRO Vectorworks 2013 Symbol
- Platinum Spot LED PRO Vectorworks 2014 Symbol
- Platinum Spot LED PRO Vectorworks 2015 Symbol
- Platinum Spot LED PRO Vectorworks 2016 Symbol
Related Categories
Specifications
Features:
• 140W LED Moving Head Spot comparable to 250W Discharge
• Motorized Zoom & EWDMX Receiver built in
Specifications:
• 8 Dichroic Static Colors
• 14 Gobos - 7 Rotating / Indexing Replaceable Gobos
• 7 Replaceable Static Gobos
• Gobo outside diameter 26.7 mm, image size 22 mm
• Gobo thickness (max): glass = 1 mm, steel = 0.15 mm
• 3 Facet Rotating / Indexing Prism
• Motorized Iris
• 15° to 34° Variable Motorized Zoom Beam Angle
• Motorized Focus
• Variable speed Shutter / Strobe
• Smooth Electronic Dimmer 0-100%
• Pan/Tilt: 540/630 x 265
• Power: 315W MAX / 120v-240V 50/60hz
• 14/16/21 Channels DMX
• 3-pin & 5-pin DMX
• 7,478 lux / 695 fc @ 10’
• 35.2lbs
• 16.75”L x 16.75”W x 19.75”H
• Lamp: LED 140W CRI 70 6,500K 60,000 hrs
Specifications and documentation subject to change without notice.
