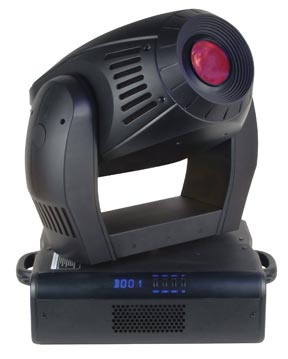

Power Spot 700 II
Features
CONTROL FEATURES
• USITT DMX-512 (16-bit resolution)
• 21 DMX Channels
• 4 Digit L.E.D. Display
• On board menu settings
• 3-pin XLR serial input/output
• Sound active mode - built in mic. Lamp
on/off Power con mains
OTHER FEATURES
• Modular internal construction 1/4 turn removable lid 1/4 turn lamp replacement
Resources
Guides/ Manuals
- Power Spot 700 II Dimension Drawing
- Power Spot 700 II DMX Traits
- Power Spot 700II Photometric Data
- Power Spot 700 II User Manual
Related Categories
Specifications

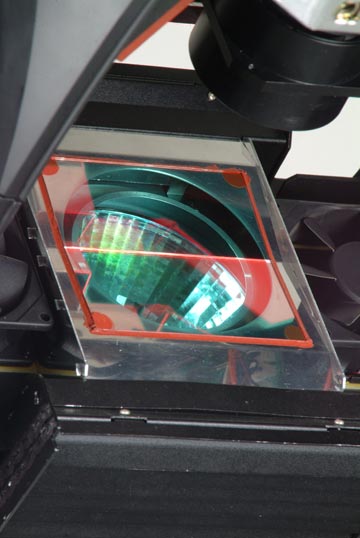

OPTICAL SYSTEM
• High output luminous- dichroic glass reflector
• 14 - 32 degree linear Zoom All lenses are anti-reflection coated
COLORS
• 2 Color Wheels
• Color Wheel 1 - interchangeable color filters, 8 dichroic color filters + white, Split colors
• Color Wheel 2 - interchangeable color filters, 8 dichroic color filters CTC, CTB + white, Split colors
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel

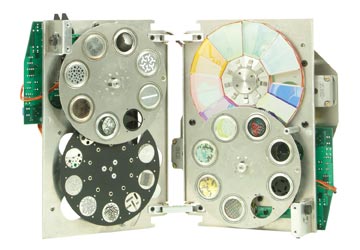

GOBOS
• 23 Gobos using Quick-Snap gobo system
• 3 gobo wheels
• 2 x 7 interchangeable, indexable, rotating gobos plus open gobo wheels
• 1 x 9 interchangeable, static gobos plus open gobo wheel
• Gobo Overlay (Gobo Morphing)
• 26.9mm outside diameter, 23mm image diameter, 3mm max thickness
SHUTTER
• Variable speed strobe effect (1-10) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
DIMMER
• Dual Flag mechanical dimming system
IRIS
• Beam narrow to wide (4% - 100%)
• Variable speed iris macros
• Small to large and large to small Iris Pulse Effect
FROST
• Variable Frost Control
• Hard edge to soft edge
PRISM
• 3-facet rotating/Indexing Prism
• Both directions at variable speeds
• Macro-function for rotating gobos/rotating prism combinations
FOCUS
• Motor driven focus from near to far
ZOOM
• 14 - 32 degree linear Zoom
LAMP
•Phillips MSR 700/2 (700W, 72V, 7500°K, 1000 HRS) 55000 lumens, base: G22 (Medium Bi-Post)
PAN/TILT
• Automatic Pan / Tilt position correction
• Maximum PAN-movement 540° 16-bit resolution Maximum TILT-movement 280° 16-bit resolution
DIMENSIONS & WEIGHT
• (LxWxH) 19” x 14” x 29” / 482.6 x 355.6 x 736.6 mm 63 lbs. / 28.5 kgs.
RIGGING
• 2 X 1/4 Turn omega brackets 4 X M-10 threaded holes for clamps
POWER SUPPLY
• Electronic Ballast
• Voltage: AC 90-260V 50/60Hz
• Power Consumption: 900W (120V=7.5A)
OPTIONAL ACCESSORY AVAILABLE SOON
• CMY color mixing module w/ animation wheel
OPTIONAL DUAL ROAD CASE
• DRC-700
