12x 2W 365nm LED IP65 20° Par Fixture

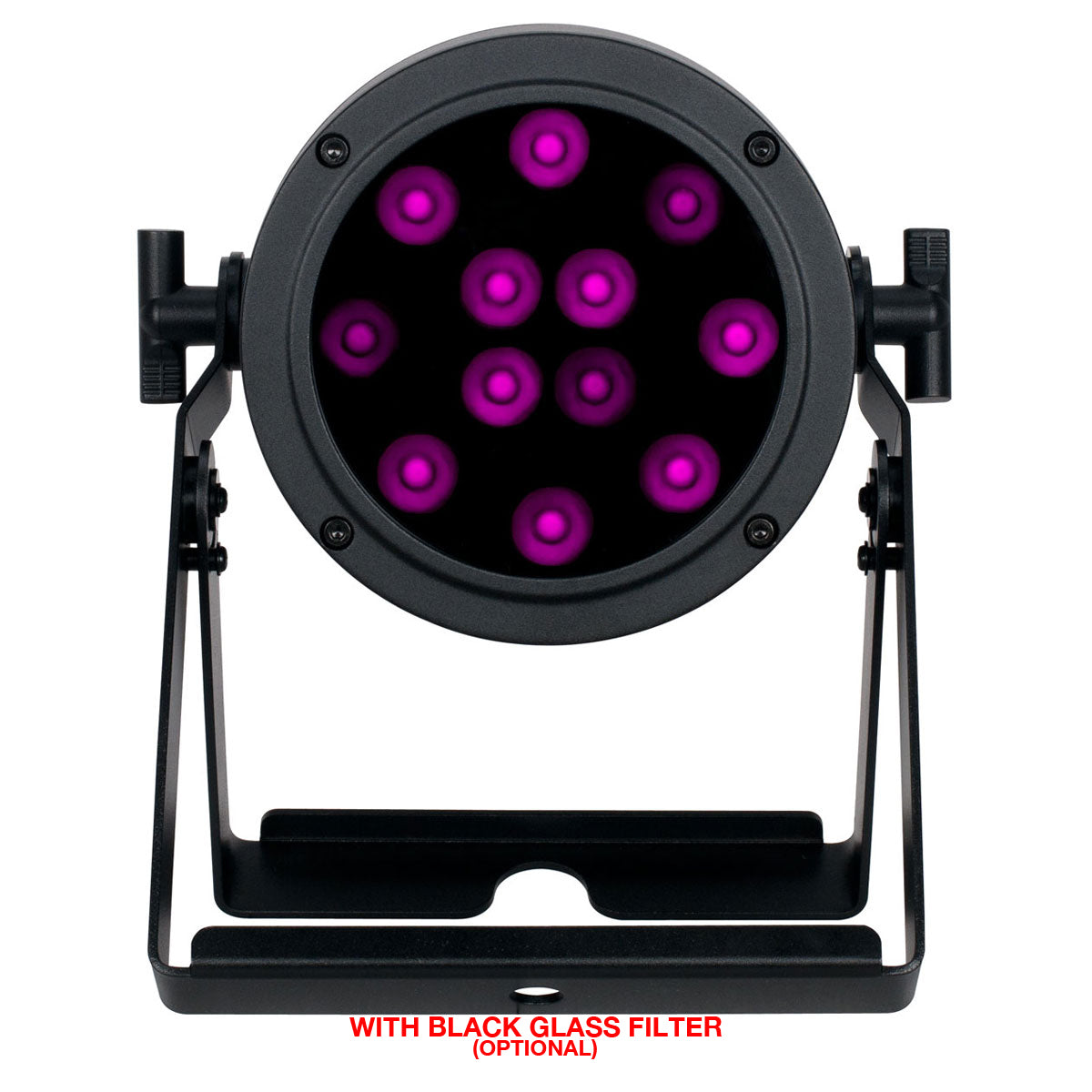

PRISMA PAR 20 is a professional-grade lighting solution. PRISMA PAR 20™ is an exterior IP65 rated UV wash par luminaire that produces 365nm peak true UV output with zero visible light. Features include a 20 degree narrow beam angle, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, dual adjustable mounting yokes, a durable aluminum housing, IP65 DMX 5pin XLR and locking power in/out connections.

UPC: 810008261149SKU: PSP020

Related Products

PRISMA PAR 50PRISMA PAR 50
PRISMA PAR 50

PRISMA PAR 20

PRISMA PAR 20™ is an exterior IP65 rated UV wash par luminaire that produces 365nm peak true UV output with zero visible light. Features include a 20 degree narrow beam angle, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, dual adjustable mounting yokes, a durable aluminum housing, IP65 DMX 5pin XLR and locking power in/out connections.

  • IP65 Rated Exterior High-Power UV Wash Par Luminaire
  • 20 Degree Narrow Beam Angle
  • 365nm Peak True UV Wavelength
  • Zero Visible Light Output

Specifications

SOURCE
(12) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength

EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION
Rugged IP65 Rated Housing
Dual Adjustable Mounting Yokes

CONTROL
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

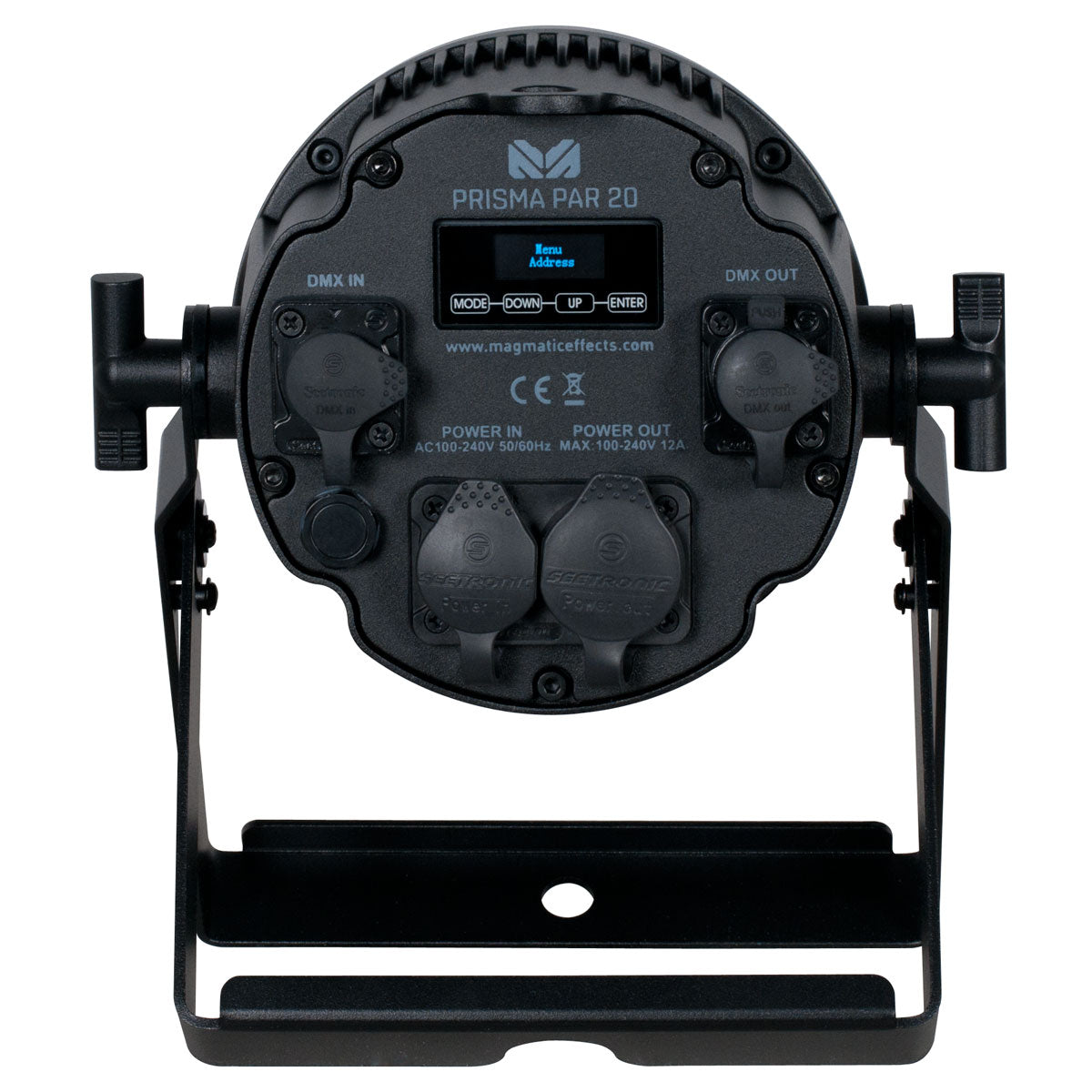

CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 8.58 in. (218mm)
Width: 5.90 in. (150.6mm)
Vertical Height: 9.72 in. (246.6mm)
Weight: 5.29 lbs. (2.40kg)

ELECTRICAL
AC100-240V 50-60Hz
27W Max Power Consumption

THERMAL
14°F to 113°F (-10°C to 45°C)
Air Cooled

APPROVALS / RATINGS
CE | cETLus | IP65

Specifications and documentation subject to change without notice.

Downloads

Cad drawing

Dimensional drawings

Dmx traits

Specification sheet

User manual
