PRISMA WASH 25

Features

IP65 Rated Exterior High-Power UV Wash Luminaire
20 Degree Narrow Beam Angle
365nm Peak True UV Wavelength
Zero Visible Light Output

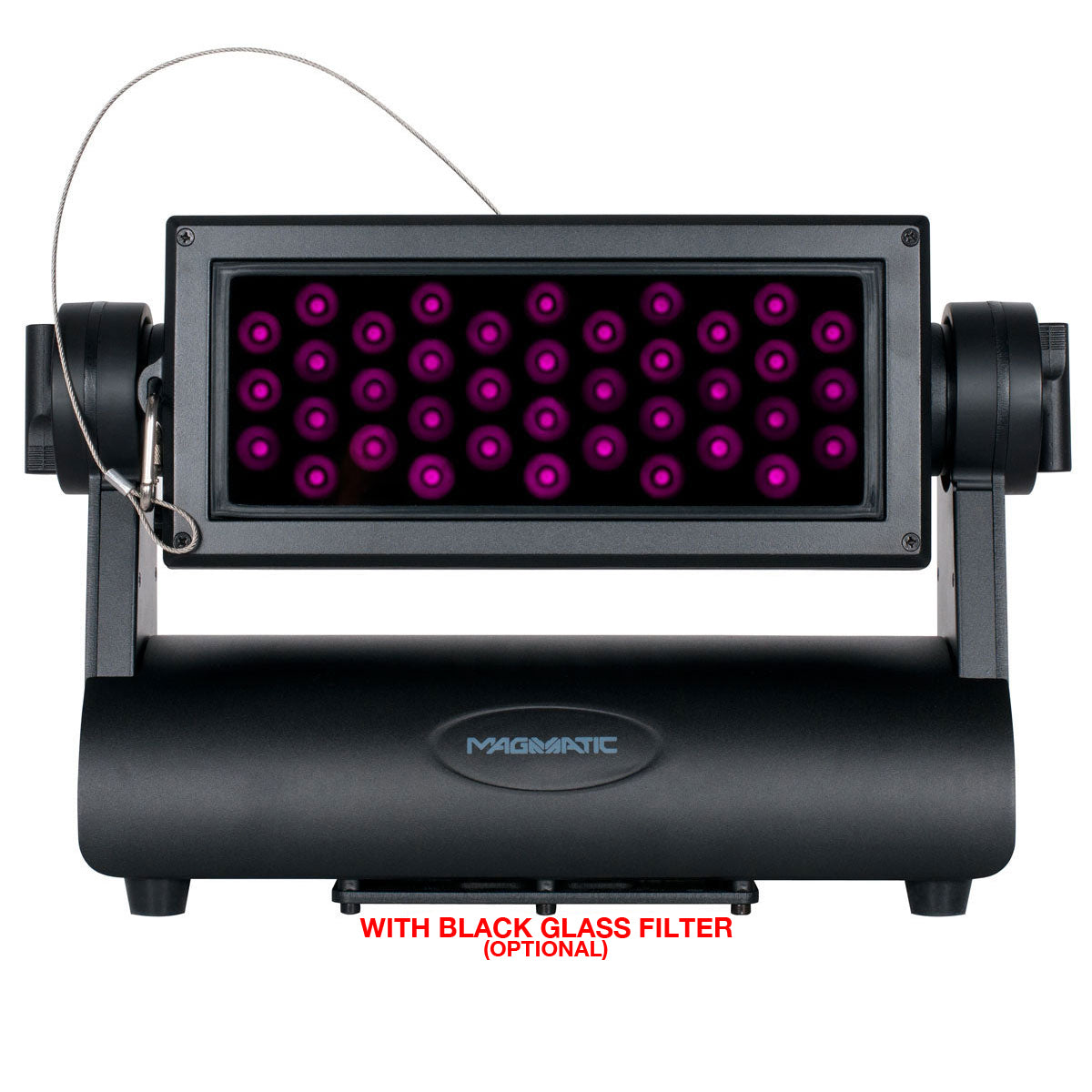

Optional Black Glass Diffusion Filter

Resources

Specification information

Guides/ Manuals

PHOTOMETRIC DATA

DMX/ RDM Traits

Drawings

CAD File

Related Categories

Specifications

SOURCE
(38) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength

EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION
Rugged IP65 Rated Aluminum Housing
Manual Adjustable Tilt Position

CONTROL
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

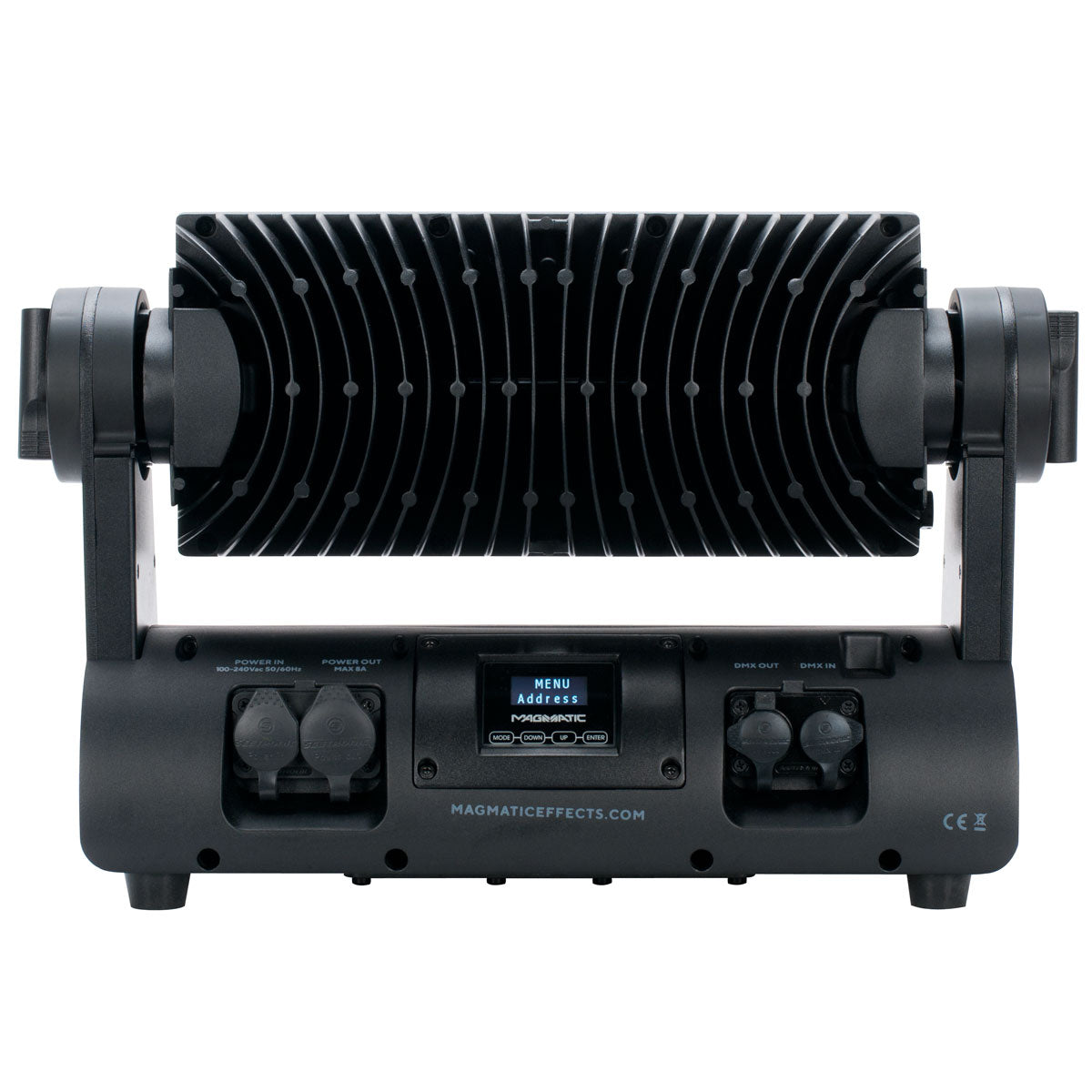

CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 17.5” (445mm)
Width: 5.9” (150mm)
Vertical Height: 11.29” (287mm)
Weight: 19 lbs. (8.62 kg)

ELECTRICAL
AC100-240V 50-60Hz
T2A/250V
83W Max Power Consumption

THERMAL
14°F to 113°F (-10°C to 45°C)
Air Cooled

APPROVALS / RATINGS
CE | cETLus | FCC | IP65


Specifications and documentation subject to change without notice.
