PRISMA WASH 25


38x 2W 365nm LED IP65 25° Wash Fixture

PRISMA WASH 25 is a professional-grade lighting solution. PRISMA WASH 25™ is an exterior IP65 rated UV wash luminaire that produces 365nm peak true UV output with zero visible light. Features include an impressive 20 degree narrow beam angle, manual adjustable tilt positioning and versatile rigging options, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control.

UPC: 810008261132SKU: PSW325

PRISMA WASH 25

PRISMA WASH 25™ is an exterior IP65 rated UV wash luminaire that produces 365nm peak true UV output with zero visible light. Features include an impressive 20 degree narrow beam angle, manual adjustable tilt positioning and versatile rigging options, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control.

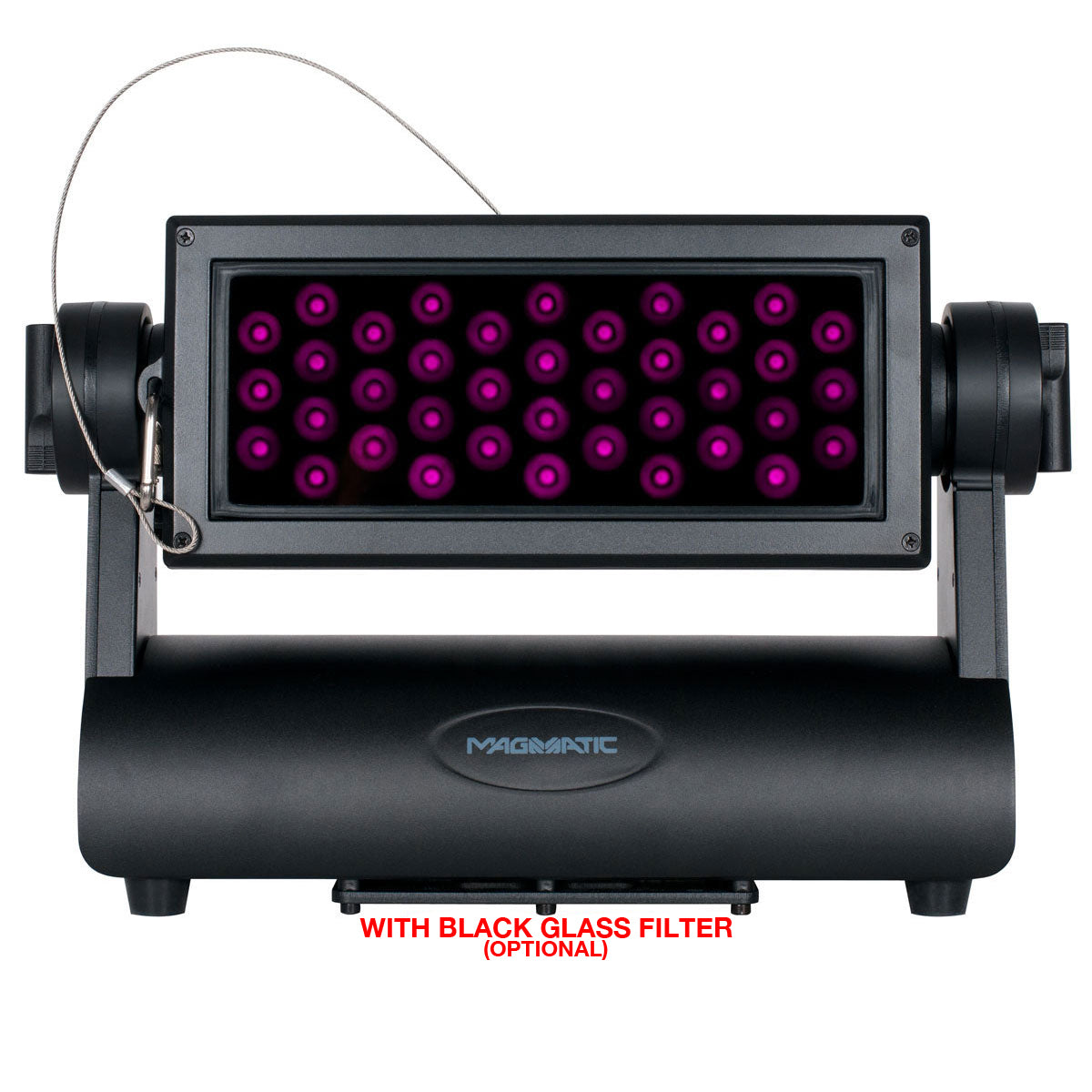

Optional accessories include a Black Glass diffusion filter to create a complete blackout effect, only allowing UV rays to penetrate, and extended length IP rated power and data linking cables.

  • IP65 Rated Exterior High-Power UV Wash Luminaire
  • 20 Degree Narrow Beam Angle
  • 365nm Peak True UV Wavelength
  • Zero Visible Light Output
  • Optional Black Glass Diffusion Filter

Specifications

SOURCE
(38) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength

EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION
Rugged IP65 Rated Aluminum Housing
Manual Adjustable Tilt Position

CONTROL
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 17.5” (445mm)
Width: 5.9” (150mm)
Vertical Height: 11.29” (287mm)
Weight: 19 lbs. (8.62 kg)

ELECTRICAL
AC100-240V 50-60Hz
T2A/250V
83W Max Power Consumption

THERMAL
14°F to 113°F (-10°C to 45°C)
Air Cooled

APPROVALS / RATINGS
CE | cETLus | FCC | IP65


Specifications and documentation subject to change without notice.
