ACL BAR
ACL BAR is a professional-grade lighting solution. The ACL BAR™ is a versatile bar luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, producing a laser-like homogenized 4° color-changing beam from each lens which combined produce a 31° beam angle.
ACL BAR

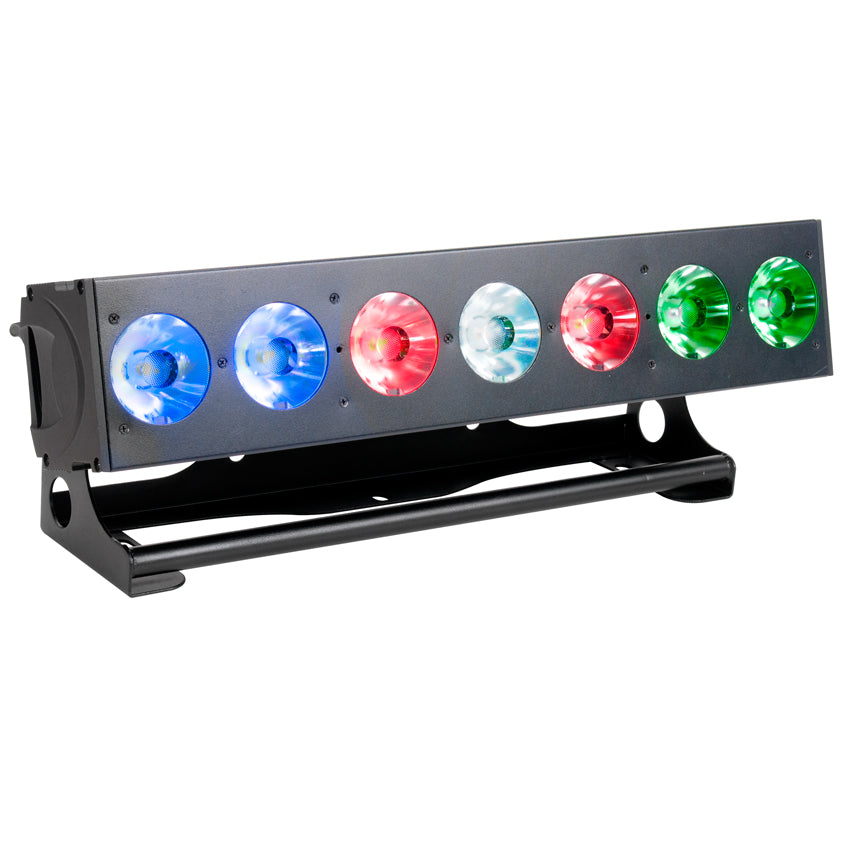

The ACL BAR™ is a versatile bar luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, producing a laser-like homogenized 4° color-changing beam from each lens which combined produce a 31° beam angle. Features include full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support, 3/5pin XLR, power cable, and RJ45 ethernet in/out connections, (4) button control full color 180° reversible menu display, 135W max power consumption, a multi-voltage universal auto switching power supply (100-240v), and included glare shield and frost filter.
- Versatile 31° Beam Bar Luminaire
- New Advanced Collimator Lens
- (7) Pixel Controled RGBW 4-in1 LEDs
- Laser-Like Homogenized 4° Color Changing Beams
- Strobe and Selectable Dimming Curve Effects
- DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
- Flicker Free Operation for Broadcast TV and FILM

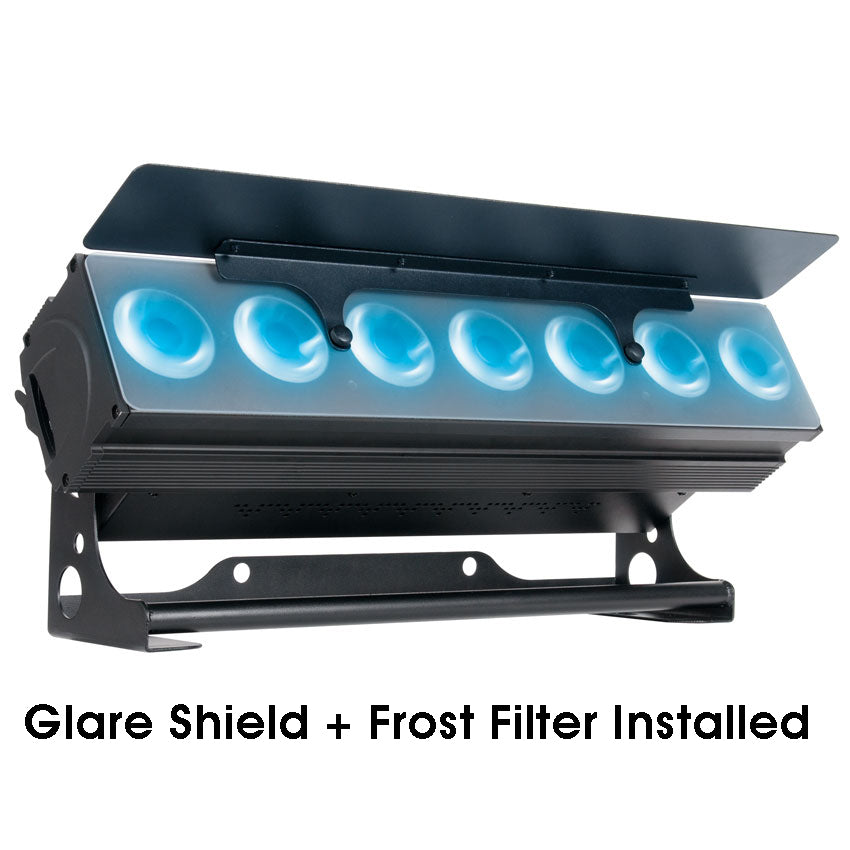

- Glare Shield and Frost Filter Included
Specifications
(7) 15W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
EFFECTS
Individual Pixel Control
Strobe and Selectable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
(10) DMX Channel Modes:
(1CH:04 / 2CH:04 / 6 / 8 / 10 / 12 / 28 / 30 / 32 / 35)
RDM (Remote Device Management)
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

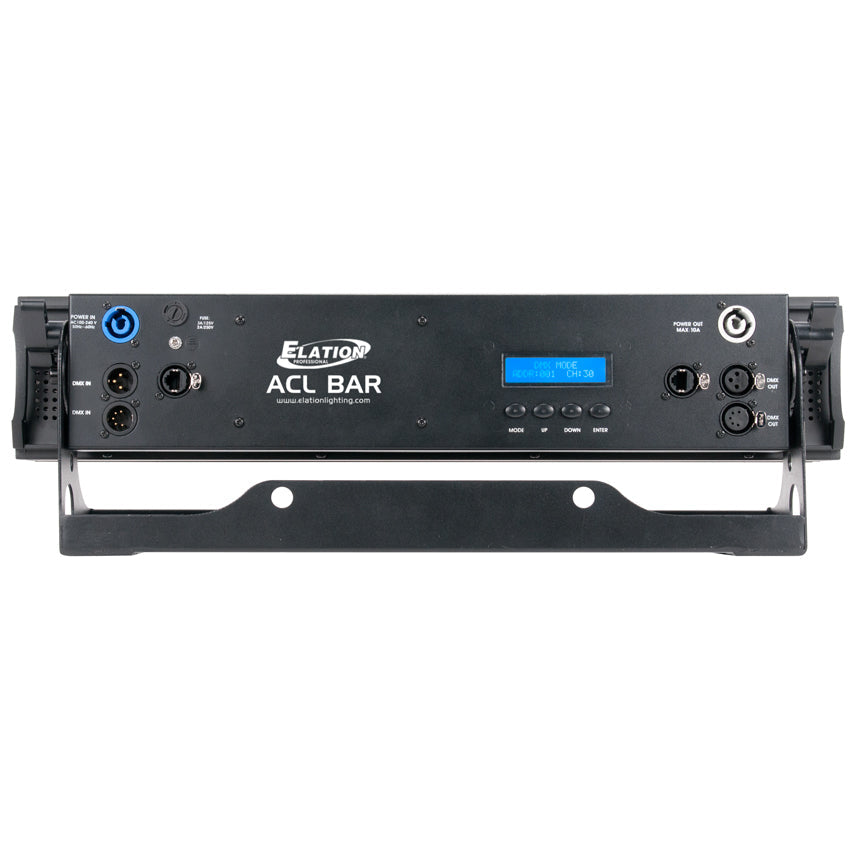

3pin/5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
Locking Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 21.6” (550mm)
Width: 9.5” (241.2mm) (Glare Shield Installed)
Vertical Height: 6.8” (172.5mm)
Weight: 15.0 lbs. (6.8 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
135W Max Power Consumption
5F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP30
Specifications and documentation subject to change without notice.
