ACL PAR 200

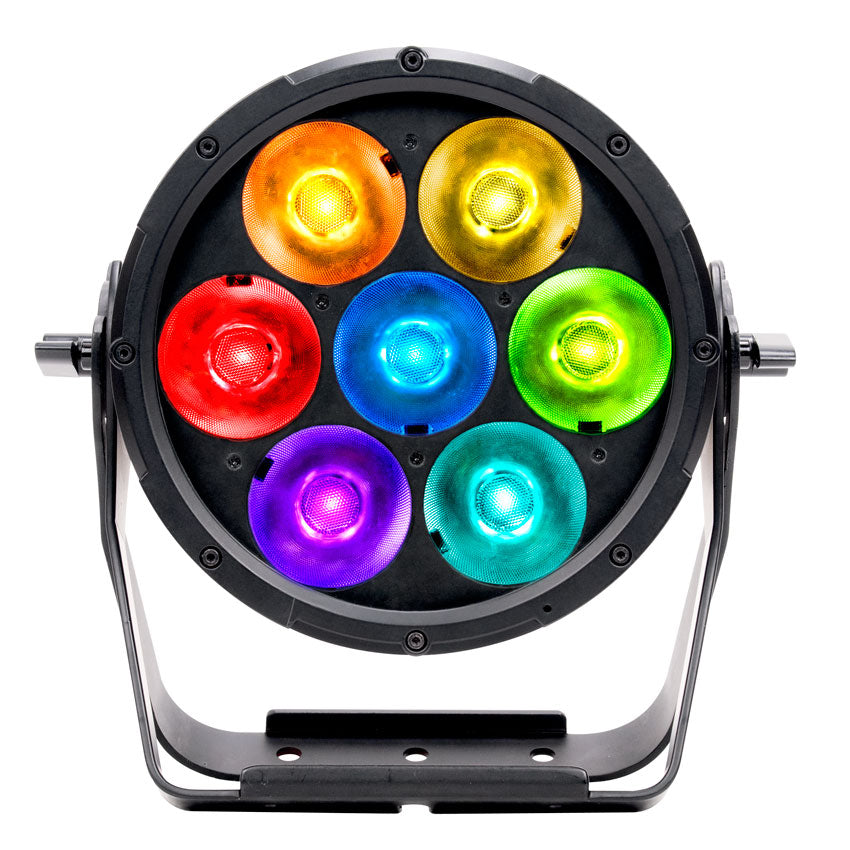

ACL PAR 200 is a professional-grade lighting solution. The ACL PAR 200™ is a versatile par luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, producing a laser-like homogenized 4° color-changing beam from each lens which combined produce a 11° beam angle.
ACL PAR 200
The ACL PAR 200™ is a versatile par luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, producing a laser-like homogenized 4° color-changing beam from each lens which combined produce a 11° beam angle. Features include full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 3/5pin XLR, power cable, and RJ45 ethernet in/out connections, (4) button control full color 180° reversible menu display, 135W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
- Versatile 11° Beam Par Luminaire
- New Advanced Collimator Lens
- (7) Pixel Control RGBW 4-in1 LEDs
- Laser-Like Homogenized 4° Color Changing Beams
- Strobe and Selectable Dimming Curves
- DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
- Flicker Free Operation for Broadcast TV and FILM
Specifications
(7) 15W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*
*May vary depending on several factors including but not limited to
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA (11° Full ON)
56,149 LUX 5,216 FC @3.3’ (1m)
36,935 LUX 3,431 FC @6.6’ (2m)
20,439 LUX 1,899 FC @9.8’ (3m)
11,897 LUX 1,105 FC @13.1’ (4m)
7,617 LUX 708 FC @16.4’ (5m)
EFFECTS
Individual Pixel Control
Strobe and Selectable Dimming Curves
COLOR
RGBW

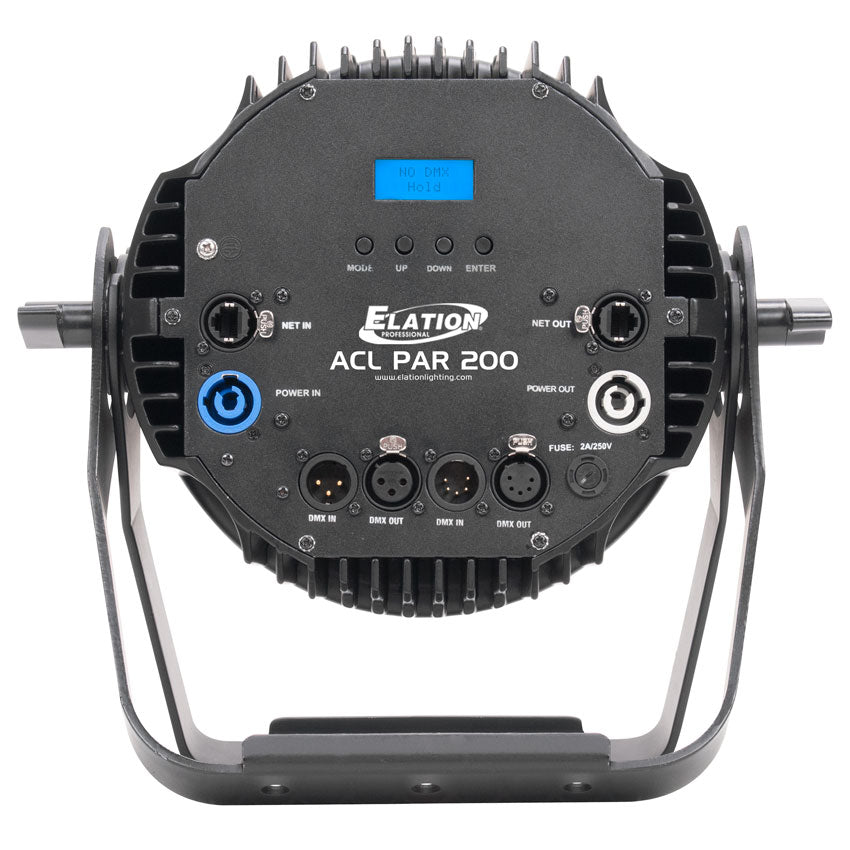

CONTROL / CONNECTIONS
(11) DMX Channel Modes:
(4CH1:04 / 4CH2:04 / 6 / 8 / 10 / 12 / 27 / 28 / 30 / 32 / 35)
RDM (Remote Device Management)
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
3pin/5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 12.3” (313mm)
Width: 5.6” (142mm)
Vertical Height: 11.8” (300mm)
Weight: 13.0 lbs. (5.9 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
110W Max Power Consumption
Power Linking: 9pcs Max @110V / 21pcs Max @230V
5F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP30
INCLUDED ITEMS
