ACL PAR 200IP

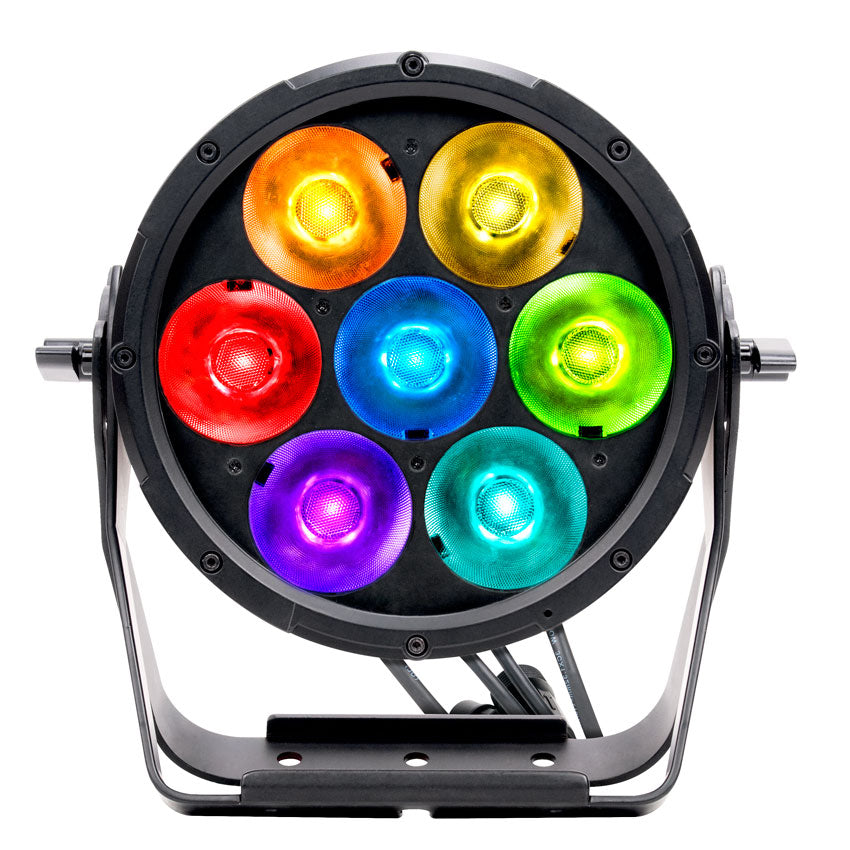

ACL PAR 200IP is a professional-grade lighting solution. The ACL PAR 200IP™ is a versatile IP65 rated par luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, producing a laser-like homogenized 4° color-changing beam from each lens which combined produce a 11° beam angle.
ACL PAR 200IP
The ACL PAR 200IP™ is a versatile IP65 rated par luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, producing a laser-like homogenized 4° color-changing beam from each lens which combined produce a 11° beam angle. Features include full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management) support, IP DMX and power in/out connections, (4) touch control pads, LCD menu display, 110W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
- Versatile IP65 Rated Par Luminaire
- New Advanced Collimator Lens
- (7) Pixel Control RGBW 4-in1 LEDs
- Laser-Like Homogenized 4° Color Changing Beams
- Strobe and Selectable Dimming Curves
- Flicker Free Operation for Broadcast TV and FILM
Specifications
(7) 15W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
EFFECTS
Individual Pixel Control
Strobe and Selectable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
(11) DMX Channel Modes:
(4CH1:04 / 4CH2:04 / 6 / 8 / 10 / 12 / 27 / 28 / 30 / 32 / 35)
RDM (Remote Device Management)

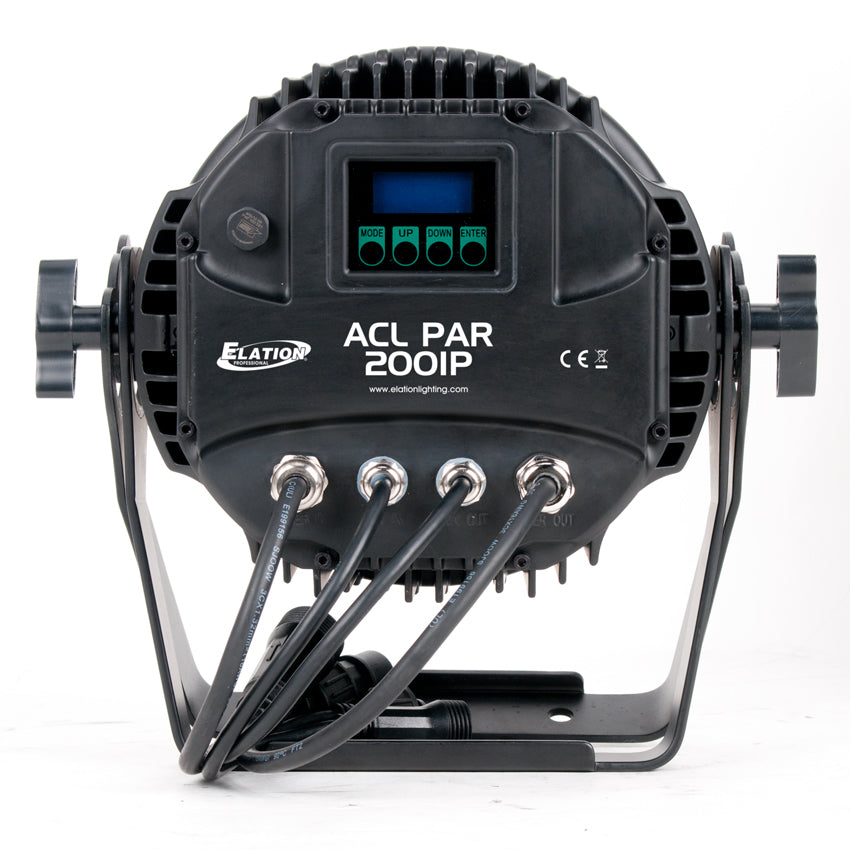

4 Touch Control Pads
LCD Menu Display

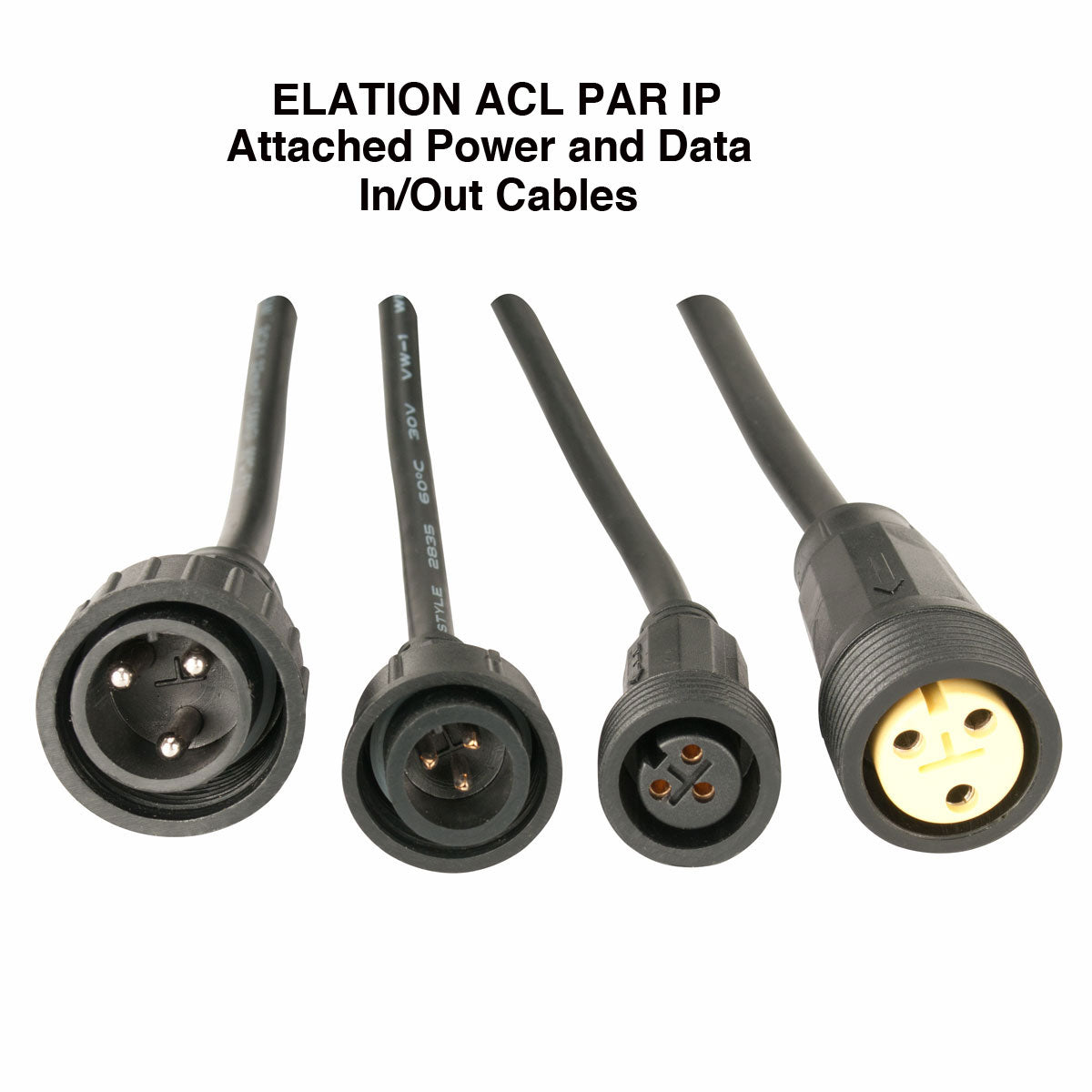

IP DMX In/Out
IP Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 12.3” (313mm)
Width: 6.9” (174.5mm)
Vertical Height: 11.8” (300mm)
Weight: 14.0 lbs. (6.4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
110W Max Power Consumption
Power Linking: 9pcs Max @110V / 21pcs Max @230V
5F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
INCLUDED ITEMS

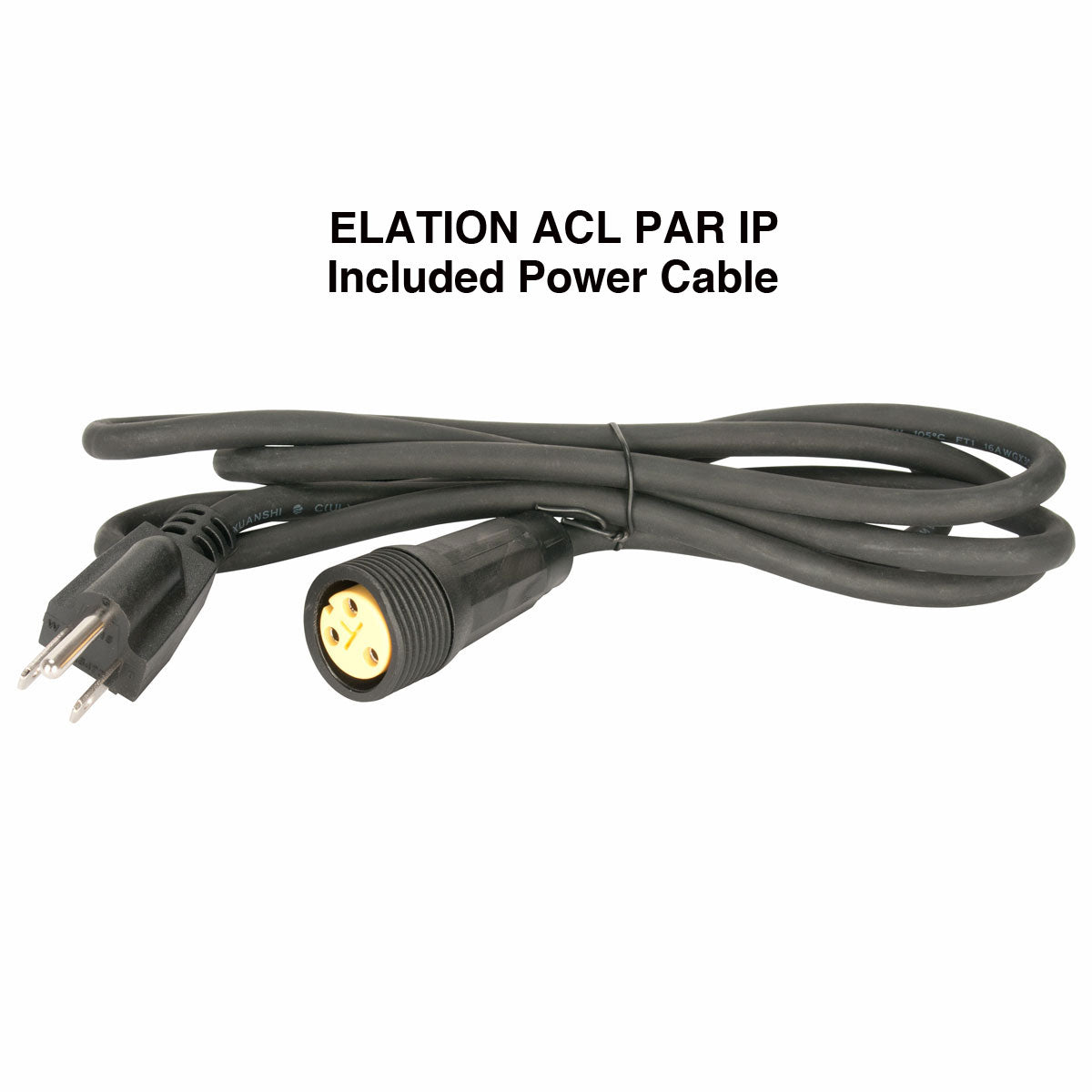

Male Edison to IP Female Power Cable 6,6 ft. (2m)
Male 3pin XLR to IP Female DMX Input Cable 3.3 ft (1m)
Female 3pin XLR to IP Male DMX Output Cable 3.3 ft (1m)
OPTIONAL ACCESSORIES:
SIXPAR/2MDLC- 6.6 ft. (2m) IP Data Link Cable
SIXPAR/2MPLC- 6.6 ft. (2m) IP Power Link Cable
SIXPAR/3MDLC- 9.8 ft. (3m) IP Data Link Cable
SIXPAR/3MDLC- 9.8 ft. (3m) IP Power Link Cable
SIXPAR/5MDLC-*SPECIAL ORDER*16.4 ft. (5m) IP Data Link Cable
SIXPAR/5MPLC-*SPECIAL ORDER*16.4 ft. (5m) IP Power Link Cable
SIXPAR/10MDLC-*SPECIAL ORDER*32.8 ft. (10m) IP Data Link Cable
SIXPAR/10MPLC-*SPECIAL ORDER*32.8 ft. (10m) IP Power Link Cable
SIXPAR/20MDLC-*SPECIAL ORDER*65.6 ft. (20m) IP Data Link Cable
SIXPAR/20MPLC-*SPECIAL ORDER*65.6 ft. (20m) IP Power Link Cable
SIXPAR/DIAC- Data IN IP Adapter Cable
SIXPAR/DOAC- Data OUT IP Adapter Cable
SIXPAR/PIAC- Power IN IP Adapter Cable
SIXPAR/POAC- Power OUT IP Adapter Cable
SIXPAR/TERMINATOR- DMX Terminator End Cap
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Photometrics
- ACL PAR 200IP Photometric Data
- ACL PAR 200IP Photometric IES File
- ACL PAR 200IP Photometric Test Report
