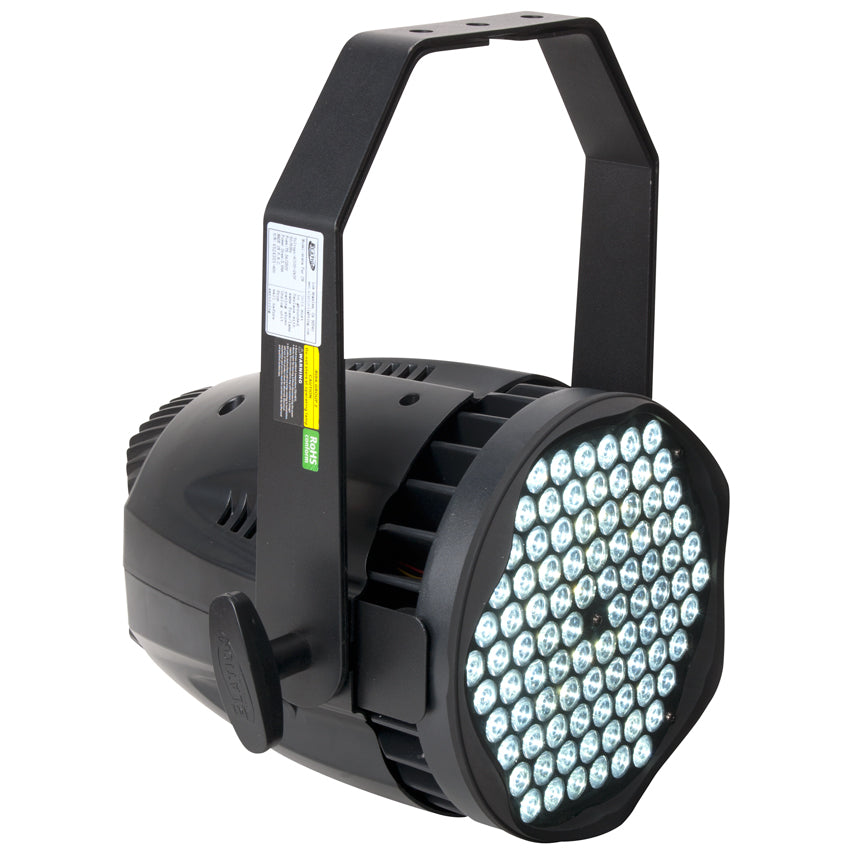

ARENA PAR CW
Arena Par CW is a professional-grade lighting solution. The Arena Par CW™ is a fan cooled die-cast aluminum Cool White par can featuring (90) 3W CREE XP-E LEDs, 15° standard beam angel, electronic dimming, flicker free operation for TV and FILM, 4 digit LED control display, DMX controlled via 2 DMX modes (1/2), master/slave modes, 5pin DMX in/out, and an integrated dual rigging yoke / floor stand.
ARENA PAR CW
The Arena Par CW™ is a fan cooled die-cast aluminum Cool White par can featuring (90) 3W CREE XP-E LEDs, 15° standard beam angel, electronic dimming, flicker free operation for TV and FILM, 4 digit LED control display, DMX controlled via 2 DMX modes (1/2), master/slave modes, 5pin DMX in/out, and an integrated dual rigging yoke / floor stand.
- Die Cast Aluminum LED Par Can
- DMX intelligent Cool White LED wash
- 90 x 3W CREE XP-E LEDs
- 15° standard beam angle
- Rated IP 20
- Case Color: Black
- Cooling: Fan Cooled
- Electronic power supply
- Electronic dimming (0-100%)
- 4 Digit LED display
- DMX controllable via 2 DMX modes: 1 or 2
- Primary/Secondary Mode
- On Board Control
- Stand Alone
- Flicker Free
Specifications
Control: USITT DMX-512, 5 pin XLR data input output
Dimmer: Master Dimmer (1 ch mode)
Strobe: Yes
IP Rating: IP 20
Power Supply: 100 - 240v, 50/60Hz
Power Consumption: 280W
Fuse: T 6.3A
Lamp: 90x 3W CREE XP-E LED
6,500k color temperature
LED Life: 50,000 hrs. life
Lux: 11800 Lux @ 3M @ Full
Dimensions: (L x W x H) 14.25” x 12” x 16.5” / 356 x 299 x 414mm (with handle)
(L x W x H) 10.5” x 12” x 9.25” / 265 x 299 x 234mm (no handle)
Weight: 18 lbs / 7.9 kg
Rigging: Split Yoke Bracket /safety and data cable optional
CE Approved
With Wired Digital Communication Network
