ARENA Q7 ZOOM
Arena Q7 Zoom is a professional-grade lighting solution.
ARENA Q7 ZOOM

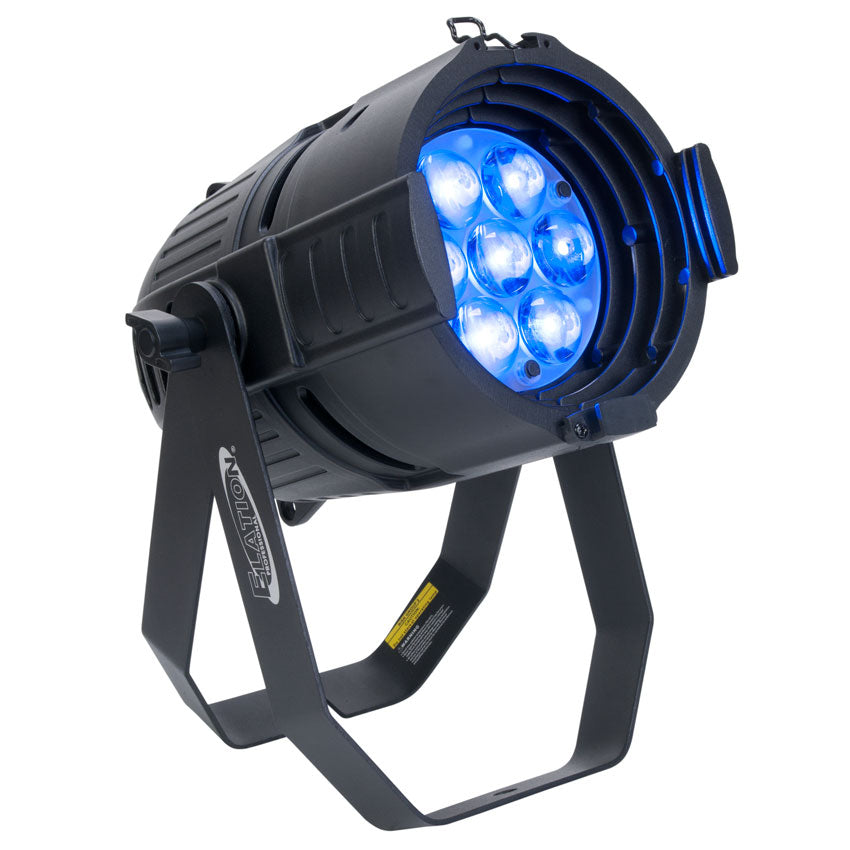

The Arena Q7 Zoom™ features (7) 10W QUAD Color LEDs from Osram™, 10° to 60° motorized zoom, electronic dimming and variable dimming curves, selectable color temperatures (3,200K - 7,200K), flicker free operation for TV and FILM, 5pin in/out DMX and powerCON in/out connections, 4 button touch control panel, integrated dual rigging yoke / floor stand, linkable power for up to 15 units at 120V and up to 28 units at 230V, 95W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
- Motorized 10° - 60° Zoom
- Variable Dimming Curves
- Selectable Color Temperatures (3,200K - 7,200K)
- Flicker Free Operation for TV and FILM
Specifications
7x 10W Osram™ QUAD Color (RGBW) LEDs
50,000 Hour Average Life
PHOTOMETRIC DATA
47,500 LUX 706 FC @3.3’ (1m) (10° Beam Full ON)
3,680 LUX 342 FC @3.3’ (1m) (60° Beam Full ON)
EFFECTS
(64) Color Macros
Strobe + Variable Strobe Macros
Electronic Dimming and Variable Dimming Curves
COLOR
RGBW

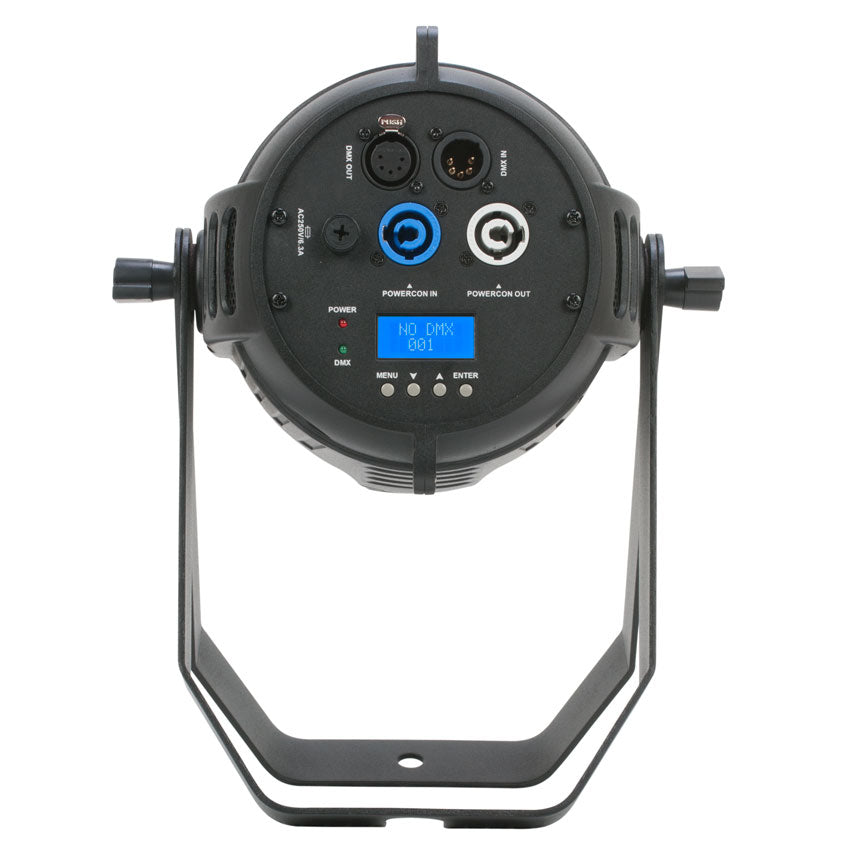

CONTROL / CONNECTIONS
7 DMX Channel Modes (5 / 6 / 7 / 9 / 10 / 15 / 16)
5pin DMX In/Out
4 Button Control Panel
LCD Menu Display
Power Cable In/Out
Power Link Up To (15) Units at 120V (28) Units at 230V
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 15.3” (388mm)
Width: 7.5” (190mm)
Vertical Height: 7.1” (180mm)
Weight: 13.2 lbs. (6.0kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
95W Max Power Consumption
Max Ambient Temperature 104°F (40°C)
APPROVALS / RATINGS
CE | cETLus | IP20
INCLUDED ACCESSORIES
(1) Power Cable
OPTIONAL ACCESSORIES:

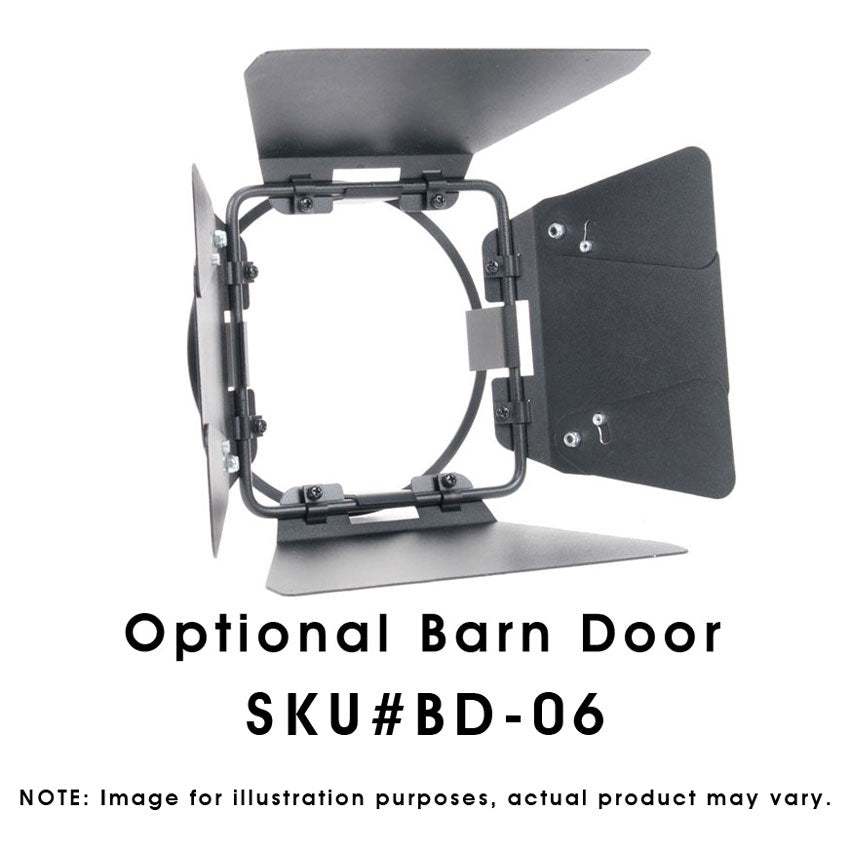

BD-06 - Barn Door
Specifications and documentation subject to change without notice.
