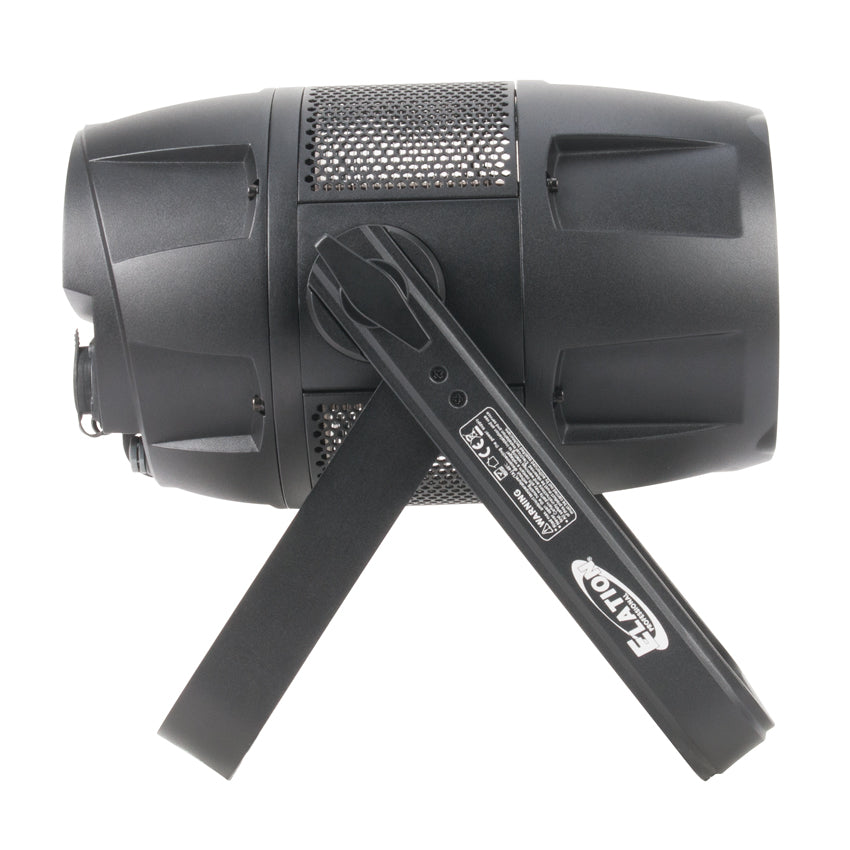

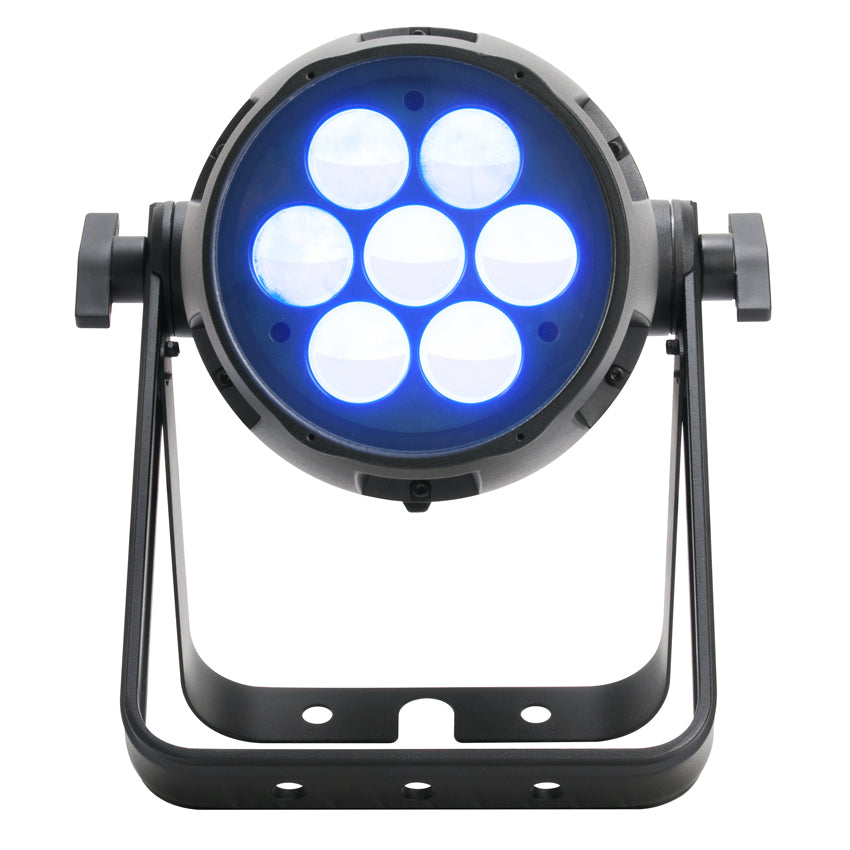

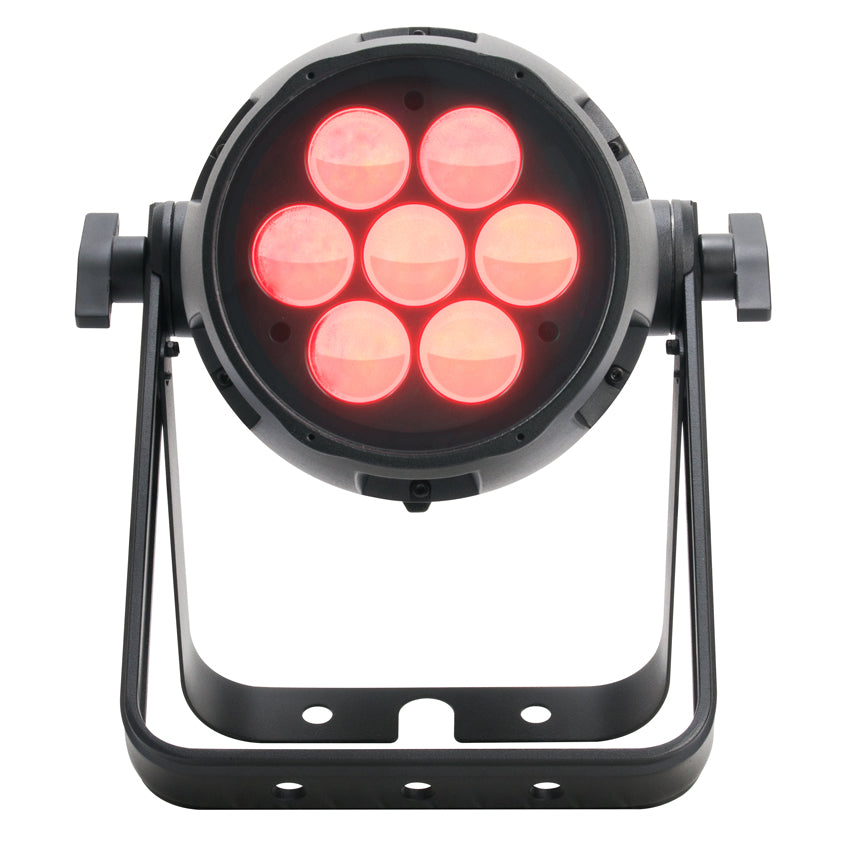

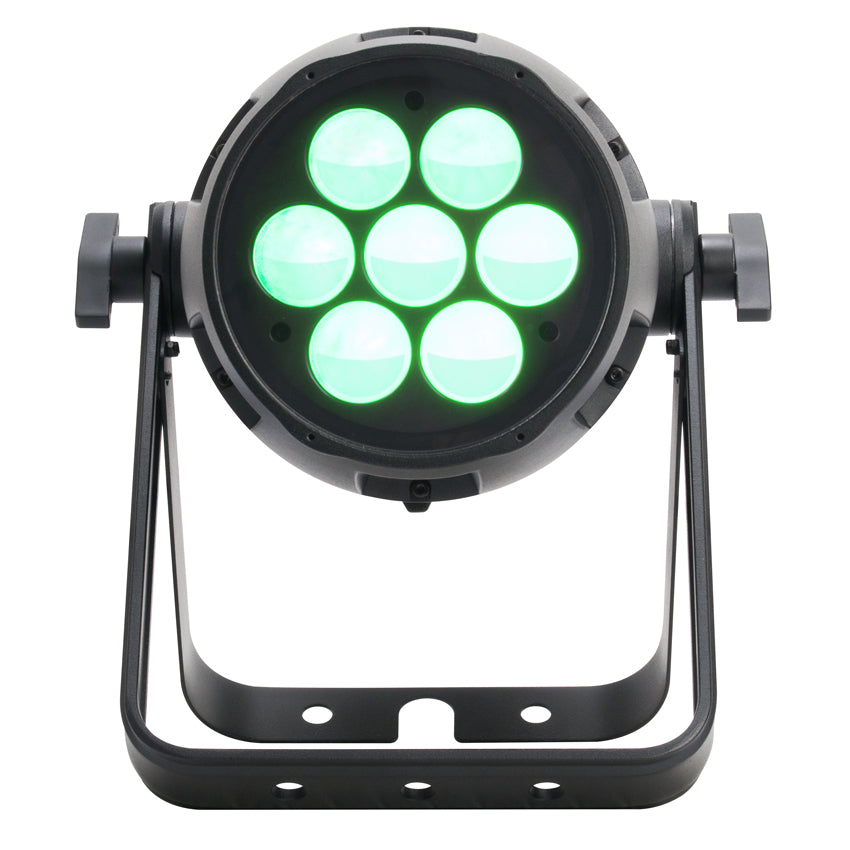

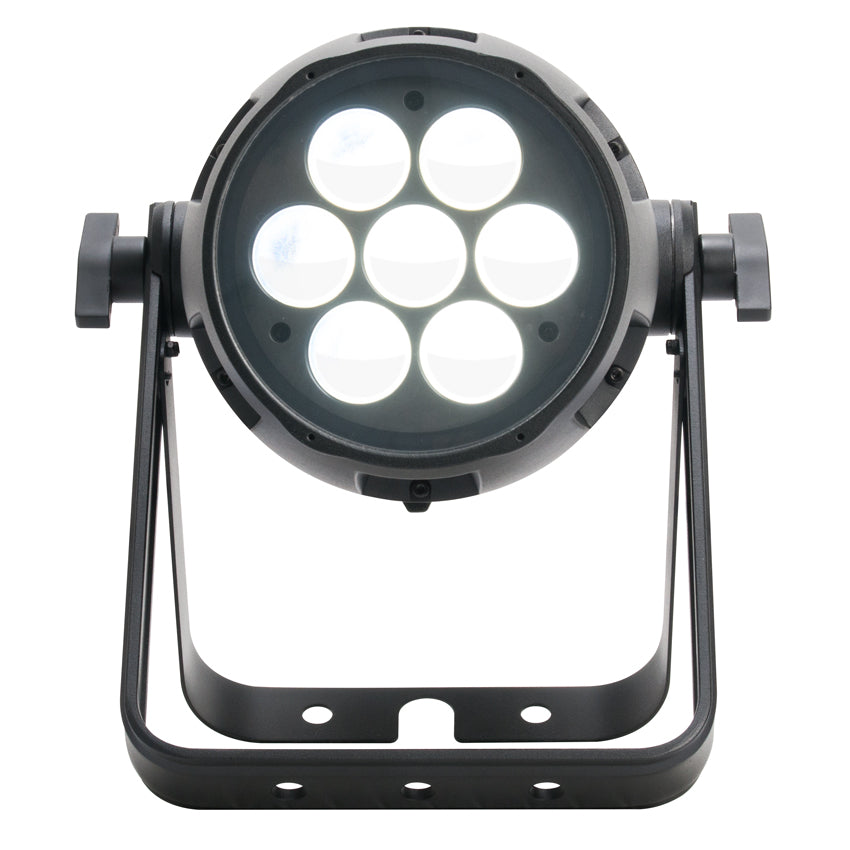

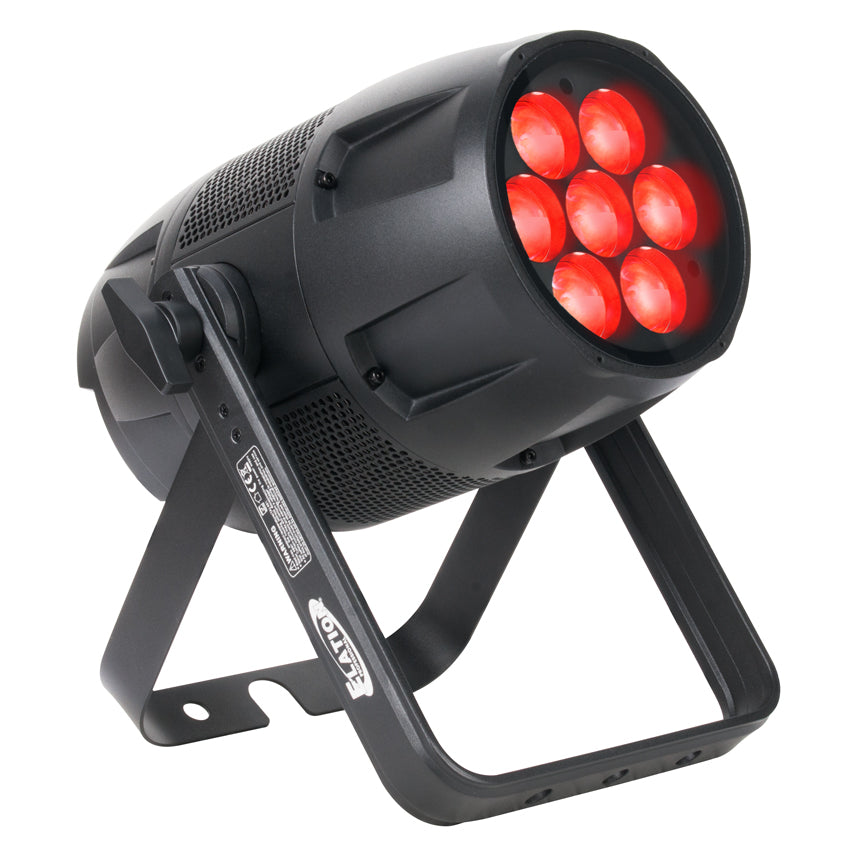

Arena Zoom Q7IP

SOURCE
7x 30W Osram™ Quad-Color RGBW LEDs
30,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA
3,200+ Total Lumen Output

Zoom Range 7° - 40°

Beam Angle: 8.8° - 36.5°

Field Angle: 13.9° - 53.6°

EFFECTS
Motorized Zoom
38 Color Macros and Variable Speed Macro Effects
Variable 3,200-10,000K Color Temperatures
Selectable Dimming Curve Effects

COLOR
RGBW

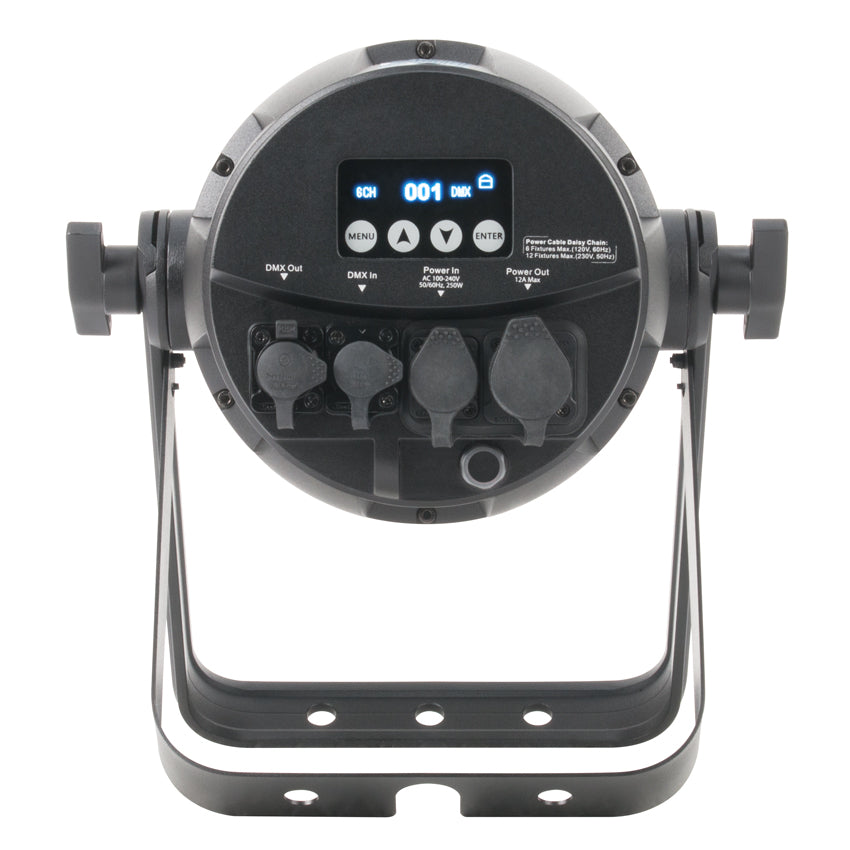

CONTROL / CONNECTIONS
(6) Multiple DMX Channel Modes (12 total channels)
Adjustable Refresh Rate (600-28,800 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
4 Button 180° Reversible OLED Menu Control Display
DMX and RDM Protocol Support
IP Rated 5pin DMX In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 12.4” (316mm)
Width: 9.6” (245mm)
Vertical Height: 7.8” (197mm)
Weight: 19.0 lbs. (8.6kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
250W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE | IP65 | cETLus

FIRMWARE UPDATES

Current Version: V2.1

Click HERE for software updates

Specifications and documentation subject to change without notice.
