CHORUS LINE 8
8x 40W RGBW LED Linear Wash Fixture with Zoom and Motorized Tilt
CHORUS LINE 8 is a professional-grade lighting solution.
CHORUS LINE 8
Specifications
SOURCE
(8) 40W 4-in-1 RGBW LEDs
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
3,000+ Total Lumens
8,702 LUX 809 FC @16.4 ft (5m) (Full ON (4° Min Zoom)
318 LUX 21 FC @16.4 ft (5m) (Full ON (37° Max Zoom)
Zoom Range 4° - 40°
Beam Angle 4.6° - 37.8°
Field Angle 7.8° - 54.4°
EFFECTS
Motorized Zoom and 220° Tilt Movement
RGBW Color Mixing and Full Pixel Control
2,700K - 7,000K Linear Color Temperature
64 Color Presets and 14 Unique Color Macros
Electronic Strobe, 16-bit Variable Dimming Curve Modes
COLOR
RGBW
CONTROL / CONNECTIONS
3 DMX Channel Modes (46 total channels)
DMX, RDM, Kling-Net, and Art-Net Protocol Support
Adjustable LED Refresh Rate (900-25,000 Hz)
Adjustable LED Gamma Brightness (2.0, 2.2, 2.4, 2.8)
4 Button Touch Control Panel
180° Reversible LCD Menu Display
8 / 16-Bit Resolution Zoom and Tilt Movement

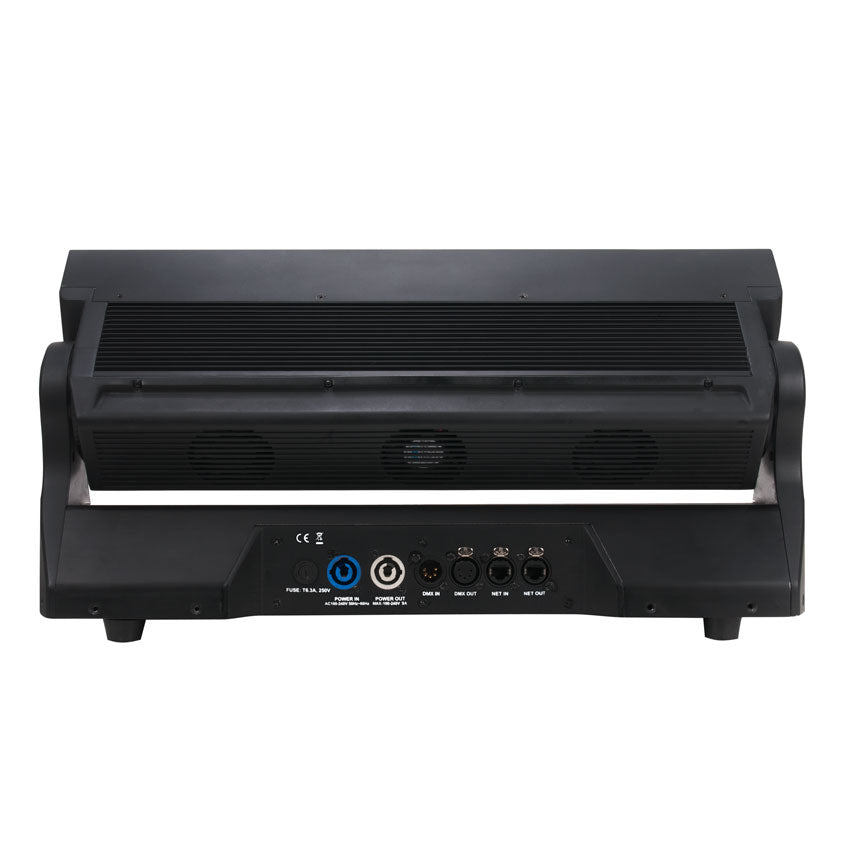

5pin DMX In/Out
RJ45 Ethernet In/Out
Locking Power Cable Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 21.28" (540.5mm)
Width: 7.44" (189mm)
Vertical Height: 11.46" (291mm)
Weight: 25.0 lbs (11.3 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
359W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 1224.2
APPROVALS / RATINGS
CE | cETLus | IP30
FIRMWARE UPDATE
Current Version: V1.13
Click HERE for software updates
Specifications and documentation subject to chance without notice.
