CHORUS LINE ST
Chorus Line ST is a professional-grade lighting solution.
CHORUS LINE ST

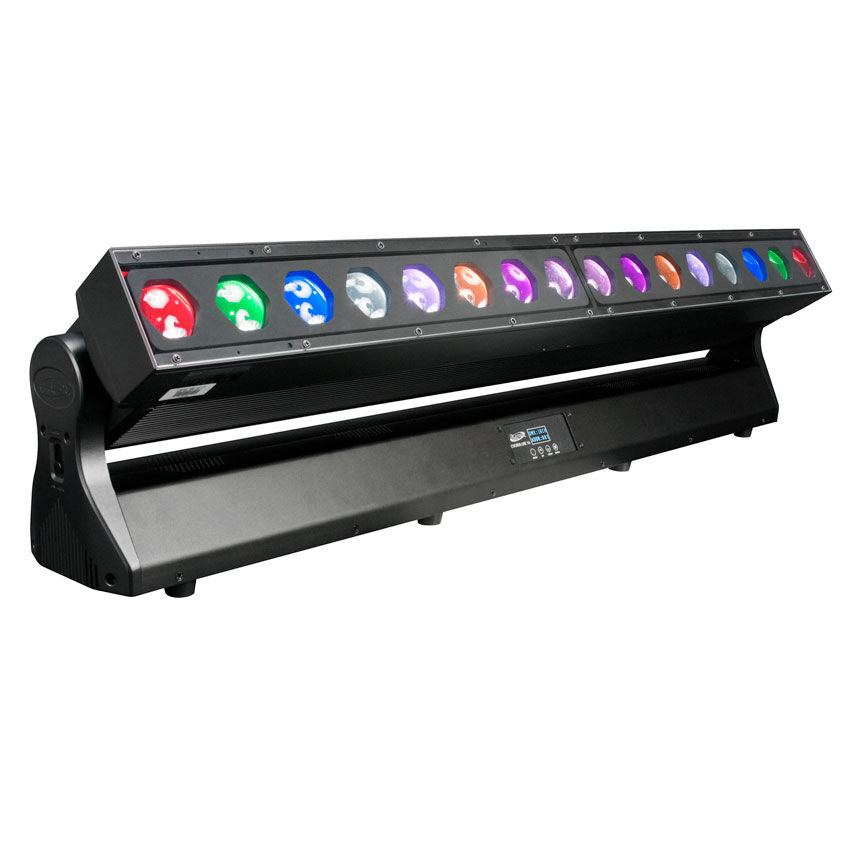

CHORUS LINE 16™ is a 16 pixel bar wash luminaire featuring 40W 4-in-1 RGBW LEDs, motorized 4° to 40° zoom and 220° tilt movement, full pixel control, 2,700K - 7,000K adjustable linear color temperature, 64 color presets and 14 unique color macros, electronic strobe and 16-bit variable dimming curve modes, adjustable LED refresh rate frequency and gamma brightness for flicker free operation for TV and FILM, DMX, RDM, Kling-NET, and Art-NET protocol support, DMX, RJ45 ethernet, and Locking Power Cable in/out connections, 4 button LCD control panel display, dual quick-lock omega bracket rigging, and a multi-voltage universal auto switching power supply (100-240v).
- 16 Pixel Bar Wash Luminaire with 40W 4-in-1 RGBW LEDs
- Motorized 4° to 40° Zoom and 220° Tilt Movement
- RGBW Color Mixing and Full Pixel Control
- 2,700K - 7,000K Linear Color Temperature Range
- 64 Color Presets and 14 Unique Color Macros
- Electronic Strobe, 16-bit Variable Dimming Curve Modes
- Adjustable LED Refresh Rate Frequency
- Adjustable LED Gamma Brightness
- Flicker Free Operation for TV and FILM
- DMX, RDM, Kling-Net, Art-Net Protocol Support
Specifications
SOURCE
(8) 40W 4-in-1 RGBA LEDs
50,000 Hour Average LED Life*
*Test lab conditions.May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
TBD
EFFECTS
Motorized 4° to 40° Zoom and 220° Tilt Movement
RGBA Color Mixing and Full Pixel Control
2,700K - 7,000K Linear Color Temperature
64 Color Presets and 14 Unique Color Macros
Electronic Strobe, 16-bit Variable Dimming Curve Modes
COLOR
RGBA
CONTROL / CONNECTIONS
3 DMX Channel Modes (46 total channels)
DMX, RDM, Kling-Net, and Art-Net Protocol Support
Adjustable LED Refresh Rate (900-25,000 Hz)
4 Button Touch Control Panel
180° Reversible LCD Menu Display
8 / 16-Bit Resolution Zoom and Tilt Movement
5pin DMX In/Out
RJ45 EtherCON In/Out
powerCON Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 21.28" (540.5mm)
Width: 7.44" (189mm)
Vertical Height: 11.46" (291mm)
Weight: 25.0 lbs (11.3 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
359W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | IP30
Specifications and documentation subject to chance without notice.
