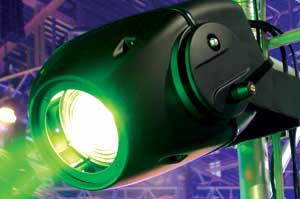

CMY ZOOM-250

OPTICAL SYSTEM

• High Output Luminous-Efficiency parabolic mirror

• Glass Dichroic reflector

• 8º - 22º Motorized zoom

• 150mm Fresnel Lens

 CMY - COLORMIXING SYSTEM

• The CMY Color mixing system is based on graduated cyan, magenta and yellow filters.

• A continuous range of colors may be achieved by varying the amount of each filter from 0-100%

 COLOR

• 7 Dichroic Filters: 5 Colors, CTB, CTC + White

• Continuous Color Scroll using color filters

 BEAM EFFECTS

• 180º Beam Shaper (Flatten and position beam)

• Frost Filter for softer beam

• Automated Beam from 8-22º via DMX

 SHUTTER/DIMMER
 Mechanical Dimming 0-100%
 Mechanical High Speed shutter Pulse Effect

 RIGGING
 1 x Hanging Yoke (Bracket)
 1 x Base Plate
 1 x Safety Eyelet

 DIMENSIONS WEIGHT
 15”L x 18”W x 13.5”H
 36 lbs

 POWER SUPPLY
 Lamp: PHILIPS MSD-250/2 (250W, 8500ºK, 2000HR)
 Fuse: 10A
 Magnetic Ballast
 Voltage: 115/208/230/240V AC
