CMY ZOOM-575

Discontinued

CMY Zoom-575 is a professional-grade lighting solution. CONTROL FEATURES USITT DMX-512 RDMX - Remote DMX Addressing 11 DMX Channels 4 Digit L.E.D.

UPC: 837874001198SKU: CMYZOOM 575

CMY ZOOM-575

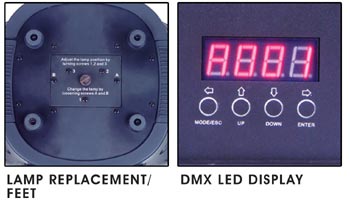

CONTROL FEATURES USITT DMX-512 RDMX - Remote DMX Addressing 11 DMX Channels 4 Digit L.E.D. Display 3 pin XLR serial input/output Sound active mode

Specifications

OPTICAL SYSTEM
 High output luminous-parabolic dichroic reflector
 Glass dichroic reflector
 150mm Fresnel lens
 Motorized zoom 13 degrees - 29 degrees

 COLOR
 CMY subtractive color mixing
 7 Dichroic filters, 5 Colors, CTB, CTC + white
 Continuous, variable speed, color scrolling in both directions (rainbow effect)

 SHUTTER/DIMMER
 Variable speed strobe effect (1-10) Flashes per second
 Pre-set variable/random strobe and dimming pulse effect
 Dual Flag mechanical dimming system

 LAMPS
 Philips MSR 575/2 (575W, 7200°K, 1000 HRS)

 RIGGING
 1 x Hanging Bracket
 1 x Safety hole
 1 x Base plate

 POWER SUPPLY
 15A fuse
 Magnetic Ballast
 Voltage: AC 98, 120, 208, 220, 230, 240V 50/60Hz
 Power Consumption 800W

 DIMENSIONS WEIGHT
 16”L x 14”W x 17”H (without barn doors)
 60 lbs.
