COLOUR 5 Profile
Discontinued
COLOUR 5 Profile is a professional-grade lighting solution.
COLOUR 5 Profile
Sale price$0.00
Replaced by
COLOUR 5 Profile

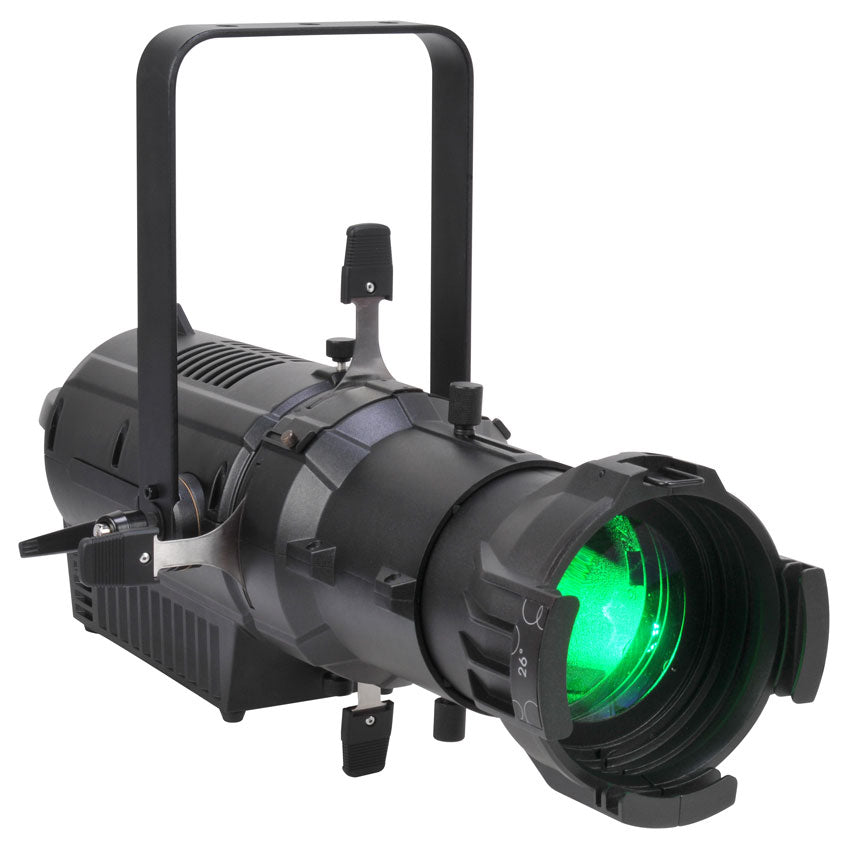

The COLOUR 5 Profile™ Ellipsoidal features a 180W RGBAM (Red, Green, Blue, Amber, Mint) LED engine, >94CRI, 4,100 total lumens, with 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, dimming, and dimming curves, flicker free operation for TV and FILM, adjustable refresh frequency and gamma brightness, 5pin DMX and Locking Power Cable in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).
High CRI >94, 4,100 Total Lumens*

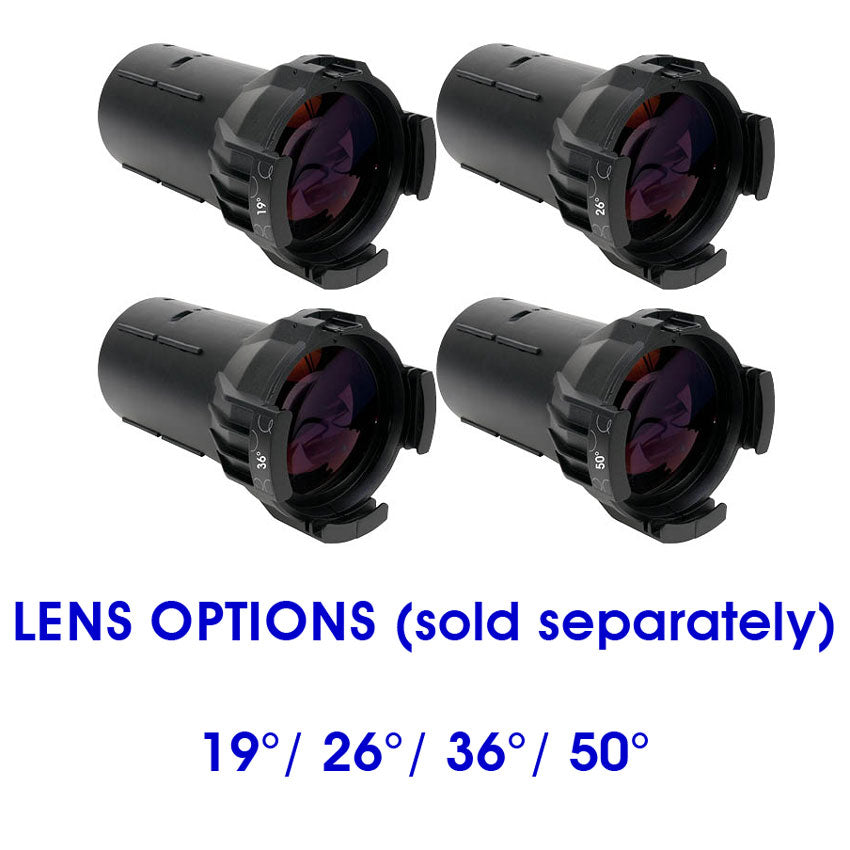

Interchangeable Lens Options** (19°, 26°, 36°, 50°)
(4) Blade Manual Framing Shutters
Variable Dimming Curve Modes
Flicker Free Operation for TV and FILM
Adjustable Refresh Frequency and Gamma Brightness
Quiet Fan Cooling
(*with 26° lens) (**sold separately)
High CRI >94, 4,100 Total Lumens*
Interchangeable Lens Options** (19°, 26°, 36°, 50°)
(4) Blade Manual Framing Shutters
Variable Dimming Curve Modes
Flicker Free Operation for TV and FILM
Adjustable Refresh Frequency and Gamma Brightness
Quiet Fan Cooling
(*with 26° lens) (**sold separately)
Specifications
SOURCE
180W RGBAM (Red/Green/Blue/Amber/Mint) LED Engine
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
>94CRI 4,100 Total Lumens*
(*with 26° lens)
EFFECTS
Electronic Strobe and Dimming
Variable Dimming Curve Modes
GOBOS
Supports “B” Size Metal, HT Transparency Gobos*
*Gobos and Holder not included.
CONTROL / CONNECTIONS
(5) DMX Channel Modes (5 / 6 / 8 / 13 / 19)
Adjustable Refresh Rate (900-1500, 25,000 Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
4 Button Control Panel
LED Menu Display
5pin DMX In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 24.3” (618mm) / 26.5” (674mm) Fully Extended
Width: 12.2” (310mm)
Vertical Height: 15.7” (398mm)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
Quiet Fan Cooling
AC 100-240V - 50/60Hz
225W Max Power Consumption
Power Linking: 4pcs Max @120V / 8pcs Max @240V
14° to 113°F (-10° to 45°C)
180W RGBAM (Red/Green/Blue/Amber/Mint) LED Engine
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
>94CRI 4,100 Total Lumens*
(*with 26° lens)
EFFECTS
Electronic Strobe and Dimming
Variable Dimming Curve Modes
GOBOS
Supports “B” Size Metal, HT Transparency Gobos*
*Gobos and Holder not included.
CONTROL / CONNECTIONS
(5) DMX Channel Modes (5 / 6 / 8 / 13 / 19)
Adjustable Refresh Rate (900-1500, 25,000 Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
4 Button Control Panel
LED Menu Display
5pin DMX In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 24.3” (618mm) / 26.5” (674mm) Fully Extended
Width: 12.2” (310mm)
Vertical Height: 15.7” (398mm)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
Quiet Fan Cooling
AC 100-240V - 50/60Hz
225W Max Power Consumption
Power Linking: 4pcs Max @120V / 8pcs Max @240V
14° to 113°F (-10° to 45°C)
BTU/hr (+/- 10%) 767.25
APPROVALS / RATINGS
CE | cETLus | IP20
INCLUDED ITEMS
(1) Locking Power Cable
(1) 5pin DMX Cable
OPTIONAL ACCESSORIES:
PHD019 - Profile High Definition Lens 19°
PHD126 - Profile High Definition Lens 26°
PHD236 - Profile High Definition Lens 36°
PHD350 - Profile High Definition Lens 50°
CE | cETLus | IP20
INCLUDED ITEMS
(1) Locking Power Cable
(1) 5pin DMX Cable
OPTIONAL ACCESSORIES:
PHD019 - Profile High Definition Lens 19°
PHD126 - Profile High Definition Lens 26°
PHD236 - Profile High Definition Lens 36°
PHD350 - Profile High Definition Lens 50°
FIRMWARE UPDATES
Current Version: V1.0.15
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Photometrics
- Colour 5 Profile - Photometric Test Report - 26°
- Colour 5 Profile - Photometric Test Report - 36°
- Colour 5 Profile - Photometric Data
- Colour 5 Profile Photometric IES Files - 3200K 26 Degree Lens
- Colour 5 Profile - Photometric IES Files - 19°
- Colour 5 Profile - Photometric Test Report - 19°
- Colour 5 Profile - Photometirc Report - 3200K 26 Degree Lens
- Colour 5 Profile - Photometric IES File - 26°
Specification sheet
User manual
Vectorworks symbols
