CUEPIX Batten
Discontinued
CUEPIX Batten is a professional-grade lighting solution.
CUEPIX Batten
Sale price$0.00
CUEPIX Batten

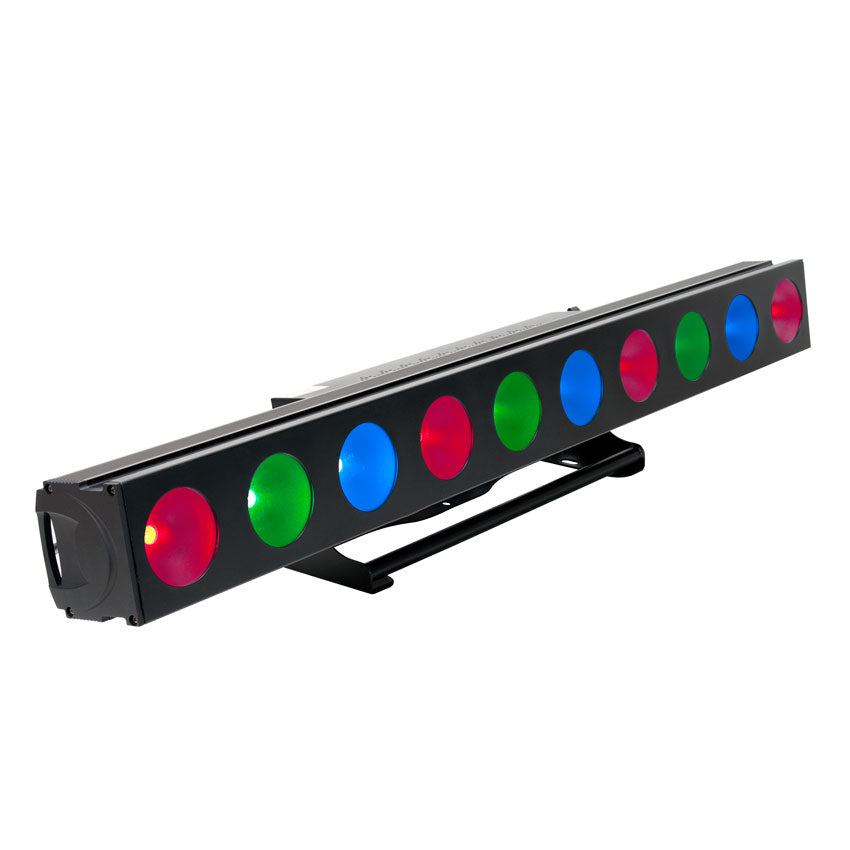

The CUEPIX Batten™ features (10) long life 30W 3-in-1 RGB COB LEDs, 100,000 average hour LED life, 82° beam and 106° field angles, individual control of each COB module, variable dimming curve modes, strobe and chase effects, ArtNet™, KlingNet™ and RDM (remote device management) protocol support, 3pin and 5pin DMX, power In/Out, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated rigging bracket, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 312W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).
82° Beam 106° Field Angles
ArtNet™ and Klingnet™ Support
RDM - Remote Device Management
Individual COB Module Control
Variable Dimming Curve Modes
Multiple Unit Power Linking
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
82° Beam 106° Field Angles
ArtNet™ and Klingnet™ Support
RDM - Remote Device Management
Individual COB Module Control
Variable Dimming Curve Modes
Multiple Unit Power Linking
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
Specifications
SOURCE
(10) 30W 3-in-1 COB LEDs
100,000 Hour Average LED Life
PHOTOMETRIC DATA
3,890 LUX 361 FC @3.3’ (1m) (82° Full ON)
1,237 LUX 115 FC @6.6’ (2m) (82° Full ON)
613 LUX 57 FC @9.8’ (3m) (82° Full ON)
345 LUX 32 FC @13.1’ (4m) (82° Full ON)
227 LUX 21 FC @16.4’ (5m) (82° Full ON)
EFFECTS
Strobe and Chase Effects
Individual COB Module Control
Variable and Selectable Dimming Curves

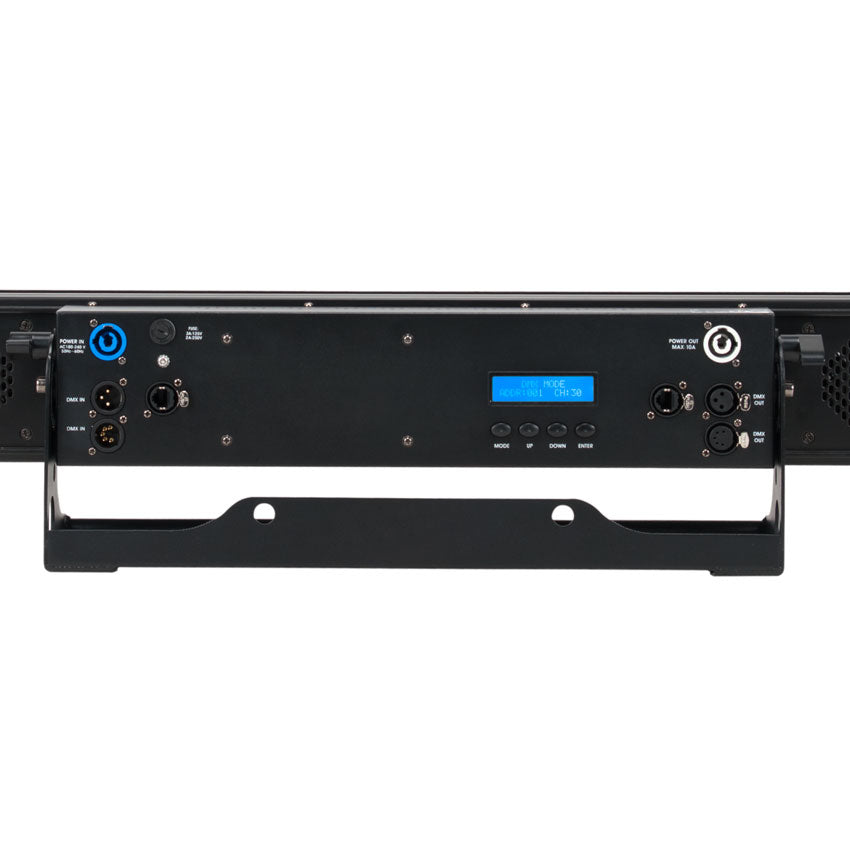

CONTROL / CONNECTIONS
8 DMX Channel Modes (3 / 4 / 6 / 9 / 30 / 33 / 36 / 60)
4 Button Control Panel and LCD Menu Display
ArtNet™ + KlingNet™ Protocol Support
RDM (Remote Device Management)
(2) RJ45 Ports
3pin and 5pin DMX In/Out
Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 43.3” (1100mm)
Width: 6.4” (121mm)
Vertical Height: 6.8” (172mm)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
312W Max Power Consumption
Power Link Up To (5) Units at 120V (10) Units at 240V
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | IP20
Specifications and documentation subject to change without notice.
(10) 30W 3-in-1 COB LEDs
100,000 Hour Average LED Life
PHOTOMETRIC DATA
3,890 LUX 361 FC @3.3’ (1m) (82° Full ON)
1,237 LUX 115 FC @6.6’ (2m) (82° Full ON)
613 LUX 57 FC @9.8’ (3m) (82° Full ON)
345 LUX 32 FC @13.1’ (4m) (82° Full ON)
227 LUX 21 FC @16.4’ (5m) (82° Full ON)
EFFECTS
Strobe and Chase Effects
Individual COB Module Control
Variable and Selectable Dimming Curves
CONTROL / CONNECTIONS
8 DMX Channel Modes (3 / 4 / 6 / 9 / 30 / 33 / 36 / 60)
4 Button Control Panel and LCD Menu Display
ArtNet™ + KlingNet™ Protocol Support
RDM (Remote Device Management)
(2) RJ45 Ports
3pin and 5pin DMX In/Out
Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 43.3” (1100mm)
Width: 6.4” (121mm)
Vertical Height: 6.8” (172mm)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
312W Max Power Consumption
Power Link Up To (5) Units at 120V (10) Units at 240V
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | IP20
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Photometrics
User manual
Vectorworks symbol
CUEPIX Batten Parts & Service
Our CUEPIX Batten Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your CUEPIX Batten. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
CUEPIX Batten Parts & Service
