CUEPIX Panel
Discontinued
CUEPIX Panel is a professional-grade lighting solution.
CUEPIX Panel
Sale price$0.00
CUEPIX Panel

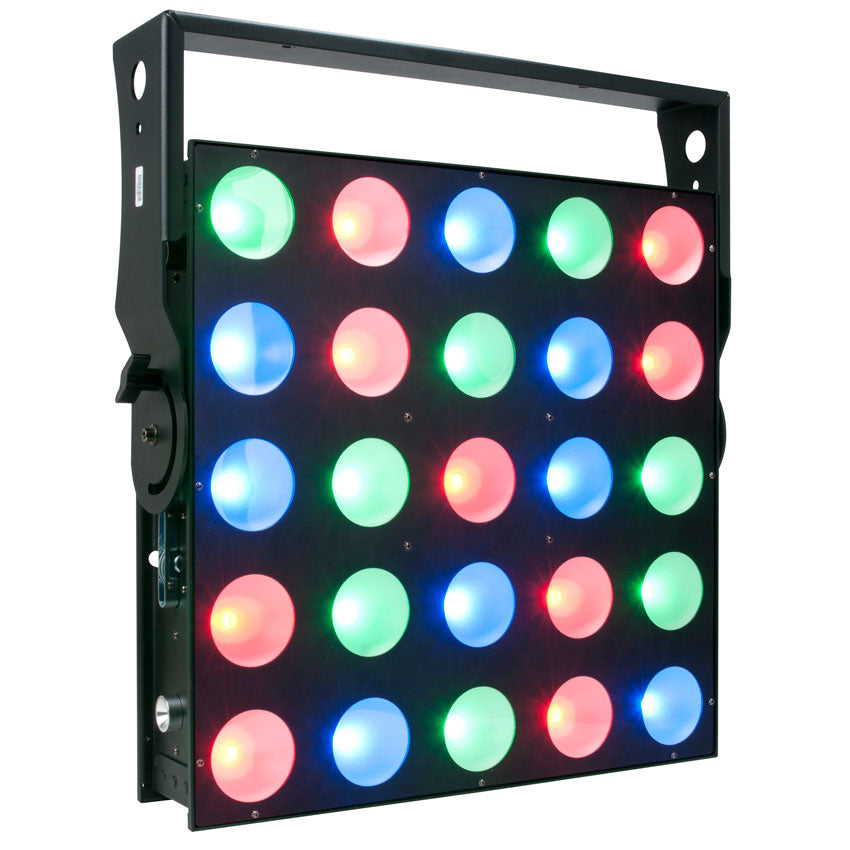

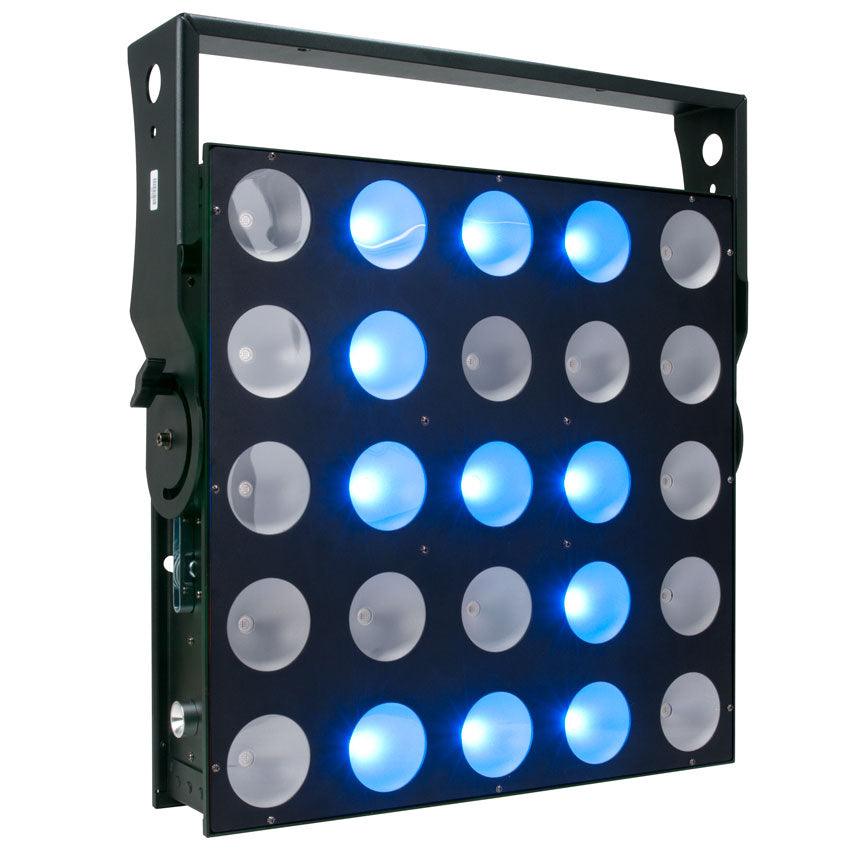

The CUEPIX Panel™ features (25) long life 30W 3-in-1 RGB COB LEDs, a 60° beam angle, RDM (Remote Device Management), individual control of each COB module, variable / selectable dimming curves, strobe and zone chase effects, flicker free operation for TV and Film, ArtNet™, KlingNet™ and RDM (remote device management) protocol support, 3pin and 5pin DMX and Locking Power cable in/out connections, LCD menu display with 4 button control panel, integrated rigging points and optional rigging bracket available, and a multi-voltage universal auto switching power supply (100-250v).
Versatile COB LED Effect Panel Luminaire
5x5 Array of 25 25W 3-in-1 RGB COB LEDs
60° Beam Angle
Full Pixel Control with Pixel Flip Modes
Variable Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Flicker Free Operation for Broadcast TV and FILM
No Fans for Noise-Sensitive Application
DMX, RDM, Kling-NET, and Art-NET Protocol Support

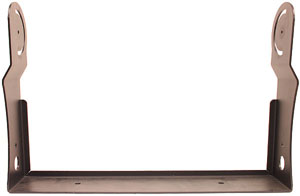

90° Adjustable Yoke Bracket w/3-Position Holes
Integrated Fixture-to-Fixture Interlocking Coffin Locks
Optional Rigging Bar and 15° Lens Kit Available
Versatile COB LED Effect Panel Luminaire
5x5 Array of 25 25W 3-in-1 RGB COB LEDs
60° Beam Angle
Full Pixel Control with Pixel Flip Modes
Variable Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Flicker Free Operation for Broadcast TV and FILM
No Fans for Noise-Sensitive Application
DMX, RDM, Kling-NET, and Art-NET Protocol Support
90° Adjustable Yoke Bracket w/3-Position Holes
Integrated Fixture-to-Fixture Interlocking Coffin Locks
Optional Rigging Bar and 15° Lens Kit Available
Specifications
SOURCE
(25) 30W 3-in-1 RGB COB LEDs
100,000 Hour Average Life
PHOTOMETRIC DATA
15,490 Max LUX (1439 fc) @2M (Full On)
3310 Max LUX (307 fc) @2M (Red LEDs)
3720 Max LUX (346 fc) @2M (Green LEDs)
5870 Max LUX (545 fc) @2M (Blue LEDs)
EFFECTS
Variable / Selectable Dimming Curves
Auto Chase and Zone Program Macros

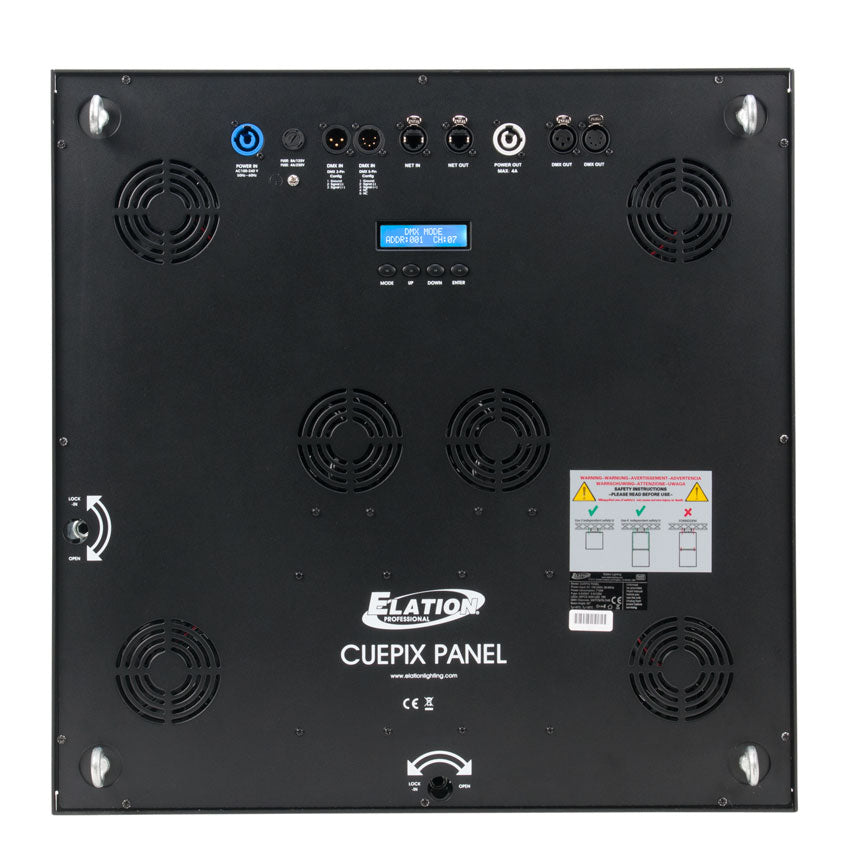

CONTROL / CONNECTIONS
5 DMX Channel Modes (3 / 6 / 7 / 75 / 79)
4 Button Control Panel and LCD Menu Display
ArtNet™ + KlingNet™ Protocol Support
RDM (Remote Device Management)
(2) RJ45 Ports
3pin and 5pin DMX In/Out
RDM (Remote Device Management)
Locking Power cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 24.8” (630 mm)
Width: 5.1” (130 mm)
Vertical Height: 25.6” (650 mm)
Weight: 36.4 lbs. (16.5 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
750W Max Power Consumption
-14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
INCLUDED ACCESSORIES
Locking Power Cable
OPTIONAL ACCESSORIES:

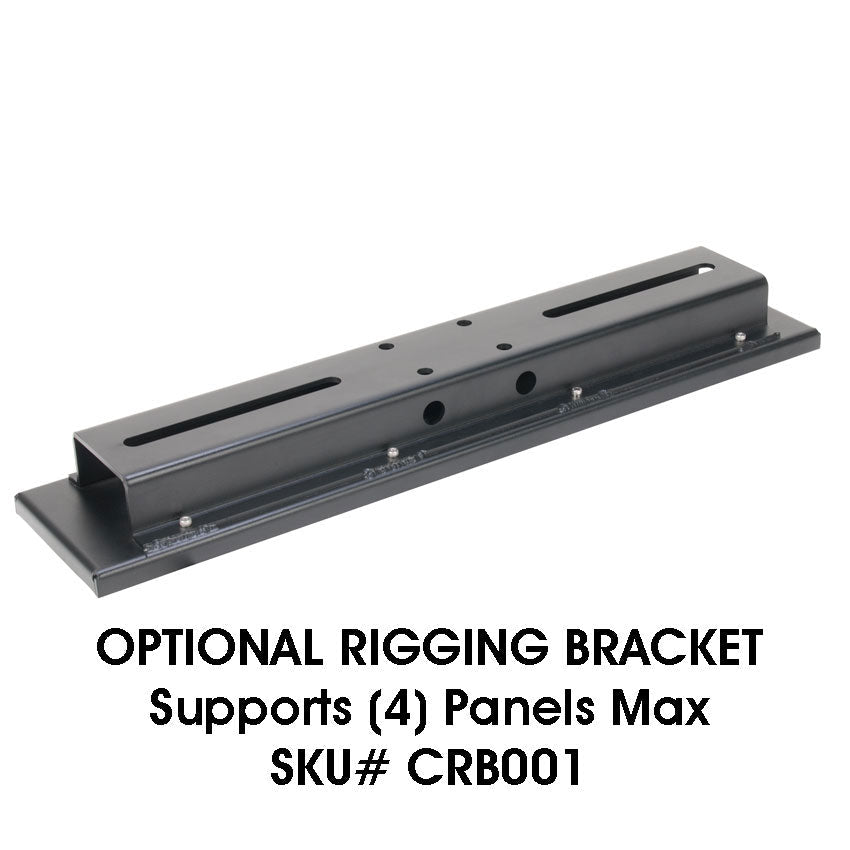

RIGGING BAR SKU# CRB001

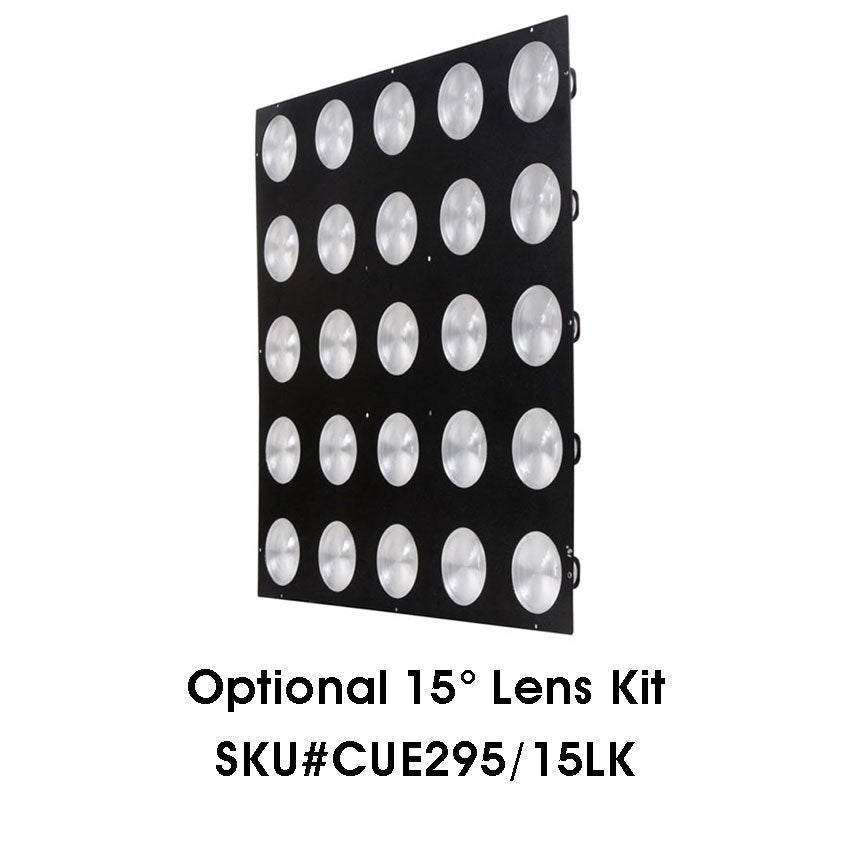

15 DEGREE LENS KIT SKU# CUE295/15LK
(25) 30W 3-in-1 RGB COB LEDs
100,000 Hour Average Life
PHOTOMETRIC DATA
15,490 Max LUX (1439 fc) @2M (Full On)
3310 Max LUX (307 fc) @2M (Red LEDs)
3720 Max LUX (346 fc) @2M (Green LEDs)
5870 Max LUX (545 fc) @2M (Blue LEDs)
EFFECTS
Variable / Selectable Dimming Curves
Auto Chase and Zone Program Macros
CONTROL / CONNECTIONS
5 DMX Channel Modes (3 / 6 / 7 / 75 / 79)
4 Button Control Panel and LCD Menu Display
ArtNet™ + KlingNet™ Protocol Support
RDM (Remote Device Management)
(2) RJ45 Ports
3pin and 5pin DMX In/Out
RDM (Remote Device Management)
Locking Power cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 24.8” (630 mm)
Width: 5.1” (130 mm)
Vertical Height: 25.6” (650 mm)
Weight: 36.4 lbs. (16.5 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
750W Max Power Consumption
-14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
INCLUDED ACCESSORIES
Locking Power Cable
OPTIONAL ACCESSORIES:
RIGGING BAR SKU# CRB001
15 DEGREE LENS KIT SKU# CUE295/15LK
FIRMWARE UPDATES
Current Version: V1.20
Downloads
Cad drawing
Dmx traits
Ies files
Photometrics
Specification sheet
User manual
- CUEPIX PANEL User Manual ver 3.2
- CUEPIX PANEL User Manual ver 2.2
- CUEPIX PANEL User Manual ver 1.2
- CUEPIX PANEL User Manual - French
Vectorworks symbol
- CUEPIX PANEL Vectorworks 2015 Symbol
- CUEPIX PANEL Vectorworks 2013 Symbol
- CUEPIX PANEL Vectorworks 2014 Symbol
- CUEPIX PANEL Vectorworks 2016 Symbol
Generic

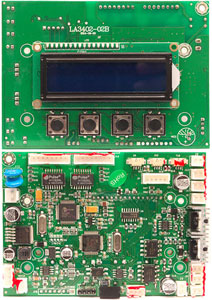

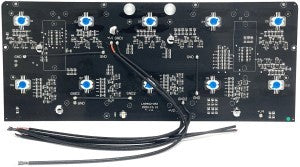

CUEPIX Panel Parts & Service
Our CUEPIX Panel Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your CUEPIX Panel. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
CUEPIX Panel Parts & Service
