CUEPIX STRIP TRI

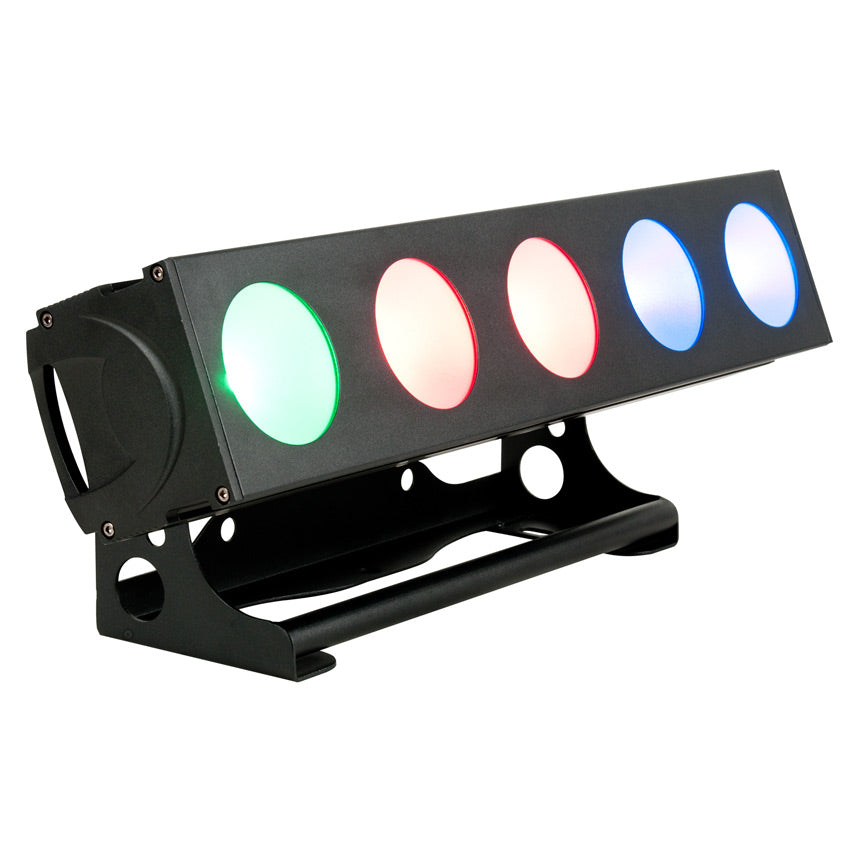

The CUEPIX Strip TRI™ is a bar luminaire with (5) individual 3-in-1 30W RGB COB LEDs producing a 60° beam angle. Features include individual pixel control, strobe and zone chase effects, selectable dimming curves, DMX and RDM (Remote Device Management) support, 3/5pin XLR and powerCON in/out connections, (4) button LCD menu display control, 150W max power consumption, an and a multi-voltage universal auto switching power supply (100-240v).
- 60° Beam Angle RGB Bar Luminaire
- (5) Pixel Controlled 30W 3-in-1 RGB COB LEDs
- Strobe and Zone Chase Effects
- Selectable Dimming Curve Effects
- DMX and RDM (Remote Device Management) Support
- Flicker Free Operation for Broadcast TV and FILM
- Integrated Rigging Bracket
- Optional 15° Lens Kit Available
Specifications
(5) 30W RGB 3-in-1 COB LEDs
100,000 Hour Average Lamp Life
PHOTOMETRIC DATA (60° Full ON)
4,170 LUX 387 FC @3.3’ (1m)
1,150 LUX 107 FC @6.6’ (2m)
540 LUX 50 FC @9.8’ (3m)
253 LUX 24 FC @13.1’ (4m)
157 LUX 15 FC @16.4’ (5m)
EFFECTS
Individual Pixel Control
Strobe and Zone Chase Effects
Selectable Dimming Curves

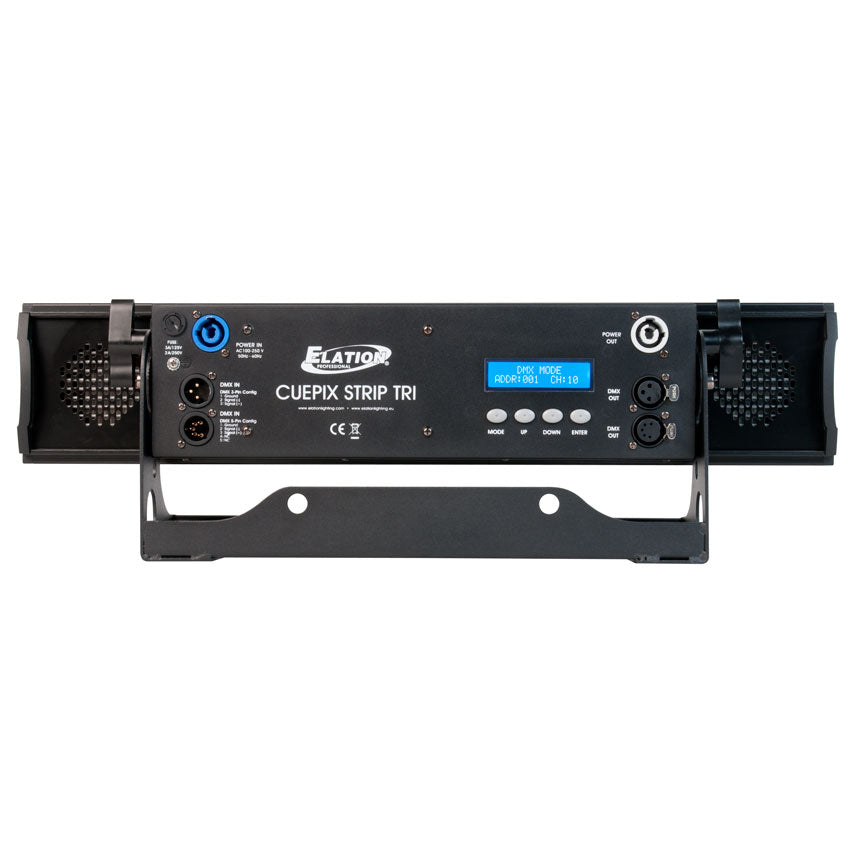

CONTROL / CONNECTIONS
(5) DMX Channel Modes (3 / 6 / 7 / 15 / 19)
RDM (Remote Device Management)
4 Button Touch Control Panel
3pin/5pin DMX In/Out
powerCON Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 21.6” (550mm)
Width: 6.4” (161.2mm)
Vertical Height: 6.8” (172.5mm)
Weight: 13.9 lbs. (6.3 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
150W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
OPTIONAL ACCESSORIES:

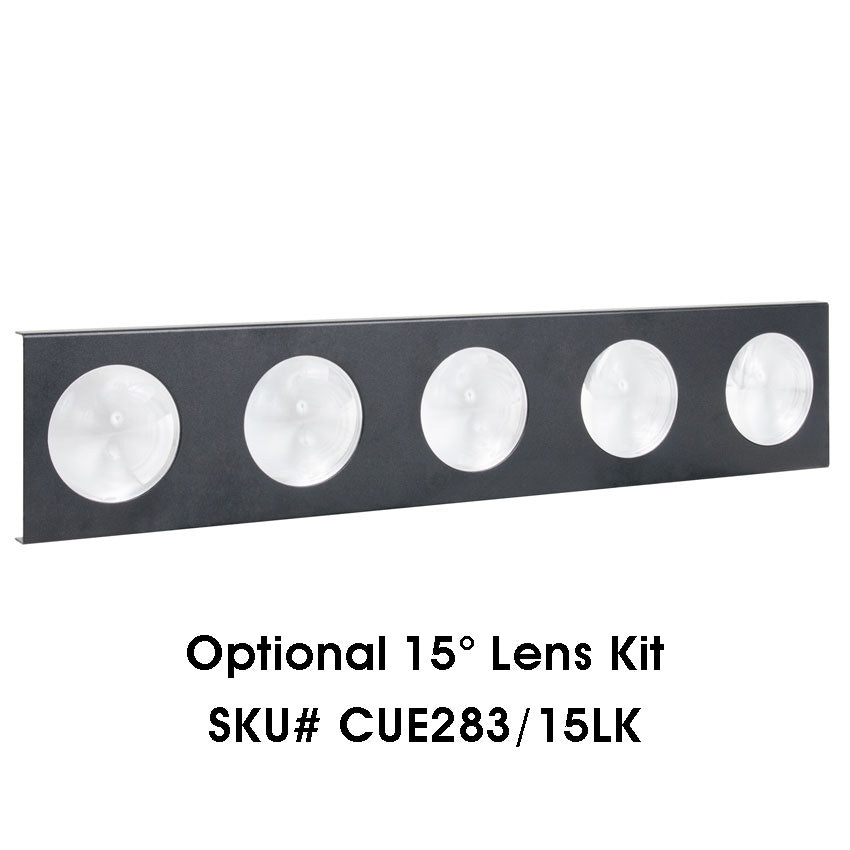

15 DEGREE LENS KIT SKU# CUE283/15LK
Specifications and documentation subject to change without notice.
