CYBER PAK 15A
Discontinued

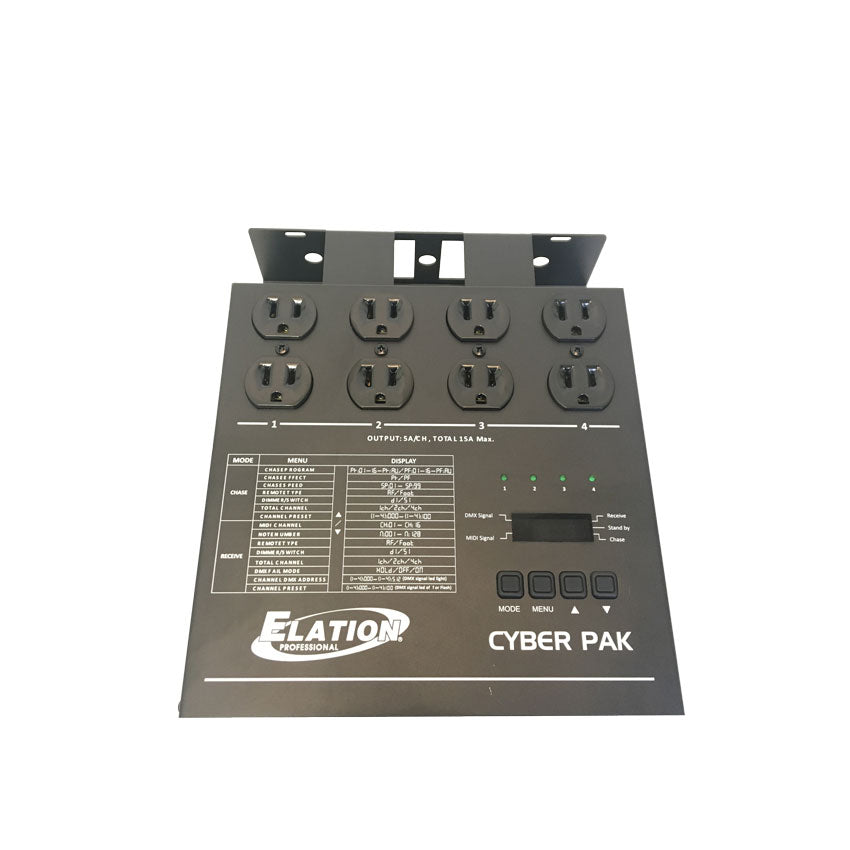

CYBER PAK 15A is a professional-grade lighting solution. The CYBER PAK™ is an all-in-one Dimmer/Power/MIDI Pack with multiple functions.
CYBER PAK 15A
Sale price$0.00
CYBER PAK 15A
The CYBER PAK™ is an all-in-one Dimmer/Power/MIDI Pack with multiple functions. This pack allows you to convert from a dimmer to a relay pack through the menu function.
- (4) Channel Dimmer/Relay/MIDI Pack
- Individual DMX Address for each Channel
- Selectable Modes (Dimmer or Switch Pack)
- (16) Internal Chase Macros with Fade In/Out
- DMX Fail (loss of signal) Settings: HOLD/OFF/ON
- Power Failure Memory
- DIMMER MODE:
- (4) Channel Dimmer (1, 2 or 4 Channel Option)
- Individual Channel Assignment & Output Limiter
- RELAY MODE:
- (4) Channel Relay (1, 2 or 4 Channel Option)
- Individual Channel Assignment
- CHASER MODE:
- (4) Channel Chase Controller
- 16 Internal Chase Programs
- Adjustable Fade Times
- MIDI MODE:
- Receives MIDI Notes 001-128 Program
- MIDI In & MIDI Through Connections
Specifications

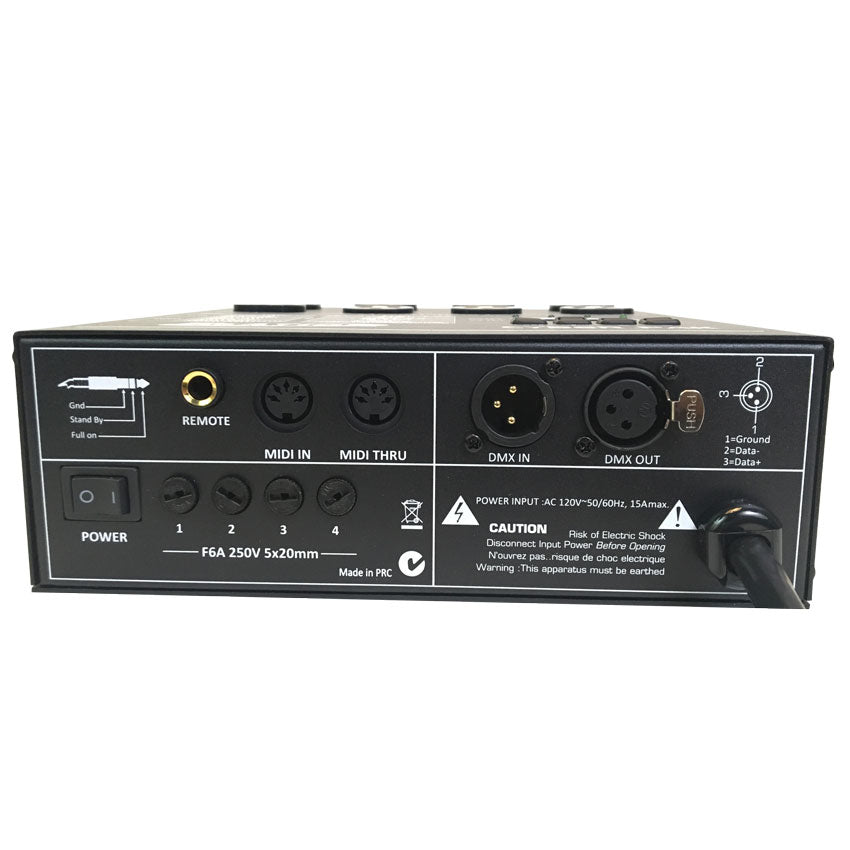

CONTROL / CONNECTIONS
(2) 3-prong Edison Sockets per Channel (8 total)
5pin MIDI IN/OUT Ports
3pin XLR IN/OUT Ports
(4) Button LED Display Control Panel
Master Power Switch
SIZE / WEIGHT
Length: 8.3” (212mm)
Width: 10.4” (265mm)
Vertical Height: 3.0” (75mm)
Weight: 8.0 lbs. (3.6kg)
ELECTRICAL / THERMAL
AC 120V 50/60Hz 20A Max
2,400W Max Power Consumption (600W per channel)
APPROVALS / RATINGS
CE | cETLus
Specifications and documentation subject to change without notice.
(2) 3-prong Edison Sockets per Channel (8 total)
5pin MIDI IN/OUT Ports
3pin XLR IN/OUT Ports
(4) Button LED Display Control Panel
Master Power Switch
SIZE / WEIGHT
Length: 8.3” (212mm)
Width: 10.4” (265mm)
Vertical Height: 3.0” (75mm)
Weight: 8.0 lbs. (3.6kg)
ELECTRICAL / THERMAL
AC 120V 50/60Hz 20A Max
2,400W Max Power Consumption (600W per channel)
APPROVALS / RATINGS
CE | cETLus
Specifications and documentation subject to change without notice.
