DARKFX SPOT 510IP
DarkFX Spot 510IP is a professional-grade lighting solution. The Antari DarkFX Spot 510IP is an IP65 outdoor rated efficient high output low power consumption UV LED spot that delivers a peak wavelength of 365nm and radiant flux output of 4500mW at full intensity with minimum visible light.
Related Products
DARKFX SPOT 510IP

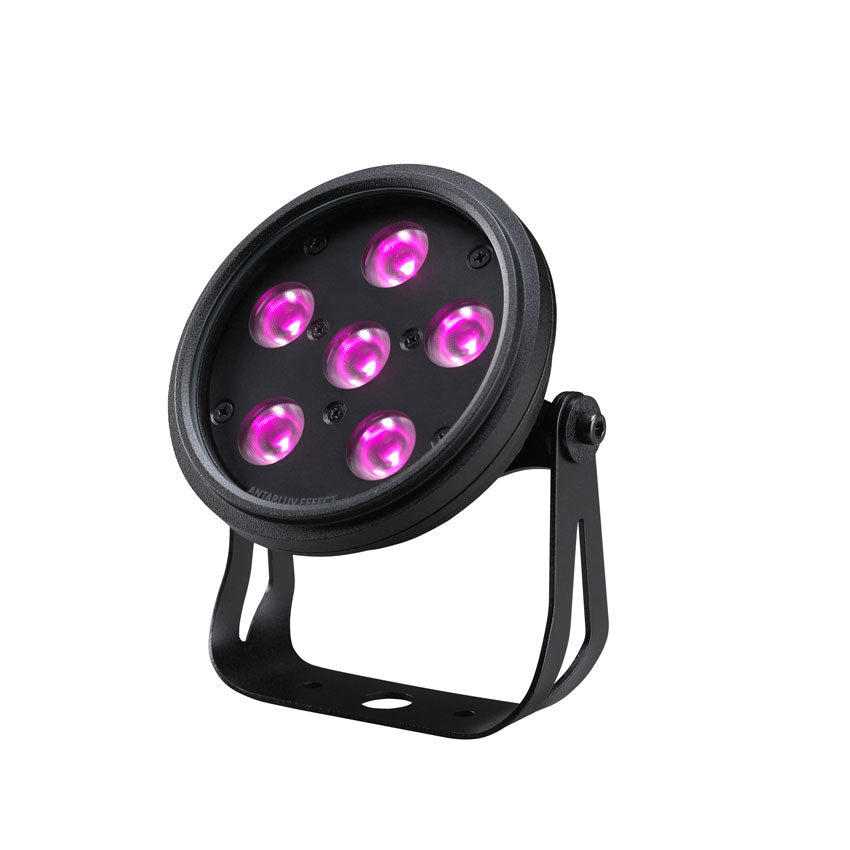

The Antari DarkFX Spot 510IP is an IP65 outdoor rated efficient high output low power consumption UV LED spot that delivers a peak wavelength of 365nm and radiant flux output of 4500mW at full intensity with minimum visible light. This ensures all UV reactive materials, art, amusement park displays, and signage reflects perfectly with stunning bright and vivid colors.

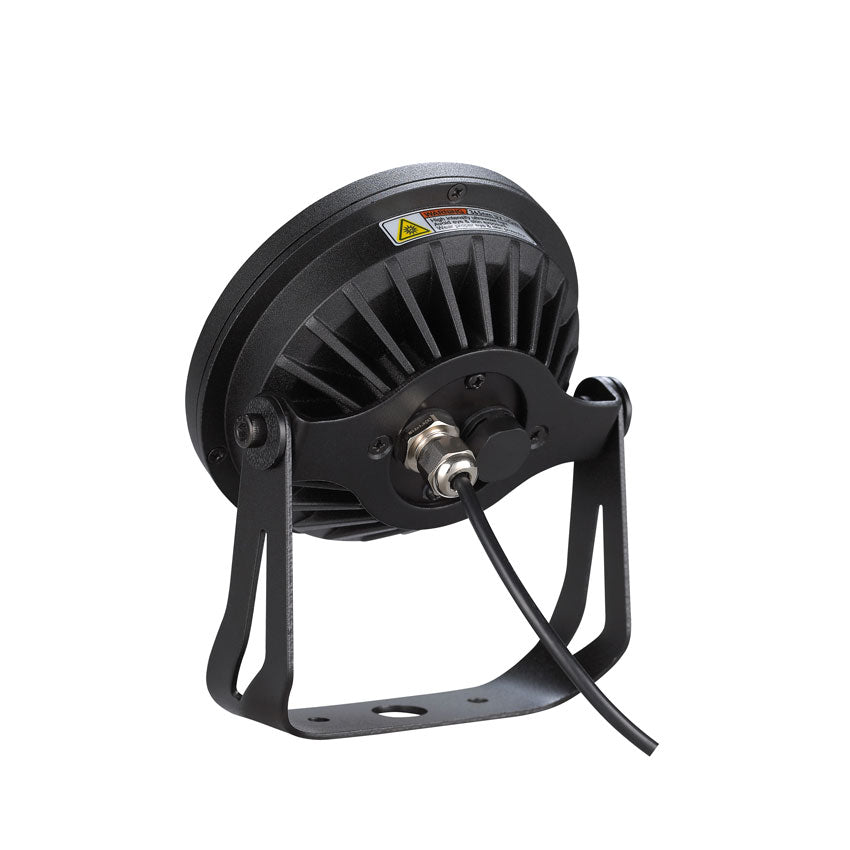

It features (6) 1.9W high power UV LEDs, a 15-degree narrow beam angle, special optics to prevent wear degradation from high UV exposure, flicker free operation for TV and FILM, a die-cast aluminum housing, an adjustable yoke for versatile mounting options, and comes with a 22AWG power/data bare wire end pigtail cable attached on the back which connects to the Antari DarkFX Drive 4 fixture driver (sold separately) which is required for power and DMX control.
- IP65 Outdoor Rated High Efficiency UV LED Spot
- 15-Degree Narrow Beam Angle
- 365nm Peak Wavelength with Minimum Visible Light
- 4500mW High Output at Full Intensity
- Special Optics to Prevent Wear Degradation from High UV Exposure
- Flicker Free Operation for TV and FILM
Specifications
SOURCE
(6) 1.9W High Power UV LEDs
20,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
Optics: 15 Degrees
Peak Wavelength: 365nm
Radiant Flux Output: 4500 mW
CONTROL / CONNECTIONS
DarkFX Drive 4 Power/DMX Fixture Driver (sold separately)
Cable Connection: 22 AWG Bare Wire Power/Data Combo Cable
SIZE / WEIGHT
Length: 4.4” (110.5mm)
Width: 1.96” (46.8mm)
Vertical Height: 5.3” (134.25mm)
Dry Weight: 0.71 lbs. (1.6 kg)
ELECTRICAL
DC 20-24V
12W Max Power Consumption
APPROVALS / RATINGS
CE | IP65
Specifications and documentation subject to change without notice.
