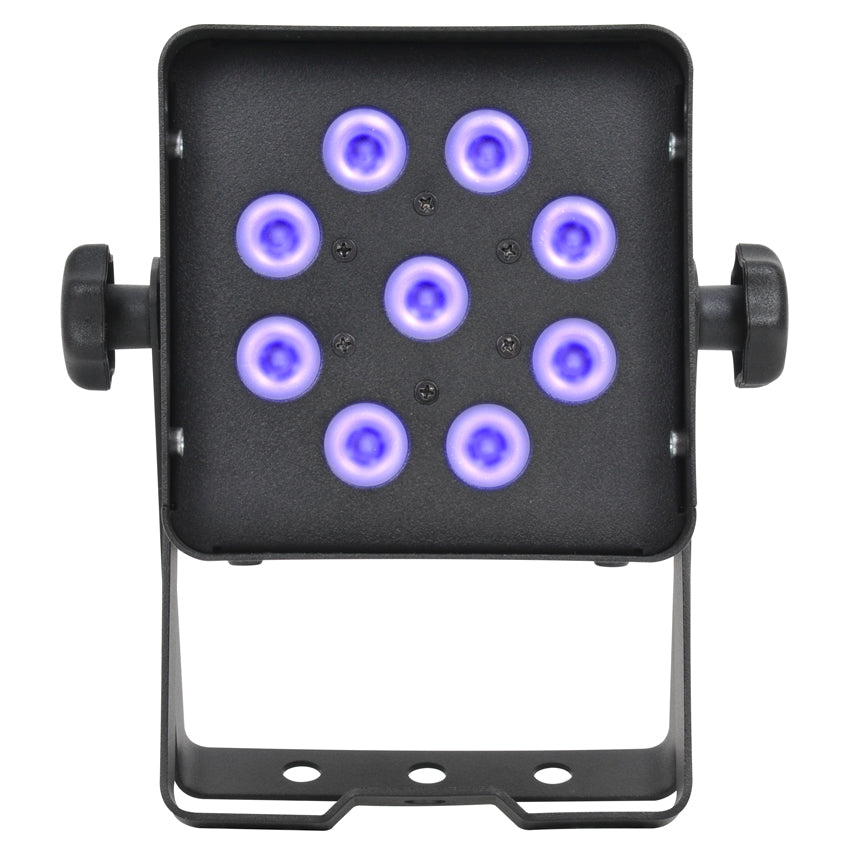

DARKFX UV SPOT 670
DarkFX UV Spot 670 is a professional-grade lighting solution. The Antari DarkFX Spot 670 is an efficient high output low power consumption UV LED spot that delivers a peak wavelength of 365nm and radiant flux output of 6760mW at full intensity with minimum visible light.

DARKFX UV SPOT 670
Specifications
SOURCE
(9) 1.9W High Power UV LEDs
20,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
Optics: 15 Degrees
Peak Wavelength: 365nm
Radiant Flux Output: 6760 mW
CONTROL / CONNECTIONS
Manual and DMX 512 Control
4 Button Control Panel
5pin DMX In/Out
Locking Power Cable In/Out
SIZE / WEIGHT
Length: 8.0” (205mm)
Width: 4.9” (125mm)
Vertical Height: 4.9” (125mm)
Weight: 5.82 lbs. (2.64 kg)
ELECTRICAL
AC100-240V 50-60Hz
19.1W @110VAC / 18.8W @220VAC Max Power Consumption
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Photometrics
Specification sheet
User manual
Vectorworks symbol
