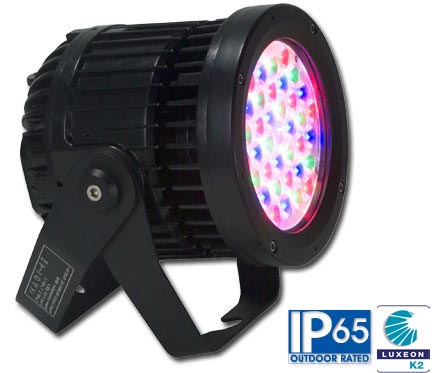

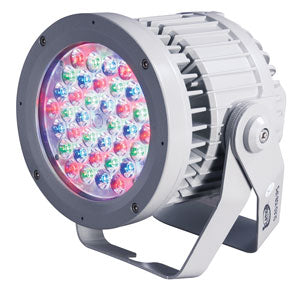

DESIGN LED 108IP
Discontinued
Design LED 108IP is a professional-grade lighting solution. Diecast Outdoor IP65 LED RGB FEATURES • 36 x 3W K2 LEDs - (12 each R, G, B) #160; • Long Life L.E.D.
DESIGN LED 108IP
Sale price$0.00
DESIGN LED 108IP
Diecast Outdoor IP65 LED RGB
- FEATURES
- 36 x 3W K2 LEDs - (12 each R, G, B)
- Long Life L.E.D. (rated at 100,000 Hours)
- Linear RGB color mixing allows for infinite color possibilities and smooth transitions
- IP 65 outdoor rated, compact design, die cast case
- Silent operation, convection cooled (No fans)
- 15° standard beam angle (25° & 45° optional lens kits available)
- Built-in, auto switching power supply
- DMX controllable / Built-in Programs / Manual Control
- Linkable power / data IP rated cables supplied w/ fixture - 3' leads
- Flicker free
- Available in BLACK or SILVER case finish - DLED 108IP and DLED 108IPS
Specifications
CONTROL SPECIFICATIONS
• USITT DMX 512
• 3, 4 amp; 6 CH DMX control modes
• LED display with easy to use function keys
• 3 pin XLR data input amp; output
• AC Power input amp; output
CONTROL FEATURES
• 6 built-in programs with Speed control
• Strobe effect (1-18 flashes per second)
• Selectable dim options (Standard amp; Linear)
• 0-100% dimming
• Primary/Secondary auto program and sound trigger
POWER SUPPLY
• Multi-voltage: 100-240VAC, 50/60Hz
• Power Consumption: 150 watts
RIGGING
• Mounting bracket designed for floor, wall or truss mount
• Molded eye hole for safety cable
DIMENSIONS amp; WEIGHT
• (LxWxH): 8.8” x 8” x 10.8” / 223.52 x 203.20 x 274.32mm
• 15.2 lbs. / 6 kgs.
